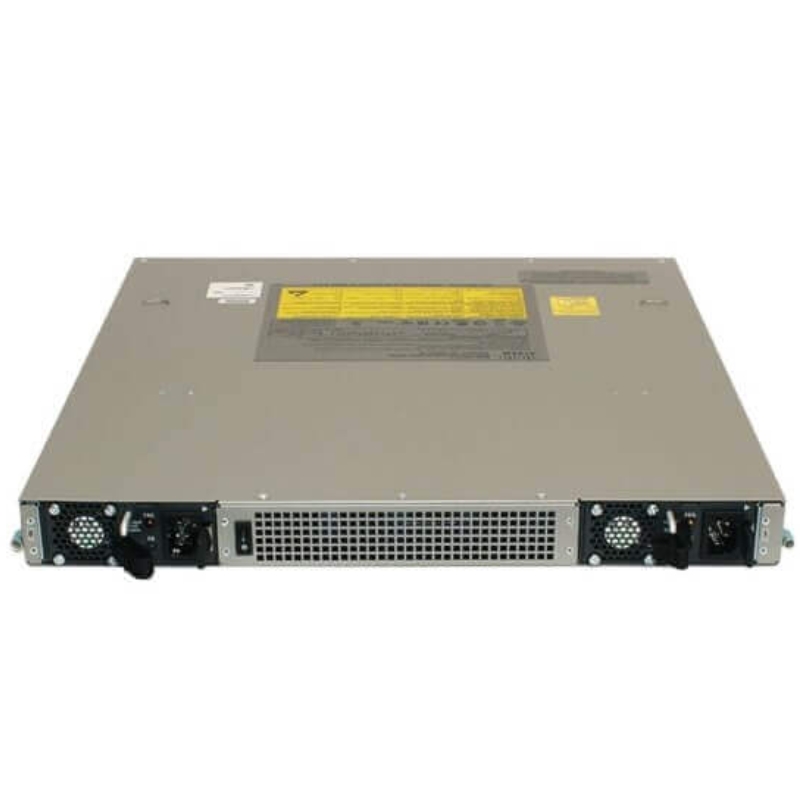

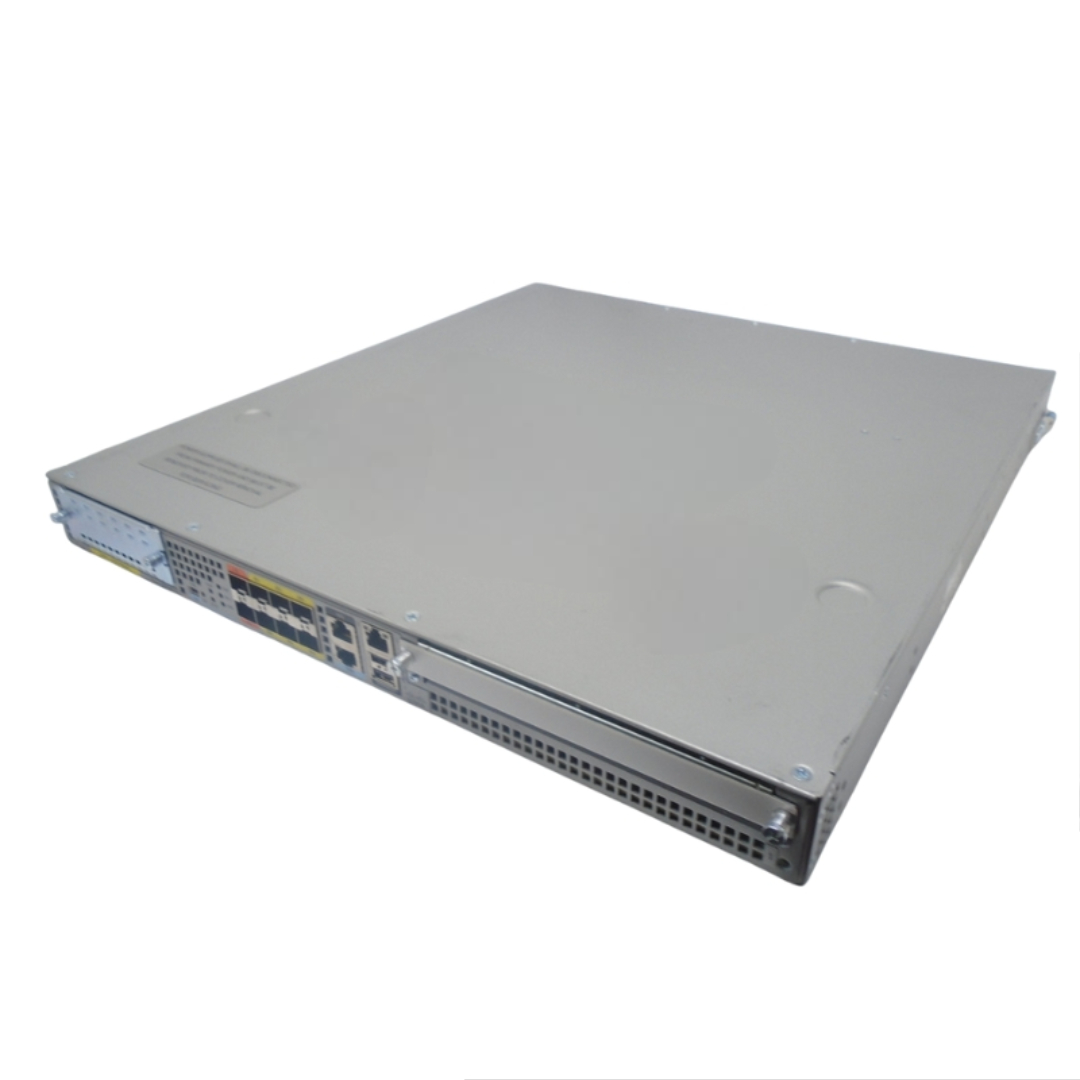

Cisco ASR1001X-20G-VPN ASR 1001-X 10 Gigabit Ethernet Router

General Overview of Cisco 10 Gigabit Ethernet Router

Manufacturer and Model Information

• Manufacturer: Cisco
• Part Number: ASR1001X-20G-VPN
• Series: ASR 1000
• Model Name: ASR 1001-X Router
• Product Type: Router

Technical Specifications of the ASR 1001-X Router Module

Physical and Connectivity Details

• Enclosure Type: Rack-mountable, modular, 1U
• Connection Technology: Wired
• Data Link Protocol: Gigabit Ethernet

Performance and Protocols

• Bandwidth: 20 Gbps
• Network Protocol: IPSec
• Encryption Standard: AES

Key Features

• Firewall Protection
• VPN Support

Compliance and Standards

• EN55022
• UL 60950
• CISPR 22
• EN50082-1
• EN 61000-6-1
• AS/NZS 60950-1
• EMC
• ICES-003 Class A
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• AS/NZS
• CAN/CSA C22.2 No. 60950-1-03
• VCCI Class A
• EN 55024: CISPR 24:2010
• EN 300 386

Memory and Processor

Processor and RAM

• Processor: 1 x
• RAM: 8 MB installed, expandable to 16 GB

Status Indicators

• Power
• Status
• Alarm
• Console

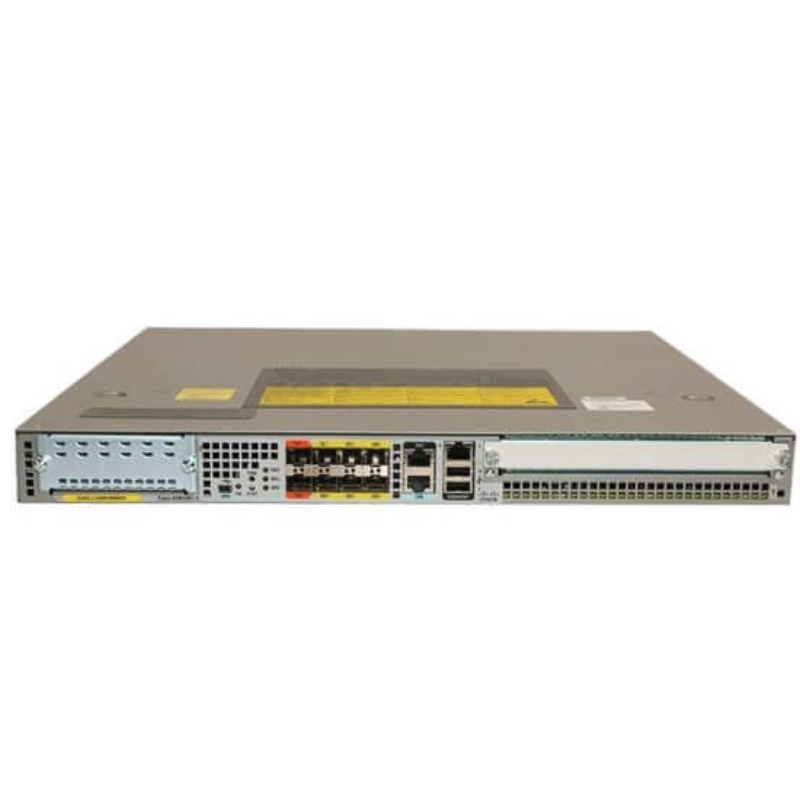

Expansion and Connectivity Options

Interface and Expansion Slots

Management Interfaces:

• 1 x 10Base-T/100Base-TX – RJ-45
• 1 x Console – RJ-45
• 1 x Auxiliary – RJ-45

USB Ports:

• 1 x Console
• 2 x 4-pin USB Type A
• SFP (mini-GBIC) Ports: 6 x
• SFP+ Ports: 2 x
• Expansion Slots: 1 (total), 0 (free)
• Installed Modules Quantity: 0 (installed), 1 (max)

Power Specifications

Power Supply and Redundancy

• Power Device: Internal power supply
• Power Redundancy: Yes
• Installed Power Supplies: 2 (installed), 2 (max)

Enhanced Security

Security is a critical aspect of any network infrastructure, and the ASR1001X-20G-VPN feature ensures that your data is protected from unauthorized access. By utilizing VPN technology, this router creates a secure tunnel between remote sites, allowing for encrypted communication. This helps prevent data breaches and ensures confidentiality.

Data Encryption

The ASR1001X-20G-VPN feature uses advanced encryption algorithms to protect your data during transmission. It encrypts sensitive information, making it unreadable to anyone without the proper decryption keys. This ensures that even if intercepted, your data remains secure and confidential.

Secure Remote Access

With the ASR1001X-20G-VPN feature, remote employees and branch offices can securely access the network resources of the main office. This enables seamless collaboration and enhances productivity by providing a secure connection for remote workers.

Cost Savings

Implementing a VPN solution with the ASR1001X-20G-VPN feature eliminates the need for dedicated leased lines or costly MPLS connections. Instead, organizations can leverage existing internet connections to establish secure connections between sites, resulting in significant cost savings.

Easy Management

Managing a VPN network can be complex, but the ASR1001X-20G-VPN feature simplifies this process with its intuitive management interface. Network administrators can easily configure and monitor VPN connections, ensuring optimal performance and security.

Scalability

The ASR1001X-20G-VPN feature is designed to handle the growing demands of modern networks. It supports a large number of VPN tunnels, allowing for seamless expansion as your network grows. This scalability ensures that the router can handle increased traffic and maintain high-performance levels.

Interfaces: 10 Gigabit Ethernet

The Cisco ASR 1001-X Router offers a range of interfaces to accommodate various connectivity requirements. One of the key interface options available is the 10 Gigabit Ethernet interface. This feature provides users with high-speed connectivity, enabling fast and reliable data transfer.

Increased Bandwidth

The 10 Gigabit Ethernet interface offers significantly higher bandwidth compared to traditional Ethernet connections. With speeds up to 10 gigabits per second, this interface allows for fast data transfer and reduces latency, ensuring quick access to network resources.

Supports High-Volume Traffic

In today's data-driven world, networks must support heavy traffic loads without compromising performance. The 10 Gigabit Ethernet interface addresses this need by providing ample capacity to handle high-volume data transfers, making it ideal for businesses with demanding network requirements.

Smooth Multimedia Streaming

Multimedia applications such as video conferencing and streaming require a stable and high-speed connection to deliver a seamless user experience. The 10 Gigabit Ethernet interface ensures smooth multimedia streaming by providing sufficient bandwidth to handle the demands of these applications.

Data Center Connectivity

Data centers often require high-speed connections to ensure efficient data transfer between servers and other network devices. The 10 Gigabit Ethernet interface enables fast and reliable connectivity within the data center environment, facilitating smooth operations and reducing bottlenecks.

Future-Proofing

As technology continues to advance, network requirements will inevitably increase. The 10 Gigabit Ethernet interface future-proofs your network infrastructure by providing a scalable solution that can accommodate future growth in bandwidth demands.

Compatibility

The 10 Gigabit Ethernet interface is compatible with a wide range of networking equipment, ensuring seamless integration into your existing network infrastructure. It allows for flexible connectivity options, enabling the router to connect to various devices such as switches, servers, and storage systems.

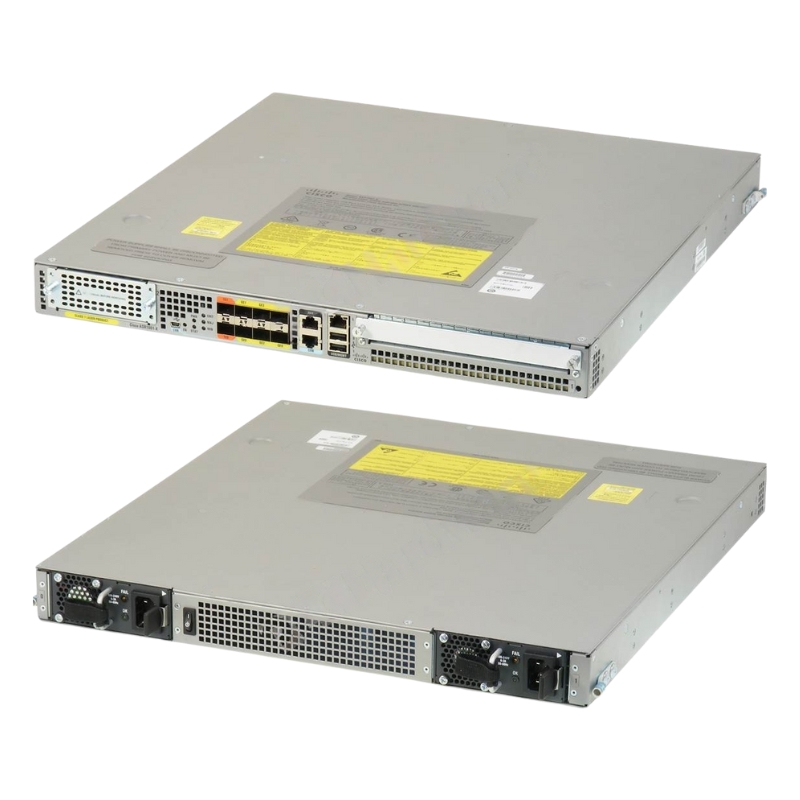

Mounting: Rack-mountable

The Cisco ASR 1001-X Router offers flexible mounting options to suit different deployment scenarios. One of the key mounting options available is rack-mountable. This feature allows for easy installation and organization of the router within a standard equipment rack.

Space Efficiency

Rack-mountable routers offer significant space savings compared to standalone devices. By securely mounting the router in a rack, you can optimize the use of valuable floor or wall space in your network environment. This is particularly beneficial for organizations with limited physical space.

Improved Cable Management

Rack-mounted routers provide a structured and organized approach to cable management. With dedicated cable management features, such as cable trays and routing channels, you can neatly route and secure cables, reducing clutter and simplifying troubleshooting.

Accessibility

Mounting the router in a rack ensures easy access to the device for maintenance and configuration purposes. It allows for convenient front and rear access to ports, power supplies, and other components, minimizing downtime and facilitating efficient network management.

Scalability

Rack-mounted routers are designed to accommodate expansion and scalability. As your network grows, you can easily add additional routers to the rack, ensuring a seamless integration process. This scalability allows for future expansion without major infrastructure changes.

Physical Security

Rack-mounted routers offer enhanced physical security compared to standalone devices. By locking the equipment rack, you can prevent unauthorized access and tampering, protecting your network infrastructure from potential threats.

Standardized Design

Rack-mountable routers adhere to industry-standard rack sizes, ensuring compatibility and interoperability with other networking equipment. This standardized design simplifies installation and maintenance processes, reducing the risk of compatibility issues and facilitating seamless integration into your network environment.

In conclusion, the Cisco ASR 1001-X Router excels in its features, including the ASR1001X-20G-VPN for enhanced security and secure remote access, 10 Gigabit Ethernet for high-speed connectivity and future-proofing, and rack-mountable for space efficiency and scalability. With these features, users can enjoy improved network performance, increased security, and simplified network management. Whether it's for small businesses or large enterprises, the Cisco ASR 1001-X Router is a reliable choice for building a robust and efficient network infrastructure.
