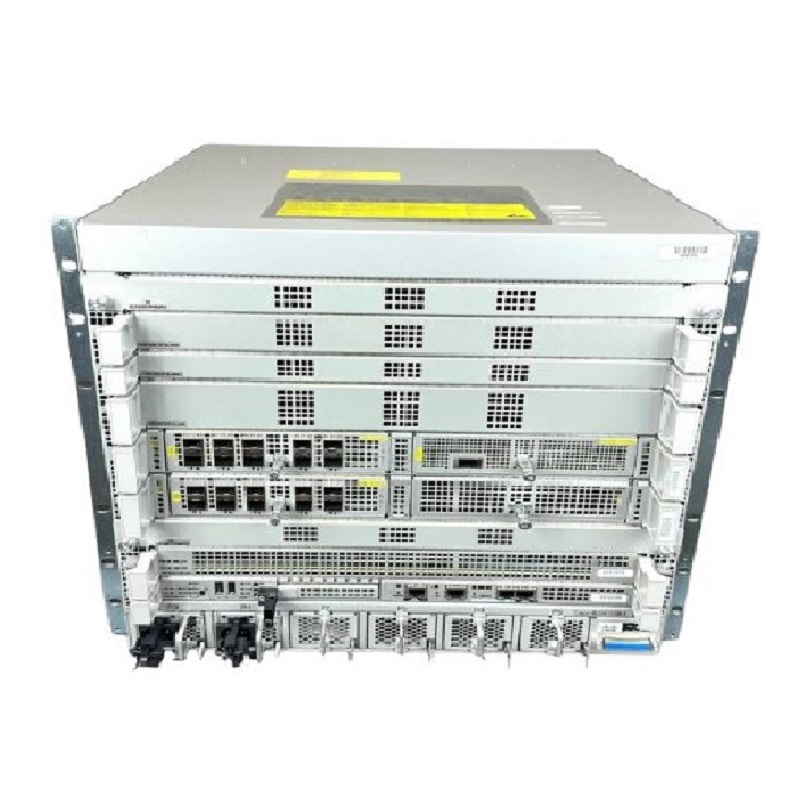

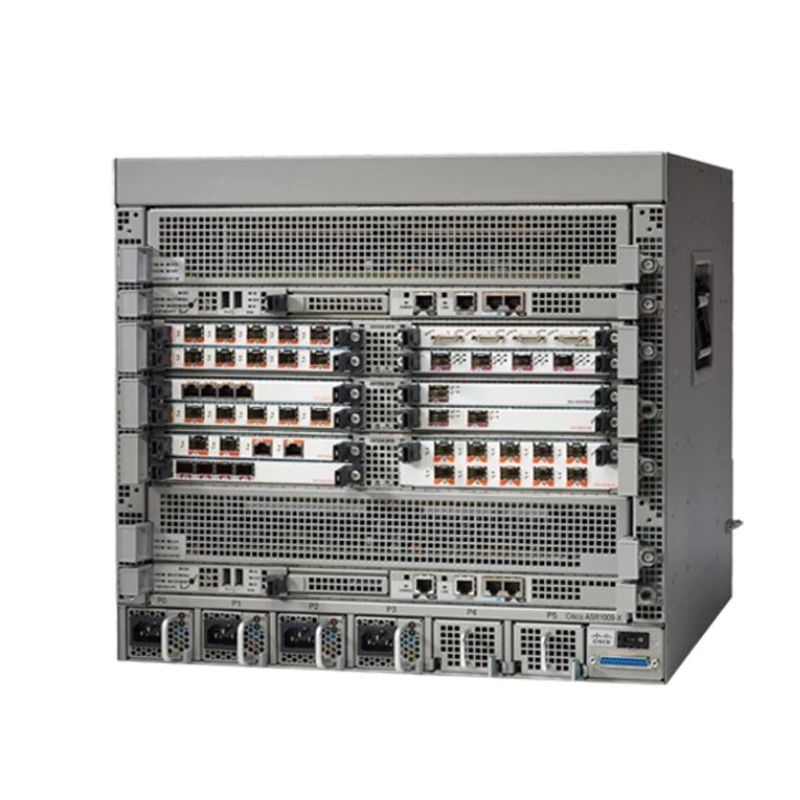

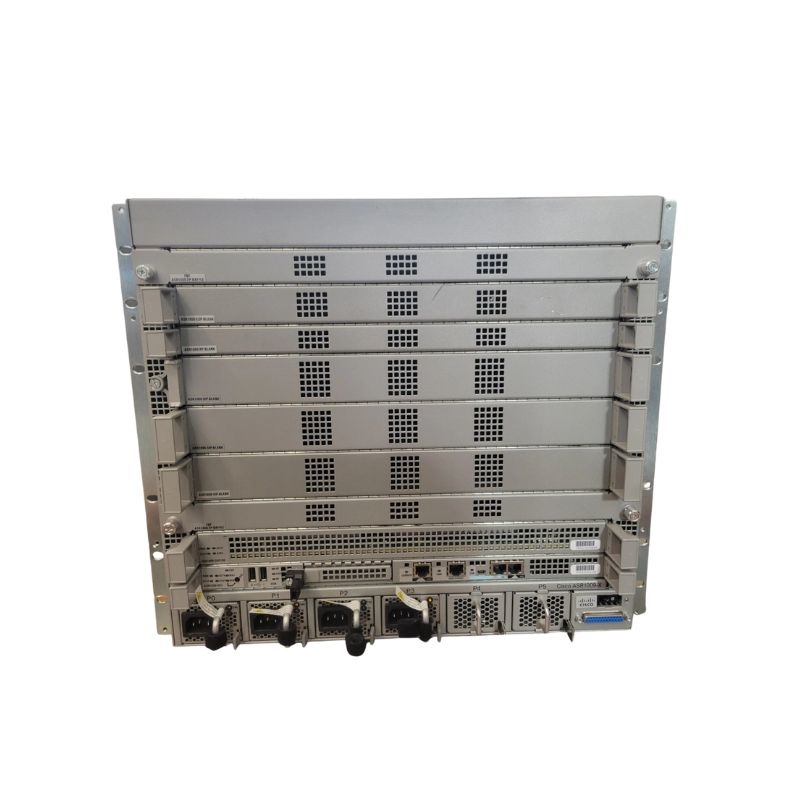

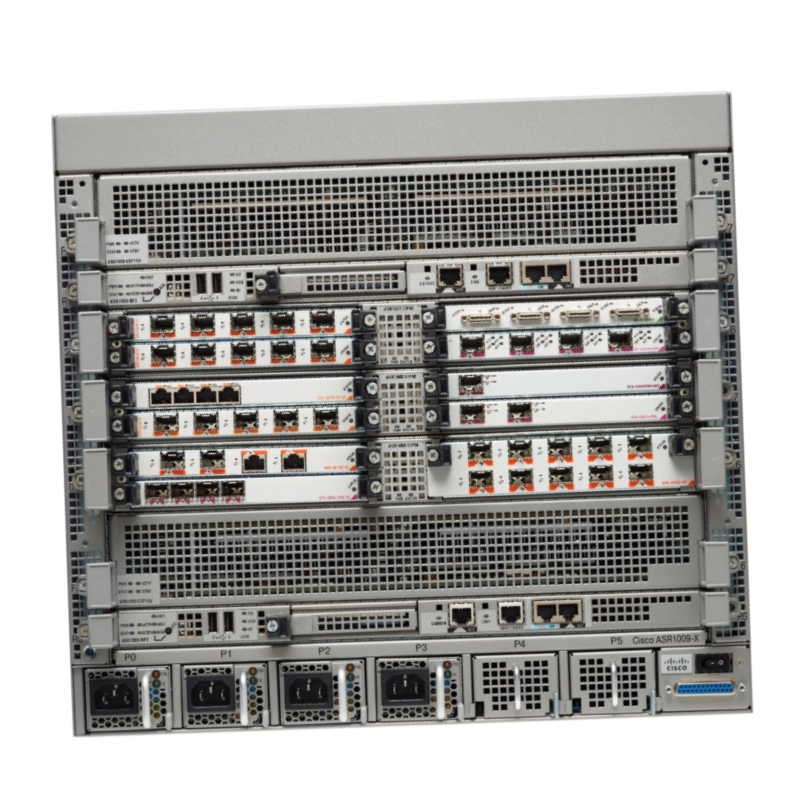

Product Overview Cisco ASR1009-X Aggregation Services Router

The Cisco ASR1009-X modular expansion router is engineered to deliver high-performance networking, scalability, and carrier-grade reliability for modern enterprise and service provider environments. Designed for rack-mount deployment, this advanced routing system supports high-speed data processing, secure connectivity, and seamless service delivery across diverse infrastructures.

Product Specifications

• Manufacturer: Cisco
• Model Number: ASR1009-X
• Device Category: Aggregation Services Router
• Deployment Type: Rack-mounted modular chassis

Throughput and Bandwidth

• Supports up to 200 Gbps aggregate system throughput
• Designed for high-capacity data transmission across multiple network layers
• Optimized for bandwidth-intensive workloads

Packet Processing Efficiency

• Delivers forwarding performance of up to 130 million packets per second (mpps)
• Ensures minimal latency and consistent data flow
• Ideal for real-time applications and mission-critical services

Secure IPsec Performance

• Supports IPsec encryption throughput up to 86 Gbps
• Enables secure VPN connectivity for distributed networks
• Maintains high-speed encrypted traffic without compromising performance

Advanced Routing Scalability

• Supports up to 4 million IPv4 and IPv6 routes
• Requires 8GB memory configuration for maximum scalability
• Ideal for ISPs, large enterprises, and cloud providers

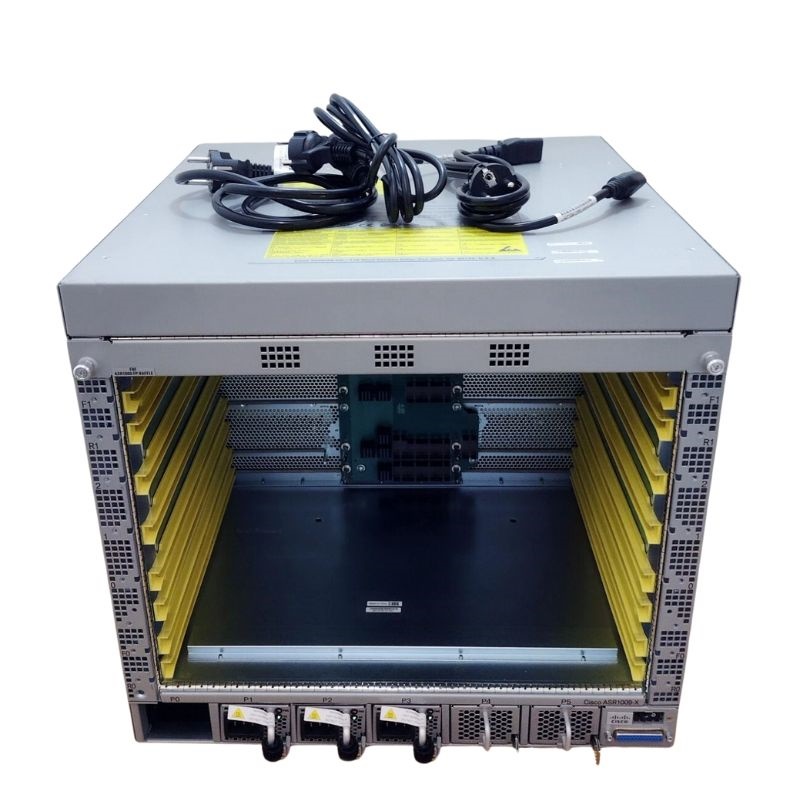

Chassis Slot Configuration

• 3 dedicated line card slots for interface flexibility
• Compatible with SIPs, Ethernet line cards, and modular processors

Route Processor Slots

• Includes 2 route processor (RP) slots
• Enables control plane redundancy for uninterrupted operations
• Supports failover mechanisms for enhanced reliability

Embedded Services Processor Slots

• Equipped with 2 ESP slots for forwarding plane redundancy
• Provides high-speed data processing and traffic management
• Ensures consistent performance during hardware failover

Interface Expansion and Port Density

• Supports up to 12 Shared Port Adapter (SPA) slots
• Alternatively accommodates up to 6 Ethernet Port Adapter (EPA) slots
• Allows flexible deployment of multiple interface types

Comprehensive Hardware Redundancy

• Redundant route processors for control plane resilience
• Dual embedded services processors for forwarding continuity
• Multiple power supply units for uninterrupted power delivery
• Redundant fan trays for consistent thermal management

Five-Nines Availability

• Engineered to deliver 99.999% uptime
• Minimizes service interruptions and downtime risks
• Ideal for telecom operators and enterprise core networks

Power Supply Configuration

• Supports up to 6 AC power modules (1100W each)
• Compatible with DC power units (950W each)
• Implements N+1 redundancy for enhanced reliability

Efficient Cooling System

• Includes 3 field-replaceable fan trays
• Designed with front-to-back airflow for optimal cooling
• Ensures stable operation under heavy workloads

Dimensions and Form Factor

• Height: 15.72 inches (9RU)
• Width: 17.2 inches
• Depth: 18.15 inches
• Designed for standard rack installation

Weight and Build Quality

• Approximate weight: 154 lbs (70 kg) when fully configured
• Robust construction for long-term deployment
• Supports high-density component integration

Operating System Compatibility

• Runs on Cisco IOS XE software platform
• Minimum supported version: 3.16.0
• Provides a stable and scalable networking foundation

Integrated Hardware Acceleration

• Hardware-based Quality of Service (QoS) for traffic prioritization
• Advanced Access Control Lists (ACLs) for network security
• Built-in cryptographic acceleration for secure communications

Enhanced Network Services

• Supports deep packet inspection and traffic classification
• Improves network visibility and control
• Enhances overall service delivery and user experience

Scalable Deployment for Modern Networks

This modular router is well-suited for evolving network infrastructures, including enterprise WAN, service provider edge, and cloud connectivity environments. Its flexible architecture and high-performance capabilities make it an ideal solution for organizations seeking scalable and future-ready networking solutions.

Key Deployment Benefits

• Supports high-speed WAN aggregation and edge routing
• Facilitates secure and scalable cloud connectivity
• Adapts to growing bandwidth and application demands
• Ensures long-term investment protection through modular upgrades

Cisco ASR1009-X Modular Expansion Rack-mountable

The Cisco ASR1009-X Modular Expansion Rack-mountable platform represents a highly scalable and performance-driven routing solution designed to meet the evolving demands of enterprise and service provider networks. This category focuses on advanced aggregation, edge routing, and high-throughput network environments where flexibility, modularity, and reliability are critical. The chassis-based design allows organizations to deploy a powerful routing infrastructure capable of handling increasing data volumes while maintaining operational efficiency.

High-Performance Modular Framework

The modular architecture of the ASR1009-X enables seamless integration of multiple hardware components, allowing network engineers to tailor configurations based on specific requirements. This flexibility is achieved through dedicated slots for line cards, route processors, and embedded services processors, ensuring that each component contributes to optimal performance. The rack-mountable design further enhances deployment efficiency, making it suitable for data centers and enterprise network closets where space optimization is essential.

Scalable Throughput Capabilities

Scalability is a defining characteristic of this category. The ASR1009-X supports high throughput levels, enabling organizations to expand their network capacity without replacing existing infrastructure. With the ability to handle large volumes of traffic, it ensures consistent performance even under peak demand conditions. This scalability is particularly beneficial for growing enterprises and service providers that require future-proof solutions.

Efficient Traffic Management

The system incorporates advanced traffic management features that enable efficient packet forwarding, load balancing, and congestion control. These capabilities ensure that network resources are utilized effectively, minimizing latency and maximizing data transfer speeds. The architecture is designed to prioritize mission-critical applications, ensuring uninterrupted service delivery.

Advanced Routing Capabilities and Protocol Support

The Cisco ASR1009-X Modular Expansion Rack-mountable platform supports a wide range of routing protocols, making it a versatile solution for complex network environments. It is engineered to deliver high-performance routing with advanced features that enhance network stability and efficiency.

Comprehensive Protocol Integration

The platform supports both IPv4 and IPv6 routing, enabling organizations to transition seamlessly to modern networking standards. It is compatible with dynamic routing protocols such as OSPF, BGP, and EIGRP, ensuring optimal route selection and network resilience. These capabilities allow the ASR1009-X to adapt to diverse networking scenarios, from enterprise campuses to large-scale service provider infrastructures.

Intelligent Path Selection

Intelligent routing mechanisms ensure that data packets are transmitted through the most efficient paths. This reduces latency and improves overall network performance. The system continuously monitors network conditions and dynamically adjusts routing decisions to maintain optimal connectivity.

Enhanced Network Resilience

Redundancy features are integrated into the routing architecture, ensuring minimal downtime in the event of hardware or network failures. This includes support for failover mechanisms and high availability configurations, which are essential for mission-critical applications.

Security Features and Network Protection

Security is a fundamental aspect of the Cisco ASR1009-X category. The platform is equipped with advanced security features designed to protect network infrastructure from threats and vulnerabilities. These capabilities are crucial for organizations that handle sensitive data and require robust protection mechanisms.

Integrated Security Framework

The ASR1009-X includes built-in security features such as firewall capabilities, intrusion prevention systems, and secure VPN support. These features provide comprehensive protection against unauthorized access and cyber threats. The integration of security within the routing platform eliminates the need for additional hardware, simplifying network design and reducing costs.

Encryption and Data Integrity

Encryption technologies ensure that data transmitted across the network remains secure and confidential. The platform supports advanced encryption standards, enabling secure communication between network endpoints. This is particularly important for organizations that operate in regulated industries.

Threat Detection and Mitigation

Real-time threat detection capabilities allow the system to identify and mitigate potential security risks before they impact network performance. This proactive approach enhances overall network security and ensures uninterrupted operations.

Hardware Components and Expandability

The Cisco ASR1009-X Modular Expansion Rack-mountable category emphasizes hardware flexibility and expandability. The chassis is designed to accommodate multiple components, allowing organizations to scale their network infrastructure as needed.

Modular Line Cards and Interfaces

The platform supports a variety of line cards that provide different interface options, including Gigabit Ethernet and higher-speed connections. This versatility allows organizations to connect diverse network devices and support various applications. The ability to add or replace line cards ensures that the system can adapt to changing network requirements.

Redundant Power Supplies

Redundant power supply units enhance system reliability by ensuring continuous operation even in the event of a power failure. This feature is essential for maintaining network uptime and preventing service disruptions.

Cooling and Thermal Management

Efficient cooling mechanisms are integrated into the chassis design to maintain optimal operating temperatures. This ensures the longevity of hardware components and prevents performance degradation caused by overheating.

Performance Optimization and Service Integration

The ASR1009-X platform is engineered to deliver high-performance routing while supporting a wide range of integrated services. These capabilities enable organizations to optimize network performance and deliver enhanced user experiences.

Embedded Services Processor

The embedded services processor plays a crucial role in handling advanced services such as deep packet inspection, quality of service, and network analytics. This component ensures that the router can manage complex tasks without compromising performance.

Quality of Service Management

Quality of Service features enable administrators to prioritize traffic based on application requirements. This ensures that critical applications receive the necessary bandwidth and performance levels, while less important traffic is managed efficiently.

Application-Aware Networking

The platform supports application-aware networking capabilities that allow it to identify and optimize traffic based on application types. This enhances overall network efficiency and improves user experience.

Deployment Scenarios and Use Cases

The Cisco ASR1009-X Modular Expansion Rack-mountable platform is suitable for a wide range of deployment scenarios. Its flexibility and performance make it an ideal choice for various network environments.

Enterprise Network Edge

In enterprise environments, the ASR1009-X serves as a reliable edge router that connects internal networks to external resources. It provides high-speed connectivity and advanced security features, ensuring seamless communication and data exchange.

Service Provider Aggregation

For service providers, the platform functions as an aggregation router that consolidates traffic from multiple sources. Its high throughput capabilities and scalability make it suitable for handling large volumes of data.

Data Center Integration

The rack-mountable design and modular architecture make the ASR1009-X an excellent choice for data center deployments. It integrates seamlessly with existing infrastructure and supports high-speed data transfer between servers and storage systems.

Energy Efficiency and Environmental Considerations

The Cisco ASR1009-X Modular Expansion Rack-mountable platform is designed with energy efficiency in mind. This not only reduces operational costs but also supports environmentally sustainable practices.

Optimized Power Consumption

The system is engineered to deliver high performance while minimizing power consumption. This is achieved through efficient hardware design and intelligent power management features.

Eco-Friendly Design

Environmentally friendly materials and manufacturing processes are used in the construction of the platform. This reduces the environmental impact and supports corporate sustainability initiatives.

Long-Term Cost Efficiency

Energy-efficient operation contributes to lower total cost of ownership over the lifespan of the system. This makes the ASR1009-X a cost-effective solution for organizations seeking high-performance networking equipment.
