C867VAE-W-E-K9 Cisco Wireless ISR

Overview Cisco C867VAE-W-E-K9 Wireless Services Router

The Cisco C867VAE-W-E-K9 Wireless Integrated Services Router is a high-performance, secure, and compact networking solution designed for small offices, remote branches, and enterprise-grade connectivity. It integrates advanced routing, wireless access, and security features into a single unified platform, ensuring reliable broadband performance and seamless network management.

General Information

• Manufacturer: Cisco
• Part Number: C867VAE-W-E-K9
• Product Type: Integrated Services Router (ISR)

WAN and Wireless Connectivity Features

WAN Interface Specifications

• Multimode DSL support including VDSL2 and ADSL2/2+ (Annex A)
• One 10/100/1000 Gigabit Ethernet WAN port for high-speed uplinks
• WAN diversity for improved network redundancy and uptime

Wireless Features

• Integrated 802.11n 2.4 GHz wireless access point
• ETSI-compliant design for European regulatory standards
• Optimized wireless performance for small to medium deployments

Antenna Configuration

• Three external detachable omni-directional antennas
• Enhanced signal coverage and flexibility in placement

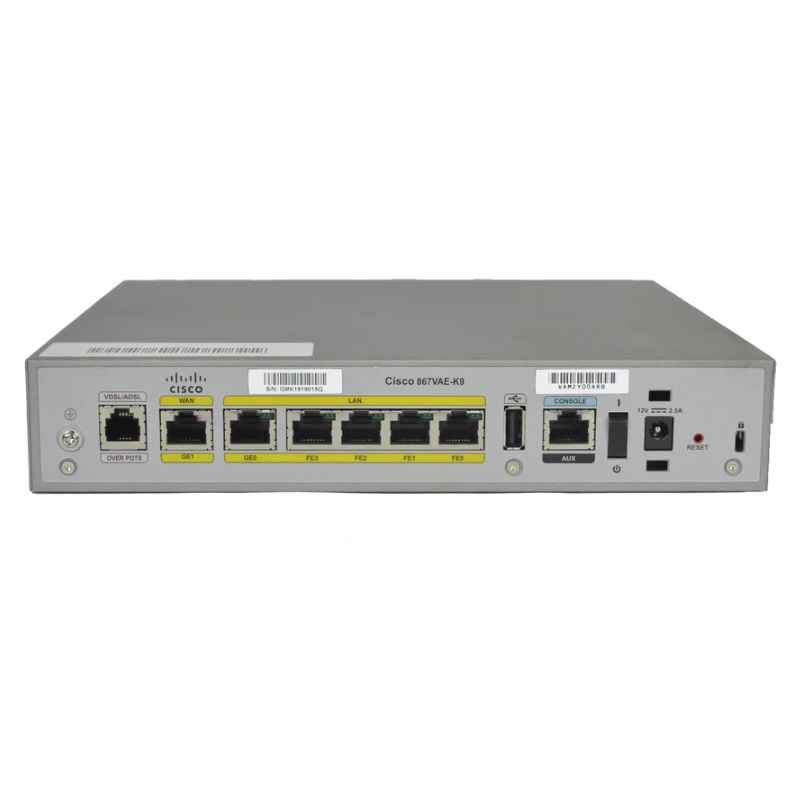

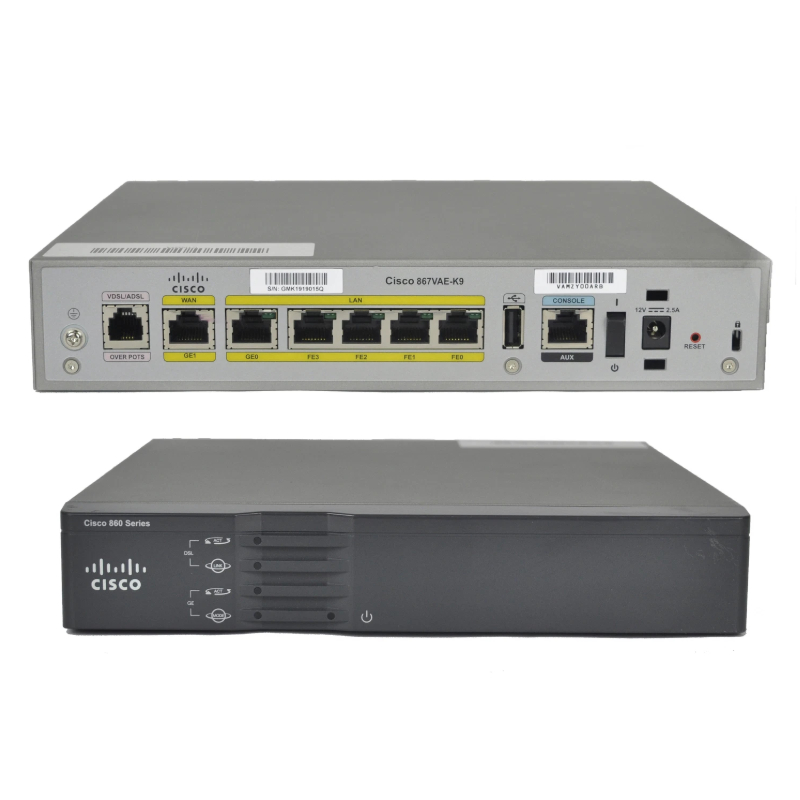

LAN and Connectivity Architecture

Switch Port

• 5-port managed switch
• 2 x Gigabit Ethernet ports for high-speed devices
• 3 x Fast Ethernet 10/100 ports for legacy connectivity

USB and Management Interfaces

Additional Connectivity Options

• One USB 2.0 port for configuration uploads and boot options
• RJ-45 console/auxiliary port for direct device management
• Flexible administrative access for network engineers

Performance and Security Capabilities

Hardware and Memory Specifications

• 512 MB DRAM for efficient processing
• 128 MB Flash memory for system storage
• Optimized architecture for multi-service environments

Advanced Security Features

Integrated Protection Mechanisms

• Cisco IOS Advanced Security feature set
• Hardware-accelerated encryption for up to 10 IPsec VPN tunnels
• Zone-Based Firewall for granular traffic control

Routing and Network Intelligence

• Support for BGP routing protocols
• IPv6 compatibility for next-generation networking
• Quality of Service (QoS) with LLQ and WFQ support

Physical Design

Physical Characteristics

• Fanless design for silent operation
• 1RU compact desktop form factor
• Approximate dimensions: 1.8 x 9.5 x 9.0 inches

Cisco C867VAE-W-E-K9 Wireless Integrated Services Router

The Cisco C867VAE-W-E-K9 is a high-performance wireless integrated services router designed for enterprise and branch office environments. Engineered to provide reliable connectivity and advanced network services, this router combines robust routing capabilities with secure wireless access. It supports a wide range of networking protocols and is optimized for voice, video, and data traffic, making it a versatile solution for modern businesses.

Design and Build Quality

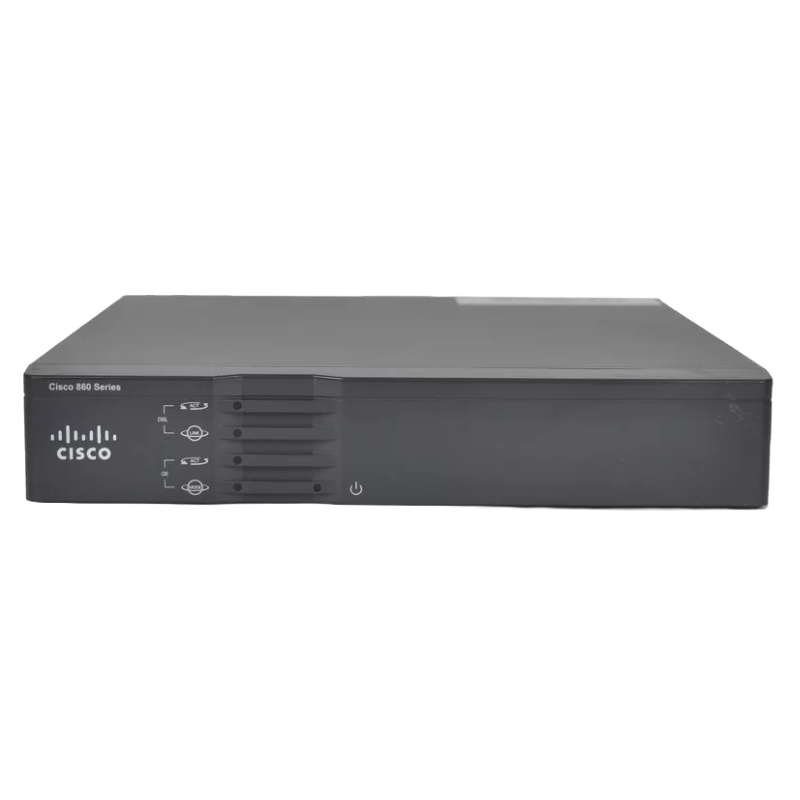

The Cisco C867VAE-W-E-K9 router features a compact and durable chassis, suitable for deployment in office racks or small server rooms. Its industrial design ensures optimal heat dissipation, maintaining performance even in high-demand environments. The front panel provides easy access to management ports and indicator LEDs, allowing administrators to monitor network status at a glance.

Integrated Wireless Capabilities

This router includes built-in wireless access points, supporting multiple wireless standards to ensure seamless connectivity for laptops, smartphones, and IoT devices. It enables secure wireless communication with enterprise-grade encryption, ensuring data integrity and protection against unauthorized access. The integrated wireless system supports dual-band operation, enhancing network efficiency and reducing interference.

Routing and Performance

The Cisco C867VAE-W-E-K9 leverages advanced routing protocols including OSPF, EIGRP, and BGP, offering flexible deployment options for complex network topologies. Its routing engine ensures low-latency data forwarding, supporting high-speed WAN connections and efficient traffic management. The router’s performance is optimized for both small office and medium-sized enterprise environments, delivering consistent network throughput under heavy workloads.

Security Features

Security is a core aspect of the Cisco C867VAE-W-E-K9. The router integrates comprehensive security protocols such as IPsec VPN, SSL VPN, and firewall capabilities. It supports dynamic access policies and intrusion prevention, safeguarding the network against external threats. Additionally, its secure boot and trust anchor features protect the router firmware from unauthorized modifications, ensuring long-term network integrity.

Voice and Unified Communications Support

The Cisco C867VAE-W-E-K9 router is fully compatible with Cisco Unified Communications solutions, supporting VoIP deployments and voice traffic prioritization. Quality of Service (QoS) features ensure clear voice and video communications, minimizing latency and jitter. The router can simultaneously handle voice, video, and data traffic without compromising performance, making it suitable for unified communications in remote offices.

Expansion and Connectivity Options

The router provides multiple interface options, including Gigabit Ethernet ports and WAN connectivity modules. Its modular design allows the addition of expansion cards for increased port density or specialized networking functions. The integrated slots support LTE and 4G modules, offering flexible connectivity solutions for branch offices without dedicated wired connections.

Energy Efficiency and Environmental Considerations

The Cisco C867VAE-W-E-K9 is designed with energy efficiency in mind, reducing operational costs while minimizing environmental impact. It complies with international energy standards, incorporating low-power components and intelligent power management. The device maintains high performance without excessive energy consumption, making it suitable for environmentally-conscious organizations.

Deployment Scenarios

This router is ideal for enterprise branch offices, remote work sites, and retail networks requiring a combination of wired and wireless connectivity. Its reliability and flexibility make it suitable for environments where continuous uptime and secure communications are critical. From supporting teleworkers to handling secure financial transactions, the Cisco C867VAE-W-E-K9 adapts to diverse operational requirements.

Advanced Networking Features

The Cisco C867VAE-W-E-K9 supports advanced features such as VPN aggregation, MPLS integration, and multicast routing. These capabilities allow businesses to create scalable, efficient networks that can adapt to increasing data demands. The router also supports application visibility and control, providing insights into traffic patterns and helping prioritize critical business applications.

Quality of Service (QoS) Capabilities

With integrated QoS policies, the Cisco C867VAE-W-E-K9 ensures optimal bandwidth allocation for high-priority applications such as video conferencing, voice calls, and cloud services. This guarantees minimal packet loss and consistent performance for essential services. Administrators can configure granular QoS rules based on application, user, or network segment to maintain service-level agreements.

Reliability and Redundancy

The router is engineered for maximum uptime with redundant features such as failover mechanisms, dual power supply options, and automatic route recalculation. These features ensure uninterrupted connectivity, even during hardware failures or network disruptions. The Cisco C867VAE-W-E-K9 is built to meet the demands of mission-critical operations that cannot tolerate network downtime.

Software and Feature Licensing

The router leverages Cisco IOS XE, offering a wide array of software features for routing, security, and network management. Feature licenses can be purchased to unlock advanced functionalities such as enhanced security, WAN optimization, and unified communications. This flexible licensing model allows organizations to scale capabilities based on current needs without investing in additional hardware.

Integration with Cloud Services

The Cisco C867VAE-W-E-K9 supports seamless integration with cloud-based services and applications, enabling hybrid networking models for modern enterprises. It can securely connect branch offices to cloud infrastructure while maintaining compliance with corporate security policies. This integration supports SaaS applications, cloud storage, and remote collaboration tools, enhancing operational efficiency.

Scalability and Future-Proofing

With modular expansion, advanced routing protocols, and high-performance wireless capabilities, the Cisco C867VAE-W-E-K9 provides a scalable solution that can grow with the organization. Businesses can upgrade interface modules, increase port capacity, or enhance security features without replacing the core router. This future-proof design ensures long-term value and adaptability to evolving network requirements.

Technical Specifications

The Cisco C867VAE-W-E-K9 features a dual-core CPU, multiple Gigabit Ethernet ports, integrated LTE/4G support, and dual-band wireless access points. It supports up to several hundred concurrent users and delivers WAN throughput suitable for small to medium branch offices. Its compact form factor, combined with advanced performance, makes it a versatile solution for various deployment scenarios.
