C886VAG-LTE-GA-K9 Cisco Wireless ISR

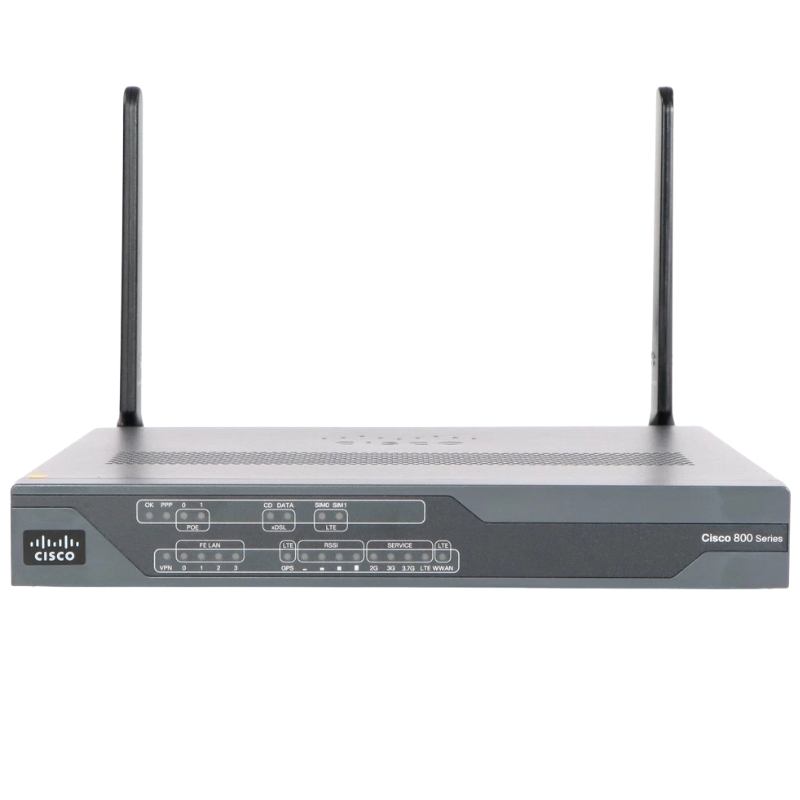

Overview Cisco C886VAG-LTE-GA-K9 Wireless Services Router

The Cisco C886VAG-LTE-GA-K9 is a versatile wireless integrated services router designed to deliver secure, high-performance connectivity for businesses and organizations. It combines advanced networking capabilities with LTE support, making it ideal for regions requiring reliable broadband access.

General Information

• Manufacturer: Cisco
• Part Number: C886VAG-LTE-GA-K9
• Product Type: Wireless Router

Core Networking & Interfaces

• DSL WAN: Multimode VDSL2 and ADSL2/2+ over ISDN (non-US)
• Wireless WAN: Integrated Cisco LTE 2.0 (multimode 4G) with backward compatibility to HSPA+, UMTS, EDGE, and GPRS
• LAN Switching: 4-port 10/100 Mbps Fast Ethernet managed switch

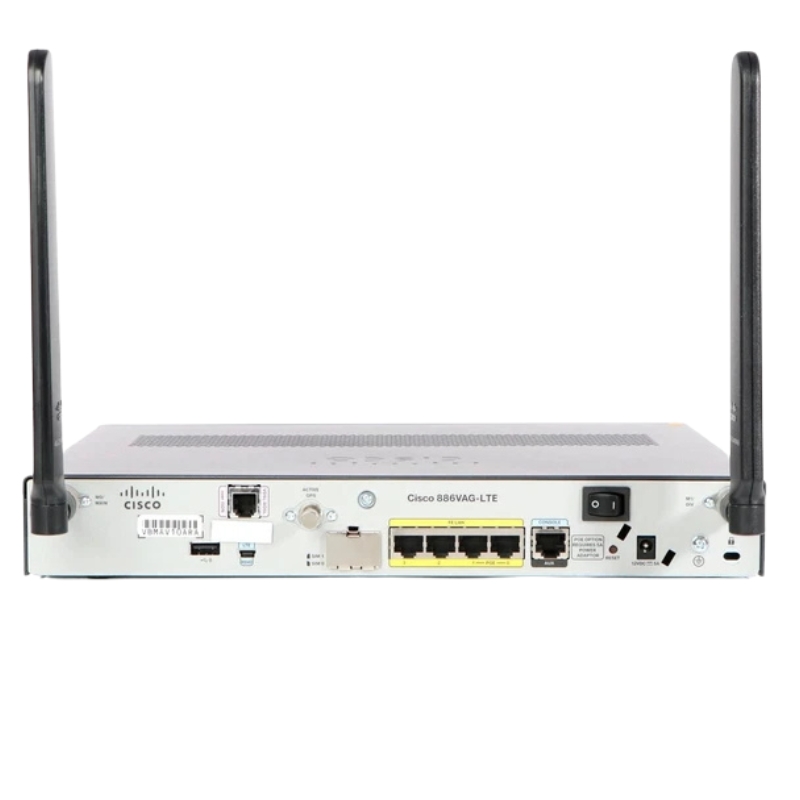

Expansion & Ports

• SIM Slots: Dual mini-SIM (2FF) card sockets for redundancy and failover
• USB: 1 x USB 2.0 (Type A) and 1 x mini-USB (Type B) for cellular diagnostics
• Management: 1 x RJ-45 console port for local configuration

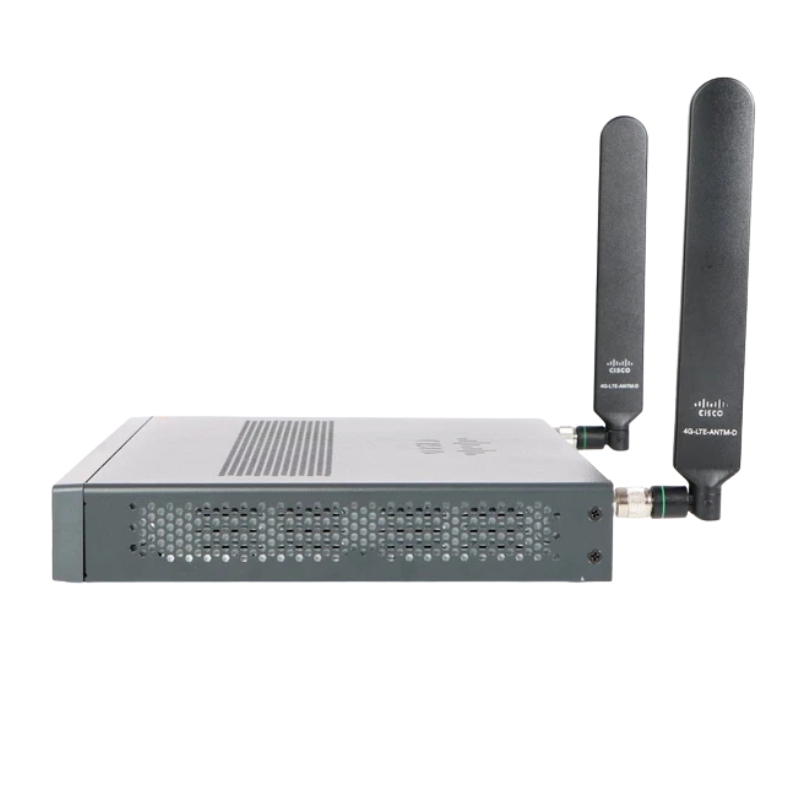

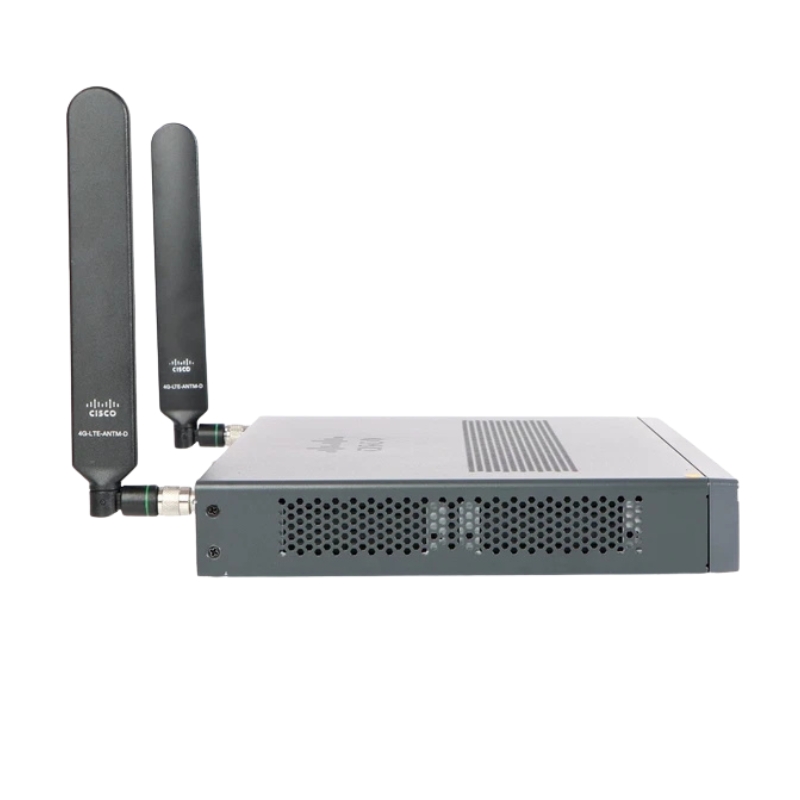

• Antennas: 2 x SMA connectors for external LTE antennas plus optional GPS antenna

Performance & Wireless Bands

LTE Throughput

• Download speeds up to 100 Mbps
• Upload speeds up to 50 Mbps

Supported Frequency Bands

4G LTE Bands

• Band 1 (2100 MHz)
• Band 3 (1800 MHz)
• Band 7 (2600 MHz)
• Band 8 (900 MHz)
• Band 20 (800 MHz)

3G/HSPA+ Bands

• 850 MHz
• 900 MHz
• 1900 MHz
• 2100 MHz

Geographic Certification

• Approved for Australia
• Certified in Europe
• Validated in the Middle East

System & Hardware Specifications

Memory

• 1 GB DRAM (maximum)
• 1 GB Flash memory (maximum)

Physical Dimensions

• Height: 1.9 inches
• Width: 12.8 inches
• Depth: 10.4 inches
• Weight: 5.7 lbs (2.59 kg)

Power

• 60W external power adapter
• Input: 100–240 VAC

Security Features

Encryption

• AES
• 3DES

Firewall & VPN

• Integrated firewall protection
• IPsec VPN
• DMVPN support
• SSL VPN capability

Cisco C886VAG-LTE-GA-K9 Wireless Integrated Services Router

The Cisco C886VAG-LTE-GA-K9 Wireless Integrated Services Router represents a powerful and versatile networking solution designed to meet the evolving demands of modern businesses, branch offices, and remote deployments. Built on the foundation of Cisco’s Integrated Services Router (ISR) platform, this device combines secure WAN connectivity, wireless networking, voice support, and advanced routing capabilities into a single compact unit. Its integration of LTE connectivity ensures uninterrupted operations even in environments where traditional wired connections are unstable or unavailable.

Advanced Connectivity Architecture

This router integrates VDSL2/ADSL2+ WAN interfaces alongside LTE backup, offering seamless failover capabilities that maintain business continuity. The dual connectivity model ensures that organizations can rely on primary broadband links while automatically switching to cellular networks during outages. The intelligent WAN management system enhances uptime while reducing manual intervention, making it ideal for mission-critical environments.

Integrated LTE Backup Functionality

The built-in LTE modem provides high-speed wireless WAN access, enabling enterprises to deploy network infrastructure in locations lacking wired connectivity. This capability is especially valuable for remote branches, temporary sites, and mobile operations where traditional ISP services are limited or unreliable. The LTE integration ensures continuous connectivity with minimal latency and consistent throughput.

Seamless Failover Mechanism

The automatic failover system detects WAN interruptions and transitions traffic to the LTE network without disruption. This feature minimizes downtime and ensures uninterrupted access to critical applications such as VoIP, cloud services, and enterprise resource planning systems. The transition occurs in real-time, maintaining user productivity and operational efficiency.

Enterprise-Grade Security Features

Security is a core component of the Cisco C886VAG-LTE-GA-K9, incorporating advanced threat protection mechanisms to safeguard network integrity. The router includes integrated firewall capabilities, VPN support, intrusion prevention, and content filtering, ensuring comprehensive protection against cyber threats.

Integrated Firewall and Threat Defense

The router’s built-in firewall provides stateful packet inspection and advanced filtering options, allowing administrators to control traffic flows and block unauthorized access. This ensures that only legitimate data packets are permitted, reducing exposure to malicious attacks.

Virtual Private Network Capabilities

The device supports multiple VPN technologies, including IPsec and SSL VPNs, enabling secure communication between remote offices and corporate headquarters. This ensures encrypted data transmission across public networks, protecting sensitive information from interception.

Secure Remote Access

With secure remote access features, employees can connect to the corporate network from any location without compromising security. This is particularly beneficial for organizations with distributed workforces and remote operations.

Wireless Networking Capabilities

The Cisco C886VAG-LTE-GA-K9 includes integrated wireless access functionality, allowing businesses to deploy secure Wi-Fi networks without additional hardware. The wireless component supports multiple devices and ensures reliable connectivity across office environments.

Dual-Band Wireless Performance

The router supports dual-band wireless frequencies, providing flexibility in network design and improved performance. By operating on both 2.4 GHz and 5 GHz bands, it reduces interference and enhances overall throughput.

Optimized Coverage and Signal Strength

The integrated antennas and advanced signal processing technologies ensure strong and consistent wireless coverage throughout the deployment area. This eliminates dead zones and supports high-density device environments.

Secure Wireless Access Control

Wireless security protocols such as WPA2 encryption and network segmentation protect against unauthorized access. Administrators can configure guest networks and implement access policies to maintain security and performance.

Voice and Unified Communications Integration

The router supports voice services and unified communications, enabling businesses to integrate telephony and data networks. This convergence reduces infrastructure complexity and lowers operational costs.

VoIP Support and Optimization

Built-in voice features allow organizations to deploy Voice over IP (VoIP) solutions with enhanced quality of service. The router prioritizes voice traffic, ensuring clear communication and minimal latency.

Quality of Service Management

QoS capabilities enable administrators to prioritize critical applications such as voice and video conferencing. This ensures consistent performance even during periods of high network usage.

Scalable Communication Infrastructure

The router’s architecture supports scalability, allowing businesses to expand their communication systems as they grow. This ensures long-term investment protection and adaptability to changing requirements.

Performance and Scalability

The Cisco C886VAG-LTE-GA-K9 is designed to deliver high performance across multiple services simultaneously. Its robust processing capabilities and optimized architecture ensure reliable operation under demanding conditions.

High-Speed Data Processing

The router’s hardware architecture supports efficient packet processing, enabling high-speed data transfer across WAN and LAN interfaces. This ensures smooth operation of bandwidth-intensive applications.

Multi-Service Integration

The device integrates routing, security, wireless, and voice services into a single platform. This reduces the need for multiple devices and simplifies network management.

Future-Ready Expansion

The scalable design allows organizations to adapt to future technological advancements. Firmware updates and modular capabilities ensure that the router remains relevant as network demands evolve.

Energy Efficiency

The Cisco C886VAG-LTE-GA-K9 is designed with energy efficiency in mind, helping organizations reduce operational costs while maintaining high performance.

Power-Efficient Architecture

The router’s energy-efficient design minimizes power consumption without compromising performance. This contributes to lower electricity costs and reduced environmental impact.

Reduced Hardware Footprint

By integrating multiple services into a single device, the router eliminates the need for additional hardware, reducing both capital expenditure and maintenance costs.

Technical Specifications and Features

The Cisco C886VAG-LTE-GA-K9 includes a comprehensive set of technical features designed to meet diverse networking requirements. These features ensure compatibility with modern applications and network architectures.

WAN and LAN Interfaces

The router supports multiple WAN interfaces, including VDSL2/ADSL2+ and LTE, as well as Gigabit Ethernet LAN ports. This provides flexibility in network design and deployment.

Security Protocol

Advanced security protocols ensure secure communication and protection against threats. These include IPsec, SSL, and various encryption standards.

Wireless Standards Compliance

The integrated wireless functionality complies with industry standards, ensuring compatibility with a wide range of devices and applications.
