C897VAM-W-E-K9 Cisco Dual-Band Gigabit Ethernet Wireless Router

Cisco Dual-Band Gigabit Router

The Cisco C897VAM-W-E-K9 is a high-performance dual-band wireless router designed for enterprises and advanced networking environments. It integrates robust security, versatile connectivity, and reliable performance.

General Information

• Manufacturer: Cisco
• Part Number: C897VAM-W-E-K9
• Device Type: Wireless router with 8-port switch

Technical Specifications

Antenna Details

• Type: External detachable
• Quantity: 3
• Directivity: Omni-directional

Authentication & Security

• Methods: RADIUS, TACACS+, EAP, EAP-FAST
• Encryption: LEAP, Triple DES, MD5, AES (128/192/256-bit), TLS, PEAP, TTLS, TKIP, WPA, WPA2, PKI, WEP
• Firewall protection and intrusion prevention system

Compliance Standards

• IEEE 802.1D, 802.11b/g/n (draft 2.0), 802.3af, 802.1x, 802.11i
• CISPR 22/24, EN 55022/55024, EN 61000-3-2/3-3/6-1
• FCC CFR47 Part 15, VCCI V-3, ICES-003 issue 4 Class

Connectivity Options

• Wireless and wired support
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a/b/g/n
• Digital signaling: VDSL, ADSL2+

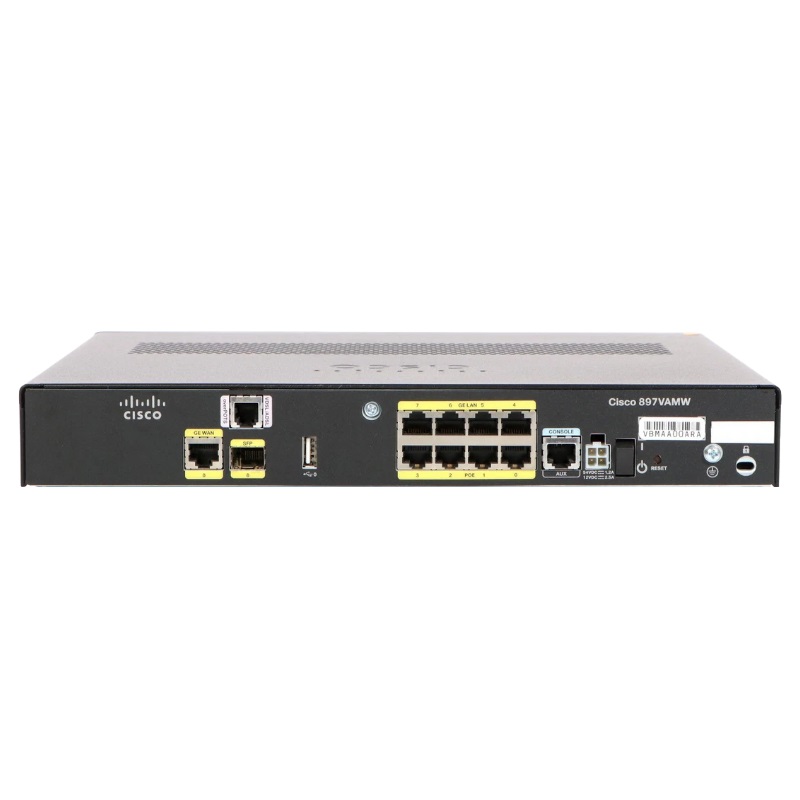

Interfaces

• LAN: 8 x RJ-45 (10/100/1000Base-T)
• WAN: 1 x RJ-45 (10/100/1000Base-T)
• Management: 1 x console RJ-45
• WAN: 1 x VDSL2/ADSL2+
• USB: 1 x 4-pin USB Type A
• WAN: 1 x SFP (mini-GBIC)

Performance & Features

Memory & Storage

• Flash Memory: 256 MB (installed/max)
• RAM: 512 MB (installed) / 1 GB (max)

Advanced Features

• DHCP and NAT support
• VLAN and auto-uplink (MDI/MDI-X)
• IPv6 compatibility
• MAC address filtering and broadcast storm control
• DiffServ and IPS support

Routing Protocols

• OSPF, RIP-1, RIP-2, BGP, EIGRP
• HSRP, VRRP, NHRP, IGMPv3
• GRE, policy-based routing (PBR)
• WCCP, Bidirectional Forwarding Detection (BFD)

Physical Dimensions

• Width: 32.3 cm
• Depth: 24.8 cm
• Height: 4.45 cm

Environmental Conditions

• Operating Temperature: 0 °C to 40 °C
• Humidity Range: 10 - 85% (non-condensing)

Power & Indicators

• External power adapter: 60 Watt
• Voltage: AC 120/230 V (50/60 Hz)

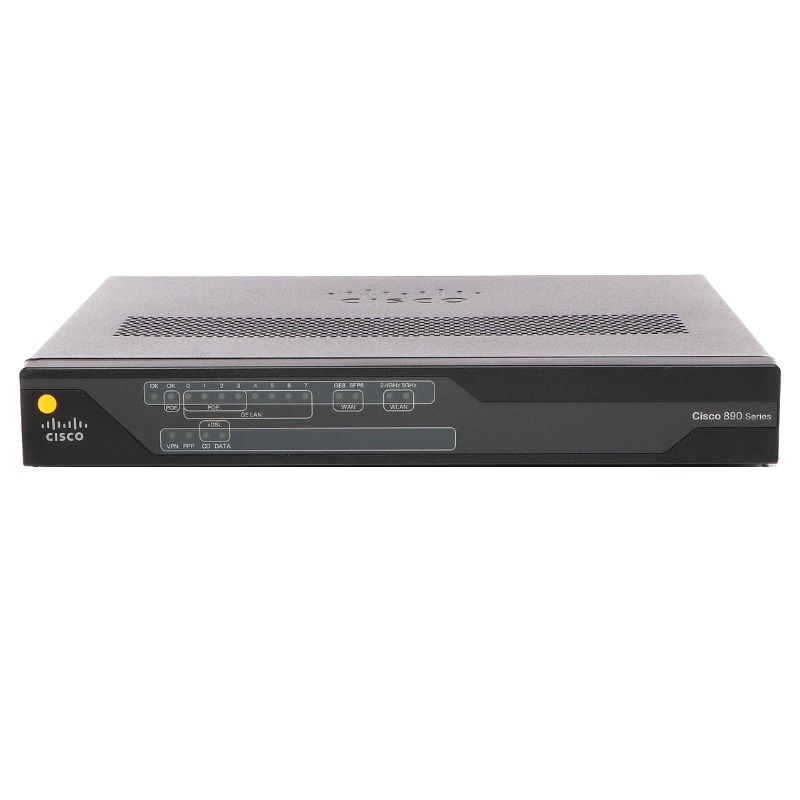

• Status indicators: Port activity, power

C897VAM-W-E-K9 Dual-Band Gigabit Ethernet Router Overview

The Cisco C897VAM-W-E-K9 Dual-Band Gigabit Ethernet Wireless Router represents a powerful integration of enterprise-grade networking capabilities and advanced wireless connectivity designed to meet the evolving demands of modern businesses. This category encompasses high-performance integrated services routers that combine WAN connectivity, LAN switching, security, and wireless access into a single, compact platform. Designed for small to medium-sized enterprises, branch offices, and remote deployments, this router category delivers seamless communication, high throughput, and robust security features that ensure reliable operations in diverse environments.

The architecture of the Cisco C897VAM-W-E-K9 is engineered to support multi-service integration, making it ideal for organizations that require consolidated networking solutions without compromising performance. With support for VDSL2/ADSL2+ WAN interfaces, dual-band wireless connectivity, and Gigabit Ethernet ports, this category of routers enables efficient data transmission, improved user experience, and simplified network management. Its modular design and advanced routing protocols allow businesses to scale their network infrastructure as operational demands grow.

Integrated Services Router Architecture

The Cisco C897VAM-W-E-K9 falls under the category of integrated services routers, which are specifically designed to deliver multiple network functions within a single device. This eliminates the need for separate hardware components, reducing complexity and lowering total cost of ownership. The router integrates routing, switching, wireless access, and security features into a unified platform, providing organizations with a streamlined networking solution that is both efficient and scalable.

This architecture supports advanced routing capabilities, including dynamic routing protocols such as OSPF, EIGRP, and BGP. These protocols ensure optimal path selection and network resilience, enabling uninterrupted communication even in complex network topologies. Additionally, the router supports Quality of Service (QoS) features that prioritize critical applications, ensuring consistent performance for voice, video, and data traffic.

Advanced WAN Connectivity Options

The Cisco C897VAM-W-E-K9 is equipped with versatile WAN connectivity options, including VDSL2 and ADSL2+ support, making it suitable for a wide range of broadband environments. This flexibility allows businesses to connect to different types of internet services without requiring additional hardware. The router's WAN interface is designed to deliver high-speed connectivity with minimal latency, ensuring efficient data transfer and reliable performance.

The category also emphasizes support for VPN technologies, enabling secure remote access and site-to-site connectivity. With built-in IPsec and SSL VPN capabilities, organizations can establish encrypted communication channels that protect sensitive data from unauthorized access. This makes the router an ideal choice for businesses with distributed workforces or multiple branch locations.

Dual-Band Wireless Capabilities

A defining feature of the Cisco C897VAM-W-E-K9 category is its dual-band wireless functionality, which operates on both 2.4 GHz and 5 GHz frequencies. This dual-band capability allows the router to support a wider range of devices while minimizing interference and congestion. The 2.4 GHz band provides extended coverage and compatibility with legacy devices, while the 5 GHz band offers higher speeds and reduced interference for modern applications.

The wireless access point integrated into the router supports advanced standards such as IEEE 802.11n, ensuring high throughput and reliable connectivity. It also includes multiple-input multiple-output (MIMO) technology, which enhances signal strength and coverage. This enables businesses to provide seamless wireless access to employees, customers, and connected devices across their premises.

Gigabit Ethernet Switching

The Cisco C897VAM-W-E-K9 category includes routers with integrated Gigabit Ethernet switching capabilities, allowing for high-speed wired connectivity within the local network. The inclusion of multiple Gigabit Ethernet ports ensures that devices such as computers, servers, and network storage systems can communicate efficiently without bottlenecks.

These routers support VLAN segmentation, enabling organizations to create logically separated networks within the same physical infrastructure. This enhances security and improves network performance by isolating traffic between different departments or user groups. Additionally, the switching functionality supports advanced features such as port security, spanning tree protocols, and link aggregation, which contribute to a robust and resilient network environment.

Security and Threat Protection Features

Security is a critical aspect of the Cisco C897VAM-W-E-K9 category, and these routers are equipped with comprehensive security features designed to protect against a wide range of threats. The integrated firewall provides stateful packet inspection, ensuring that only legitimate traffic is allowed to pass through the network. This helps prevent unauthorized access and protects sensitive data from potential breaches.

The routers also support intrusion prevention systems (IPS), which monitor network traffic for suspicious activity and take proactive measures to block potential threats. Additionally, advanced encryption standards are implemented to secure data transmission, ensuring confidentiality and integrity across all communications. These features make the router suitable for industries that require strict compliance with security regulations.

Network Management and Scalability

Effective network management is essential for maintaining optimal performance, and the Cisco C897VAM-W-E-K9 category offers a range of tools and features that facilitate easy administration. The router supports centralized management platforms, allowing network administrators to monitor and configure devices from a single interface. This reduces the complexity of managing distributed networks and improves operational efficiency.

The scalability of the router is another important aspect, as it allows businesses to expand their network infrastructure without significant changes to existing systems. The modular design and support for additional features ensure that the router can adapt to evolving requirements, making it a future-proof investment for organizations.

Quality of Service Optimization

Quality of Service (QoS) is a critical feature in the Cisco C897VAM-W-E-K9 category, enabling the prioritization of network traffic based on application requirements. This ensures that latency-sensitive applications such as voice over IP (VoIP) and video conferencing receive the necessary bandwidth and minimal delay.

The router implements advanced QoS mechanisms, including traffic classification, shaping, and policing, to optimize network performance. By managing bandwidth allocation effectively, businesses can maintain high levels of productivity and user satisfaction, even during periods of heavy network usage.

Future-Ready Networking Capabilities

As technology continues to evolve, the Cisco C897VAM-W-E-K9 category is designed to support emerging trends and requirements. The router's compatibility with advanced networking standards and protocols ensures that it can adapt to future developments without requiring significant upgrades. This includes support for IPv6, which is essential for accommodating the growing number of connected devices in modern networks.

The integration of advanced features such as cloud management and automation further enhances the router's capabilities, allowing organizations to leverage new technologies and improve operational efficiency. By investing in a future-ready networking solution, businesses can stay ahead of the competition and respond effectively to changing market demands.
