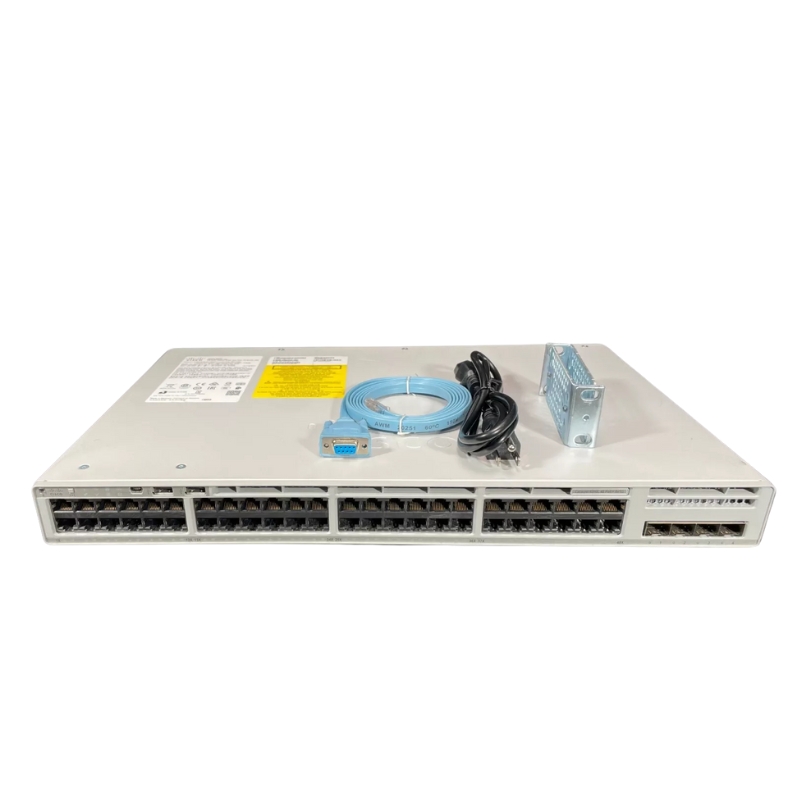

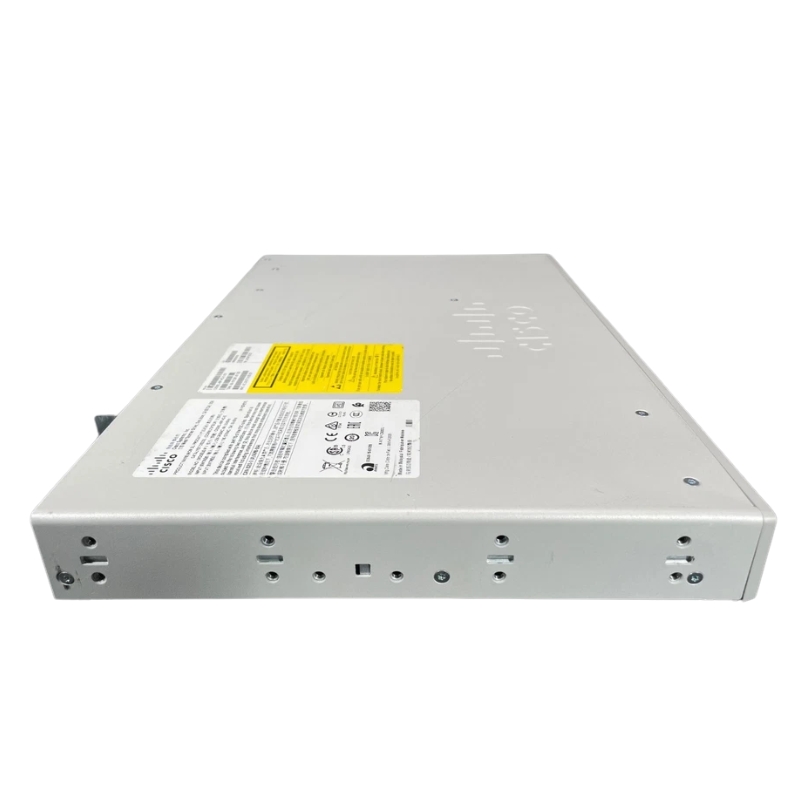

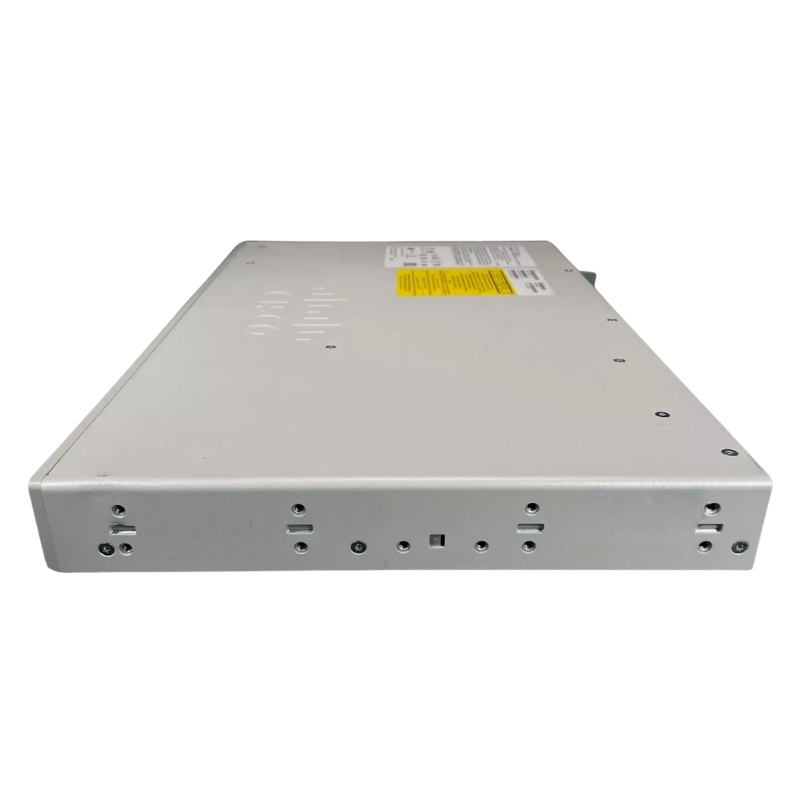

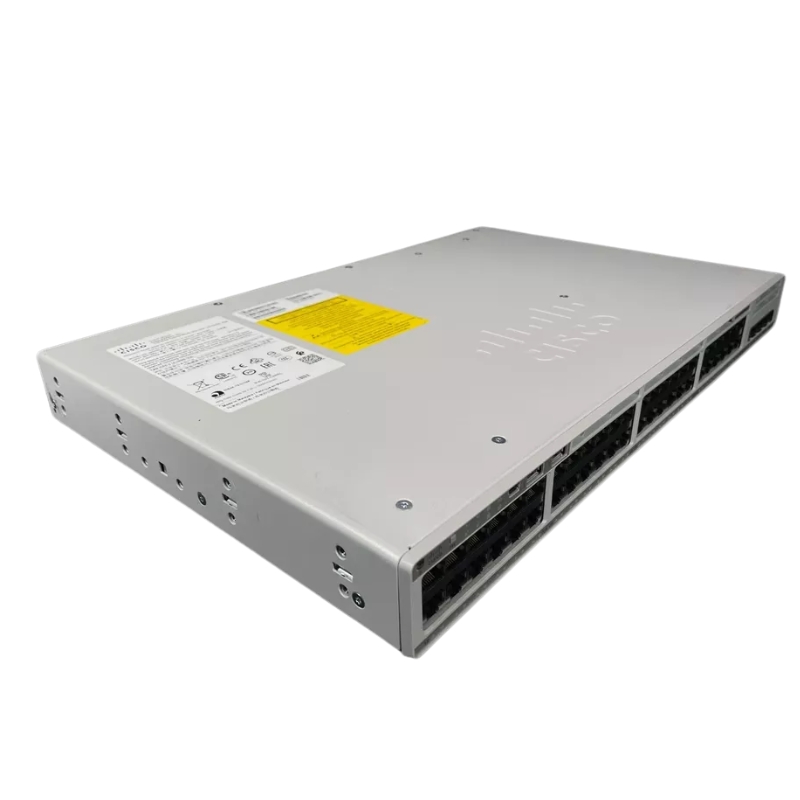

Cisco C9200L-48PL-4G-E 48 Ports Switch Ethernet Manageable Layer 3 Supported

Overview of Cisco C9200L-48PL-4G-E Layer 3 Switch

Manufacturer Details

• Brand: Cisco
• Model Number: C9200L-48PL-4G-E
• Product Type: Layer 3 Switch

Core Specifications

Enclosure and Form Factor

• Type: Rack-mountable
• Subtype: Gigabit Ethernet

Ports and Connectivity

• Ports: 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (Uplink)
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 370W

Performance Metrics

• Stacking Bandwidth: 80 Gbps
• Switching Capacity: 104 Gbps
• Forwarding Rate: 77.38 Mpps
• Switching Capacity with Stacking: 184 Gbps
• Forwarding Rate with Stacking: 137 Mpps

Capacity and Scalability

Network Support

• Virtual Networks: 1
• IPv4 Routes: 11,000
• IPv4 Routing Table Entries: 3,000
• IPv6 Routing Table Entries: 1,500
• Multicast Scale: 1,000

Advanced Features

• ACL Scale Entries: 1,500
• FNF Entries: 16,000
• VLANs Supported: 1,024
• Switched Virtual Interfaces (SVIs): 512
• QoS Hardware Queues Per Port: 8
• MAC Address Table Size: 16,000 Entries
• Jumbo Frame Support: 9,198 Bytes

Routing Protocols and Management

Supported Routing Protocols

• OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM
• EIGRP for IPv6, PIM-SSM, Policy-Based Routing (PBR)
• RIPng, MSTP

Remote Management

• SNMP 1, 2c, 3
• RMON 1, RMON 2
• CLI, NETCONF, RESTCONF
• Encryption Algorithm: 128-bit AES

Advanced Features

Quality of Service and Efficiency

• QoS, CISCO Stackwise Technology
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• Shaped Round Robin (SRR), PXE Support
• Remote Switch Port Analyzer (RSPAN)
• NetFlow, Energy Efficient Ethernet
• Management Information Base (MIB), Class of Service (CoS)
• Flexible NetFlow (FNF), 802.1x Authentication
• DiffServ Code Point (DSCP) Support, MACsec Support
• 6MB Packet Buffer, Control Plane Protection (CoPP)
• Switched Port Analyzer (SPAN), Embedded Event Manager (EEM)
• Protocol Independent Multicast (PIM), First Hop Security (FHS)
• PVLAN Support, Committed Information Rate (CIR)

Compliance and Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.3z
• IEEE 802.1d, IEEE 802.1Q, IEEE 802.3ab
• IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP)
• IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

Memory and Expansion

RAM and Storage

• RAM: 2 GB
• Flash Memory: 4 GB
• Built-in Devices: RFID Tag

Expansion and Connectivity

• Interfaces:
• 48 x 1000Base-T RJ-45 Partial PoE+
• 4 x 1000Base-X SFP Uplink
• 1 x Network Stack Device
• 1 x Management (LAN) RJ-45
• 1 x Console RJ-45

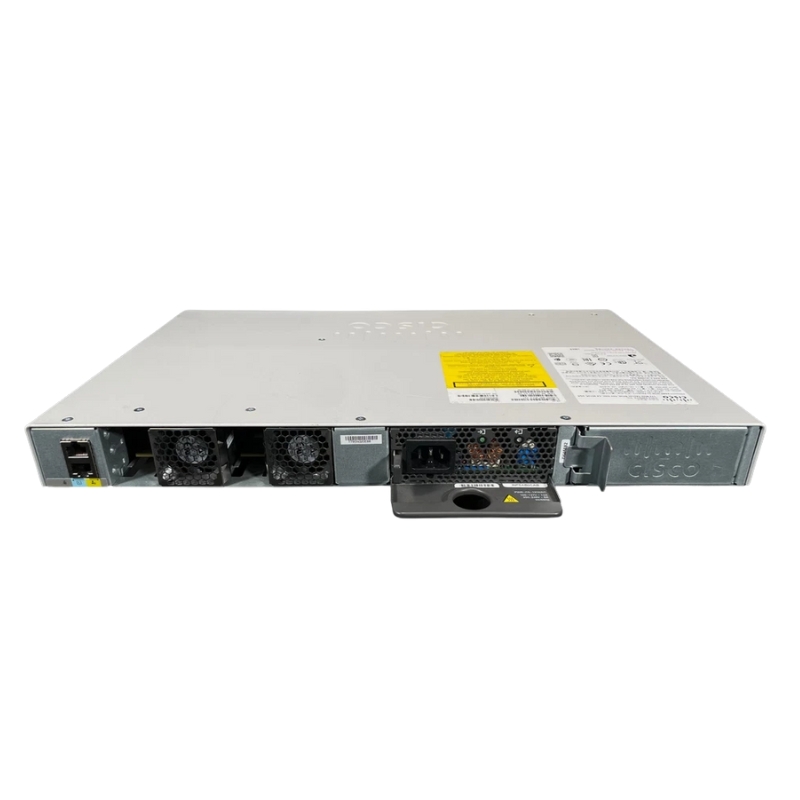

Power Requirements

• Power Device: Internal Power Supply – Hot-plug
• Max Supported Qty: 2
• Power Redundancy: Optional
• Voltage Required: AC 100-240 V (50 – 60 Hz)

Ports

The Cisco C9200L-48PL-4G-E Switch is equipped with 48 ports, making it an ideal solution for businesses that require a high number of network connections. With this switch, users can connect multiple devices such as computers, printers, servers, and other networking equipment to their network infrastructure.

Increased Connectivity

Having 48 ports on the Cisco C9200L-48PL-4G-E Switch means that users can connect a large number of devices to their network without the need for additional switches or hubs. This is especially beneficial for businesses with a growing number of employees or multiple departments that require individual network connections. The ample number of ports ensures that there is enough capacity to support all the devices within the network.

Flexibility and Scalability

The 48 ports on this switch provide users with the flexibility to connect various devices and expand their network infrastructure as needed. Whether it's adding more computers to accommodate new employees or integrating additional servers for increased storage or processing power, the Cisco C9200L-48PL-4G-E Switch offers the scalability required to meet evolving business needs.

Improved Network Performance

With 48 ports, the Cisco C9200L-48PL-4G-E Switch enables efficient data transmission and reduces network congestion. Each port can handle high-speed data transfers, allowing for smooth communication between connected devices. This ensures that users can enjoy uninterrupted access to network resources and applications without experiencing any performance bottlenecks.

Layer

The Cisco C9200L-48PL-4G-E Switch operates at Layer 3 of the OSI model, which offers several benefits for users in terms of network management, security, and performance.

Enhanced Routing Capability

By functioning at Layer 3, this switch can perform IP routing, allowing it to efficiently direct network traffic between different subnets or VLANs. This capability enables the creation of logical network segments, providing enhanced security and improved network performance.

Inter-VLAN Communication

With Layer 3 functionality, the Cisco C9200L-48PL-4G-E Switch supports inter-VLAN communication. This means that users can establish communication between different VLANs, enabling seamless data transmission and access control across various departments or segments within the network. It also enhances network security by restricting access to specific VLANs based on user permissions.

Network Segmentation

Layer 3 switches offer the ability to segment networks into smaller, more manageable subnets. This segmentation provides several benefits, including improved network performance, simplified network management, and enhanced security. By dividing the network into smaller subnets, it becomes easier to isolate issues, troubleshoot problems, and optimize network resources.

Manageable

The Cisco C9200L-48PL-4G-E Switch is designed to be easily manageable, ensuring that users can efficiently monitor and control their network infrastructure.

User-Friendly Interface

This switch features a user-friendly interface that simplifies the management process. The intuitive web-based interface allows users to easily configure settings, monitor network performance, and troubleshoot issues. Additionally, it provides graphical representations of network topologies and traffic flow, making it easier for administrators to visualize and understand their network structure.

Centralized Management

With the Cisco C9200L-48PL-4G-E Switch, users can benefit from centralized management. This switch is compatible with Cisco's Network Management System (NMS), which allows administrators to centrally manage and monitor multiple switches within their network infrastructure. Through the NMS, users can streamline configuration tasks, monitor network health, and quickly respond to any network-related issues.

Enhanced Security

Effective network management includes ensuring robust security measures. The Cisco C9200L-48PL-4G-E Switch offers advanced security features that allow administrators to control access, detect and prevent unauthorized access attempts, and protect sensitive data. With features such as port security, Access Control Lists (ACLs), and Secure Shell (SSH) support, users can ensure the integrity and confidentiality of their network.

Features

The Cisco C9200L-48PL-4G-E Switch boasts a range of features that make it a powerful networking solution for businesses of all sizes.

Ethernet Connectivity

This switch supports Ethernet connectivity, which is the industry standard for local area networks (LANs). Ethernet provides reliable and high-speed data transmission, ensuring that users can transfer large files, stream media, and access network resources without any latency or performance issues.

Layer 3 Support

The Cisco C9200L-48PL-4G-E Switch offers Layer 3 support, enabling advanced routing capabilities. By operating at Layer 3 of the OSI model, this switch can efficiently direct network traffic, optimize routing paths, and enhance overall network performance.

Quality of Service (QoS)

Quality of Service is a crucial feature for businesses that require prioritization of network traffic. The Cisco C9200L-48PL-4G-E Switch supports QoS, allowing users to prioritize critical applications or services to ensure consistent performance. This feature is particularly beneficial in environments where real-time applications such as VoIP or video conferencing are essential.

In conclusion, the Cisco C9200L-48PL-4G-E Switch offers a range of features that make it a highly capable and versatile networking solution. With its abundance of ports, Layer 3 functionality, manageability, and advanced features like Ethernet support and QoS, this switch provides users with the ability to build a robust and efficient network infrastructure that meets their specific needs. Whether it's for small businesses or large enterprises, the Cisco C9200L-48PL-4G-E Switch is an excellent choice for those seeking reliable and high-performance networking equipment.
