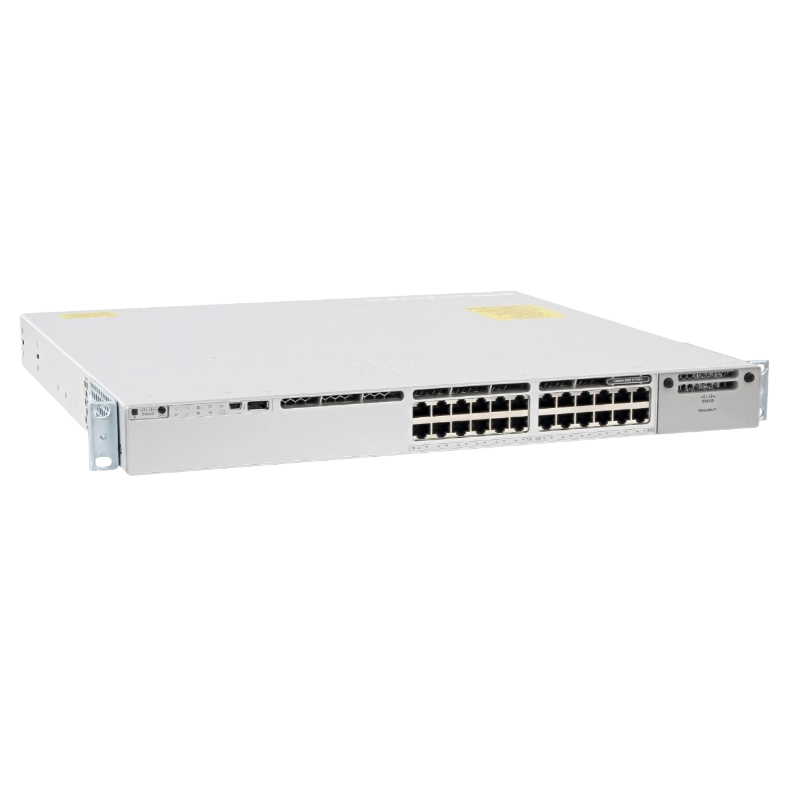

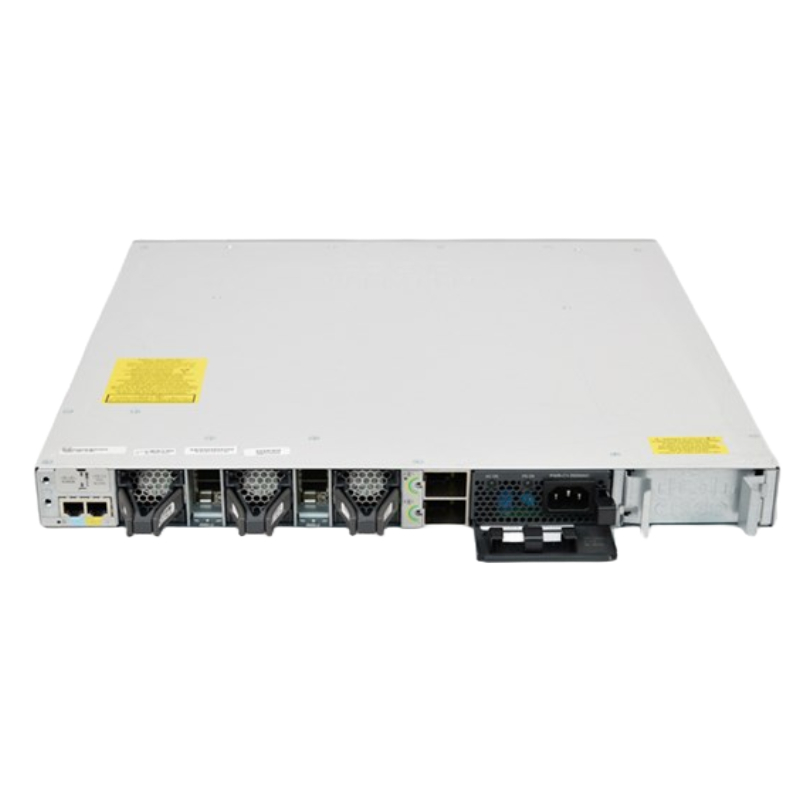

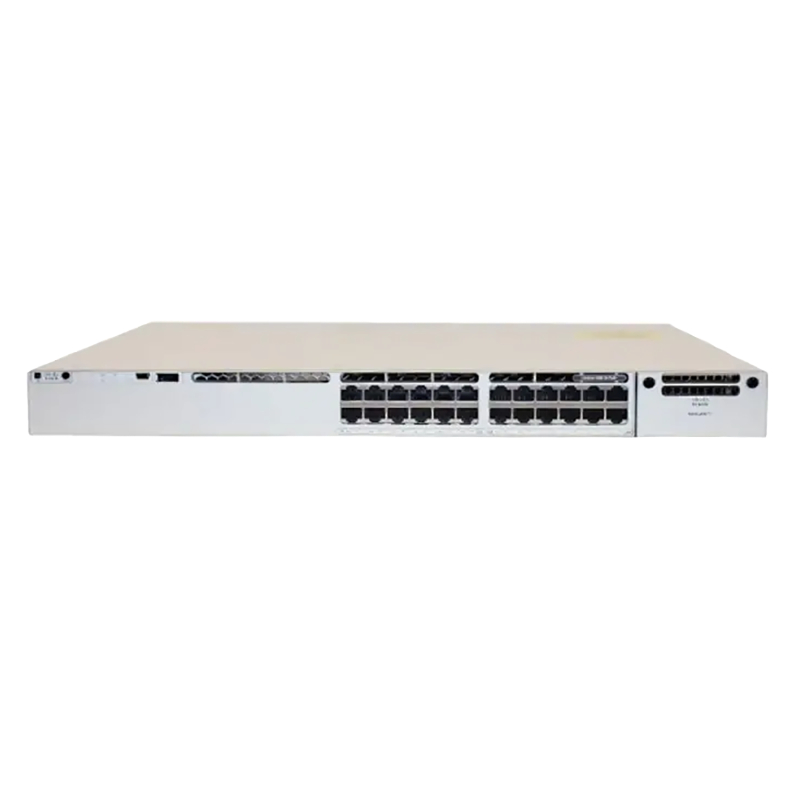

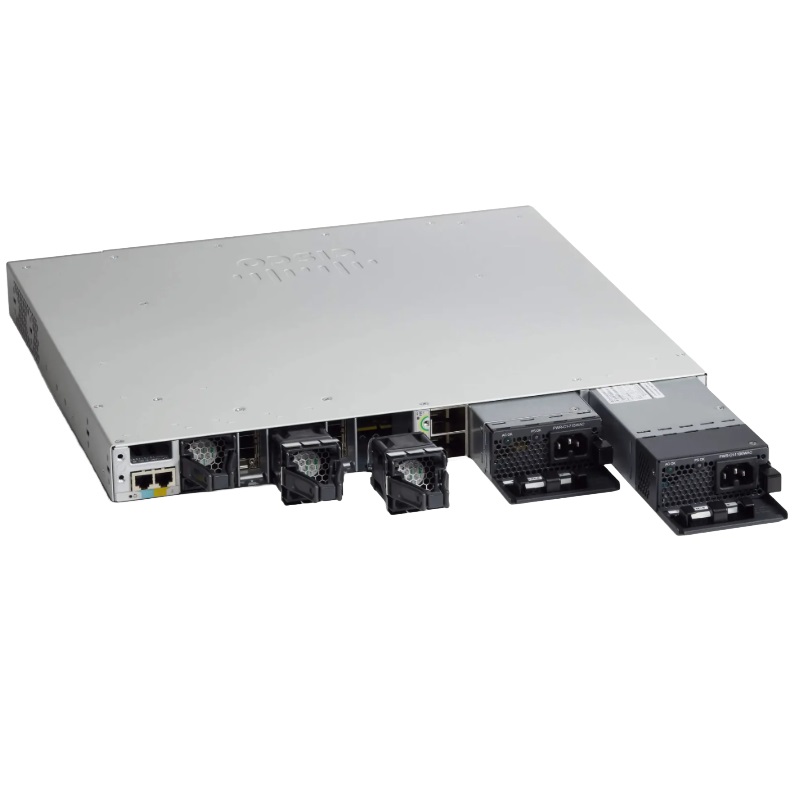

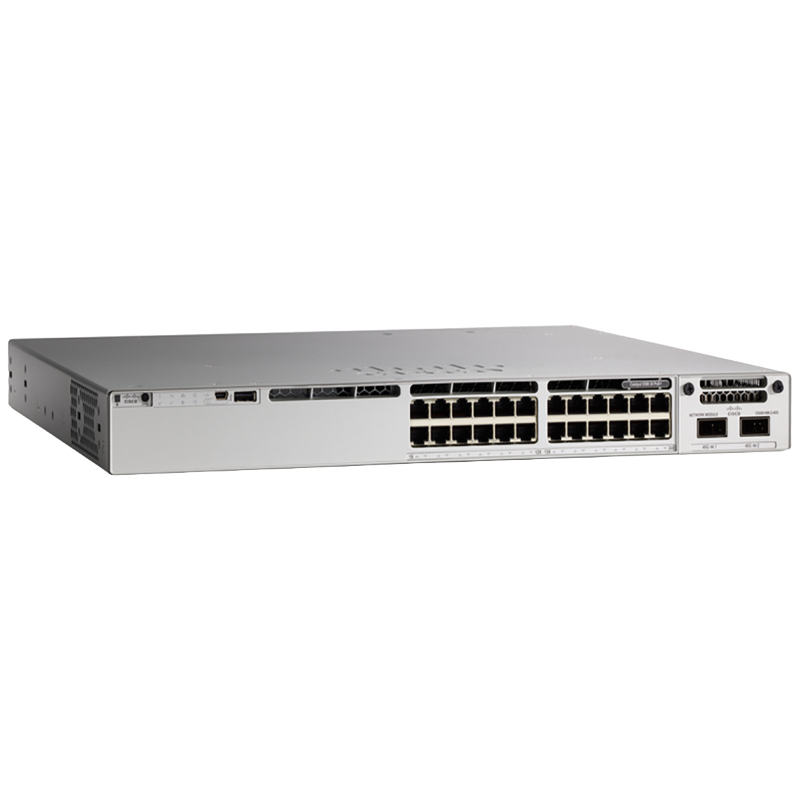

C9300-24T-A Cisco 24-Ports Manageable Switch Twisted Pair

Detailed Overview of Cisco Catalyst C9300-24T-A

The Cisco Catalyst C9300-24T-A is a high-performance rack-mountable Ethernet switch designed for enterprise networks. Part of the renowned Catalyst 9300 Series, this model delivers reliable connectivity, advanced security features, and enhanced network management capabilities, making it ideal for modern data-driven environments.

General Specifications

• Manufacturer: Cisco
• Model Number: C9300-24T-A
• Product Series: Catalyst 9300 Series
• Switch Type: Rack-mounted Ethernet

Port Configuration and Connectivity

• 24 Gigabit Ethernet ports for seamless network connections
• Dedicated uplink port for high-speed external connectivity
• Integrated stack ports enabling scalable stacking with other Catalyst switches
• Non-modular architecture for streamlined setup and maintenance
• Supports twisted-pair media for flexible cabling
• 10/100/1000Base-T Gigabit Ethernet for rapid data transmission
• Mean Time Between Failures (MTBF) of 314,790 hours ensuring long-term reliability

Layer 3 Routing and Protocol Support

• Layer 3 support enhances routing functionality across complex networks
• Compatible with multiple management protocols including CLI, SNMP (v1, v2c, v3), NETCONF, and RESTCONF
• Compliance with key IEEE standards such as 802.1D, 802.1p, 802.1Q, and 802.3

Security and Administrative Features

• 802.1x authentication ensures secure access control
• Access Control Lists (ACLs) provide advanced traffic filtering
• DHCP support automates IP assignment for efficient network management
• Syslog integration allows detailed monitoring of network events

Reliable Power Supply

• 350 Watts power output for consistent performance
• Dual power supply support for redundancy and uninterrupted operation
• Nominal voltage compatible with AC 120/230V systems

Energy Efficiency Features

• Cisco StackPower technology for dynamic power sharing among stacked switches
• Optimized energy consumption to reduce operational costs

Environmental and Operational Specifications

Optimal Operating Conditions

• Operating temperature range: 23°F to 113°F
• Humidity tolerance: 5% to 90% non-condensing

Storage Conditions

• Storage temperature range: -40°F to 158°F
• Storage humidity: 5% to 90% non-condensing

Enhanced Features and Protocols

• Flexible NetFlow (FNF) for detailed traffic analysis
• Application Visibility and Control (AVC) to optimize performance management
• Support for Ethernet over MPLS (EoMPLS) to extend network capabilities

Advanced Connectivity Options

• Layer 3 VPN support for secure remote access
• Integrated Wireshark functionality for real-time troubleshooting
• VLAN double tagging (Q-in-Q) for service provider networks
• Quality of Service (QoS) for traffic prioritization and smoother data flow

Comprehensive Network Management

• Efficient monitoring and analysis of network traffic
• Robust security enforcement with ACLs and authentication protocols
• Scalable deployment with stacking and modular networking capabilities

Outline Cisco C9300-24T-A Catalyst 9300 Ethernet Switch

The Cisco C9300-24T-A Catalyst 9300 24 Ports Rack-mountable Ethernet Switch represents a pinnacle in enterprise networking technology. Designed for high-performance environments, this switch offers unparalleled reliability, security, and scalability. As a member of the Catalyst 9300 series, the C9300-24T-A is tailored for medium to large organizations seeking a robust network infrastructure capable of supporting modern workloads, high-speed connectivity, and advanced features for automation and security.

Key Specifications and Performance Features

The C9300-24T-A switch comes equipped with 24 full-featured Gigabit Ethernet ports, supporting high-throughput applications and data-intensive processes. Each port is designed to ensure seamless communication across all devices connected to the network. The switch supports Layer 3 routing capabilities, enabling advanced network segmentation, efficient traffic management, and improved overall performance. With a forwarding capacity of up to several terabits per second, this switch ensures that data transfer is both fast and reliable, even in high-demand enterprise environments.

Advanced Network Security and Protection

Security is a cornerstone of the Cisco C9300-24T-A. The switch incorporates Cisco TrustSec technology, which provides scalable access control and enhanced protection against unauthorized access. With features such as secure boot, runtime defenses, and encryption capabilities, it ensures that network integrity is maintained at all times. Additionally, the switch supports advanced threat detection and mitigation, allowing organizations to proactively prevent security breaches and maintain compliance with regulatory standards.

Enhanced Automation

Automation is central to the Catalyst 9300 series, and the C9300-24T-A excels in this aspect. It supports Cisco DNA Center and Cisco IOS XE, which enable simplified network management through centralized automation tools. Administrators can deploy policies, monitor performance, and troubleshoot issues with minimal manual intervention. The switch also supports programmability through APIs, making it adaptable to evolving business requirements and enabling integration with third-party network management solutions.

High Availability and Resiliency

For mission-critical applications, the C9300-24T-A switch ensures continuous uptime and minimal disruption. Features such as StackWise-480 technology allow multiple switches to operate as a single logical unit, providing redundancy and enhanced fault tolerance. The switch also supports dual power supplies and hot-swappable components, which further increase reliability and minimize the risk of downtime. These capabilities make it ideal for environments where uninterrupted network connectivity is essential.

Energy Efficiency

Cisco has designed the C9300-24T-A with energy efficiency in mind. The switch uses innovative power management technologies that reduce energy consumption without compromising performance. Intelligent fan control, optimized hardware design, and low-power components ensure that operational costs remain low while supporting environmentally responsible practices. This focus on sustainability aligns with modern corporate objectives to reduce the overall carbon footprint of IT infrastructure.

Seamless Integration with Existing Networks

The Cisco C9300-24T-A switch is engineered for compatibility with existing network environments. It supports a wide range of protocols and can easily integrate with legacy systems, enabling smooth migration and network upgrades. With support for PoE+ (Power over Ethernet Plus), the switch can power connected devices such as IP phones, wireless access points, and security cameras directly through the Ethernet cable, reducing the need for additional power sources and simplifying installation.

Detailed Layer 3 Routing Capabilities

Beyond basic Layer 2 switching, the C9300-24T-A offers comprehensive Layer 3 functionality. This includes static routing, dynamic routing protocols such as OSPF, EIGRP, and BGP, as well as inter-VLAN routing. These capabilities allow for efficient traffic distribution across complex network topologies, enhancing network performance and reducing latency. Advanced routing features also enable organizations to design segmented, secure networks that meet specific operational requirements.

Scalability for Growing Enterprises

The Catalyst 9300 series, including the C9300-24T-A, is built with future growth in mind. Stackable up to eight switches, this model allows enterprises to scale their network infrastructure without significant downtime or complex configuration changes. The switch’s high-capacity uplinks support multi-gigabit and 10G Ethernet connections, ensuring that network expansion does not compromise speed or reliability. This scalability is ideal for organizations with evolving networking needs, supporting both current demands and future growth.

Wireless and Mobility Integration

The Cisco C9300-24T-A is designed to seamlessly integrate with wireless infrastructure. With support for Cisco Wireless Controllers and unified management platforms, the switch facilitates seamless communication between wired and wireless devices. This integration simplifies network deployment in hybrid environments and enhances user mobility, allowing employees to move freely without network interruptions. The switch also supports advanced wireless features such as seamless roaming and intelligent load balancing.

Reliability in Harsh Environments

Engineered with durability in mind, the C9300-24T-A is designed to operate in demanding conditions. It features high-quality components, robust thermal management, and compliance with stringent industry standards. Whether deployed in enterprise data centers, industrial sites, or campus networks, this switch ensures consistent performance and long operational lifespan. Its reliability reduces maintenance costs and provides peace of mind to IT managers responsible for critical network operations.

Software Capabilities

The Cisco C9300-24T-A runs on Cisco IOS XE, a modular operating system that enhances flexibility and security. IOS XE supports advanced features such as software-defined networking (SDN), programmability, and automated provisioning. This modern OS architecture allows organizations to implement network policies, deploy updates, and integrate new services without affecting ongoing operations. Continuous software updates ensure that the switch remains secure and up-to-date with the latest technological advancements.

Ideal Use Cases and Applications

The Cisco C9300-24T-A Catalyst 9300 switch is ideal for a wide range of networking scenarios. It is suitable for enterprise campus networks, branch offices, and hybrid cloud environments. Its 24 Gigabit ports make it particularly effective for connecting end-user devices, servers, and access points. Organizations looking to enhance network security, enable advanced automation, and scale their infrastructure will find the C9300-24T-A to be an invaluable asset. Its versatility ensures that it meets both current operational needs and future expansion requirements.
