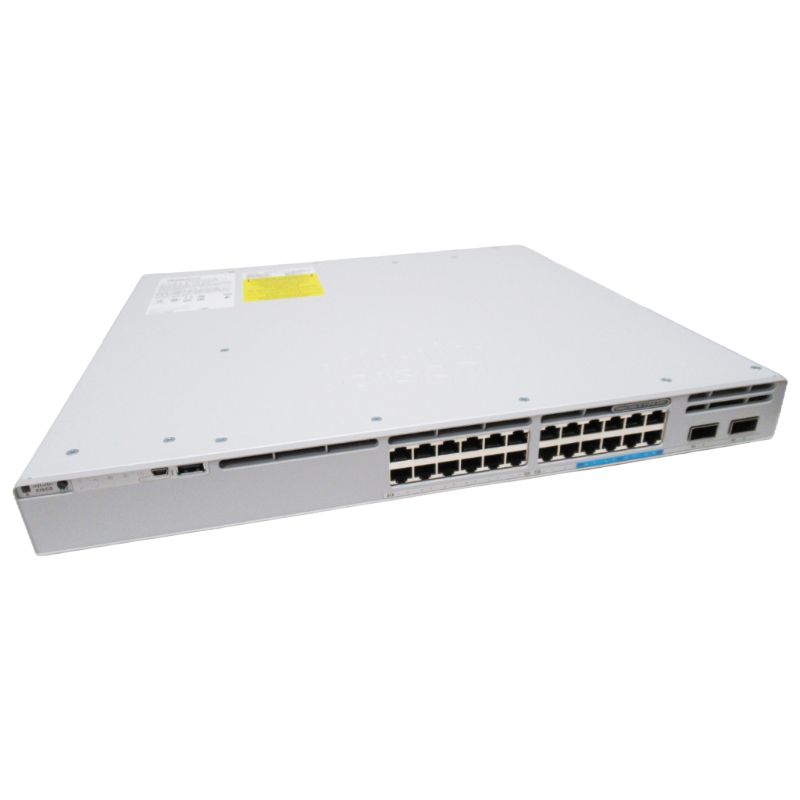

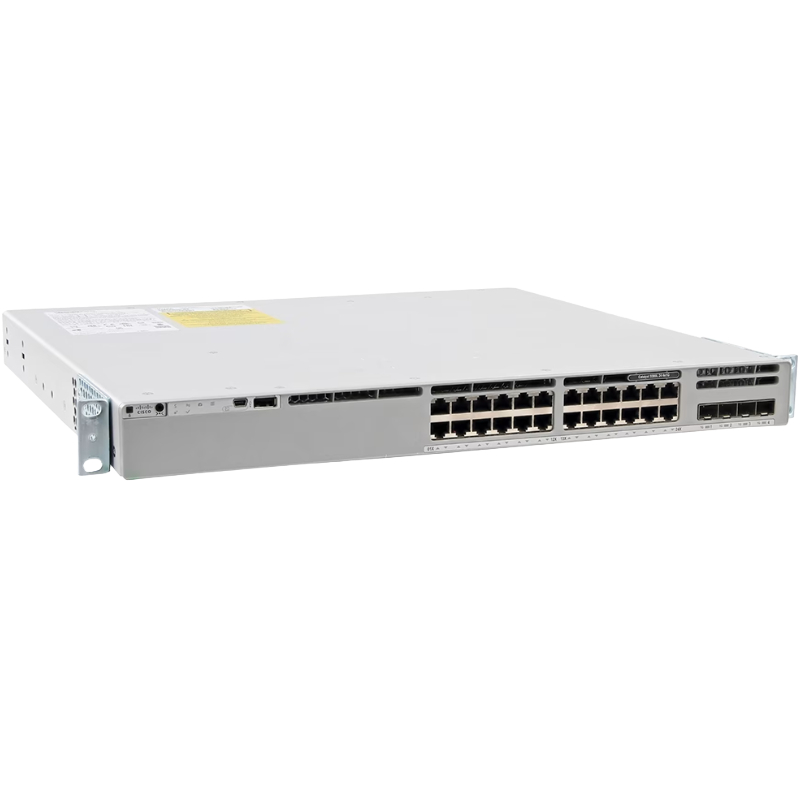

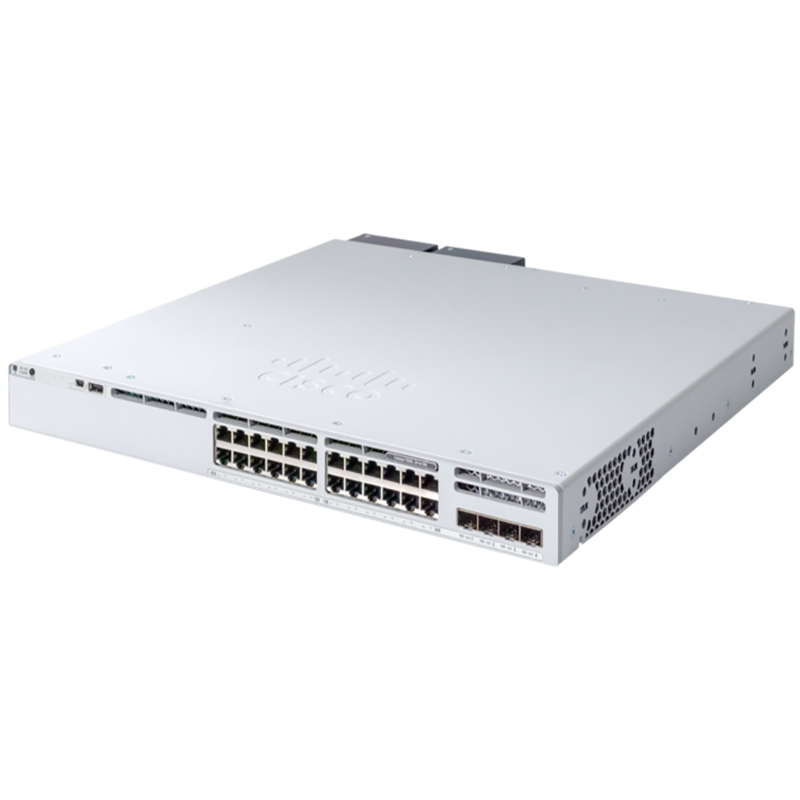

Cisco C9300L-24UXG-4X-A 24 Ports Layer 3 Ethernet Switch

Device Overview

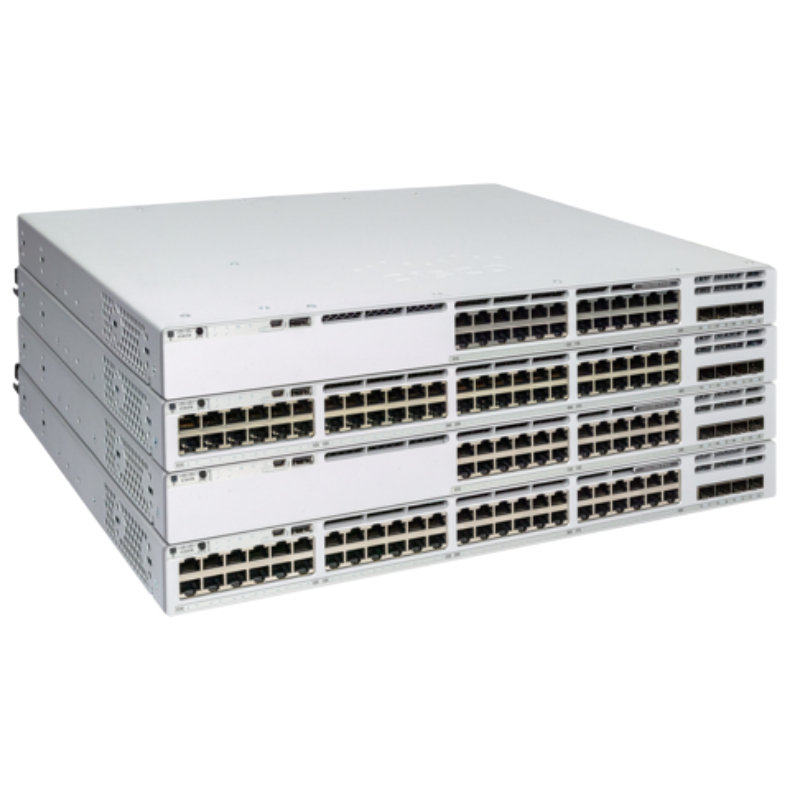

• Device Type: Managed L3 Switch with 24 Ports, stackable for easy scalability.
• Enclosure Type: Rack-mountable, making it ideal for data center integration.
• Subtype: Gigabit Ethernet connectivity for high-speed network performance.
• Power Over Ethernet (PoE): Supports Universal Power over Ethernet (UPOE).

Port Configuration

• 24 Ports: 10/100/1000 Mbps (UPOE) to deliver reliable connections for various devices.
• 4 Uplink Ports: 10 Gigabit SFP+ for high-bandwidth uplink connections.

Power and PoE Budget

• Total PoE Budget: 880 Watts to power multiple devices like phones, cameras, and access points.

Performance and Capacity

• Switching Capacity: Handles up to 272 Gbps, ensuring fast, efficient data transfers.
• With Stacking: Boosts switching capacity to 592 Gbps for larger network requirements.
• Forwarding Rate: 202.38 Mpps (or 440.47 Mpps with stacking) for superior packet handling.

Routing and Network Protocols

• IPv4 Routes: Supports 32,000 routes for efficient data management.
• IPv6 Routes: Supports 16,000 routes, enabling smooth transition to newer IP standards.
• Routing Protocols: Supports OSPF, EIGRP, RIP, VRRP, PIM-SM, PBR, and more.

Advanced Networking Features

• Access Control List (ACL) Support: Ensures network security by controlling packet flow.
• Quality of Service (QoS): Prioritizes important traffic for seamless performance.
• Rapid Per-VLAN Spanning Tree (PVST+): Increases network efficiency with fast failover times.
• MACsec Support: Provides Layer 2 encryption for enhanced data security.
• 802.1X Authentication: Ensures secure access to network resources.
• Zero-Touch Provisioning (ZTP): Simplifies deployment and configuration.

Energy Efficiency

• Energy-Efficient Ethernet: Reduces power consumption without compromising performance.
• Blue Beacon LED: Aids in identifying specific devices for easy troubleshooting.

Management and Monitoring

• Remote Management Protocols: Includes SNMP, RMON, CLI, NetConf, RESTConf, and gRPC for versatile network management.
• Control Plane Protection (CoPP): Guards against denial-of-service attacks.

Network Scalability

• VLANs Supported: Handles up to 4,094 VLANs for better traffic segmentation.
• Switched Virtual Interfaces (SVIs): 1,000 SVIs for easy management of multiple VLANs.
• MAC Address Table: Stores up to 32,000 entries for extensive network tracking.

Connectivity and Interfaces

• 1000Base-T Ports: 16 RJ-45 interfaces for flexible device connectivity, delivering up to 60W per port.
• 10GBase-X SFP+ Uplinks: 4 high-speed uplinks for extended network coverage.
• Management Ports: Includes LAN, RJ-45 console, USB 2.0, and network stack device ports for ease of access.

Power and Redundancy

• Power Supply: Internal hot-plug power unit with an output of 1,100W.
• Redundancy Options: Supports an additional power supply for redundancy and enhanced reliability.
• Power Requirements: AC 120/230 V at 50-60Hz for global compatibility.

Standards and Compliance

• Industry Standards: Complies with a wide range of IEEE standards, including IEEE 802.3, 802.1, 802.3bt, and more, ensuring compatibility with various networking devices.
• Wi-Fi Certified 6: Optimizes performance in wireless environments.

Memory and Storage

• RAM: Equipped with 8GB of memory for improved processing speed.
• Flash Memory: Comes with 16GB for reliable data storage and backup.

Ports

The Cisco C9300L-24UXG-4X-A Switch is equipped with 24 ports, making it an ideal choice for businesses or organizations that require a high-density network solution. These ports provide users with the ability to connect multiple devices simultaneously, facilitating seamless data transfer and communication between different devices within the network.

Increased Connectivity

With its 24 ports, this switch allows users to connect a wide range of devices such as computers, printers, servers, and IP phones. This increased connectivity enables businesses to expand their network infrastructure and accommodate more devices without compromising on performance or speed. Furthermore, the switch's ports support various data transfer speeds, including Gigabit Ethernet and 10 Gigabit Ethernet, ensuring fast and efficient communication between connected devices.

Flexibility in Network Design

The 24 ports on this Cisco switch provide users with the flexibility to design their network in a way that suits their specific requirements. Whether it's a small office setup or a large enterprise network, the ample number of ports allows for easy expansion and scalability. Users can connect devices directly to the switch or utilize additional networking equipment such as switches or routers to create a more complex network architecture.

Improved Productivity

The abundance of ports on the Cisco C9300L-24UXG-4X-A Switch promotes productivity within an organization. With more devices connected directly to the switch, there is less congestion on the network, resulting in faster data transfer and reduced latency. This translates into improved efficiency and productivity for employees who rely on the network for their daily tasks.

Layer Support

One of the standout features of the Cisco C9300L-24UXG-4X-A Switch is its Layer 3 support. Layer 3 refers to the network layer in the OSI model and is responsible for routing and forwarding data packets across different networks. By incorporating Layer 3 support, this switch offers a range of benefits and capabilities that are crucial for modern networking environments.

Enhanced Network Performance

With Layer 3 support, the Cisco C9300L-24UXG-4X-A Switch can perform advanced routing functions, allowing for efficient data routing between different networks. This feature enables the switch to handle larger volumes of traffic and optimize network performance. Whether it's routing between VLANs or implementing dynamic routing protocols, Layer 3 support ensures that data packets reach their intended destinations in the most efficient manner possible.

Improved Network Segmentation

Layer 3 support also enables network administrators to implement effective network segmentation strategies. By dividing the network into multiple smaller subnets, organizations can enhance security, reduce network congestion, and improve overall network performance. This level of segmentation is particularly useful in environments where different departments or user groups require specific access rights or have distinct network requirements.

Scalable and Future-Proof Networking

By incorporating Layer 3 support, the Cisco C9300L-24UXG-4X-A Switch provides a scalable networking solution that can adapt to changing business needs. As organizations grow and expand, their networking requirements evolve as well. Layer 3 support ensures that the switch can handle increased traffic and accommodate additional networks or devices without compromising on performance. This future-proofing capability helps organizations avoid costly network upgrades or replacements down the line.

Ethernet

The Cisco C9300L-24UXG-4X-A Switch boasts the "Manageable" Ethernet feature, which offers users a high level of control and configurability over their network infrastructure. This feature empowers network administrators with powerful management capabilities to ensure optimal performance, security, and stability.

Centralized Network Management

With its manageable Ethernet feature, the Cisco C9300L-24UXG-4X-A Switch allows for centralized network management. Network administrators can use management software or command-line interfaces to configure and monitor the switch's settings, ensuring consistent performance across the network. This centralized management approach saves time and effort by providing a single point of control for all connected devices and simplifying troubleshooting processes.

Enhanced Security

The manageable Ethernet feature enables network administrators to implement robust security measures to protect the network from unauthorized access and potential threats. With features like access control lists (ACLs) and port security, administrators can define and enforce strict security policies, limiting access to specific devices or networks. Additionally, the switch's manageable Ethernet feature allows for easy integration with other security solutions such as firewalls or intrusion detection systems, further enhancing network security.

Quality of Service (QoS) Optimization

The manageable Ethernet feature on the Cisco C9300L-24UXG-4X-A Switch enables network administrators to prioritize certain types of network traffic over others. By implementing Quality of Service (QoS) settings, administrators can allocate bandwidth and prioritize critical applications or services, ensuring a consistent user experience and preventing congestion on the network. This capability is particularly important in environments where real-time applications such as voice or video conferencing require uninterrupted and high-quality network connections.

In summary, the Cisco C9300L-24UXG-4X-A Switch offers users a powerful networking solution with its 24 ports, Layer 3 support, and manageable Ethernet feature. The abundance of ports provides increased connectivity and flexibility in network design, leading to improved productivity within organizations. Layer 3 support enhances network performance, enables effective segmentation, and future-proofs the networking infrastructure. The manageable Ethernet feature empowers network administrators with centralized management, enhanced security, and QoS optimization capabilities. With these features, the Cisco C9300L-24UXG-4X-A Switch is a reliable and versatile choice for businesses seeking a high-performance networking solution.
