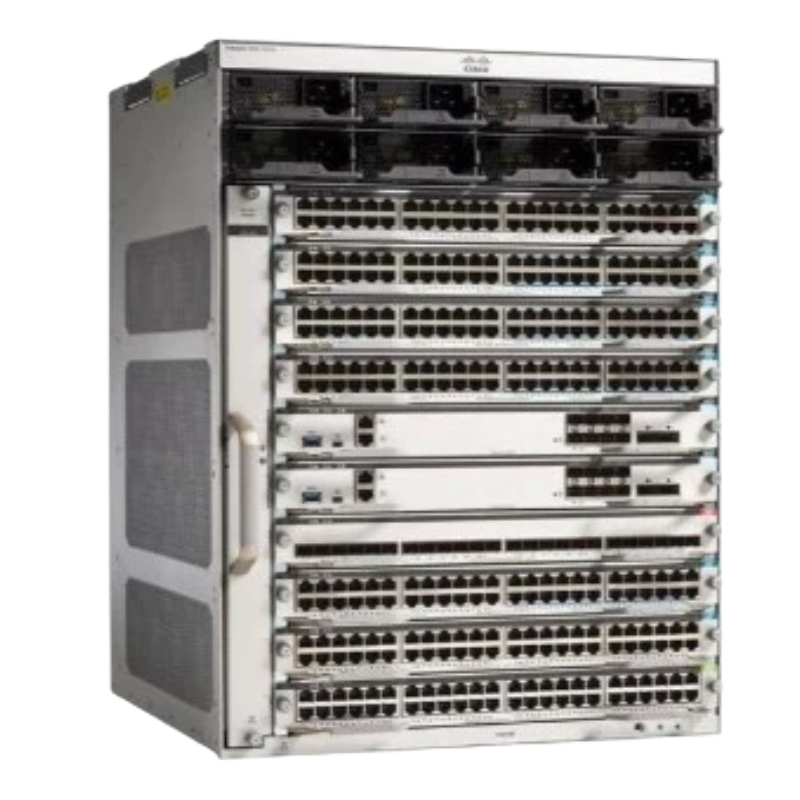

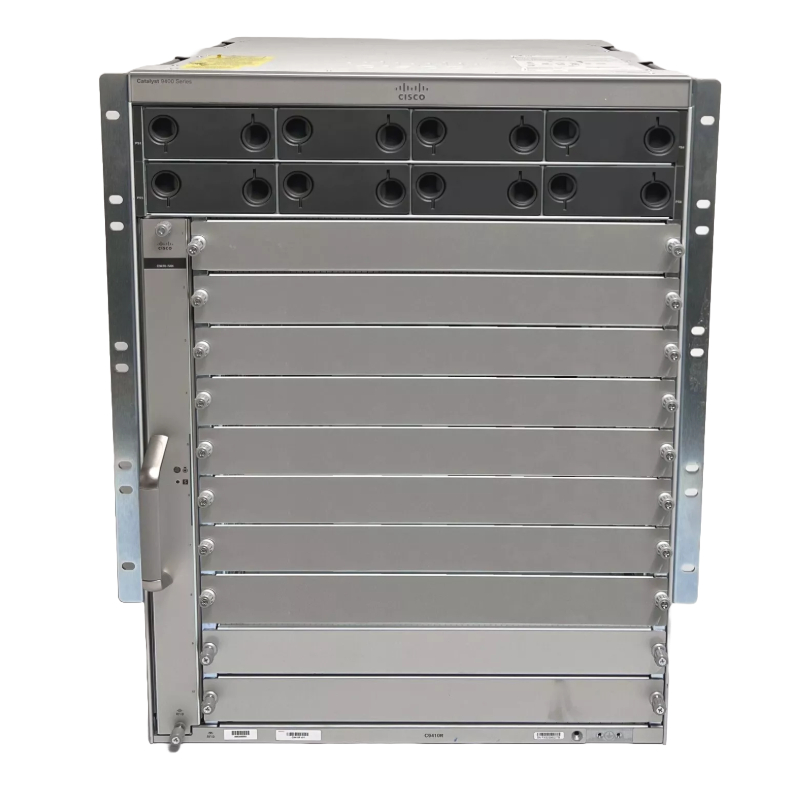

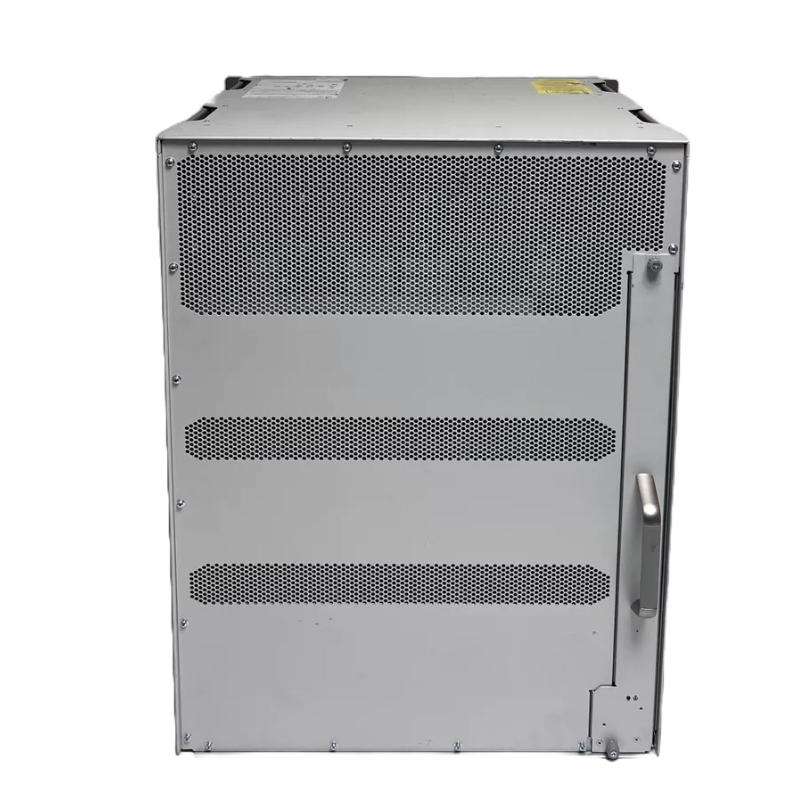

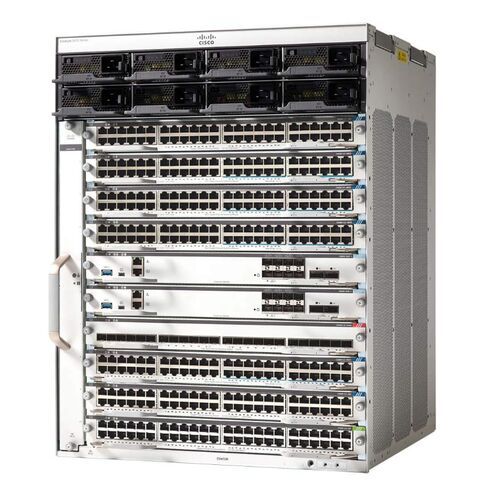

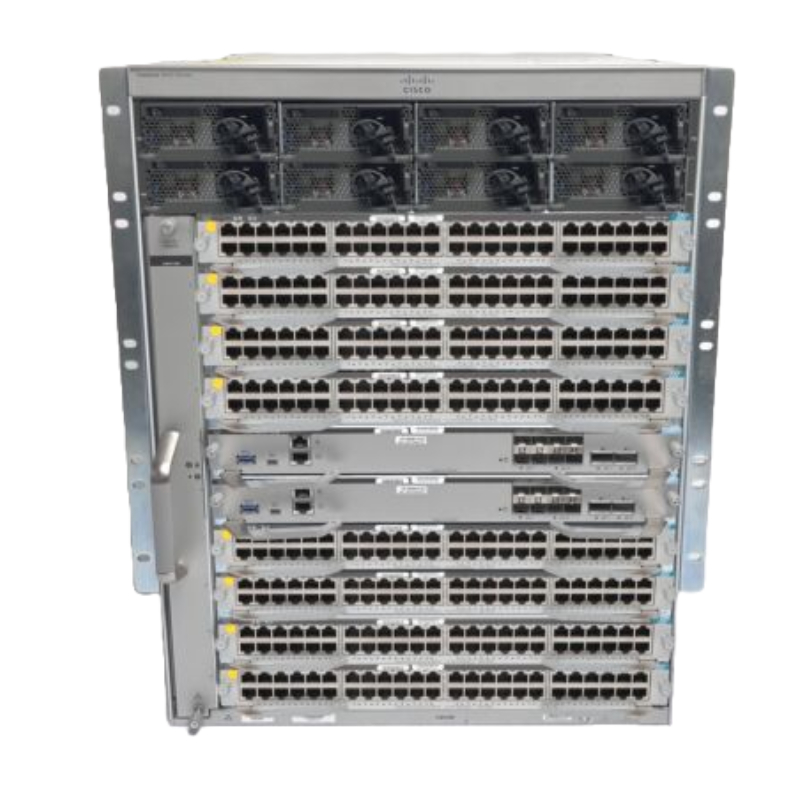

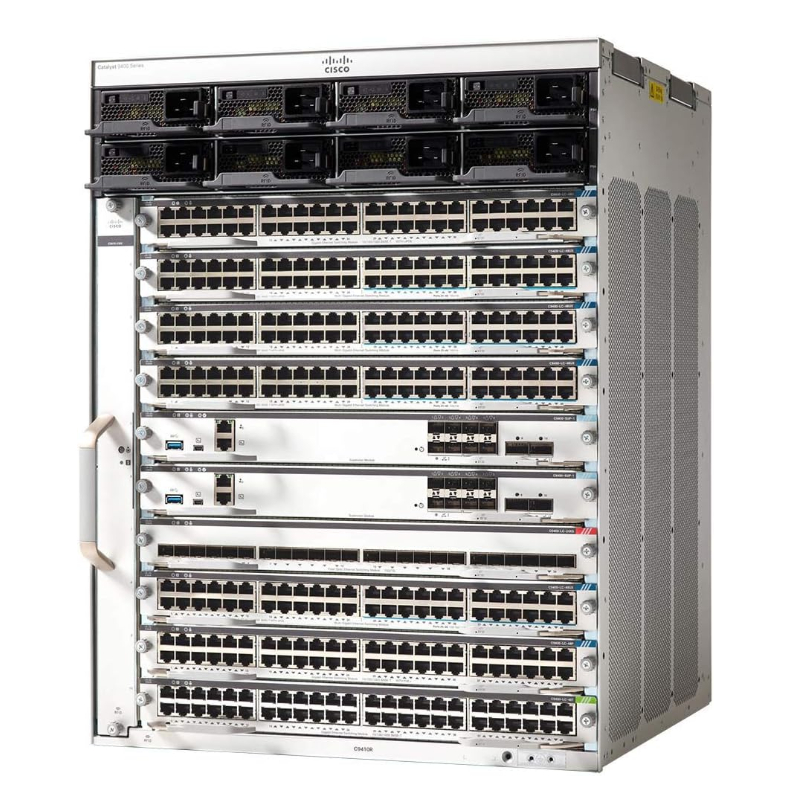

C9410R Cisco Catalyst 9400 Series 10 Slots Switch Chassis

Cisco C9410R Catalyst 9400 Series 10-Slot Switch Chassis

The Cisco C9410R Catalyst 9400 Series 10 Slots Switch Chassis is a high-performance, enterprise-grade network switch designed for large-scale deployments. Engineered with robust modularity and advanced features, this switch chassis delivers exceptional reliability, scalability, and flexibility for modern network infrastructures.

Manufacturer and Part Details

• Manufacturer: Cisco
• Part Number: C9410R
• Device Type: Network Switch
• Enclosure Style: Side-to-Side Airflow, Rack-Mountable, 13U
• Power Over Ethernet (PoE): Supported

Key Physical Attributes

• Rack-mountable 13U enclosure optimized for standard server racks
• High-density 10-slot modular architecture for versatile network module deployment
• Robust construction with enterprise-grade durability
• Efficient airflow design to maximize cooling and performance

Performance and Scalability

• Support for multiple high-performance line cards
• Expandable slot configuration for advanced network modules
• Enhanced throughput capacity to manage large-scale enterprise traffic
• Seamless integration with existing Catalyst 9400 deployments

Power and Energy Efficiency

• Supports redundant power supplies for high availability
• Efficient energy utilization to reduce operational costs
• PoE compatibility for powering network endpoints directly
• Scalable power provisioning depending on installed modules

Advanced Network Features

• High-speed 10-slot modular switching with full Layer 2 and Layer 3 support
• Comprehensive security protocols for enterprise-level protection
• Advanced routing and switching for large-scale campus networks
• Support for virtualization and software-defined networking (SDN)

Cisco C9410R Catalyst 9400 Series

The Cisco C9410R Catalyst 9400 Series 10 Slots Switch Chassis represents the pinnacle of enterprise-class modular switching, designed for high-performance campus and data center networks. Engineered to provide exceptional reliability, scalability, and flexibility, the C9410R chassis is an ideal foundation for organizations that demand robust Layer 2 and Layer 3 network services. With its modular design, this chassis allows network administrators to adapt to evolving business requirements while maintaining uninterrupted operations.

Modular Design and Scalability

The C9410R chassis features a 10-slot modular architecture, providing extensive flexibility to deploy multiple line cards, supervisor engines, and power supplies. Each slot supports a wide range of Catalyst 9400 series line cards, enabling high-density connectivity for diverse network environments. This modularity ensures that network infrastructure can scale seamlessly as organizational needs grow, reducing the need for costly network overhauls.

Line Card Flexibility

The chassis supports multiple line card configurations, allowing administrators to mix and match 1G, 10G, 25G, and 40G interfaces according to their network requirements. This flexibility makes it suitable for a variety of use cases, including high-bandwidth applications, core aggregation, and distribution layer switching. Each line card is designed for hot-swappable operation, ensuring minimal network disruption during maintenance or upgrades.

Supervisor Engine Redundancy

Reliability is enhanced by dual supervisor engines with stateful switchover capabilities. In the event of a supervisor failure, the secondary engine seamlessly assumes control, maintaining uninterrupted network services. This redundancy ensures high availability and supports mission-critical applications, making the C9410R chassis ideal for enterprise environments that require constant network uptime.

High-Performance Networking

The C9410R chassis delivers exceptional throughput and low-latency performance, making it suitable for demanding network environments. Its architecture supports advanced Layer 2 and Layer 3 switching features, including VLAN segmentation, routing protocols, and multicast traffic management. With its high forwarding capacity, the chassis can handle extensive traffic loads while maintaining consistent network performance.

Advanced Layer 3 Capabilities

Designed to serve as a core or aggregation switch, the C9410R provides extensive Layer 3 routing capabilities, including support for OSPF, EIGRP, BGP, and VRF-lite implementations. This enables enterprises to efficiently manage complex network topologies and ensure optimal traffic flow across distributed environments. The chassis supports dynamic routing protocols that allow for automated route discovery and failover, enhancing network resiliency.

Optimized Layer 2 Switching

The Catalyst 9400 Series chassis supports a wide range of Layer 2 features, including spanning tree protocols, link aggregation, and EtherChannel technology. These capabilities enable efficient traffic distribution, reduce congestion, and prevent network loops. Enhanced security features at Layer 2, such as private VLANs and port security, safeguard critical network segments and control access to sensitive resources.

Multicast and QoS Support

The C9410R chassis excels in managing multicast traffic, ensuring smooth delivery of video, voice, and real-time applications. Advanced Quality of Service (QoS) policies enable prioritization of critical traffic flows, reducing latency and packet loss. These features are particularly important in environments with converged networks, where voice, video, and data coexist on the same infrastructure.

Redundant Power Architecture

Designed with high availability in mind, the chassis supports fully redundant power supply configurations. Each supply can deliver sufficient power to maintain full chassis operation even if one unit fails. This level of redundancy is essential for enterprises that require uninterrupted network services for critical business applications.

Intelligent Cooling Design

The Cisco C9410R utilizes variable-speed fans and airflow optimization techniques to maintain stable operating temperatures. The intelligent fan system adjusts speed according to chassis load and environmental conditions, reducing energy consumption while ensuring that all internal components remain adequately cooled. This not only improves system reliability but also enhances sustainability by lowering overall power consumption.

Security and Policy Enforcement

Security is a central feature of the C9410R Catalyst 9400 Series. The chassis supports advanced access control mechanisms, dynamic segmentation, and threat detection to protect enterprise networks from internal and external attacks. Cisco's TrustSec technology integrates with the chassis to enforce security policies consistently across wired and wireless networks.

Dynamic Access Control

The Catalyst 9400 chassis enables dynamic access policies based on user roles, device types, and network segments. This allows administrators to enforce precise security rules and prevent unauthorized access to sensitive data. Integration with Cisco Identity Services Engine (ISE) enhances visibility and control, providing end-to-end policy enforcement across the network.

Segmentation and Micro-Segmentation

Network segmentation features allow administrators to isolate critical workloads, reducing the attack surface and minimizing potential damage from security breaches. Micro-segmentation capabilities further enhance security by creating granular virtual network boundaries for applications and services, ensuring that each component operates in a controlled environment.

Advanced Threat Detection

The chassis is compatible with Cisco’s advanced security solutions, including Encrypted Traffic Analytics and Network Assurance features. These tools continuously monitor network traffic, identify anomalies, and mitigate threats in real-time. By integrating security directly into the switching platform, the C9410R ensures that enterprise networks remain resilient against evolving cyber threats.

Centralized Management with Cisco DNA Center

Administrators can leverage Cisco DNA Center for policy-based automation, real-time analytics, and network assurance. Centralized management simplifies tasks such as configuration deployment, firmware updates, and troubleshooting. The platform also provides actionable insights for performance optimization and predictive maintenance, enabling a proactive approach to network management.

Programmability and Automation

The C9410R chassis supports software-defined networking (SDN) and automation through programmable interfaces, APIs, and Python scripting. This allows organizations to automate routine tasks, integrate with orchestration tools, and implement customized workflows. Automation enhances operational efficiency, reduces human error, and accelerates service delivery.

Applications and Deployment Scenarios

The Cisco C9410R Catalyst 9400 Series is designed for a wide range of deployment scenarios, including enterprise campus cores, data center aggregation layers, and high-performance service provider networks. Its high throughput, modular flexibility, and advanced features make it ideal for organizations with demanding network requirements.

Enterprise Campus Networks

In large campus environments, the C9410R chassis provides scalable connectivity for thousands of endpoints, supporting both wired and wireless access. Its robust Layer 3 capabilities and redundant architecture ensure uninterrupted operations for critical business applications, including VoIP, video conferencing, and cloud services.

Data Center Aggregation

The chassis can serve as a high-capacity aggregation switch in modern data centers, facilitating connectivity between access switches and core routers. Its high-density line cards and low-latency forwarding make it suitable for applications that require rapid data transfer and minimal network congestion.

Service Provider Networks

Service providers can leverage the C9410R chassis to deliver enterprise-class services with high reliability and performance. Its modular design allows for customization based on client requirements, while advanced routing and security features ensure quality of service and secure data transport.

Reliability and Support

Cisco provides extensive support and service options for the C9410R Catalyst 9400 Series. This includes access to Cisco SMARTnet services, proactive monitoring, and hardware replacement programs. The chassis is built for long-term reliability, with robust testing and high-quality components that minimize downtime and extend network lifespan.

Comprehensive Service Options

Cisco offers flexible service contracts for hardware and software support, ensuring that organizations can maintain optimal network performance. Services include 24/7 technical assistance, on-site support, and software updates, providing peace of mind for critical network operations.
