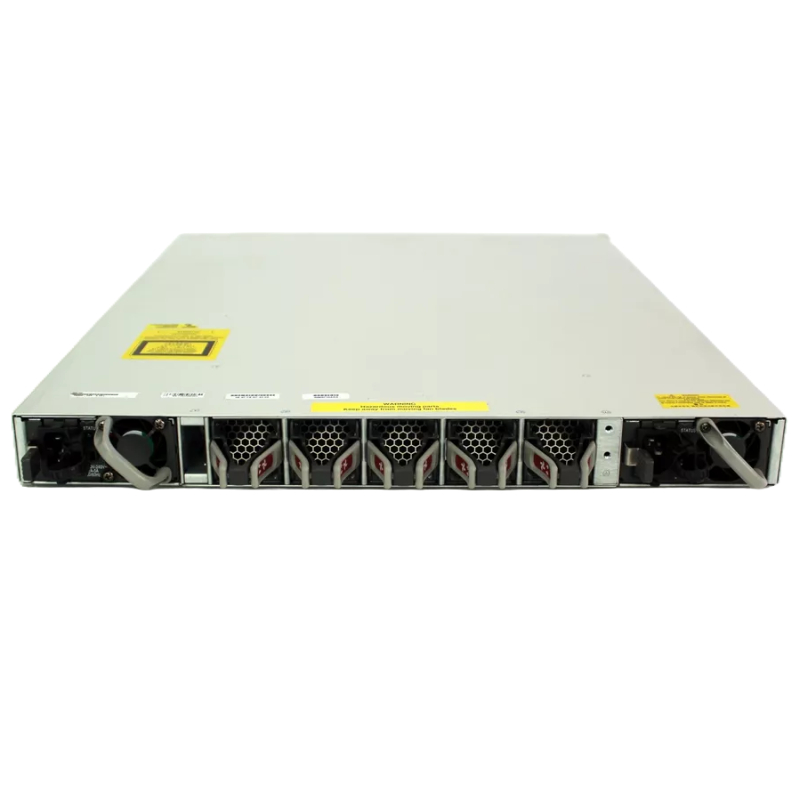

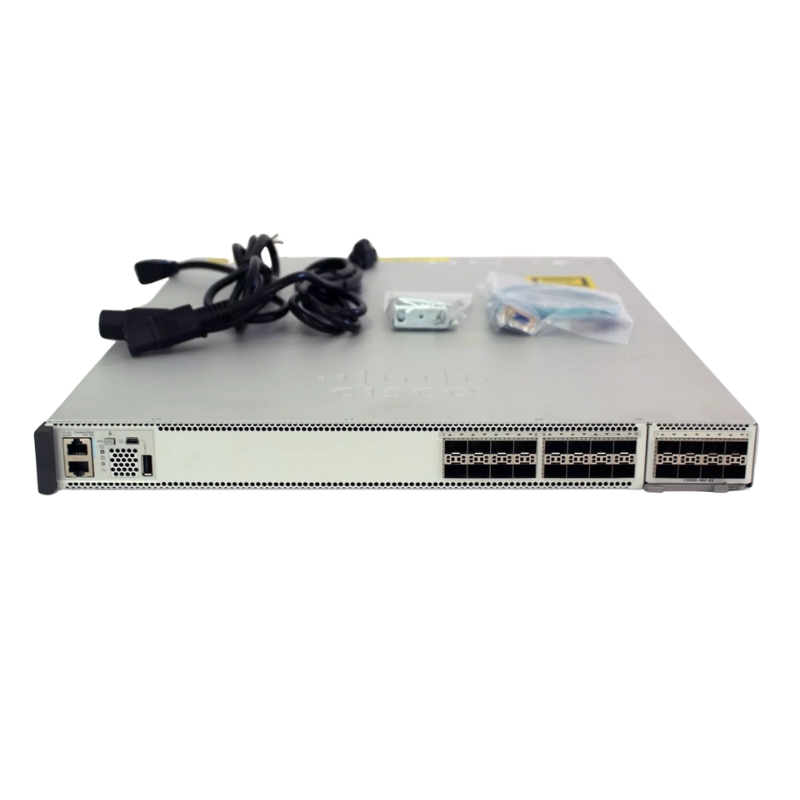

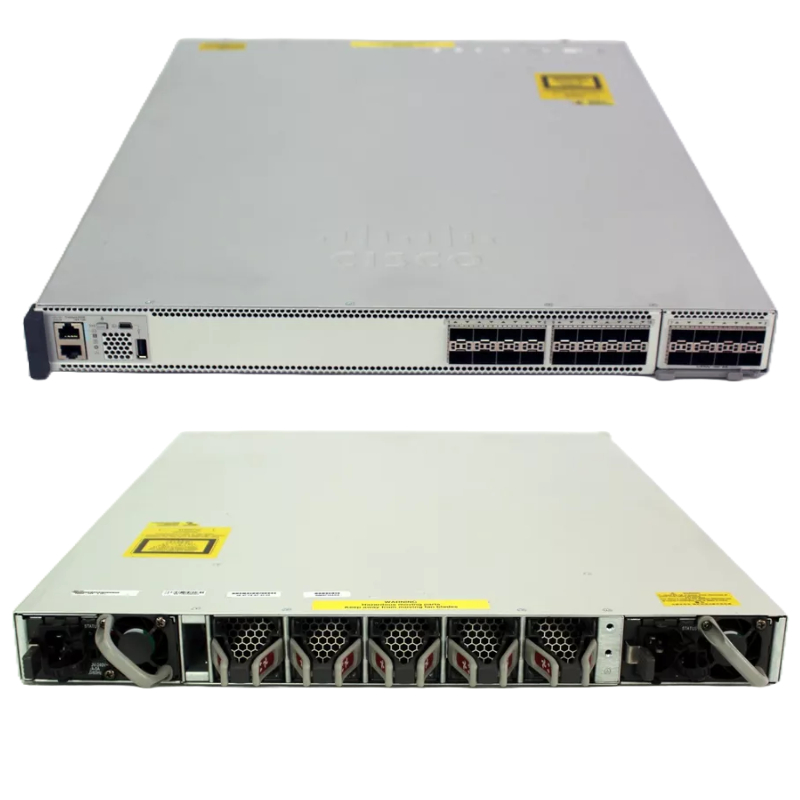

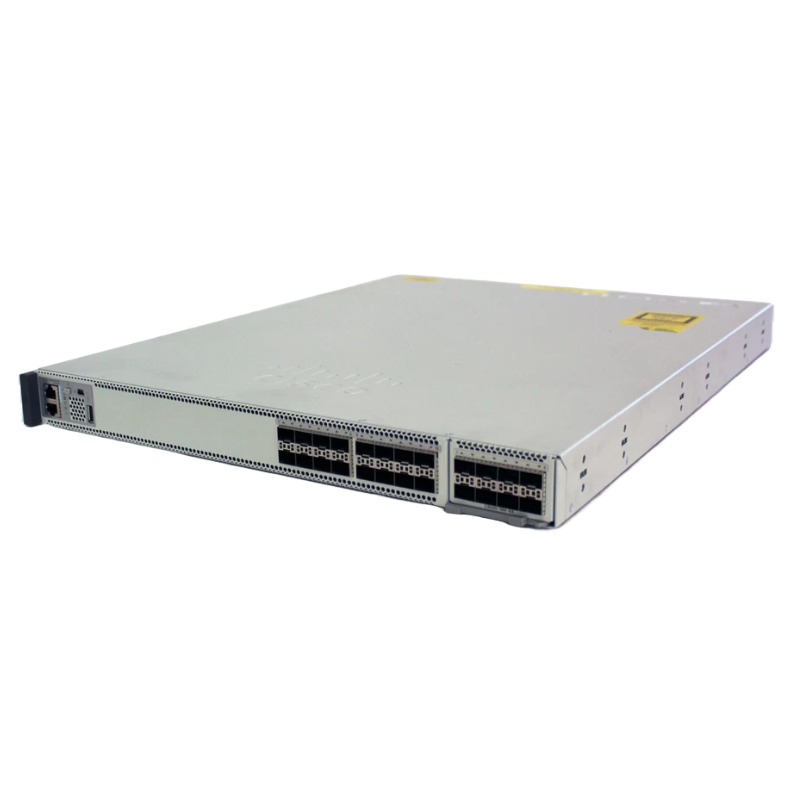

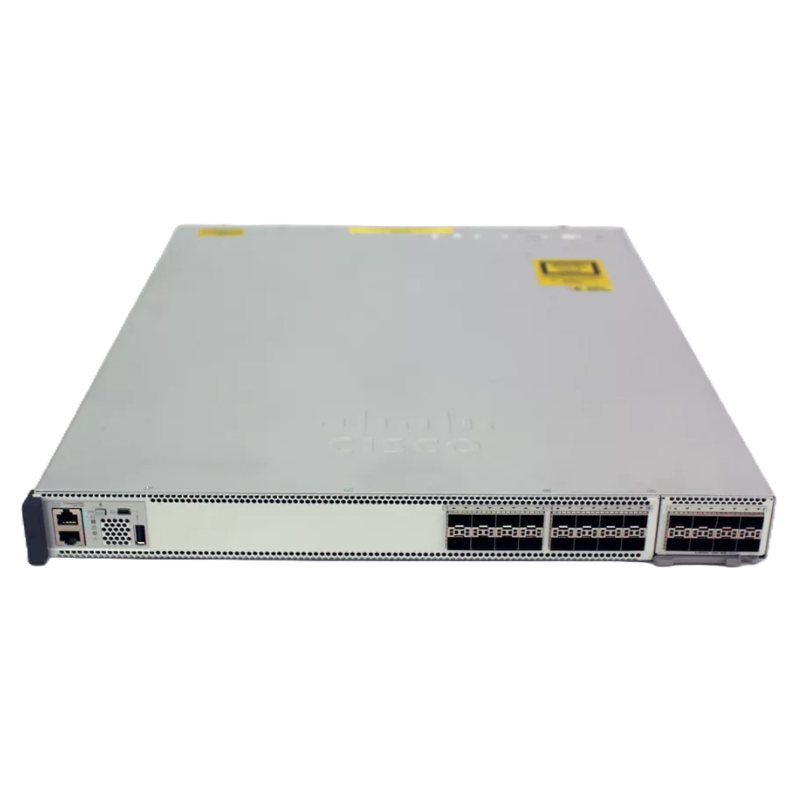

C9500-24X-E Cisco Catalyst 9500 1U Rack-mountable 24 Ports Managed Switch

Cisco C9500-24X-E 24-Port Managed Switch

The Cisco C9500-24X-E is a high-performance 24-port Layer 3 managed switch from the Catalyst 9500 series, designed for enterprise-grade networking and data center applications. Its 1U rack-mountable form factor makes it ideal for space-efficient deployments while delivering advanced switching capabilities.

Manufacturer and Product Details

• Manufacturer: Cisco
• Model Number: C9500-24X-E
• Device Type: Managed Layer 3 Switch
• Port Count: 24 Ports

Form Factor and Mounting

• Enclosure Type: 1U Rack-Mountable Chassis
• Rack Compatibility: Standard 19-inch racks

Port Configuration and Interfaces

• 10 Gigabit Ethernet Ports: 16 x 10GBASE-T RJ-45
• 10 Gigabit SFP+ Slots: 8 x 10GBASE-X SFP+
• Total Switching Capacity: Up to 480 Gbps (Full Duplex)
• Forwarding Rate: Up to 360 Million Packets per Second (Mpps)
• MAC Address Table: 64,000 Entries
• Jumbo Frame Support: Up to 9,198 Bytes

Supported Routing Protocols

• OSPF (Open Shortest Path First)
• RIP-1 & RIP-2 (Routing Information Protocol)
• IGMP (Internet Group Management Protocol)
• VRRP (Virtual Router Redundancy Protocol)
• PIM-SM & PIM-SSM (Protocol Independent Multicast)
• Policy-Based Routing (PBR)
• RIPng (RIP next generation for IPv6)

Internal Power Specifications

• Power Supply: Internal, hot-pluggable
• Installed Quantity: 2 units
• Maximum Supported Quantity: 2 units
• Power Redundancy: Yes, ensures uninterrupted operation
• Total Power Provided: 950 Watts
• Voltage Required: AC 120/230 V (50–60 Hz)

Switching and Throughput

• High-performance switching for enterprise networks
• Low-latency Layer 3 routing capabilities
• Supports large-scale MAC address tables for modern network demands

Scalability and Expandability

• Multiple 10G and SFP+ interfaces allow flexible connectivity
• Designed to support future network growth with additional modules
• Advanced routing protocols ensure network scalability and reliability

Reliability and Redundancy

• Dual redundant hot-pluggable power supplies
• Continuous uptime with VRRP and PBR support
• Robust SNMP and RMON management for proactive monitoring

Network Efficiency

• High forwarding rate and switching capacity
• Jumbo frame support for high-volume data transfer
• Advanced multicast and routing protocols optimize traffic flow

Enterprise-Grade Security

• Supports secure management through SNMPv3 and RESTCONF
• Policy-based routing enhances traffic segmentation and control
• Reliable performance for critical business applications

Cisco C9500-24X-E Layer 3 Switch

The Cisco C9500-24X-E represents a premier solution in the Catalyst 9500 Series, designed for advanced enterprise networks and high-performance data centers. This Layer 3 switch is engineered to provide robust routing capabilities, high-density connectivity, and exceptional scalability. Optimized for 10 Gigabit Ethernet SFP+ interfaces, it ensures rapid data transfer rates and reliable network performance. Ideal for organizations requiring secure, high-speed, and resilient networking solutions, the C9500-24X-E combines hardware efficiency with Cisco’s industry-leading software intelligence.

High-Density 10 Gigabit Ethernet Connectivity

The Cisco C9500-24X-E offers 24 fixed 10 Gigabit SFP+ ports, enabling organizations to support a large number of high-speed connections without compromising network stability. Each port is designed to handle extensive traffic loads, making this switch suitable for aggregation layers, core networks, and data center uplinks. The integration of SFP+ interfaces allows for flexible connectivity using a wide range of fiber modules, supporting both short-range and long-range optical links.

Advanced Layer 3 Routing Features

Equipped with comprehensive Layer 3 functionality, the Cisco C9500-24X-E delivers enhanced routing capabilities across enterprise networks. It supports protocols such as OSPF, EIGRP, and BGP, allowing seamless integration with complex topologies. The switch’s routing efficiency ensures minimal latency and optimal path selection, improving overall network performance. For mission-critical environments, these features provide dependable and intelligent traffic management while maintaining high availability.

Scalable and Modular Design

The modular architecture of the C9500-24X-E ensures that the switch can adapt to evolving network demands. Although it comes with 24 fixed ports, its design allows for flexible expansion and integration with additional Cisco Catalyst modules. This scalability is essential for growing enterprises that anticipate increased bandwidth requirements or need to extend their network footprint. The switch’s 1U rack-mountable form factor optimizes space utilization in data center racks, providing a high port density solution without consuming excessive physical space.

Enhanced Network Security and Reliability

Cisco has embedded advanced security measures in the C9500-24X-E to protect enterprise networks from evolving threats. The switch supports features such as IEEE 802.1X authentication, access control lists (ACLs), and MACsec encryption, which safeguard sensitive data traversing the network. Additionally, the device offers redundancy features like dual power supplies, redundant fans, and hot-swappable components to ensure uninterrupted operations in critical environments. These capabilities make the C9500-24X-E a reliable choice for enterprises seeking secure, always-on network performance.

Automation and Programmability

In line with modern network management practices, the Cisco C9500-24X-E provides robust automation and programmability features. Leveraging Cisco DNA Center and APIs, administrators can automate routine tasks such as configuration, monitoring, and policy enforcement. This reduces operational complexity and accelerates response times to network changes. Programmability also enables integration with third-party network management platforms, facilitating centralized control over hybrid network environments and ensuring consistent performance across multiple sites.

Optimized for High-Performance Applications

The switch’s architecture is tailored to support demanding enterprise and data center applications, including virtualization, cloud computing, and high-throughput analytics. By delivering wire-speed performance on all 10 Gigabit ports, the C9500-24X-E can efficiently handle large volumes of simultaneous data transfers. This capability is critical for businesses running multiple virtualized environments or applications that require low latency, such as VoIP, video conferencing, and mission-critical databases. The switch ensures that high-bandwidth applications operate smoothly without congestion.

Energy Efficiency and Environmental Design

Cisco has optimized the C9500-24X-E for energy efficiency without compromising performance. The switch incorporates intelligent power management, low-power fans, and efficient cooling mechanisms, reducing operational costs while maintaining high throughput. Its compliance with environmental standards ensures sustainable deployment in modern data centers and enterprise networks. The combination of energy efficiency and high performance allows organizations to balance operational expenditure with network reliability.

Comprehensive Network Visibility and Analytics

With integrated telemetry and monitoring tools, the Cisco C9500-24X-E enables detailed visibility into network performance and traffic patterns. Features such as streaming telemetry, NetFlow, and advanced analytics provide administrators with actionable insights, facilitating proactive network management. By leveraging these insights, IT teams can quickly identify potential bottlenecks, optimize bandwidth utilization, and enhance overall network efficiency. This level of visibility is crucial for maintaining optimal performance in complex, high-demand environments.

Support for Advanced Network Services

The C9500-24X-E extends its functionality through support for advanced network services, including quality of service (QoS), multicast routing, and policy-based networking. QoS ensures that critical applications receive the necessary bandwidth, minimizing latency and jitter. Multicast support allows efficient distribution of high-bandwidth content such as video streaming across the network. Policy-based networking enables consistent security and access policies, streamlining management in enterprise deployments. These services make the switch versatile and adaptable to a wide range of network scenarios.

Integration with Cisco Ecosystem

As part of the Cisco Catalyst 9500 Series, the C9500-24X-E seamlessly integrates with other Cisco solutions, including Nexus data center switches, wireless controllers, and security appliances. This integration allows enterprises to build cohesive network architectures with centralized management and unified policy enforcement. By leveraging the full Cisco ecosystem, organizations can maximize the value of their network investments while reducing complexity and operational overhead.

Robust Firmware and Software Support

The Cisco C9500-24X-E benefits from Cisco’s continuous software innovation, including regular updates and security patches. The switch supports the Cisco IOS XE operating system, providing a stable, feature-rich environment for enterprise routing, switching, and security functions. Advanced software capabilities, such as programmability, automation, and analytics, are continuously enhanced, ensuring that the switch remains relevant and capable of meeting evolving network demands.

Deployment Flexibility

The switch is designed for versatile deployment scenarios, whether in traditional enterprise networks, campus aggregation layers, or modern data centers. Its high port density, Layer 3 routing capabilities, and SFP+ support make it suitable for both core and distribution layers. IT teams can deploy the C9500-24X-E in conjunction with existing infrastructure or as part of a greenfield deployment, providing the flexibility to adapt to specific operational requirements. Its performance characteristics make it particularly valuable in high-traffic environments where low latency and high availability are critical.

Future-Proof Networking Investment

By investing in the Cisco C9500-24X-E, enterprises gain a future-proof network platform capable of supporting emerging technologies and increasing bandwidth requirements. The switch’s combination of high-performance hardware, advanced software features, and robust security measures ensures that it can meet the demands of next-generation applications. Organizations can scale their networks with confidence, knowing that the C9500-24X-E provides a reliable and adaptable foundation for both current and future networking needs.
