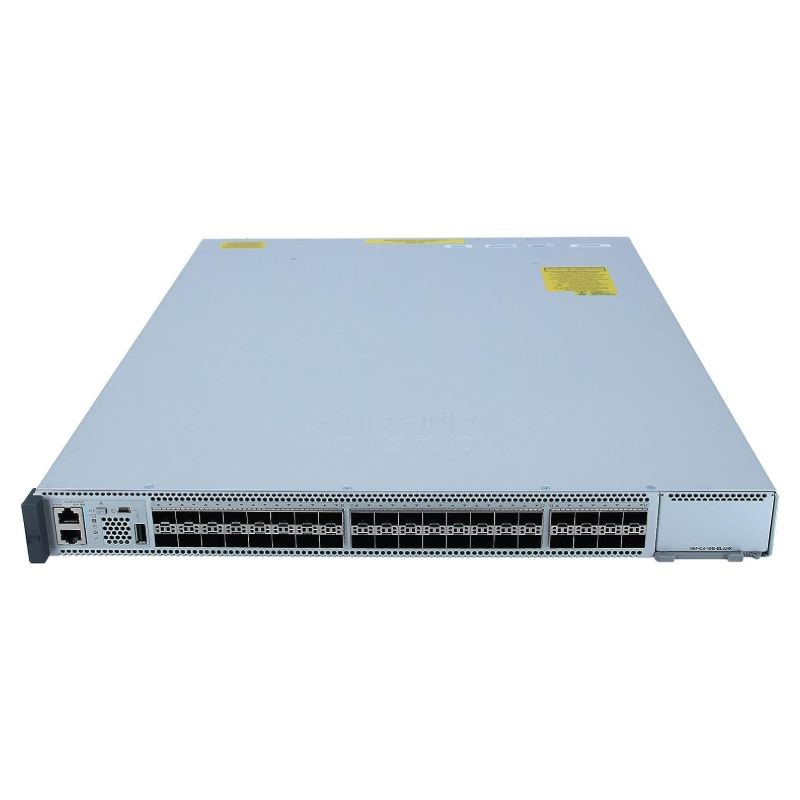

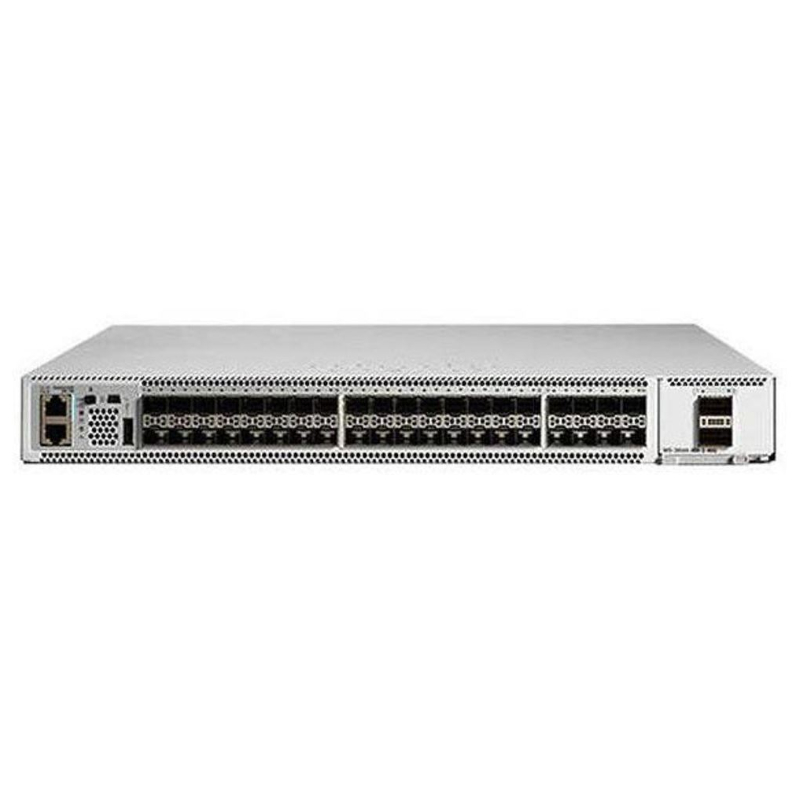

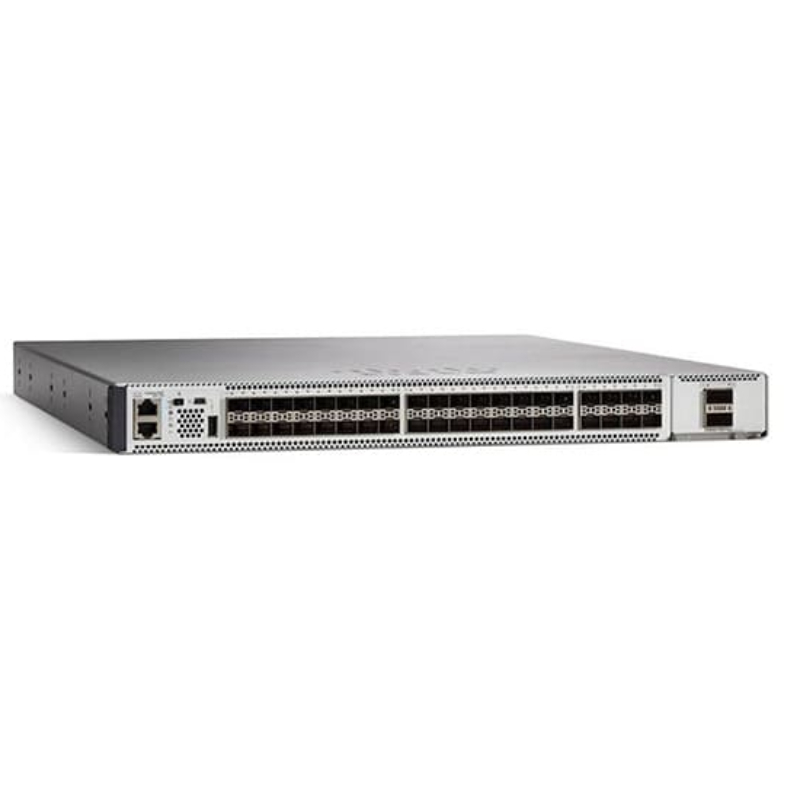

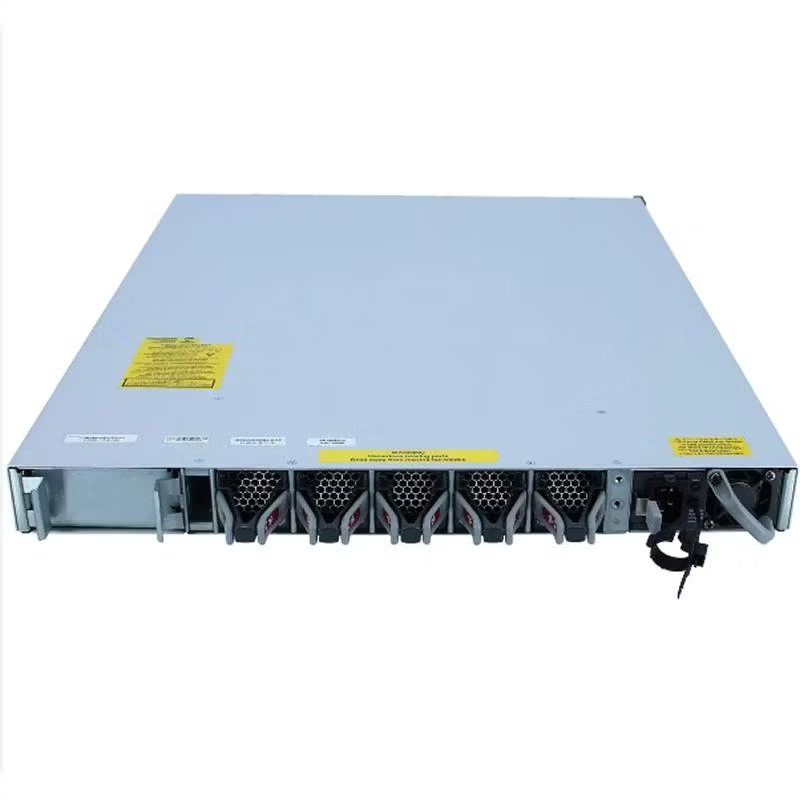

Cisco C9500-40X-E Catalyst 9500 Layer 3 Managed Switch

Key Specifications of Cisco C9500-40X-E

• Manufacturer: Cisco
• Model Number (SKU#): C9500-40X-E
• Product Type: Ethernet Shared Port Adapter
• Product Line: Catalyst
• Product Series: 9500

Interfaces and Ports for Ethernet Switch

• Uplink Port: Not available
• Expansion Slots: 40 x 10 Gigabit Ethernet Expansion Slots
• Modular Design: Yes, supports modular configurations

Media and Performance of Layer 3 Switch

• Media Type Supported: Optical Fiber
• Ethernet Technology: 40 Gigabit Ethernet
• Network Technology: 40GBase-X

I/O Expansions for SFP+ Switch

• Total Expansion Slots: 40
• Expansion Slot Types: SFP+, SFP
• SFP+ Slots: 40

Advanced Features and Capabilities

• Access Control List (ACL) Support
• Built-in ASIC for enhanced performance
• Cisco StackWise Virtual for easy scalability
• Flexible NetFlow (FNF) for traffic monitoring
• IGMP Snooping for multicast traffic optimization
• IPv6 Support for future-ready networks
• LLDP for efficient network management
• Location ID Separation Protocol (LISP) for routing scalability
• MACsec for secure communications
• MLD Snooping for IPv6 multicast traffic
• NetFlow for traffic visibility and analysis
• Non-Stop Forwarding (NSF) for network resiliency
• Open Shortest Path First (OSPF) routing protocol support
• Quality of Service (QoS) for bandwidth management
• Remote Switch Port Analyzer (RSPAN) for network troubleshooting
• Stateful Switchover (SSO) for redundancy
• Switched Port Analyzer (SPAN) for traffic monitoring
• Syslog support for log management
• Virtual Router Redundancy Protocol (VRRP) for redundancy
• VLAN Double Tagging (Q-in-Q) for VLAN management
• Weighted Random Early Detection (WRED) for congestion management
• Zero-Touch Provisioning (ZTP) for easy deployment

Networking and Communication Protocols

• Layer Supported: Layer 3
• Manageability: Fully manageable for centralized control

Power and Redundancy Details

• Power Source: External Power Supply
• Redundant Power Support: Yes, with optional redundancy
• Frequency: 50 – 60 Hz
• Power Output: 950W
• Installed Power Units: 1
• Maximum Power Units Supported: 2
• Nominal Voltage: AC 120/230 V
• Redundancy Scheme: 1+1 for continuous power

Features

The Cisco C9500-40X-E Layer 3 Managed Switch is a powerful networking solution that offers an extensive range of features to meet the demands of modern businesses. With its 40 ports, Ethernet connectivity, managed capabilities, and layer 3 switching, this switch provides exceptional performance, flexibility, and security.

High Port Density

The Cisco C9500-40X-E switch is equipped with 40 ports, allowing you to connect multiple devices simultaneously. This high port density is particularly beneficial for organizations with a large number of network devices or those with high bandwidth requirements. It eliminates the need for additional switches, reducing complexity and cost while ensuring efficient and seamless connectivity.

Ethernet Connectivity

With Ethernet connectivity, the Cisco C9500-40X-E switch enables fast and reliable data transmission over your network infrastructure. Ethernet is the de facto standard for local area networks (LANs), providing a stable and scalable solution for connecting various devices such as computers, printers, servers, and IP phones. The inclusion of Ethernet on this switch ensures compatibility with a wide range of devices and simplifies network management.

Managed Capabilities

The managed capabilities of the Cisco C9500-40X-E switch give you complete control over your network. It allows you to monitor and configure network settings, prioritize traffic, and apply security measures. With comprehensive management features like VLAN support, QoS (Quality of Service), and SNMP (Simple Network Management Protocol) compatibility, you can optimize your network performance and ensure efficient resource allocation.

Layer 3 Switching

Layer 3 switching is a crucial feature that enhances network performance and efficiency. Unlike Layer 2 switches that operate solely based on MAC addresses, Layer 3 switches can make routing decisions based on IP addresses. This enables faster and more intelligent packet forwarding, reducing network congestion and improving overall throughput. With Layer 3 switching capabilities, the Cisco C9500-40X-E switch can efficiently handle large volumes of data traffic, making it ideal for organizations with bandwidth-intensive applications or high data transfer requirements.

Benefits of 40 Ports, Ethernet, Managed, Layer 3 Switching

Scalability

The inclusion of 40 ports on the Cisco C9500-40X-E switch ensures that your network can grow and adapt to changing business needs. Whether you need to expand your infrastructure or accommodate new devices, the ample port availability allows for seamless scalability without compromising performance. This scalability is particularly advantageous for businesses experiencing rapid growth or planning for future expansion.

Improved Performance

Ethernet connectivity combined with managed and Layer 3 switching capabilities significantly enhances network performance. The high-speed Ethernet connections enable fast and reliable data transmission, reducing latency and ensuring smooth communication between devices. With managed capabilities, you have the ability to prioritize critical traffic, allocate bandwidth effectively, and optimize network resources. Layer 3 switching adds intelligence to packet forwarding, resulting in faster delivery and reduced bottlenecks. Collectively, these features work in synergy to improve overall performance and user experience.

Enhanced Security

In today's digital landscape, network security is paramount. The Cisco C9500-40X-E switch offers robust security features that protect your network infrastructure from unauthorized access and potential threats. With managed capabilities, you can implement access control policies, configure firewalls, and monitor network traffic for any suspicious activity. Layer 3 switching allows you to segment your network into different virtual LANs (VLANs), enhancing security by isolating sensitive data or applications from the rest of the network. These security measures help safeguard your organization's critical assets and ensure compliance with industry regulations.

Streamlined Network Management

Managing a complex network infrastructure can be challenging, but the Cisco C9500-40X-E switch simplifies network management tasks. The switch's managed capabilities provide a centralized platform to monitor and configure network settings, reducing the need for manual configuration on individual devices. With features like VLAN support and QoS, you can easily segment your network, prioritize traffic, and allocate resources based on your organization's requirements. SNMP compatibility allows for seamless integration with network management systems, enabling proactive monitoring and troubleshooting. By streamlining network management processes, this switch saves time and resources, allowing IT teams to focus on more strategic initiatives.

Conclusion

The Cisco C9500-40X-E Layer 3 Managed Switch offers a comprehensive set of features designed to meet the evolving needs of businesses. With its 40 ports, Ethernet connectivity, managed capabilities, and Layer 3 switching, this switch provides scalability, improved performance, enhanced security, and streamlined network management. Whether you need to expand your network infrastructure, optimize performance, or strengthen security measures, the Cisco C9500-40X-E switch is an ideal choice for organizations seeking a reliable and efficient networking solution.
