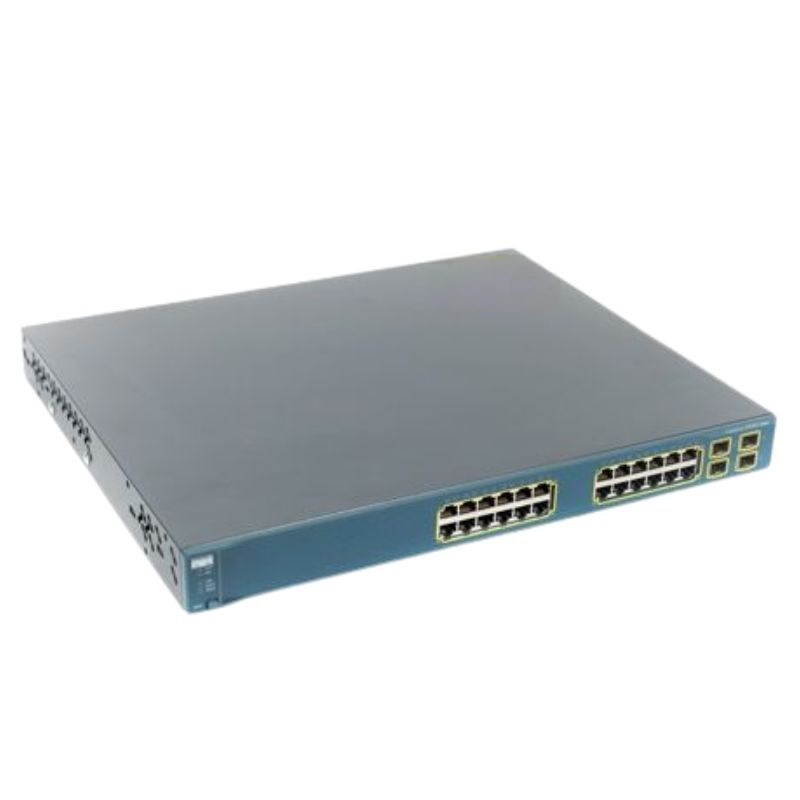

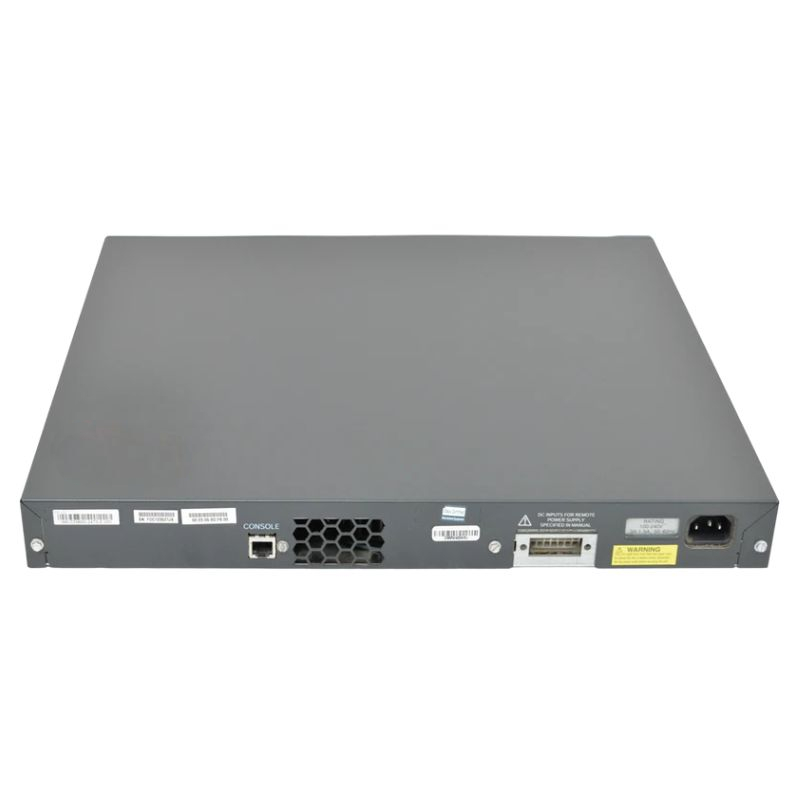

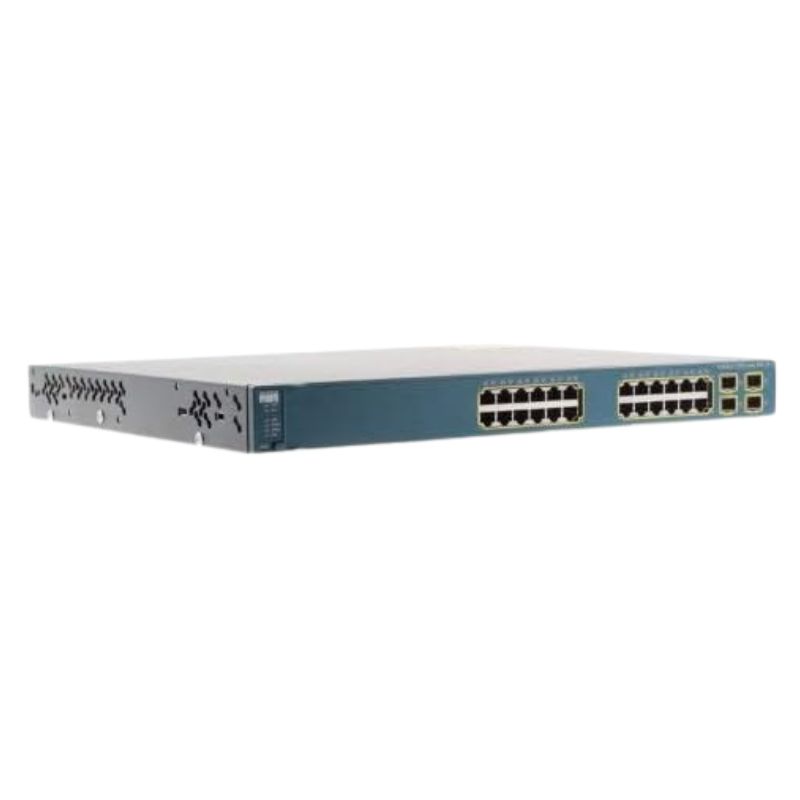

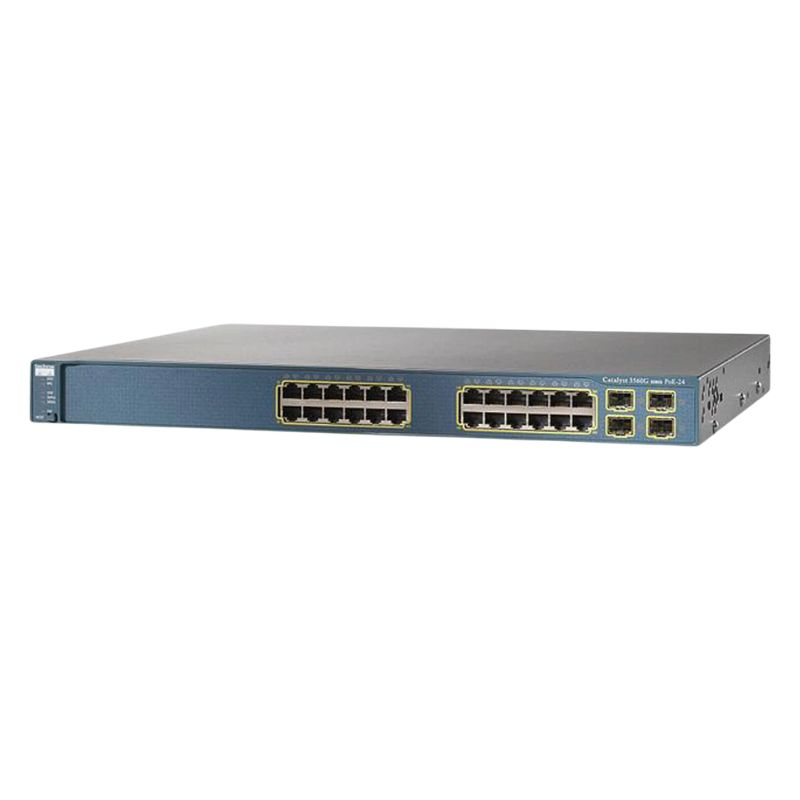

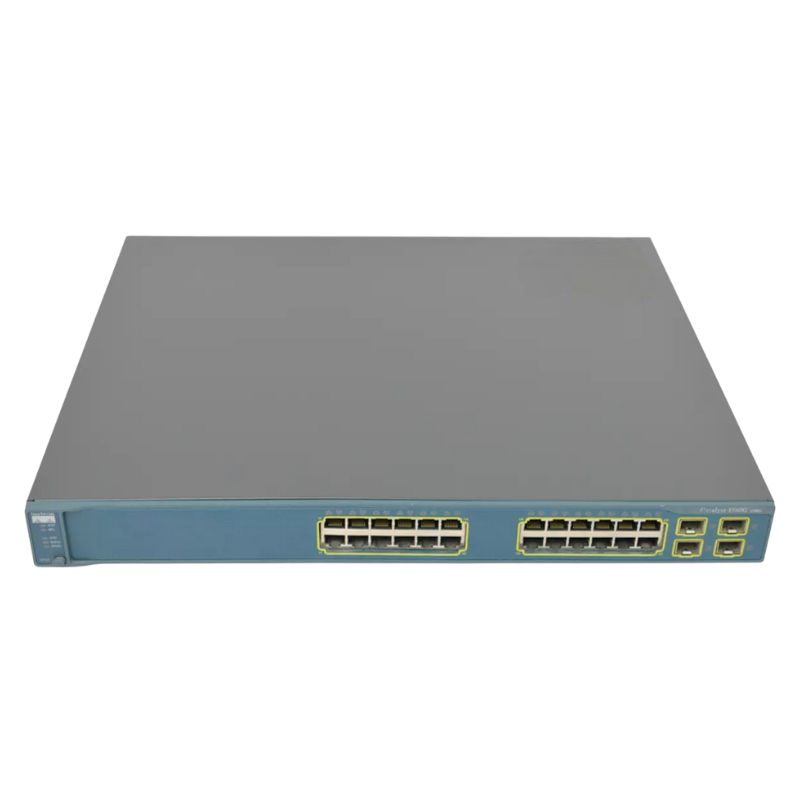

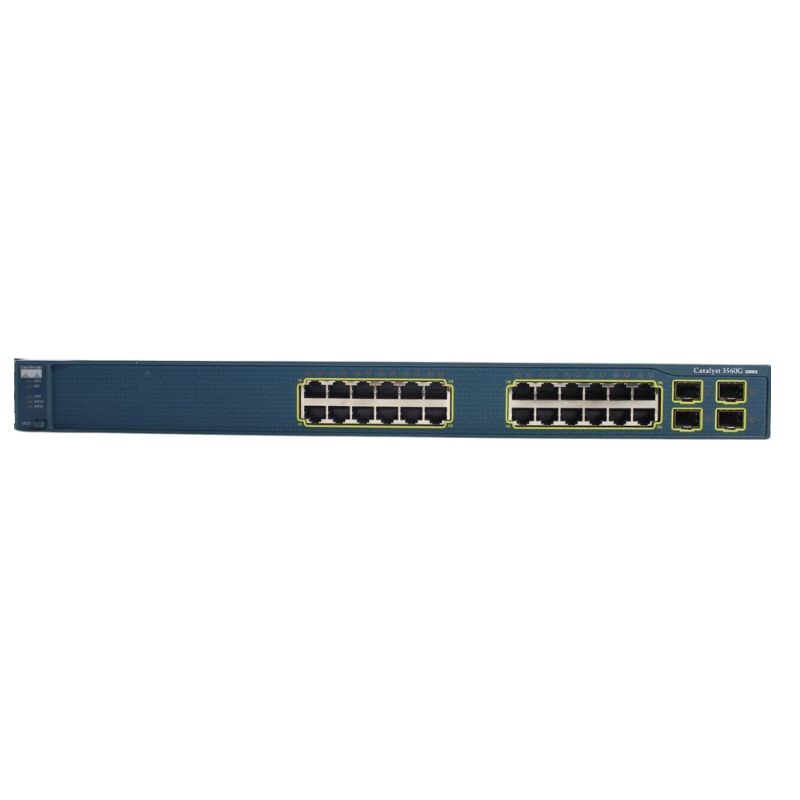

Cisco Catalyst 3560G WS-C3560G-24PS-S 24-Port Layer 3 Ethernet Switch

Ports

The Cisco Catalyst 3560G Layer 3 Ethernet Switch boasts an impressive 24 ports, making it an ideal choice for businesses and organizations that require a reliable and scalable network solution. With this extensive number of ports, users can easily connect multiple devices, such as computers, printers, servers, and IP phones, to the switch, enabling efficient data transfer and communication within the network.

Cisco WS-C3560G-24PS-S Overview

Manufacturer Details

• Brand: Cisco
• Model Number: WS-C3560G-24PS-S
• Product Line: Catalyst
• Product Series: 3560
• Type: Ethernet Switch

Ports and Interfaces

• Total Ports: 24
• Network (RJ-45) Ports: 24
• Expansion Slots: 4 x Gigabit Ethernet
• Expansion Slot Type: SFP
• Number of SFP Slots: 4

Performance Specifications

• Supported Media Type: Twisted Pair
• Twisted Pair Cable Standard: Category 5
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10Base-T, 10/100/1000Base-T

Memory and Storage

• Standard Memory: 128 MB
• Memory Technology: DRAM
• Flash Memory: 32 MB

Management and Protocols

• Supported Routing Protocols: RIP-1, RIP-2, HSRP, static IP routing, RIPng
• Remote Management Protocols: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2

Key Features

• Full duplex capability
• Layer 3 and Layer 2 switching
• Auto-sensing per device
• IP-routing
• DHCP support
• Power over Ethernet (PoE)
• Auto-negotiation
• ARP support
• Trunking
• MPLS support
• VLAN support
• Auto-uplink (auto MDI/MDI-X)
• IGMP snooping
• Traffic shaping
• Manageable
• Spanning Tree Protocol (STP) support
• Rapid Spanning Tree Protocol (RSTP) support
• Multiple Spanning Tree Protocol (MSTP) support
• DHCP snooping
• Dynamic Trunking Protocol (DTP) support
• Port Aggregation Protocol (PAgP) support
• Trivial File Transfer Protocol (TFTP) support
• Access Control List (ACL) support
• Quality of Service (QoS)
• DHCP server
• Virtual Route Forwarding-Lite (VRF-Lite)
• MLD snooping
• Dynamic ARP Inspection (DAI)
• Time Domain Reflectometry (TDR)
• Per-VLAN Spanning Tree Plus (PVST+)
• Cisco EnergyWise technology
• Uni-Directional Link Detection (UDLD)
• Link Aggregation Control Protocol (LACP)

Compliance and Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1D
• IEEE 802.1Q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s

Power Specifications

• Input Voltage: 110 V AC, 220 V AC
• Power Supply: Internal

Environmental Conditions

• Operating Temperature Range: 32 °F to 113 °F
• Humidity Range (Operating): 10 – 85% (non-condensing)
• Storage Temperature Range: -13 °F to 158 °F

Increased Connectivity

Having 24 ports on the Cisco Catalyst 3560G Layer 3 Ethernet Switch means that users can connect a larger number of devices directly to the switch without the need for additional networking equipment. This increased connectivity offers unparalleled convenience and flexibility, allowing businesses to expand their network infrastructure effortlessly. Whether you have a small office or a large enterprise, the 24 ports on this switch ensure that you can connect all your devices seamlessly.

Enhanced Network Performance

The 24 ports on the Cisco Catalyst 3560G Layer 3 Ethernet Switch play a crucial role in enhancing network performance. Each port operates at high speeds, supporting Gigabit Ethernet connectivity. This enables lightning-fast data transfer rates between connected devices, ensuring efficient and smooth network operations. Whether you are transferring large files or running bandwidth-intensive applications, the 24 ports provide the necessary bandwidth to handle heavy network traffic without compromising speed or performance.

Optimized Workflows

The abundance of ports allows businesses to optimize their workflows by eliminating the need for additional switches or hubs. With 24 ports available on a single switch, there is no need to invest in extra hardware or deal with complex cable management. This streamlined setup not only saves costs but also simplifies network configuration and maintenance. Users can easily manage all their connected devices from one central location, reducing complexity and improving overall productivity.

Scalability

Scalability is a vital consideration for any network infrastructure, as businesses continuously grow and evolve. The Cisco Catalyst 3560G Layer 3 Ethernet Switch's 24 ports offer exceptional scalability, allowing organizations to expand their network seamlessly as their needs increase. With each port supporting high-speed connections, users can add new devices or expand their network without worrying about bandwidth limitations. This flexibility ensures that the switch can accommodate future growth and adapt to changing business requirements effortlessly.

Cost-Effective Solution

The Cisco Catalyst 3560G Layer 3 Ethernet Switch's 24 ports offer a cost-effective solution for businesses. By providing an extensive number of ports, this switch eliminates the need for additional networking equipment, reducing both upfront and ongoing costs. Additionally, the switch's high-performance capabilities and scalability ensure that businesses can invest in a solution that will meet their needs for years to come, minimizing the need for costly upgrades or replacements.

Improved Network Management

With 24 ports, the Cisco Catalyst 3560G Layer 3 Ethernet Switch simplifies network management. Each port can be individually configured and monitored, allowing administrators to have granular control over their network. They can easily prioritize traffic, apply security measures, and manage bandwidth allocation on a per-port basis. This level of control enhances network security, optimizes performance, and ensures that critical applications receive the necessary resources.

In conclusion, the Cisco Catalyst 3560G Layer 3 Ethernet Switch's 24 ports provide users with increased connectivity, enhanced network performance, optimized workflows, scalability, cost-effectiveness, and improved network management. With these benefits, businesses can create a robust and efficient network infrastructure that meets their current needs while allowing room for future growth.
