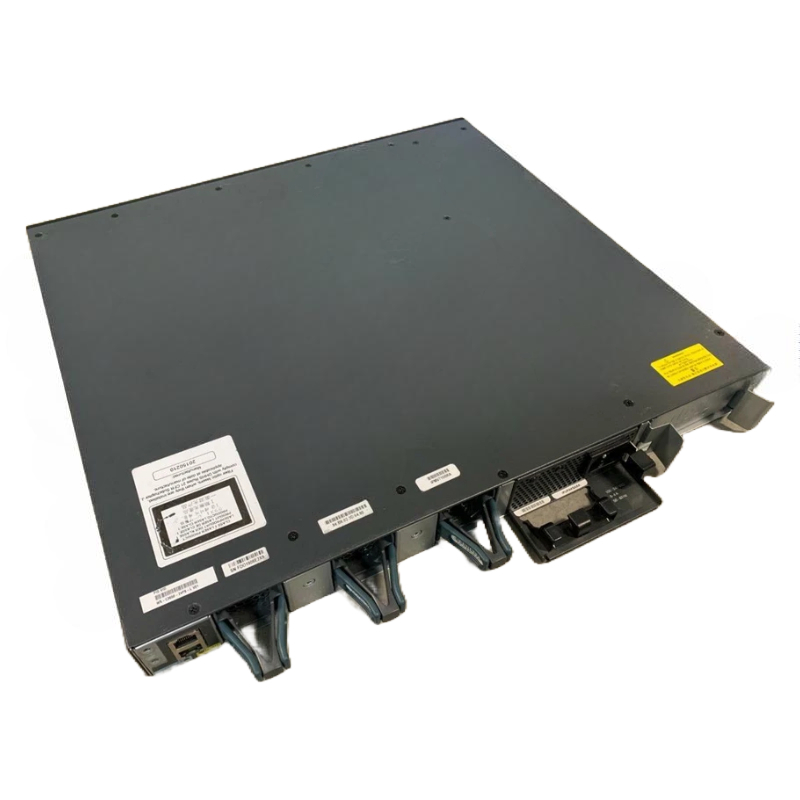

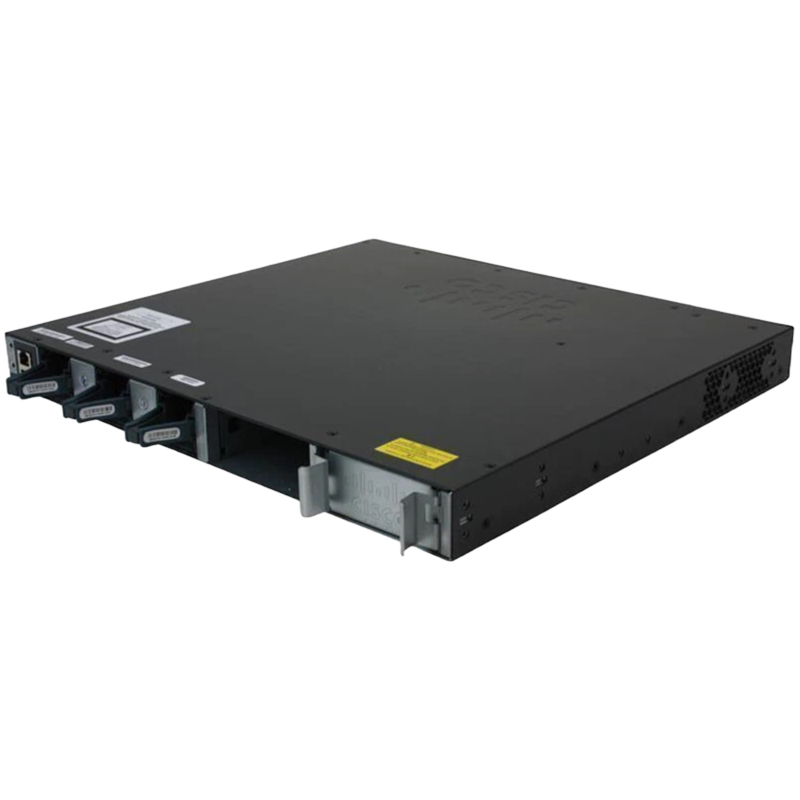

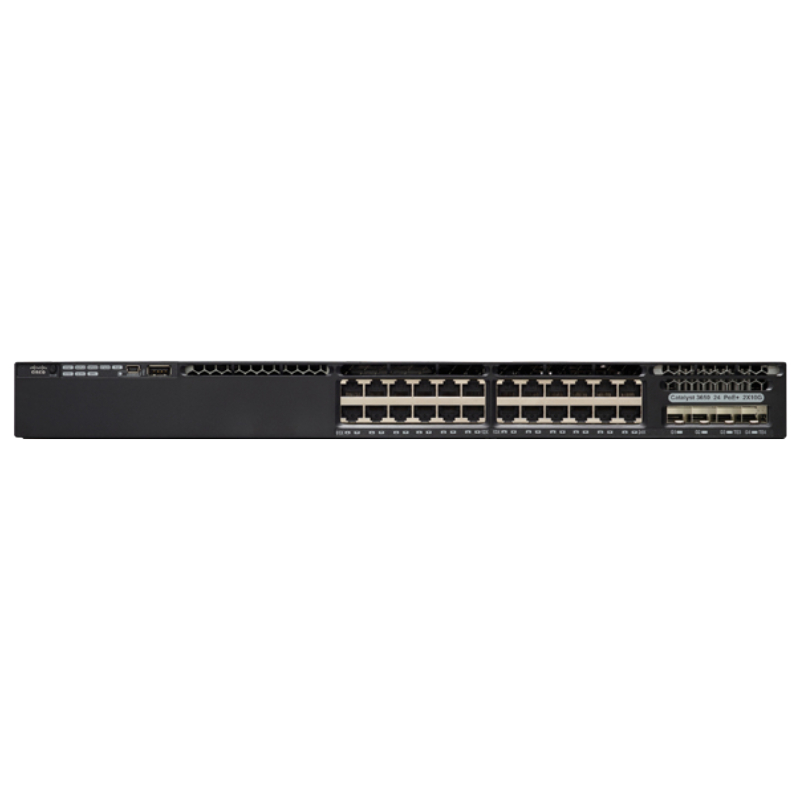

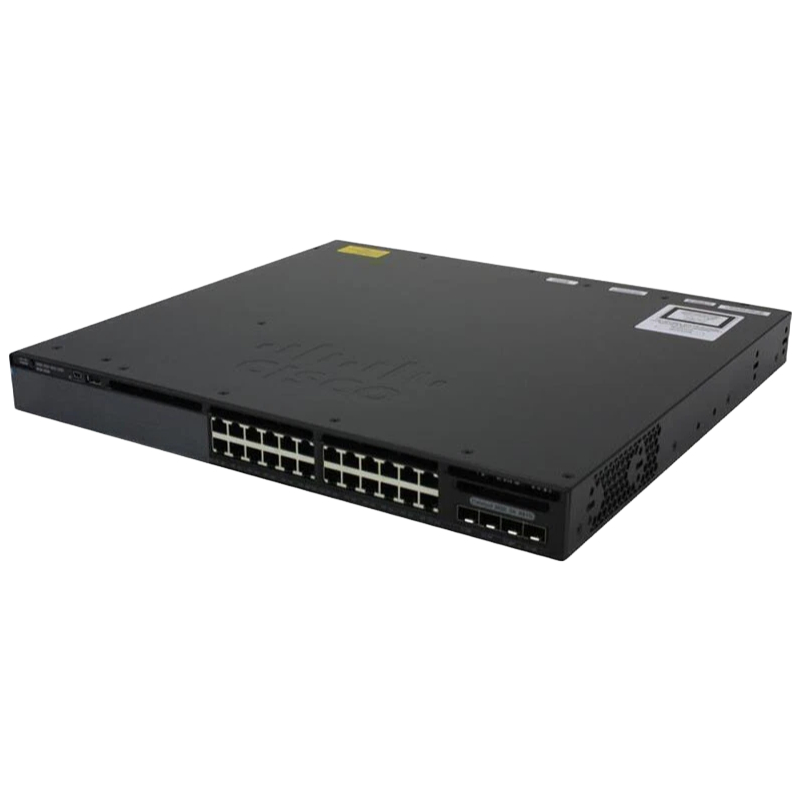

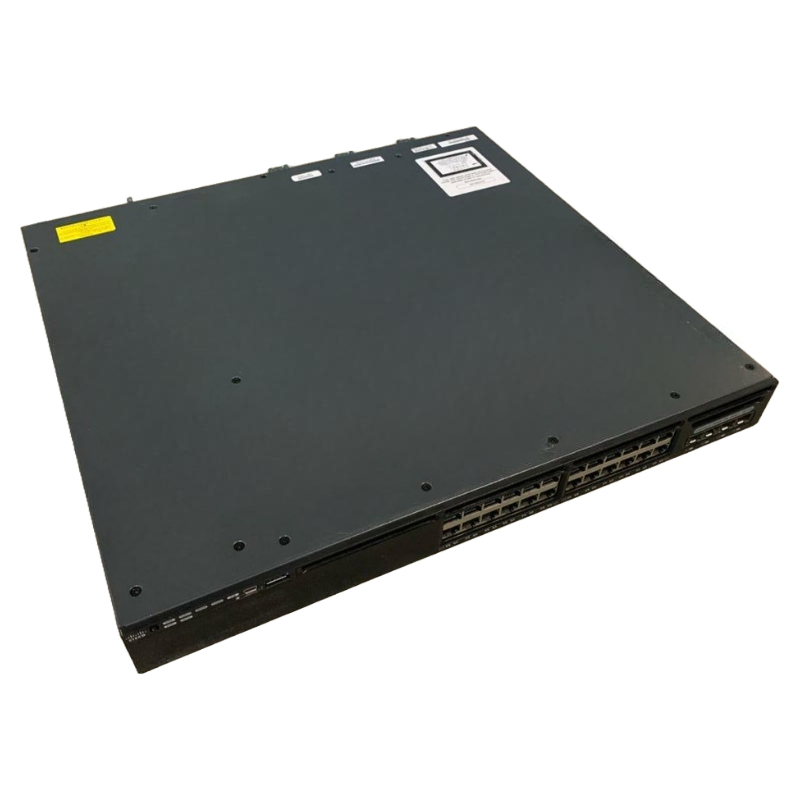

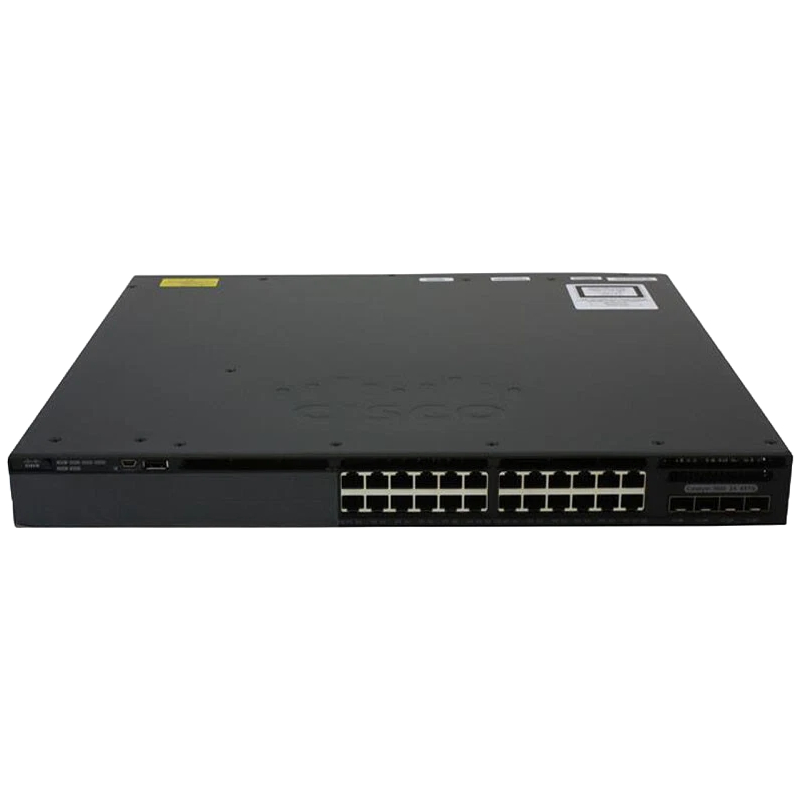

Cisco Catalyst 3650 WS-C3650-24PDM-S Managed Switch (24 Ports)

Cisco Catalyst WS-C3650-24PDM-S

General Product Information

• Part Number: WS-C3650-24PDM-S
• Brand: Cisco
• Switch Type: Layer 3 Managed Switch

Ports and Connectivity

Network Interface Details

• Total Network Ports: 24 x Gigabit Ethernet
• Uplink Ports: Yes, includes 2 x 10 Gigabit Ethernet uplinks
• Modular Design: Yes
• Stackable: Yes

Performance and Media Support

Supported Media Types

• Media Types: Twisted Pair, Optical Fiber
• Ethernet Technology: Gigabit and 10 Gigabit Ethernet
• Network Standards: 10/100/1000Base-TX, 10GBase-X

Performance Metrics

• Switching Capacity: 256 Gbps
• MAC Address Table Size: 32,000 entries
• Multicast MAC Address Table: 24,000 entries
• Jumbo Frame Support: Yes, up to 9198 bytes

Expansion and Management Features

Expansion Slots

• Expansion Slot Type: 2 x SFP+ slots
• Shared SFP Slot: No

Management and Control

• Manageable: Yes, with web-based management options
• Quality of Service (QoS): Supported
• Traffic Classification and Shaping: Yes
• Access Control List (ACL) Support: Yes

Power and Physical Specifications

Power Supply Details

• Power Source: AC input voltage 100 - 240 V
• Power Consumption (Max): 975 W
• Power over Ethernet (PoE): Yes, 24 PoE+ ports with a total budget of 390 W

Physical Dimensions

• Form Factor: Rack-mountable, 1U
• Dimensions (H x W x D): 44 mm x 445 mm x 296 mm
• Weight: 5.56 kg

Environmental Considerations

Eco-Friendly Attributes

• Environmentally Friendly: Yes
• Operating Temperature Range: -5°C to 45°C
• Storage Temperature Range: -40°C to 70°C
• Storage Relative Humidity: 5% to 95%

Packaging and Additional Information

Included Accessories

• Included Accessories: WS-C3650-24PDM-S Accessory Kit, 1 printed document
• Quantity per Pack: 1 unit
• Packaging Dimensions: 390.7 mm x 549.4 mm x 390.7 mm
• Package Weight: 1.4 kg

Compliance and Standards

• Networking Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3 standards, and more
• Harmonized System (HS) Code: 85176990

Ports

Overview

The Cisco WS-C3650-24PDM-S Managed Switch is equipped with 24 ports, making it an ideal choice for businesses in need of a reliable and flexible network solution. These ports enable connections between multiple devices, such as computers, servers, printers, and IP phones, allowing for seamless communication and data transfer within the network.

Benefits of 24 Ports

1. Scalability

With 24 ports, this switch offers plenty of room for growth and expansion. As your business expands and the number of network devices increases, having additional ports ensures that you can easily accommodate new connections without the need for additional equipment. This scalability helps future-proof your network infrastructure and saves you from costly upgrades or replacements down the line.

2. Efficiency

The presence of 24 ports allows for efficient network management and organization. Each port can be dedicated to a specific device or department, streamlining your network architecture and reducing congestion. By distributing the workload across multiple ports, you can ensure that each device receives optimal network performance without compromising on speed or reliability.

3. Flexibility

Having 24 ports provides flexibility in how you configure and utilize your network. You can create separate VLANs (Virtual Local Area Networks) to isolate traffic or group devices based on their function or security requirements. This segregation enhances network security by preventing unauthorized access to sensitive data or resources. Additionally, you have the freedom to connect devices using various Ethernet standards such as Fast Ethernet or Gigabit Ethernet, depending on their individual bandwidth requirements.

4. Improved Productivity

The 24 ports on the Cisco WS-C3650-24PDM-S Managed Switch contribute to improved productivity throughout your organization. Employees can easily connect their devices to the network, ensuring uninterrupted access to critical resources and applications. Additionally, the switch supports advanced features such as Quality of Service (QoS), which allows you to prioritize certain types of traffic (e.g., VoIP) over others, ensuring smooth performance for latency-sensitive applications. This prioritization enhances productivity by minimizing delays and maximizing network efficiency.

Importance of 24 Ports

1. Network Expansion

As your business grows, the number of devices that need to be connected to the network also increases. The 24 ports on the Cisco WS-C3650-24PDM-S Managed Switch provide ample capacity to accommodate this growth. Whether it's new employees joining your organization or additional devices being added to support business operations, having sufficient ports ensures that you can easily integrate them into your network infrastructure.

2. Seamless Collaboration

Collaboration is vital in today's digital workplace. With 24 ports, this switch enables seamless communication and data sharing among team members. Each port can be assigned to a specific department or workgroup, facilitating efficient collaboration and information exchange. Whether it's sharing files, conducting video conferences, or accessing shared resources, the presence of multiple ports ensures that your employees can connect and collaborate without any bottlenecks or network limitations.

3. Redundancy and Failover

In a mission-critical environment, network downtime can have severe consequences. The Cisco WS-C3650-24PDM-S Managed Switch offers 24 ports to support redundancy and failover configurations. By connecting critical devices or servers to different ports, you can create redundant paths in case of a link failure. This redundancy ensures that even if one port or connection fails, the network traffic can automatically reroute through an alternate path, minimizing downtime and maintaining uninterrupted operations.

4. Future-Proofing

Investing in a switch with 24 ports is a future-proof choice for your network infrastructure. As technology evolves, the demand for network connectivity will only increase. By having additional ports, you can easily adapt to changing requirements and connect emerging devices or technologies without the need for a complete network overhaul. This scalability and future-proofing save you both time and money in the long run.

Conclusion

In conclusion, the Cisco WS-C3650-24PDM-S Managed Switch with its 24 ports offers numerous benefits and is of utmost importance for businesses seeking a scalable, efficient, and flexible network solution. The 24 ports provide scalability for future expansion, enhance network efficiency and productivity, enable seamless collaboration, support redundancy and failover configurations, and ensure future-proofing. With its wide range of advantages, this switch empowers organizations to build a robust and reliable network infrastructure that can meet their evolving needs.
