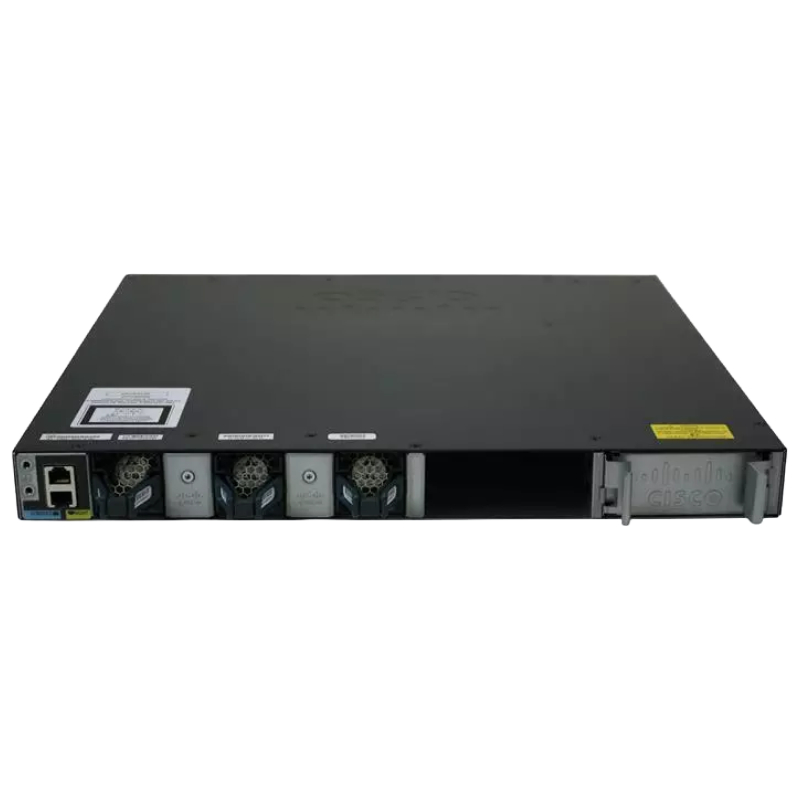

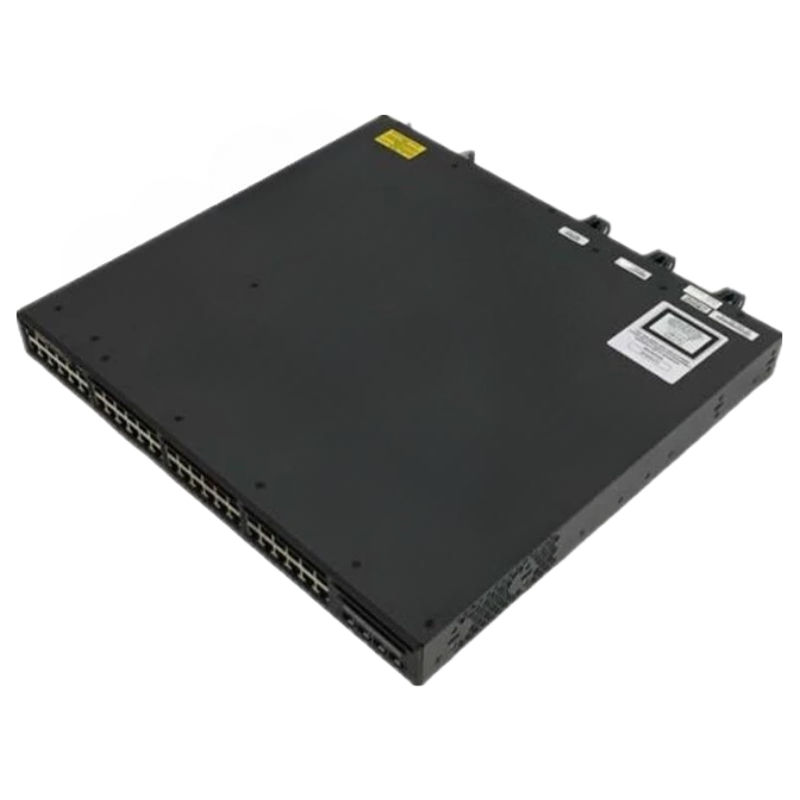

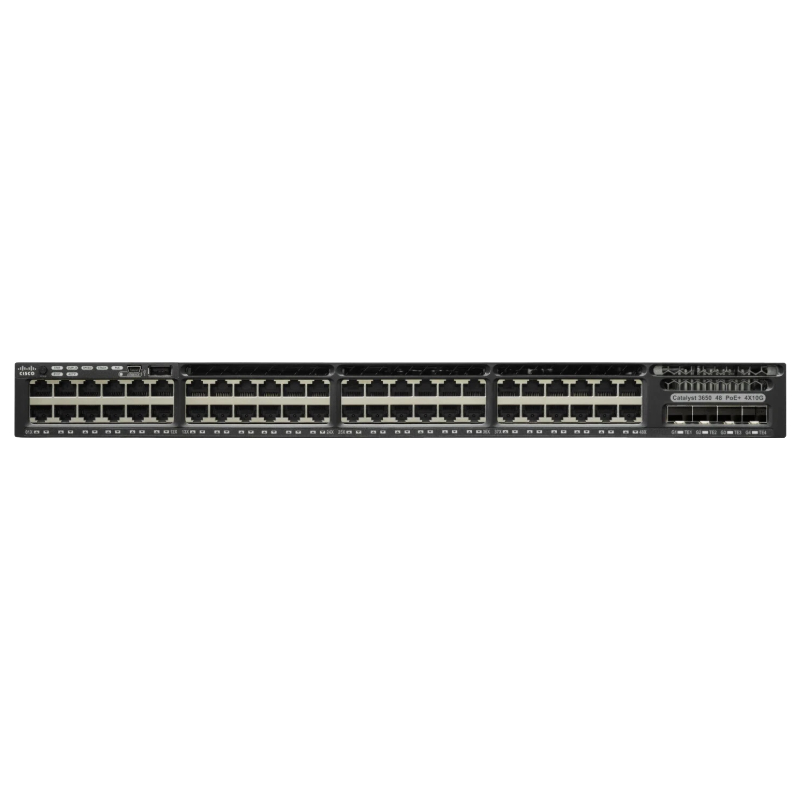

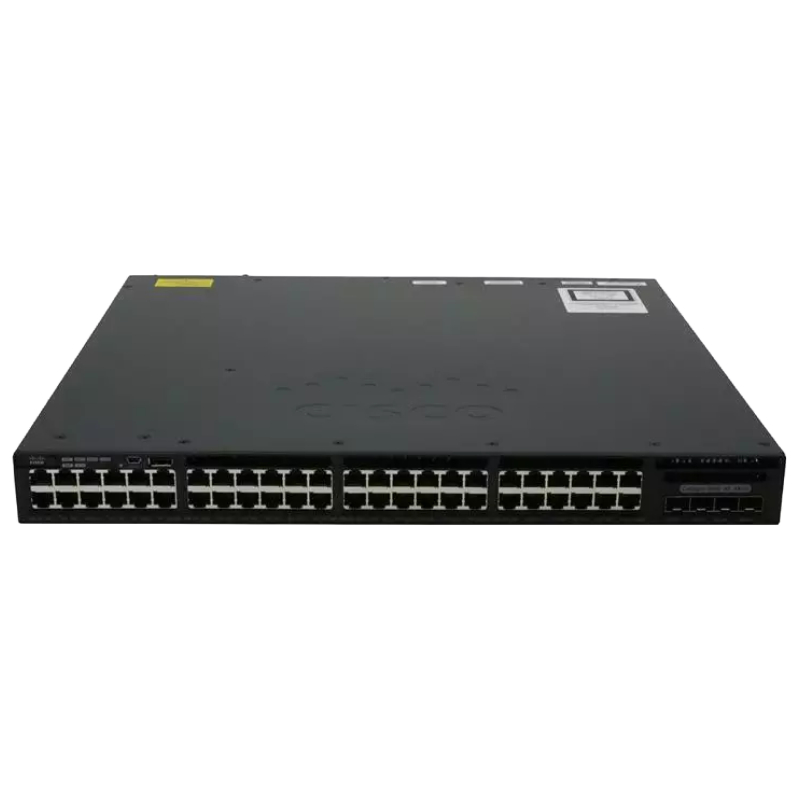

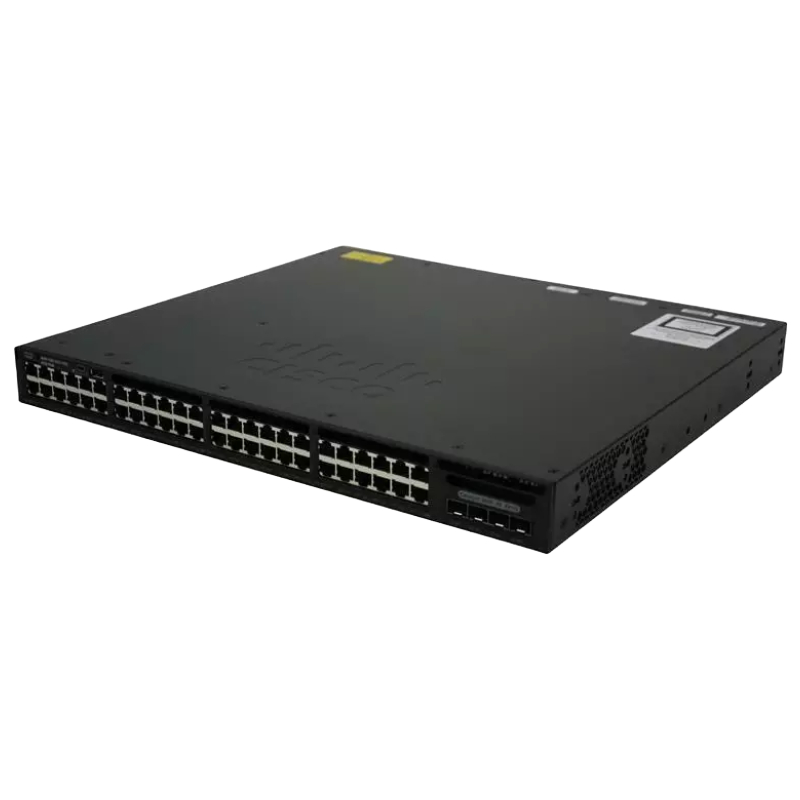

Cisco Catalyst 3650 WS-C3650-48TQ-S Layer 4 Rack-mountable Switch

Product Details

• Manufacturer: Cisco
• Model Number: WS-C3650-48TQ-S
• Type: Rack-mountable Switch
• Interface Count: 48 Ports

Technical Specifications

Advanced Features

• Access Control List (ACL) capabilities
• Dynamic ARP Inspection (DAI) and ARP support
• Energy Efficient Ethernet and Flexible NetFlow (FNF)
• IGMP snooping and Layer 2 switching functionalities
• Link Aggregation Control Protocol (LACP) support
• Multiple Spanning Tree Protocol (MSTP) and Port Aggregation Protocol (PAgP)
• Quality of Service (QoS) and RADIUS support
• Rapid Per-VLAN Spanning Tree Plus (PVRST+) and Rapid Spanning Tree Protocol (RSTP)
• Remote Switch Port Analyzer (RSPAN) and VLAN support
• Uni-Directional Link Detection (UDLD) and trunking capabilities

Networking Interfaces

• Stack Port: Yes
• Total Network Ports: 48
• RJ-45 Ports: 48
• Expansion Slots: 4 x 10 Gigabit Ethernet Uplink
• Gigabit Ethernet Network Ports: 48

Media and Performance

• Supported Media Type: Twisted Pair
• Ethernet Technology: 10 Gigabit Ethernet
• Network Technology: 10/100/1000Base-T

I/O Expansions

• Number of Expansion Slots: 4
• Expansion Slot Type: SFP+

Protocols and Standards

• Supports IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1X, and more
• Compliant with IEEE 802.3 standards including 10BASE-T, 100BASE-TX, 1000BASE-T, and 1000BASE-X
• RMON I and II, SNMP v1, v2c, and v3 support

Power Specifications

• Power Consumption: 250 Watts
• Nominal Voltage: AC 120/230 V
• Frequency Required: 50/60 Hz
• Redundant Power Supply: Optional (1+1 with additional power supply)
• Power Redundancy: Optional

Ports

The Cisco WS-C3650-48TQ-S Layer 4 Rack-mountable Switch is equipped with an impressive 48 ports, making it an ideal choice for businesses and organizations that require extensive connectivity options. These ports offer numerous benefits and play a crucial role in enhancing network performance and scalability.

Increased Connectivity

With 48 ports, this Cisco switch provides an abundance of connectivity options for various devices, such as computers, servers, printers, and VoIP phones. This allows businesses to effortlessly connect multiple devices to the network without the need for additional switches or hubs. The ample number of ports ensures that each device can be connected directly to the switch, reducing the complexity of the network infrastructure.

Enhanced Flexibility

The WS-C3650-48TQ-S offers a mix of Gigabit Ethernet (GE) and Multi-Gigabit Ethernet (MGE) ports. This combination allows organizations to cater to different bandwidth requirements of their devices. The GE ports provide reliable high-speed connections, while the MGE ports offer even higher speeds, making them suitable for bandwidth-intensive applications like video streaming or large file transfers. The flexibility provided by these diverse port options ensures that businesses can adapt to their evolving connectivity needs.

Improved Network Performance

Having 48 ports on a single switch eliminates the need for connecting multiple switches together through cascade connections. This simplifies the network architecture and reduces latency issues that may arise from cascading switches. With direct connections to the switch, devices experience faster data transfer rates and lower latency, resulting in improved network performance and overall user experience.

Efficient Data Transfer

The 48 ports on the WS-C3650-48TQ-S are designed to handle high volumes of data traffic efficiently. Each port supports full-duplex communication, allowing simultaneous data transmission and reception. This capability ensures smooth and uninterrupted data transfer, even during peak network usage. Additionally, the switch employs advanced switching technologies that optimize data flow, such as Quality of Service (QoS) and buffering mechanisms, to prioritize critical traffic and prevent congestion.

Scalability

The large number of ports on this Cisco switch offers immense scalability for growing networks. As businesses expand and incorporate more devices into their infrastructure, the WS-C3650-48TQ-S can accommodate the increasing demand for connectivity without requiring additional hardware investments. This scalability provides a cost-effective solution for organizations by eliminating the need to purchase and configure multiple switches to support growing network requirements.

Cost Savings

The 48 ports on the WS-C3650-48TQ-S not only offer scalability but also contribute to cost savings. By consolidating multiple devices onto a single switch, businesses can reduce their infrastructure costs. Fewer switches mean lower power consumption, reduced cabling requirements, and simplified maintenance. Furthermore, the switch's energy-efficient design minimizes power usage during periods of low network activity, resulting in energy cost savings.

Simplified Network Management

Managing a network with 48 ports may seem overwhelming, but Cisco has simplified the process with its intuitive management software. The switch supports Cisco's network management tools, such as Cisco Prime Infrastructure and Cisco DNA Center, which provide comprehensive monitoring, configuration, and troubleshooting capabilities. These tools enable network administrators to efficiently manage and control the entire network from a centralized interface, ensuring seamless operation and minimizing downtime.

In conclusion, the Cisco WS-C3650-48TQ-S Layer 4 Rack-mountable Switch's 48 ports offer numerous benefits for businesses and organizations. The increased connectivity options, enhanced flexibility, improved network performance, efficient data transfer, scalability, cost savings, and simplified network management make it an ideal choice for networks of all sizes. Whether it's supporting a small office or a large enterprise, this switch can meet the demanding connectivity needs while providing the necessary performance and scalability to adapt to future growth.
