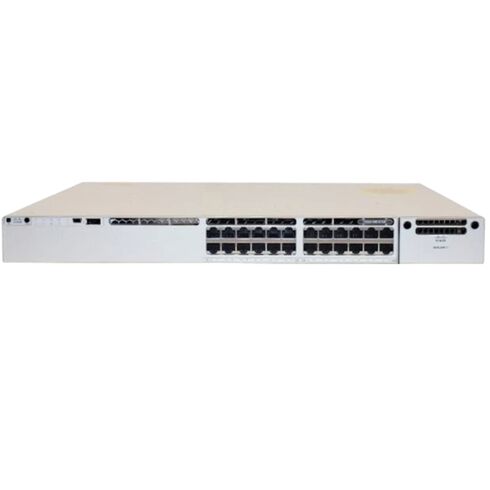

Cisco Catalyst C9300L-24T-4G-A 24 Ports Switch Uplink Manageable Layer 3 Network Advantage

Ports

The Cisco C9300L-24T-4G-A Switch is equipped with 24 ports, making it a versatile and high-performance networking solution for businesses of all sizes. These ports offer numerous benefits and play a crucial role in ensuring smooth and efficient data transmission within a network.

Increased Connectivity

With 24 ports, this switch provides ample connectivity options for connecting various devices such as computers, servers, printers, and IP phones. This allows businesses to expand their network infrastructure and accommodate a growing number of devices without any limitations. The increased connectivity also ensures that all devices can communicate seamlessly, promoting collaboration and productivity.

Flexibility in Network Design

The Cisco C9300L-24T-4G-A Switch's 24 ports provide flexibility in designing a network topology that suits the specific requirements of a business. Administrators can create VLANs (Virtual Local Area Networks) and assign different ports to separate networks or departments. This segmentation enhances security by isolating sensitive data and applications from the rest of the network, reducing the risk of unauthorized access.

Additionally, the switch supports various protocols such as Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP), which facilitate redundant network paths, ensuring high availability. This redundancy can be achieved by connecting multiple switches using the available ports, creating a resilient network architecture.

Enhanced Network Performance

The 24 ports on the Cisco C9300L-24T-4G-A Switch enable high-speed data transmission between devices. Each port supports Gigabit Ethernet, allowing for data transfer rates of up to 1000 Mbps. This high bandwidth ensures that even data-intensive tasks such as video streaming, file transfers, and VoIP calls can be handled seamlessly without any latency or bottlenecks.

Furthermore, the switch supports Quality of Service (QoS) features, allowing administrators to prioritize certain types of network traffic. This ensures that critical applications such as voice and video receive sufficient bandwidth and are not affected by other less important traffic. The result is improved network performance and user experience.

Power over Ethernet (PoE) Capabilities

In addition to the 24 regular ports, the Cisco C9300L-24T-4G-A Switch also includes 4 Gigabit Ethernet ports with Power over Ethernet (PoE) capabilities. These PoE ports can provide power to compatible devices such as IP cameras, wireless access points, and VoIP phones, eliminating the need for separate power supplies. This simplifies installation and reduces cable clutter while ensuring uninterrupted power supply to these devices.

Uplink

The Cisco C9300L-24T-4G-A Switch features 1 uplink port, which plays a vital role in connecting the switch to other network devices or the internet. This uplink port offers several benefits that are crucial for businesses seeking reliable connectivity and network performance.

High-Speed Connectivity

The uplink port on the Cisco C9300L-24T-4G-A Switch supports Gigabit Ethernet, allowing for high-speed connectivity to other switches or routers. This ensures that data can be transmitted swiftly between different parts of the network without any bottlenecks, resulting in efficient communication between devices.

Furthermore, the switch supports link aggregation, also known as EtherChannel or Port Channel, where multiple physical uplink ports can be combined to form a single logical link. This increases bandwidth and provides redundancy by distributing traffic across multiple links. In case one of the links fails, the remaining links continue to handle the traffic, ensuring uninterrupted connectivity.

Scalability and Network Expansion

The presence of an uplink port enables businesses to scale their network infrastructure as their needs grow. Additional switches or routers can be connected to the uplink port, allowing for the creation of larger networks or the extension of existing ones. This scalability is particularly important for businesses experiencing rapid growth or planning to add more devices to their network in the future.

Additionally, the uplink port can be used to connect the switch to an internet service provider (ISP) router, enabling internet access for all connected devices. This is essential for businesses that rely heavily on cloud services, online collaboration tools, and internet-based applications.

Manageable

The Cisco C9300L-24T-4G-A Switch is designed to be easily manageable, providing administrators with the necessary tools and features to oversee and control the network effectively.

Intuitive Web-Based Interface

The switch comes with a web-based graphical user interface (GUI) that simplifies the configuration and management tasks. Administrators can access this interface using a web browser from any computer connected to the network, eliminating the need for specialized software or command-line interfaces. The intuitive GUI allows for quick and easy setup of VLANs, QoS policies, and security features.

Centralized Network Management

For businesses with multiple Cisco switches deployed across different locations or floors, the Cisco C9300L-24T-4G-A Switch supports Cisco Network Assistant software. This software provides a centralized management platform that allows administrators to monitor and configure multiple switches from a single interface. This streamlines network management tasks and reduces the time and effort required to maintain a complex network infrastructure.

Enhanced Security

The switch incorporates advanced security features to protect the network and its connected devices from unauthorized access and malicious attacks. It supports features such as Access Control Lists (ACLs), which allow administrators to define specific rules for permitting or denying traffic based on source and destination IP addresses, protocols, or port numbers.

Furthermore, the switch supports 802.1X authentication, which enables user-based access control through a RADIUS server. This ensures that only authorized users can connect to the network, preventing unauthorized devices from accessing sensitive data or resources.

Layer

The Cisco C9300L-24T-4G-A Switch operates at Layer 3 of the OSI model, providing enhanced functionality and capabilities compared to switches operating at lower layers. This Layer 3 support offers several benefits that are crucial for businesses seeking advanced networking features.

Inter-VLAN Routing

Operating at Layer 3 allows the Cisco C9300L-24T-4G-A Switch to perform inter-VLAN routing, enabling communication between different VLANs within the network. This eliminates the need for external routers or Layer 3 switches to handle inter-VLAN traffic, simplifying the network architecture and reducing costs.

By facilitating inter-VLAN routing, businesses can create logical networks based on departments, projects, or security requirements. Each VLAN can have its own subnet and IP addressing scheme while still being able to communicate with other VLANs within the network. This segmentation enhances security, improves network performance, and facilitates efficient resource utilization.

Routing Protocols

The Layer 3 capabilities of the Cisco C9300L-24T-4G-A Switch include support for various routing protocols such as OSPF (Open Shortest Path First) and EIGRP (Enhanced Interior Gateway Routing Protocol). These protocols enable the switch to participate in dynamic routing and exchange routing information with other routers in the network.

Dynamic routing eliminates the need for manual configuration of static routes, making it easier to adapt to changes in the network topology or add new subnets. It also improves network resiliency by automatically rerouting traffic in case of link failures, ensuring continuous connectivity.

IPv6 Support

The Layer 3 capabilities of the switch include full support for IPv6, the latest version of the Internet Protocol. IPv6 offers numerous benefits over its predecessor, IPv4, including a larger address space, improved network security, and enhanced Quality of Service (QoS) features.

By supporting IPv6, the Cisco C9300L-24T-4G-A Switch future-proofs the network infrastructure and ensures compatibility with emerging technologies and services that rely on IPv6. This is particularly important as the world transitions from IPv4 to IPv6 due to the depletion of available IPv4 addresses.

Conclusion

In conclusion, the Cisco C9300L-24T-4G-A Switch with its 24 ports, 1 uplink port, Layer 3 capabilities, and manageability features offers a reliable and scalable networking solution for businesses. The 24 ports provide increased connectivity options, flexibility in network design, and enhanced network performance. The uplink port supports high-speed connectivity and network expansion. The manageable features simplify configuration and provide centralized management capabilities. The Layer 3 functionality enables inter-VLAN routing, supports dynamic routing protocols, and ensures compatibility with IPv6. Overall, this switch is an excellent choice for businesses looking for a robust and future-proof networking solution.
