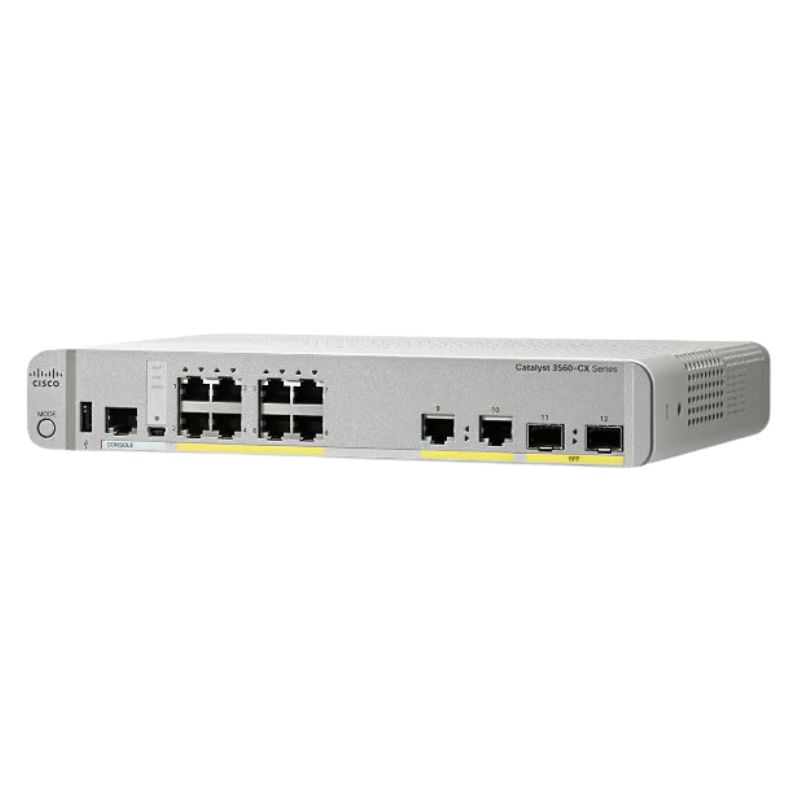

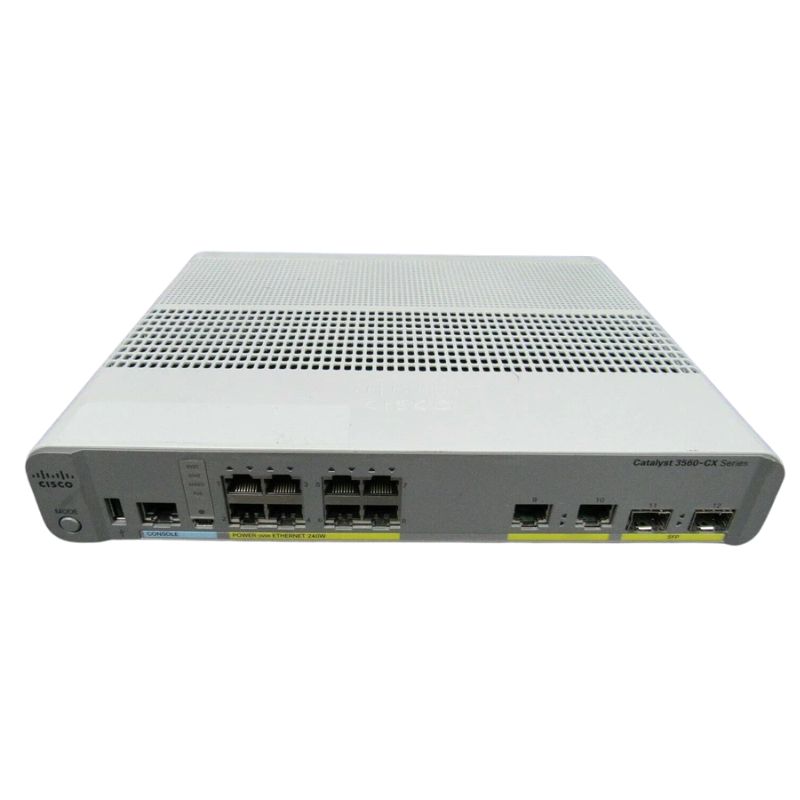

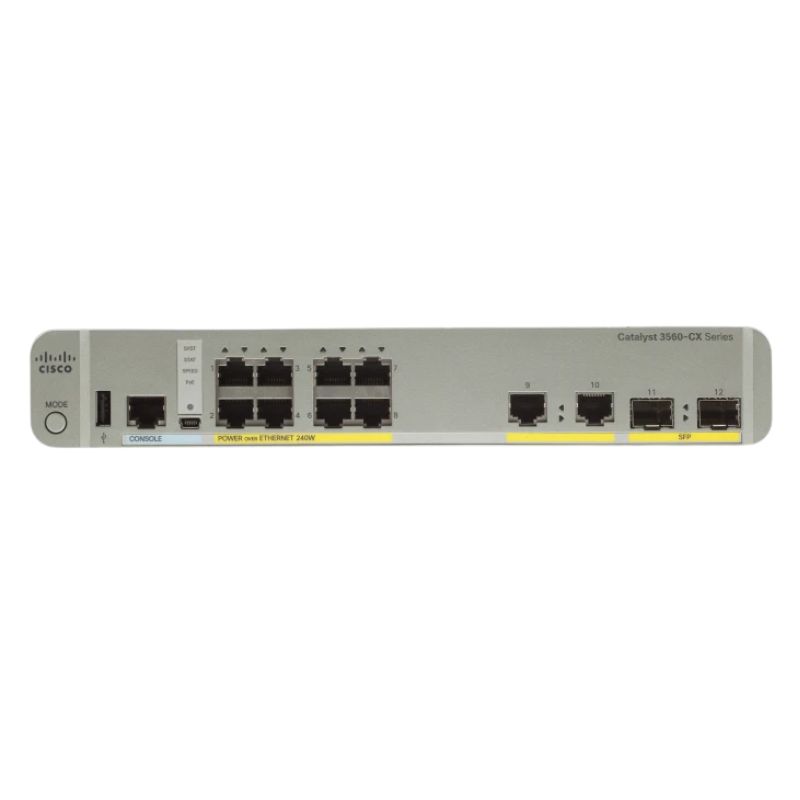

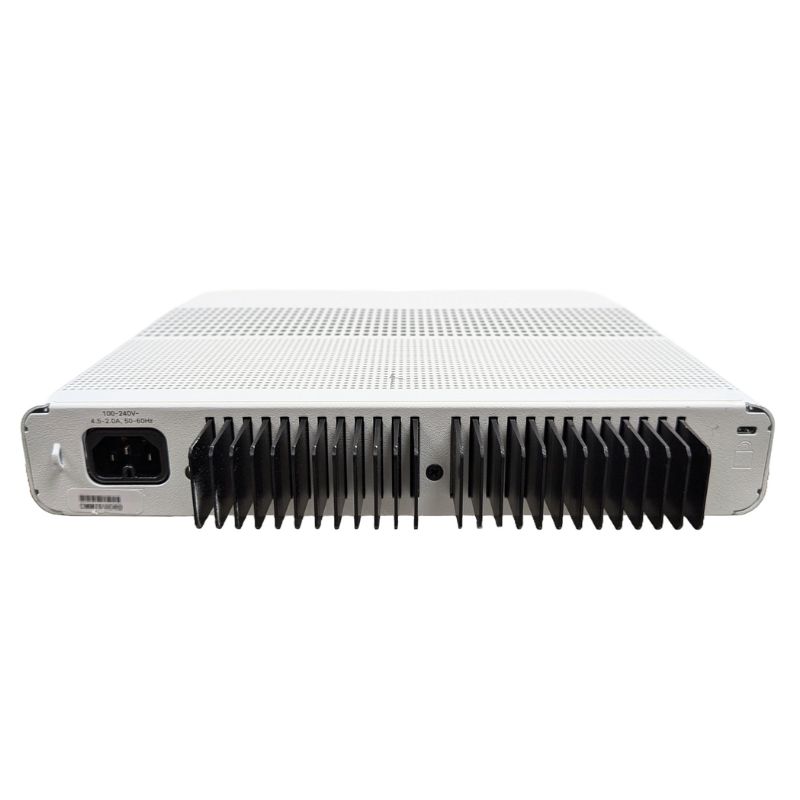

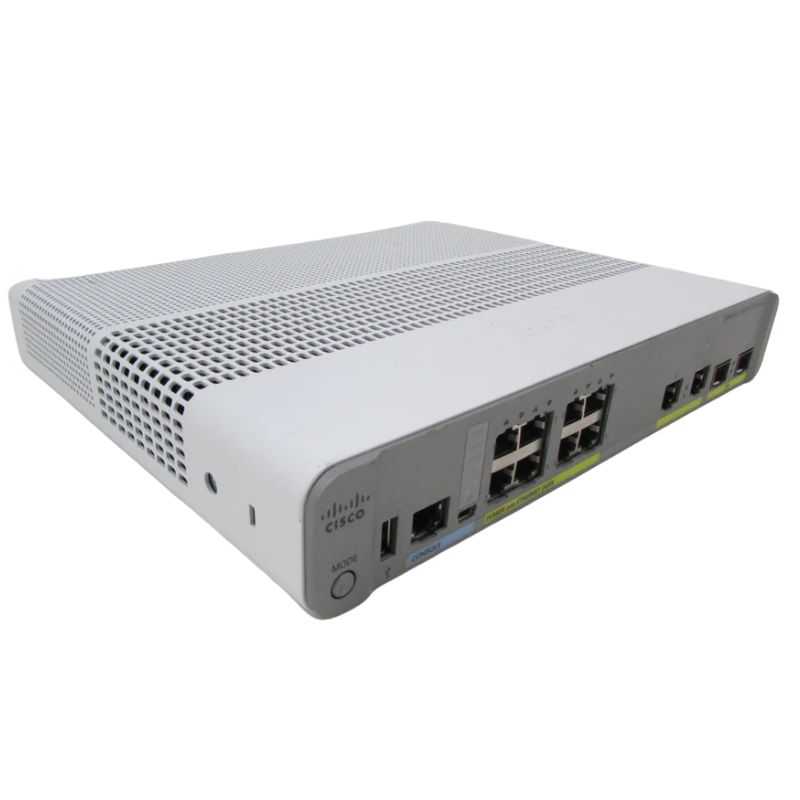

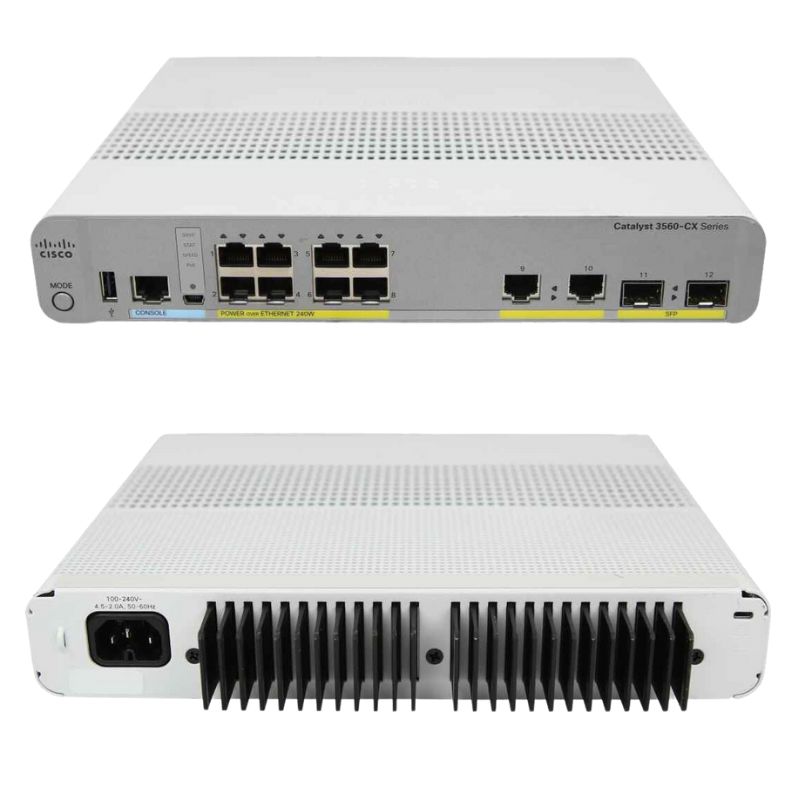

Cisco Catalyst WS-C3560CX-8PC-S 8 Ports Managed Layer 3 Ethernet SFP Switch

Ports

The Cisco Catalyst WS-C3560CX-8PC-S Managed Switch is equipped with 8 ports, which is one of its standout features. These ports allow for the connection of various devices and facilitate the transfer of data within a network. With 8 ports, users have the flexibility to connect multiple devices simultaneously, making it an ideal choice for small to medium-sized businesses.

Cisco WS-C3560CX-8PC-S Overview

Discover the Cisco Catalyst WS-C3560CX-8PC-S, a versatile Layer 3 switch renowned for its reliable performance and compact design.

Manufacturer Details

• Brand: Cisco
• Model Number: WS-C3560CX-8PC-S
• Product Line: Catalyst
• Series: 3560-CX
• Type: Layer 3 Switch

Interface and Port Specifications

• Total Network Ports: 8
• Uplink Port: Yes
• Modular: No
• Stack Port: No
• Port/Expansion Slot Details:
  • 2 x Gigabit Ethernet Uplink
  • 2 x Gigabit Ethernet Expansion Slot
  • 8 x Gigabit Ethernet Network

Performance Characteristics

• Supported Media Type: Optical Fiber
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T

I/O Expansion Details

• Expansion Slots Total: 2
• Expansion Slot Type: SFP
• Shared SFP Slot: No
• Number of SFP Slots: 2

Network and Communication Features

• Layer Supported: 3

Management and Protocols

• Manageable: Yes
• Routing Protocols: RIP-1, RIP-2, Static IP Routing
• Remote Management Protocols:
  • SNMP 1, 2c, 3
  • RMON 1, 2
  • Telnet
  • HTTP

Power Specifications

• PoE (RJ-45) Port: Yes
• Power Source: Power Supply

Miscellaneous Features

• Environmental Friendliness: Yes
• Environmental Certification: RoHS-6

Advanced Features

• Support for DHCP
• Power over Ethernet (PoE)
• Auto-negotiation
• Trunking
• MPLS Support
• VLAN Support
• Auto-uplink (Auto MDI/MDI-X)
• IGMP Snooping
• Traffic Shaping
• Manageable
• DHCP Snooping
• Dynamic Trunking Protocol (DTP) Support
• Port Aggregation Protocol (PAgP) Support
• Trivial File Transfer Protocol (TFTP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• DHCP Server
• Virtual Route Forwarding-Lite (VRF-Lite)
• MLD Snooping
• Dynamic ARP Inspection (DAI)
• Time Domain Reflectometry (TDR)

Standards Compliance

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1D
• IEEE 802.1Q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s

Environmental Parameters

• Minimum Operating Temperature: 23 °F
• Maximum Operating Temperature: 113 °F
• Operating Humidity Range: 5 – 95% (non-condensing)
• Minimum Storage Temperature: -13 °F
• Maximum Storage Temperature: 158 °F
• Storage Humidity Range: 5 – 95% (non-condensing)

Increased Connectivity

Having 8 ports on the Cisco Catalyst WS-C3560CX-8PC-S Managed Switch means that users can connect a wide range of devices to their network. This includes computers, printers, IP phones, access points, and other network-enabled devices. The increased connectivity provided by these ports ensures that users can seamlessly integrate all their devices into a unified network infrastructure.

Efficient Data Transfer

The 8 ports on this managed switch enable high-speed data transfer between connected devices. Whether it's transferring large files or streaming high-definition media, the ample number of ports ensures that data can flow smoothly and efficiently within the network. This is particularly beneficial for businesses that rely heavily on data-intensive applications or have a high demand for network bandwidth.

Network Expansion

As businesses grow and their network requirements increase, having enough ports becomes crucial. The 8 ports on the Cisco Catalyst WS-C3560CX-8PC-S Managed Switch provide ample room for future expansion. Users can easily add more devices to their network without the need for additional switches or complex configurations. This scalability allows businesses to adapt their network infrastructure to meet their evolving needs.

Simplified Network Management

Managing a network with multiple devices can be challenging without the appropriate infrastructure in place. With 8 ports, this managed switch simplifies network management by consolidating connections into a single device. Administrators can easily monitor and control each connected device from a central management interface, streamlining network administration and reducing complexity.

Layer

The Cisco Catalyst WS-C3560CX-8PC-S Managed Switch operates at Layer 3 of the OSI model, which is another noteworthy feature. Layer 3 switches provide advanced routing capabilities and offer several benefits that enhance network performance and security.

Enhanced Routing

Layer 3 switches, such as the Cisco Catalyst WS-C3560CX-8PC-S, have built-in routing functionality. This means that they can make intelligent decisions about how to direct traffic within a network based on IP addresses. By analyzing the destination IP address of incoming packets, the switch can determine the most efficient path for data transmission. This enhances network performance by reducing latency and optimizing traffic flow.

Improved Network Segmentation

Layer 3 switches support the creation of virtual LANs (VLANs), which enable network segmentation. VLANs allow administrators to logically separate devices into different broadcast domains, providing increased security and better management of network resources. By isolating traffic between different VLANs, Layer 3 switches prevent unnecessary broadcasts and limit the potential impact of network issues or attacks.

Inter-VLAN Routing

The Layer 3 capabilities of the Cisco Catalyst WS-C3560CX-8PC-S enable inter-VLAN routing, which allows communication between devices in different VLANs. This is essential for businesses that require secure communication between departments or want to restrict access to sensitive data. By routing traffic between VLANs, Layer 3 switches enforce network policies and ensure that data remains secure and isolated.

Advanced Security

Layer 3 switches offer enhanced security features compared to lower-layer switches. They can implement access control lists (ACLs) and other security measures at the network level, providing an additional layer of protection against unauthorized access and network attacks. The Cisco Catalyst WS-C3560CX-8PC-S's Layer 3 capabilities strengthen the overall security posture of a network, making it an ideal choice for organizations that prioritize data protection.

Interface

The Cisco Catalyst WS-C3560CX-8PC-S Managed Switch features Ethernet interfaces, which are widely used in networking and offer numerous benefits for users.

Fast and Reliable Connectivity

Ethernet interfaces provide fast and reliable connectivity for devices connected to the Cisco Catalyst WS-C3560CX-8PC-S. With Ethernet, users can achieve high data transfer rates, ensuring efficient communication between devices. This is particularly important for bandwidth-intensive applications, such as video conferencing or large file transfers, where a stable and high-speed connection is essential.

Industry Standard

Ethernet is an industry-standard networking technology that is widely adopted across various industries. It offers compatibility with a wide range of devices, making it easy to integrate the Cisco Catalyst WS-C3560CX-8PC-S with existing network infrastructure. Whether connecting to computers, servers, or other networking equipment, Ethernet interfaces ensure seamless interoperability and simplify network integration.

Cost-Effective Solution

Ethernet interfaces are cost-effective compared to other networking technologies. The ubiquity of Ethernet has led to a competitive market, resulting in affordable hardware and widespread availability of Ethernet-enabled devices. This makes the Cisco Catalyst WS-C3560CX-8PC-S an economical choice for businesses looking to optimize their network infrastructure without breaking the budget.

Flexible Deployment Options

Ethernet interfaces provide flexibility in terms of deployment options for the Cisco Catalyst WS-C3560CX-8PC-S. Whether users need to connect devices directly to the switch or extend their network using Ethernet cables, the interface allows for easy connectivity. Additionally, Ethernet interfaces support various transmission media, including copper and fiber optic cables, enabling users to choose the most suitable medium for their network requirements.

SFP

The Cisco Catalyst WS-C3560CX-8PC-S Managed Switch comes with 1 SFP (Small Form-Factor Pluggable) port, which offers significant advantages for network connectivity and expansion.

Flexibility in Network Design

The SFP port on the Cisco Catalyst WS-C3560CX-8PC-S provides flexibility in network design by allowing users to choose the type of transceiver that best suits their needs. SFP transceivers support various media types, including copper and fiber optic cables, as well as different data transfer rates. This flexibility enables users to adapt their network infrastructure to specific requirements, such as longer distances or higher bandwidth demands.

Scalability and Future-Proofing

The presence of an SFP port enhances the scalability of the Cisco Catalyst WS-C3560CX-8PC-S. Users can leverage SFP transceivers to extend their network beyond the limitations of standard Ethernet connectivity. Whether connecting to remote locations or integrating with other networking equipment, the SFP port allows for seamless expansion without the need for additional switches or complex configurations. This future-proofing capability ensures that the switch can adapt to evolving network needs.

High-Speed Data Transfer

SFP transceivers support high-speed data transfer rates, offering users the ability to transmit and receive data quickly and efficiently. This is particularly beneficial for businesses that require fast and reliable connections, such as those involved in data-intensive activities or real-time communication applications. The SFP port on the Cisco Catalyst WS-C3560CX-8PC-S ensures that users can meet their bandwidth requirements without compromising performance.

Interoperability with Other Devices

SFP transceivers are widely adopted in the networking industry, making them compatible with a vast array of devices. The SFP port on the Cisco Catalyst WS-C3560CX-8PC-S allows for seamless integration with other SFP-enabled switches, routers, and network equipment. This interoperability ensures that users can leverage their existing infrastructure and easily connect to various devices without compatibility issues.
