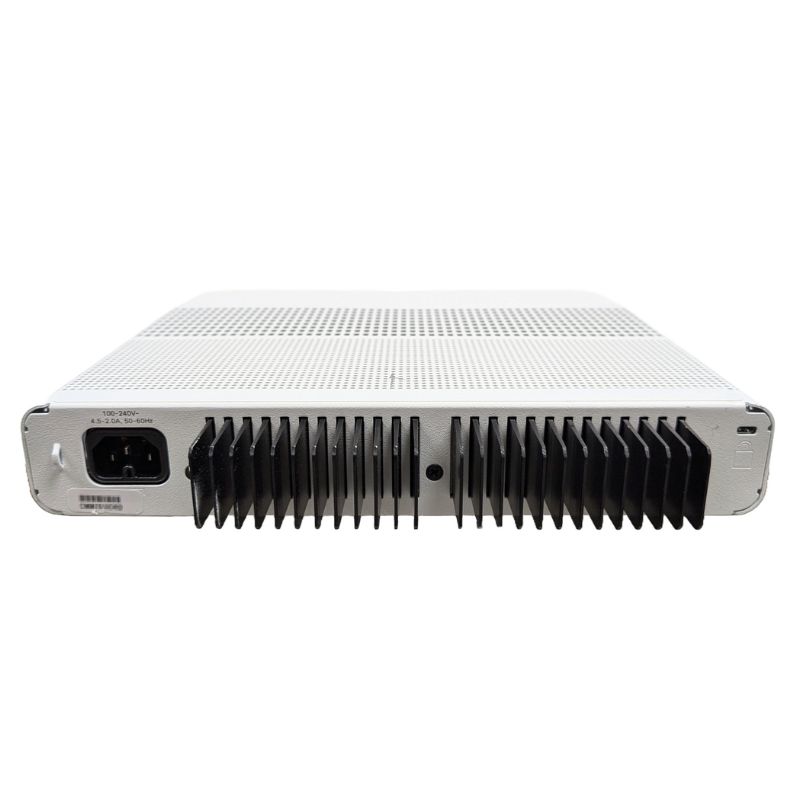

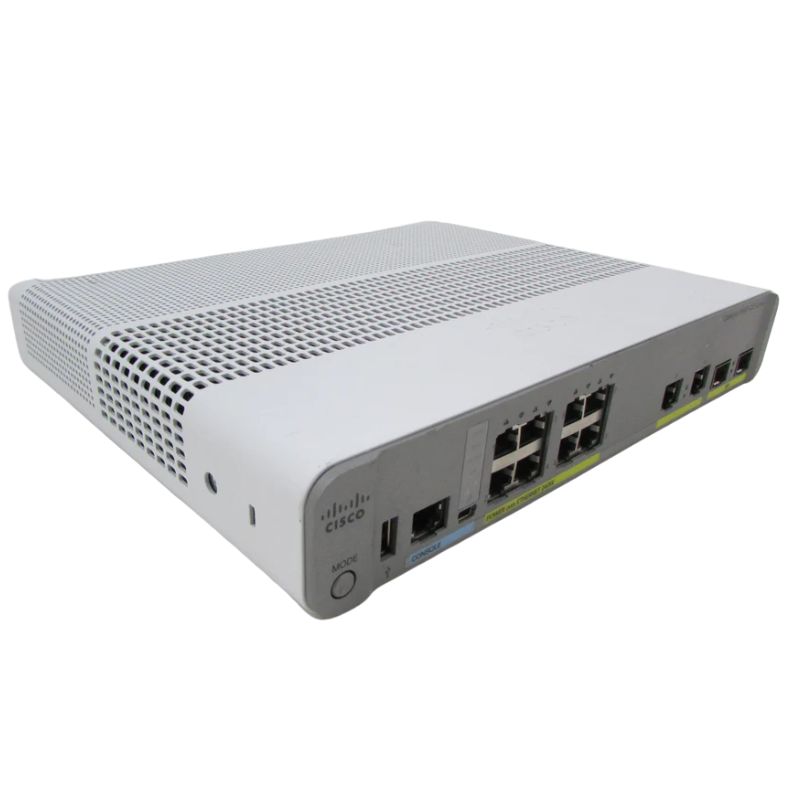

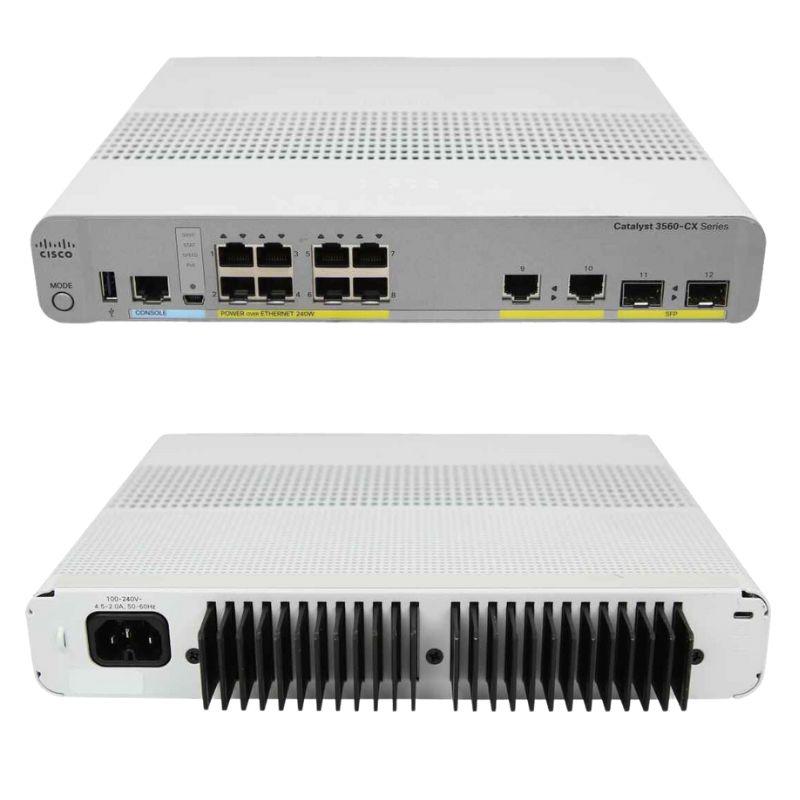

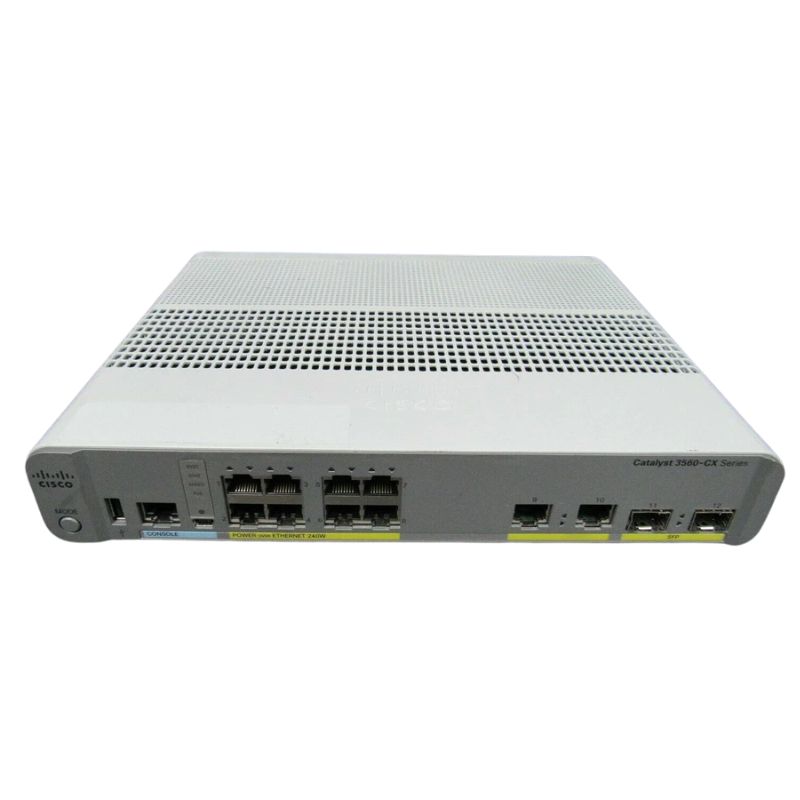

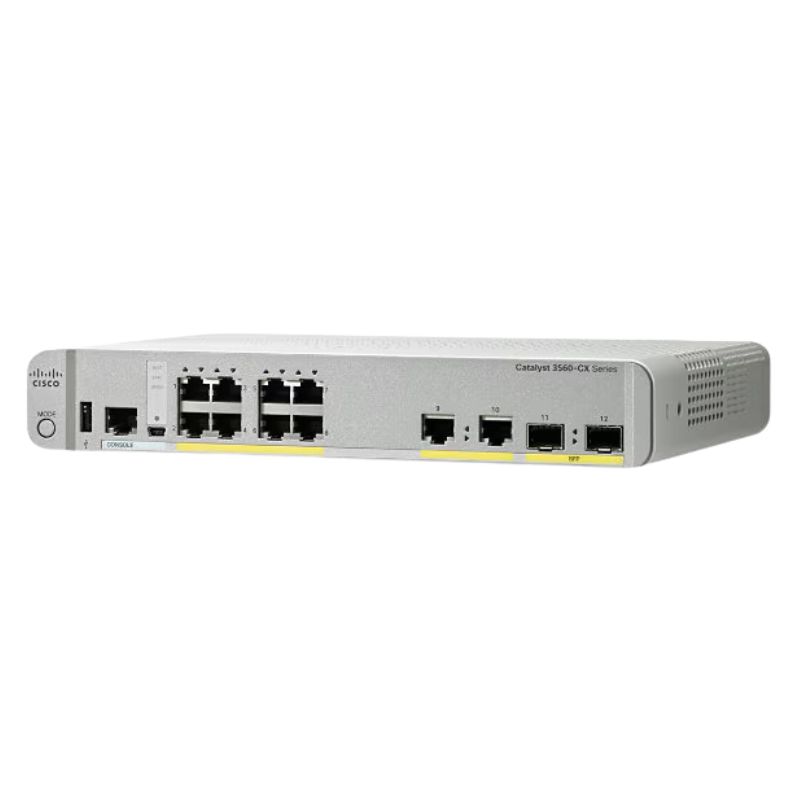

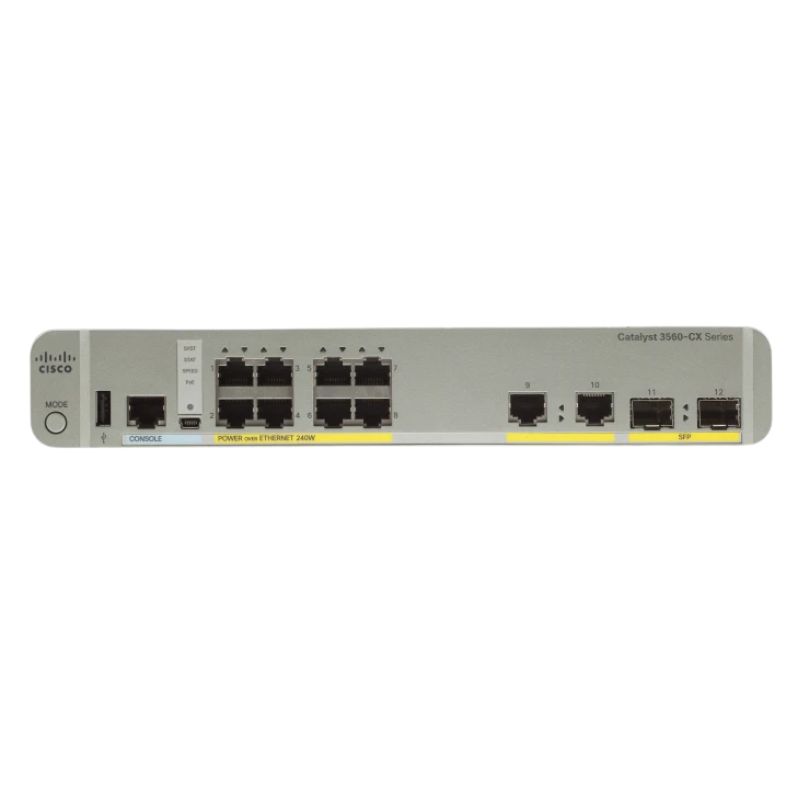

Cisco Catalyst WS-C3560CX-8TC-S Layer 3 Managed Switch 8 Ports POE 300W RJ45

Ports

The Cisco WS-C3560CX-8TC-S Layer 3 Managed Switch is equipped with 8 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports provide the essential connectivity needed to connect various devices and enable seamless communication within the network.

Overview of Cisco WS-C3560CX-8TC-S

Product Details

• Manufacturer: Cisco
• Part Number/SKU: WS-C3560CX-8TC-S
• Type: Managed Switch

Technical Specifications

Port Configuration

• Total Ports: 8
• Network Ports (RJ-45): 10
• Gigabit Ethernet Ports: 8
• Gigabit Ethernet Uplink Ports: 2
• Gigabit Ethernet Expansion Slots: 2
• Form Factor: Desktop, Rack-mountable, Rail Mountable

Connectivity

• Token Ring Port: No
• LRE Port: No
• Uplink Port: Yes
• Bypass: No
• Modular: No
• Management Port: No
• USB Port: No
• Stack Port: No

Performance Features

Supported Media Types

• Optical Fiber
• Twisted Pair

Network Technologies

• Gigabit Ethernet
• 1000Base-X
• 10/100/1000Base-T

Environmental Specifications

Operating Conditions

• Minimum Operating Temperature: 23 °F
• Maximum Operating Temperature: 113 °F
• Operating Humidity: 5 – 95% (non-condensing)

Storage Conditions

• Minimum Storage Temperature: -13 °F
• Maximum Storage Temperature: 158 °F
• Storage Humidity: 5 – 95% (non-condensing)

Expansion and Connectivity

Expansion Slots

• Total Expansion Slots: 2
• Expansion Slot Type: SFP
• Shared SFP Slot: No
• Number of SFP Slots: 2

Networking & Communication

• Connectivity Technology: Wired
• Status Indicators: Link/activity, Port duplex mode, Port status, Port transmission speed, System
• Power Over Ethernet (PoE): No
• Advanced Switching: Layer 3
• Jumbo Frame Support: 9018 bytes
• Form Factor: Desktop, DIN rail mountable, Rack-mountable, Wall-mountable

Management & Protocols

Management Features

• Manageable: Yes
• Management Protocols: CLI, HTTP, RMON (1, 2, 3, 9), SNMP (v1, v2c, v3), Telnet, TFTP
• Routing Protocols: RIP-1, RIP-2, Static IP Routing
• VLAN Support: Yes
• QoS Support: Yes

Memory and Power

Memory Specifications

• Standard Memory: 512 MB DRAM
• Flash Memory: 128 MB

Power Specifications

• Power Source: AC Power Supply
• Input Voltage: 120 V AC, 230 V AC
• Power Frequency: 50/60 Hz
• Power Provided: 300 Watts
• Operational Power Consumption: 16.6 Watts

Features

• Access Control List (ACL) Support
• ARP Support
• BOOTP Support
• Class of Service (CoS)
• DHCP Snooping
• DiffServ Support
• Energy Efficient Ethernet
• Fanless Operation
• IPv6 Support
• MAC Address Notification
• Multicast VLAN Registration (MVR)
• Port Aggregation Protocol (PAgP) Support
• Quality of Service (QoS)
• Remote Switch Port Analyzer (RSPAN)
• Shaped Round Robin (SRR)
• Spanning Tree Protocol (STP) Support
• Syslog Support
• VLAN Support
• Weighted Tail Drop (WTD)

Miscellaneous Information

Compliance and Standards

• Rack Mounting Kit: Optional
• Compliant Standards: 80 PLUS Silver, ANATEL, AS/NZS CISPR22:2004 Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22, CISPR 24, EN 60950-1, EN55022, EN55024, GB 4943, GOST, IEC 60825, IEC 60950-1, KCC Class A, KN22, KN24, RoHS, UL 60950-1, VCCI V-3/2007.04 Class A

Authentication Methods

• Kerberos
• RADIUS
• Secure Shell (SSH)
• TACACS+

Additional Specifications

• Mean Time Between Failures (MTBF): 756,260 hours
• Height (Rack Units): 1
• Color: Gray

Increased Flexibility and Scalability

With 8 ports, this Cisco switch offers increased flexibility and scalability for businesses. Users can easily connect multiple devices such as computers, printers, servers, and IP phones without the need for additional hardware or complicated configurations. This allows businesses to expand their network infrastructure as their needs grow, without the hassle of replacing existing equipment.

Enhanced Productivity

The availability of 8 ports ensures that users can connect multiple devices simultaneously, promoting enhanced productivity within the network. Employees can conveniently connect their computers, printers, and other peripherals without the need to constantly switch cables or invest in additional equipment. This streamlined connectivity allows users to focus on their tasks without interruptions, resulting in improved efficiency and productivity.

Seamless Collaboration

Collaboration is a key aspect of modern business operations, and the Cisco WS-C3560CX-8TC-S Layer 3 Managed Switch facilitates seamless collaboration within the network. With 8 ports, teams can connect their devices effortlessly, enabling real-time sharing of files, resources, and information. This fosters effective communication and collaboration between team members, leading to faster decision-making and improved overall performance.

Furthermore, the switch's Layer 3 capabilities allow for advanced routing and traffic management, ensuring that data flows smoothly between connected devices. This promotes efficient collaboration across departments or remote locations, regardless of the data size or complexity.

Power Over Ethernet

One of the standout features of the Cisco WS-C3560CX-8TC-S Layer 3 Managed Switch is its Power over Ethernet (PoE) capability. This feature enables the switch to provide power to connected devices, such as IP phones, wireless access points, and security cameras, through the Ethernet cable itself. This eliminates the need for separate power supplies or adapters, simplifying installation and reducing clutter.

Convenience and Cost Savings

By utilizing PoE technology, businesses can enjoy the convenience of powering their devices through a single cable. This eliminates the hassle of managing multiple power cords and reduces the risk of power outages caused by accidental disconnections. Additionally, PoE reduces the dependency on electrical outlets, making it easier to deploy devices in areas where power sources are limited or inaccessible.

The cost savings associated with PoE are significant. Businesses can avoid the expenses of purchasing additional power supplies or adapters for each device, reducing both upfront costs and ongoing operational expenses. Moreover, PoE allows for centralized power management, enabling businesses to monitor and control power consumption more efficiently.

Flexibility in Device Placement

The PoE capability of the Cisco WS-C3560CX-8TC-S Layer 3 Managed Switch provides flexibility in device placement. Users can deploy devices in locations where electrical outlets are not readily available, such as ceilings or walls. This flexibility is particularly beneficial for businesses that require security cameras or wireless access points in areas where running new electrical wiring may not be feasible or cost-effective.

Reliable Power Delivery

The switch's PoE capability ensures reliable power delivery to connected devices. It features intelligent power management capabilities that monitor and regulate power usage, preventing overload or underpowering scenarios. This helps to maintain the stability and performance of critical devices, ensuring uninterrupted operation and minimizing downtime.

Power Capacity

The Cisco WS-C3560CX-8TC-S Layer 3 Managed Switch boasts a power capacity of 300 W, providing ample power to support the connected devices. This high power capacity is essential for businesses that rely on power-hungry devices or require multiple PoE-enabled devices to operate simultaneously.

Support for Power-Hungry Devices

Devices such as pan-tilt-zoom (PTZ) cameras, access points with multiple radios, or video conferencing systems often require significant power to operate efficiently. The 300 W power capacity of the switch ensures that these power-hungry devices receive the necessary power supply without compromising performance or stability. This capability allows businesses to leverage advanced technologies and applications that require substantial power, enhancing their operational capabilities.

Scalability for Expanding Networks

As businesses grow and expand their network infrastructure, the demand for power also increases. The Cisco WS-C3560CX-8TC-S Layer 3 Managed Switch's 300 W power capacity offers scalability for expanding networks. It can accommodate additional PoE-enabled devices without overloading the power supply. This scalability ensures that businesses can seamlessly integrate new devices into their network without the need for additional switches or complex power management setups.

Energy Efficiency

Despite its high power capacity, the Cisco WS-C3560CX-8TC-S Layer 3 Managed Switch is designed with energy efficiency in mind. The switch incorporates advanced power-saving technologies that optimize power usage based on the connected devices' requirements. This not only reduces energy consumption but also contributes to cost savings by lowering electricity bills.

The switch's energy efficiency features include intelligent power management, which automatically adjusts power output based on device activity levels. It also supports IEEE 802.3az Energy Efficient Ethernet (EEE) standards, which help reduce power consumption during periods of low network traffic.

Interface

The Cisco WS-C3560CX-8TC-S Layer 3 Managed Switch features RJ-45 interfaces, providing a standard and widely supported connection method for devices. The RJ-45 interface is commonly used for Ethernet connections, making it compatible with a wide range of devices and ensuring seamless connectivity within the network.

Universal Compatibility

The use of RJ-45 interfaces ensures universal compatibility with various devices, including computers, printers, IP phones, and network storage devices. This compatibility eliminates the need for additional adapters or converters, simplifying the setup process and reducing potential compatibility issues. Users can confidently connect their devices to the switch without worrying about compatibility constraints.

Reliable Connection

The RJ-45 interface is known for its reliable connection. It provides a secure and stable connection between devices, ensuring consistent data transmission and minimizing the risk of signal loss or interruption. This reliability is crucial for businesses that rely on uninterrupted network connectivity for critical operations, such as real-time data transfer or VoIP communication.

Easy Deployment and Maintenance

The familiarity and popularity of the RJ-45 interface make it easy to deploy and maintain network infrastructure. Cables with RJ-45 connectors are readily available in various lengths, allowing users to customize their network layout according to their specific requirements. Additionally, troubleshooting and maintenance tasks are simplified due to the widespread usage of the RJ-45 interface, as technicians can easily find compatible tools and resources for diagnostics and repairs.

In conclusion, the Cisco WS-C3560CX-8TC-S Layer 3 Managed Switch offers a range of features that cater to the needs of small to medium-sized businesses. The 8 ports provide flexibility, scalability, and enhanced productivity within the network. The Power over Ethernet capability simplifies device deployment, reduces costs, and ensures reliable power delivery. The high power capacity of 300 W accommodates power-hungry devices and supports expanding networks. Lastly, the RJ-45 interface offers universal compatibility, reliable connections, and easy deployment and maintenance. With these features, the Cisco WS-C3560CX-8TC-S Layer 3 Managed Switch is a reliable and efficient choice for businesses looking to optimize their network infrastructure.
