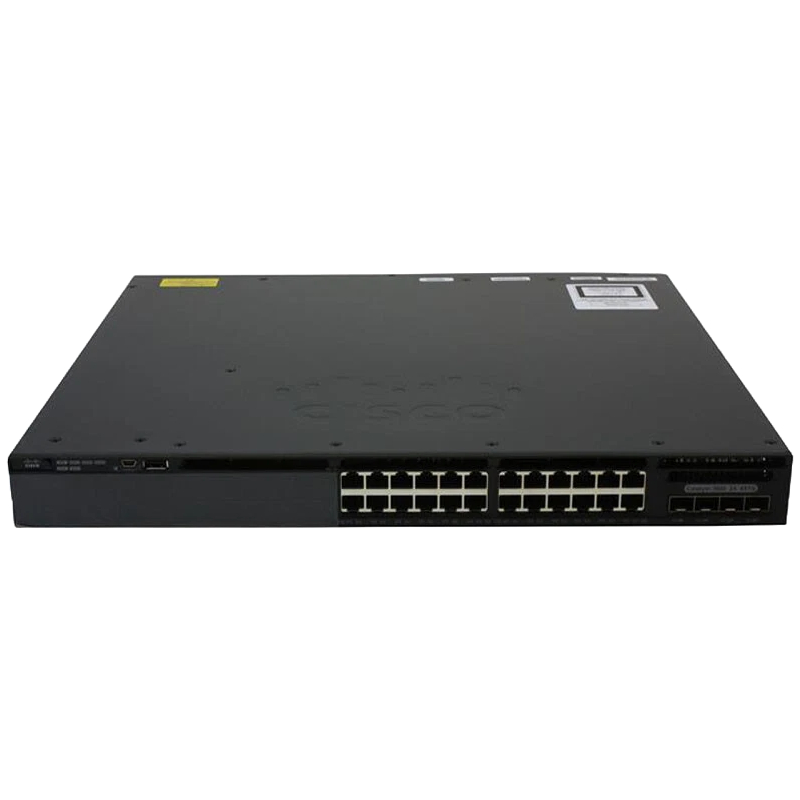

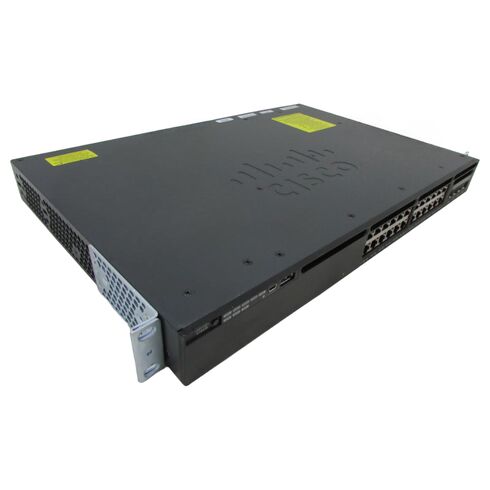

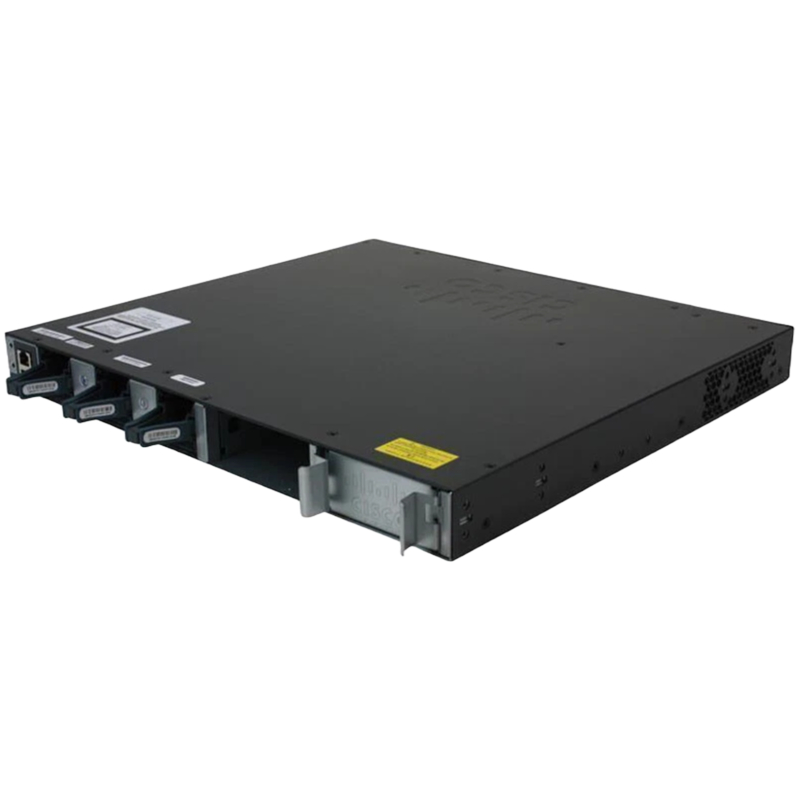

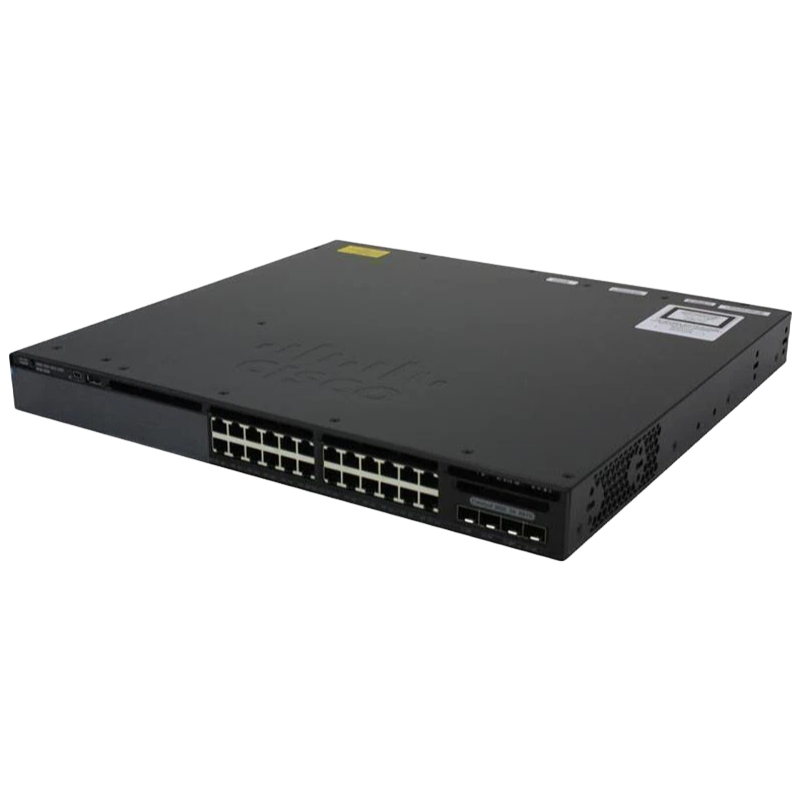

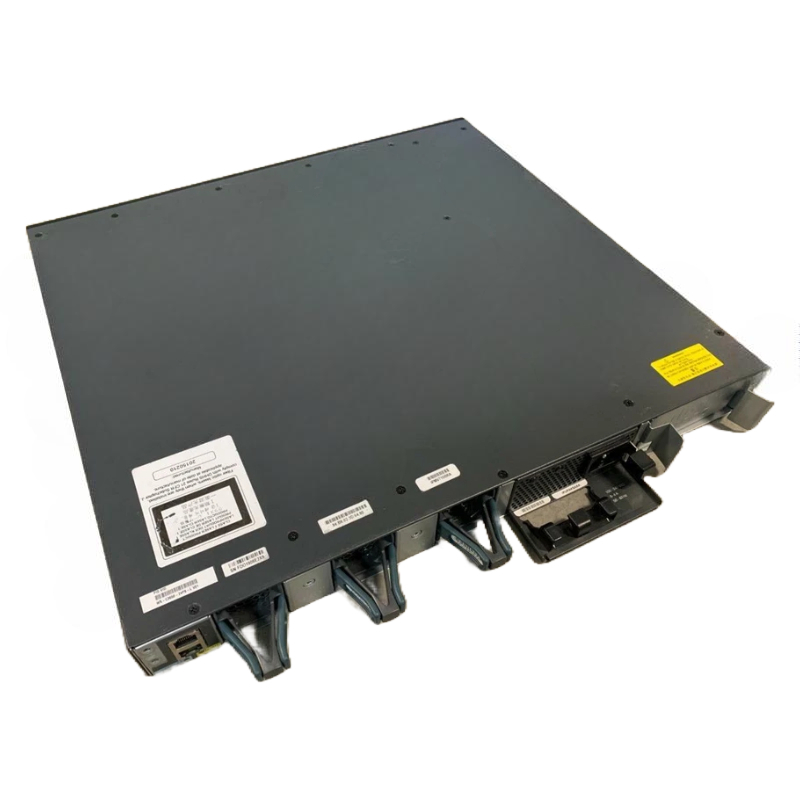

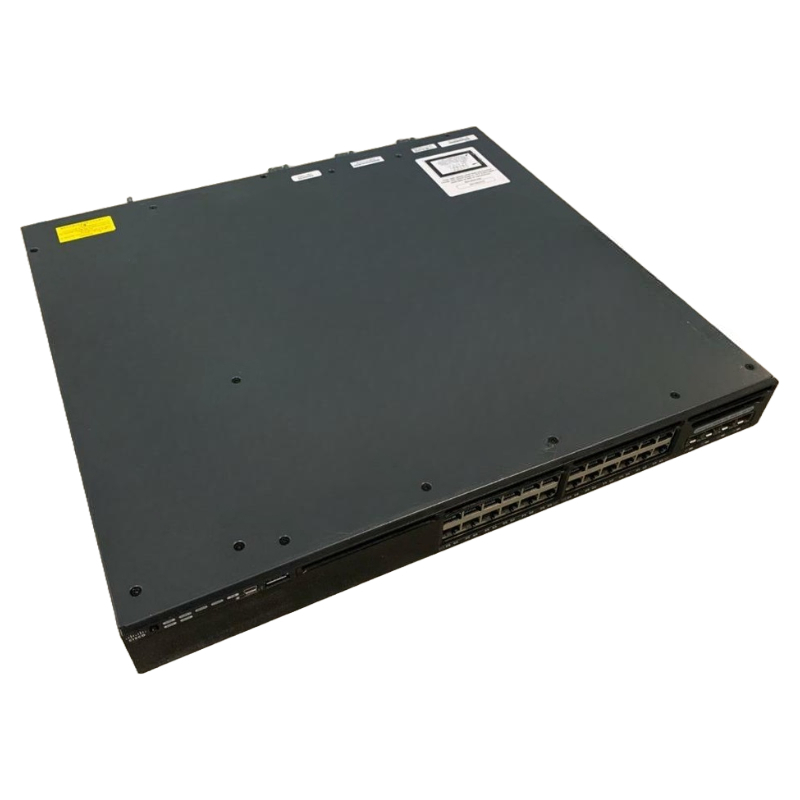

Cisco Catalyst WS-C3650-24PWD-S Managed Ethernet Switch 24 Ports

Cisco Catalyst WS-C3650-24PWD-S: Advanced Layer 3 Switching Solution

General Overview

• Part Number: WS-C3650-24PWD-S
• Brand: Cisco
• Switch Category: Layer 3 Managed Switch

Connectivity Features

Interface Specifications

• Network Ports: 24 x Gigabit Ethernet
• Uplink Ports: Yes, includes 2 x 10 Gigabit Ethernet uplinks
• Modularity: Non-modular
• Stacking Capability: Yes

Performance and Media Compatibility

Supported Media Types

• Media Types: Twisted Pair
• Ethernet Technologies: 10 Gigabit Ethernet
• Network Standards: 10/100/1000Base-T

Performance Metrics

• Switching Capacity: 92 Gbps for 24-port models
• Maximum MAC Address Entries: 32,000
• Total IPv4 Routes Supported: 24,000
• Maximum Jumbo Frame Size: 9198 bytes

Expansion and Management Options

Expansion Slots

• Number of Expansion Slots: 2 SFP+ slots

Management Capabilities

• Manageability: Yes, offers web-based management
• Quality of Service (QoS): Supported
• Traffic Shaping: Yes

Power and Physical Specifications

Power Supply Details

• Power Source: Standard AC power supply
• Redundant Power Supply Support: Yes

Physical Dimensions

• Form Factor: Rack-mountable and desktop compatible
• Height: 1.7 inches
• Width: 17.5 inches
• Depth: 17.6 inches
• Approximate Weight: 16 lb

Environmental Considerations

Eco-Friendly Attributes

• Environmentally Friendly: Yes

Wireless Capabilities

Wireless Performance

• Access Points per Switch: Up to 25
• Maximum Wireless Clients: 1000
• Total WLANs Supported: 64
• Wireless Bandwidth: Up to 20 Gbps

Forwarding Rates

• Forwarding Rate for 24-port Models: 68.45 Mpps
• Forwarding Rate for 48-port Models: Up to 104.16 Mpps

Compliance and Standards

Networking Standards

• Standards Supported: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, among others

Ports

The Cisco WS-C3650-24PWD-S Managed Ethernet Switch is equipped with 24 ports, making it an exceptional choice for users who require a high-density network switch. With a sufficient number of ports, this switch offers the flexibility and scalability needed to support various network devices and accommodate growing business needs.

Increased Connectivity and Flexibility

Having 24 ports on the Cisco WS-C3650-24PWD-S allows users to connect multiple devices simultaneously, including computers, printers, IP phones, access points, servers, and more, without the need for additional switches or complex networking configurations. The ample number of ports enables businesses to expand their network infrastructure with ease and flexibility.

Seamless Network Expansion

The 24 ports on this managed Ethernet switch provide ample room for future network growth. As businesses expand and incorporate new devices into their network, having extra ports eliminates the need for immediate infrastructure upgrades or investing in additional networking equipment. This seamless scalability saves both time and resources, allowing organizations to focus on their core operations rather than worrying about network limitations.

Efficient Traffic Management

Each of the 24 ports on the Cisco WS-C3650-24PWD-S is capable of handling high-speed data transfers efficiently. This switch supports advanced features such as Quality of Service (QoS) and VLANs (Virtual LANs), enabling users to prioritize network traffic and allocate bandwidth to critical applications or devices. By efficiently managing traffic flow, businesses can ensure optimal performance for mission-critical applications while maintaining a smooth user experience across the network.

Enhanced Network Performance

The 24 ports on the Cisco WS-C3650-24PWD-S contribute significantly to overall network performance by eliminating bottlenecks and congestion. With a generous number of ports available, each device connected to the switch can operate at its full potential without experiencing any slowdowns or disruptions. This enhanced network performance translates into improved productivity, reduced latency, and increased user satisfaction.

Greater Bandwidth Capacity

By offering 24 ports, this managed Ethernet switch provides a higher total bandwidth capacity compared to switches with fewer ports. Each port supports high-speed data transfer rates, and the cumulative bandwidth capacity of all 24 ports ensures that network traffic can flow smoothly even during peak usage periods. This is particularly beneficial for businesses that heavily rely on data-intensive applications or engage in activities that involve large file transfers.

Redundancy and Uptime

The Cisco WS-C3650-24PWD-S features multiple ports, allowing users to implement network redundancy measures. Redundancy is crucial for mission-critical environments where network downtime can have severe consequences. By connecting devices to different ports, users can create redundant links or implement technologies like link aggregation (LACP) to ensure uninterrupted network connectivity. In the event of a port failure, traffic can automatically be rerouted through the redundant links, minimizing downtime and maintaining business continuity.

Cost-Effective Solution

Investing in a switch with 24 ports, such as the Cisco WS-C3650-24PWD-S, offers long-term cost savings for businesses. With an adequate number of ports available from the start, organizations can avoid the need for immediate upgrades or additional networking equipment purchases as their network expands. The initial investment in a 24-port switch proves to be more cost-effective than investing in multiple smaller switches over time.

Simplified Network Management

Consolidating devices onto a single 24-port switch simplifies network management and reduces complexity. Having fewer switches to configure and maintain streamlines the administration process and ensures easier troubleshooting in case of any issues. This simplicity not only saves time but also minimizes the risk of errors and misconfigurations, resulting in improved overall network stability.

Future-Proofing

The Cisco WS-C3650-24PWD-S, with its 24 ports, provides users with a future-proof networking solution. As technology advances and network requirements evolve, businesses can rely on the versatility and scalability of this switch to meet their changing needs. The ample number of ports ensures that the switch can accommodate new devices, emerging technologies, and higher bandwidth demands without requiring immediate replacement or upgrades.

In conclusion, the 24 ports on the Cisco WS-C3650-24PWD-S Managed Ethernet Switch offer numerous benefits to users, including increased connectivity, flexibility, seamless network expansion, efficient traffic management, enhanced network performance, greater bandwidth capacity, redundancy and uptime, cost-effectiveness, simplified network management, and future-proofing. With these advantages, businesses can build a robust and scalable network infrastructure that supports their current needs while allowing for future growth and technological advancements.
