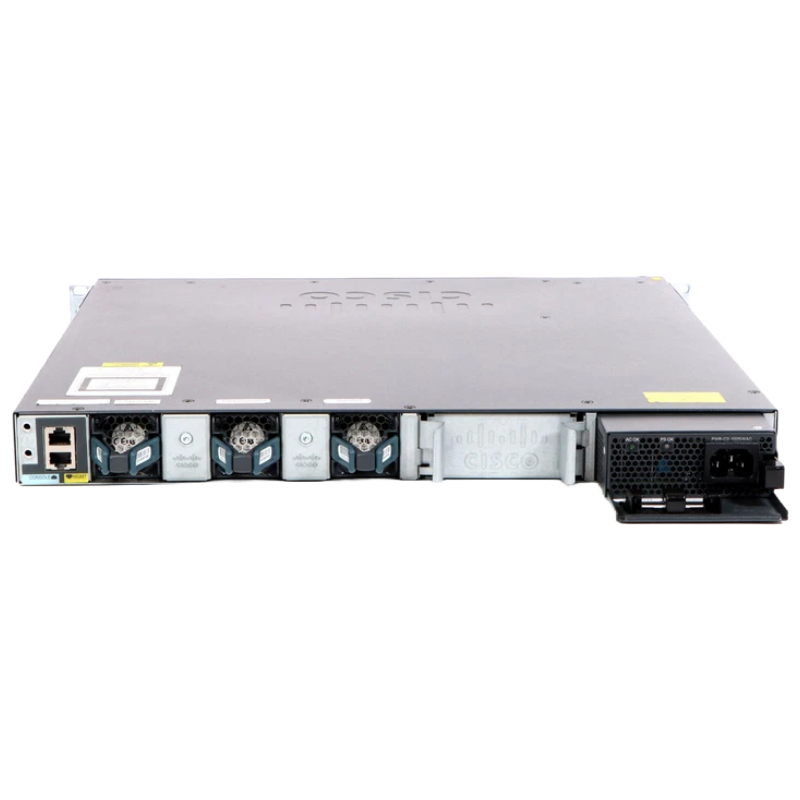

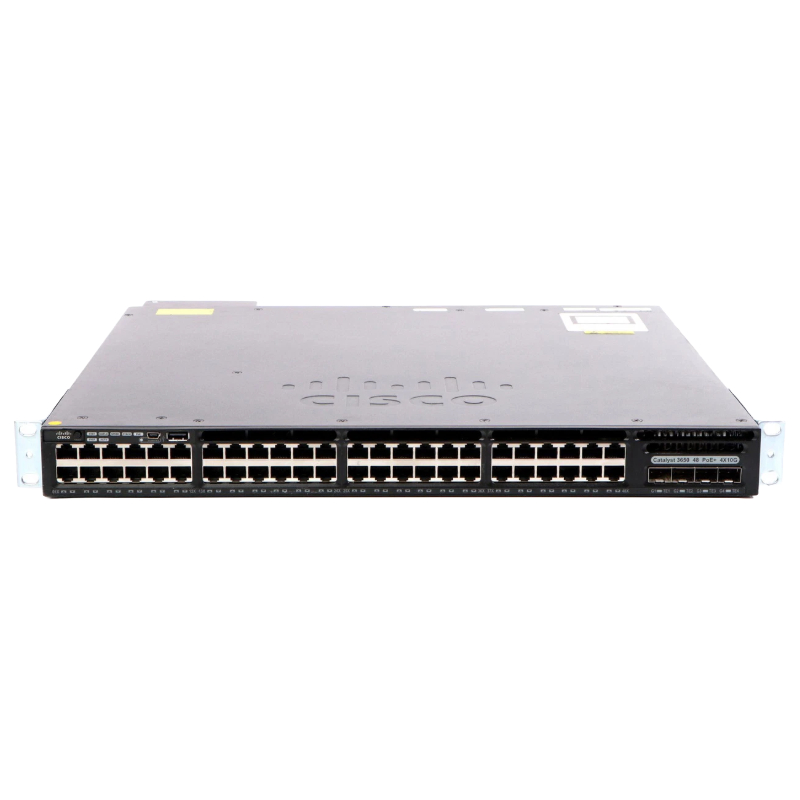

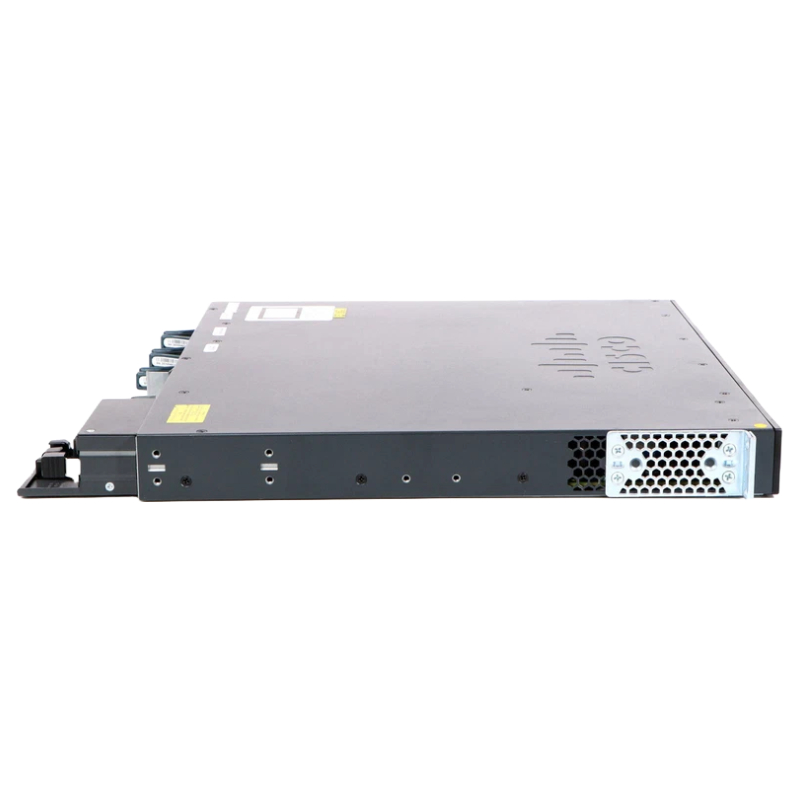

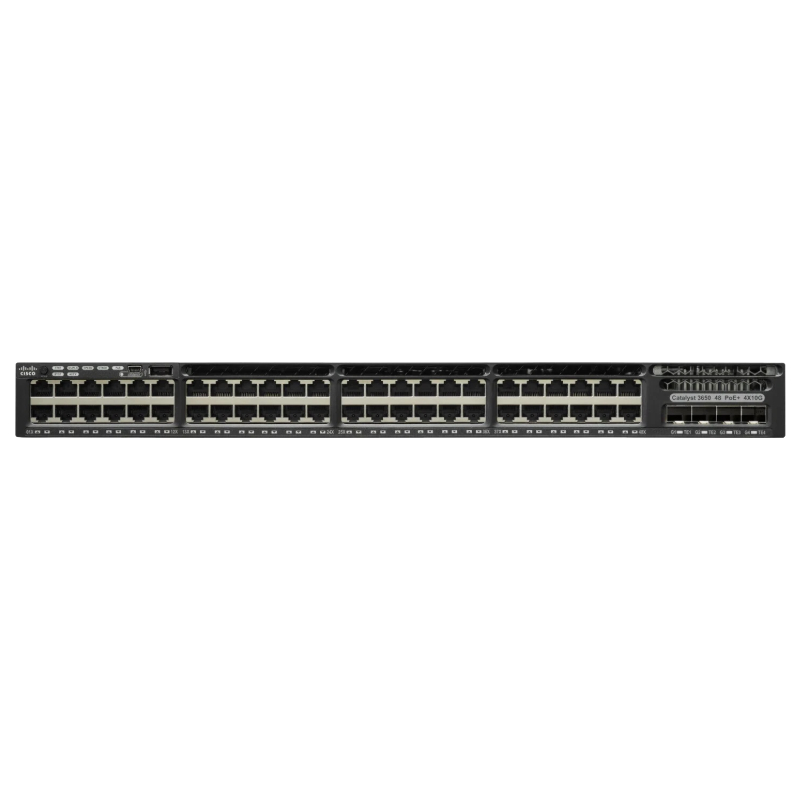

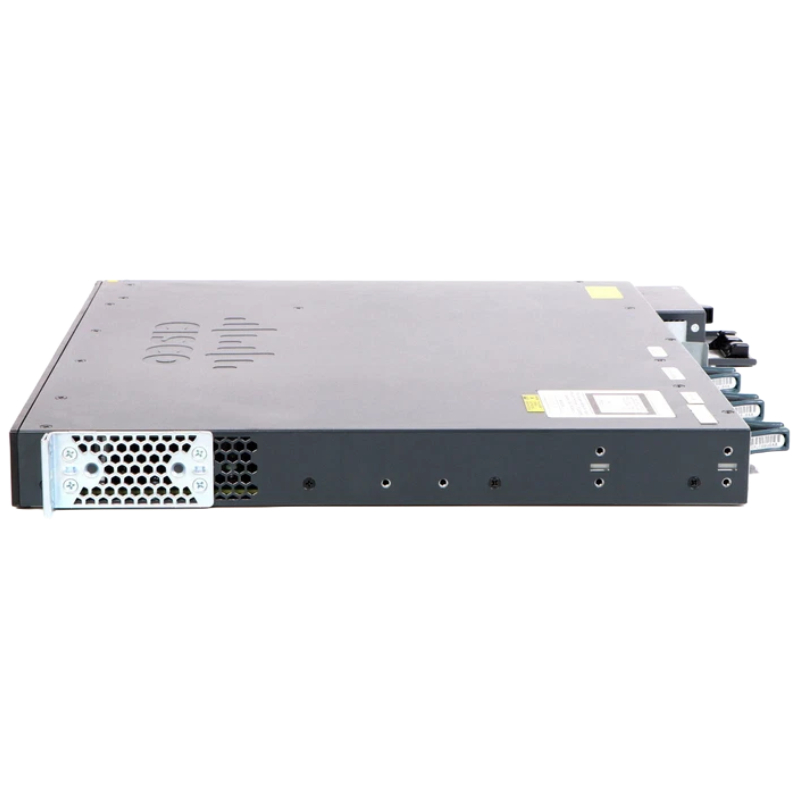

Cisco Catalyst WS-C3650-48FQM-L Ethernet Switch 48 Ports

Cisco Catalyst WS-C3650-48FQM-L Layer 3 Switch

General Information

• Manufacturer: Cisco Systems, Inc.
• Part Number: WS-C3650-48FQM-L
• Product Line: Catalyst
• Product Series: 3650
• Product Name: Catalyst 3650-48FQM-L Layer 3 Switch

Marketing Information

The Cisco® Catalyst® 3650 Series represents the next generation of enterprise-class standalone and stackable access-layer switches, providing a foundation for full convergence between wired and wireless networks on a single platform. Built on advanced Cisco StackWise®-160 technology, the Catalyst 3650 features the Cisco Unified Access Data Plane (UADP) ASIC for uniform policy enforcement, application visibility, optimization, and enhanced resiliency. It supports full IEEE 802.3at Power over Ethernet Plus (PoE+), offers modular and field-replaceable redundant fans and power supplies, and features a compact 12-inch depth, ideal for tight wiring closets in remote branches and offices. Increase your wireless productivity and reduce total cost of ownership (TCO) with the Catalyst 3650.

Product Type

Layer 3 Switch

Interfaces/Ports

• Total Network Ports: 48
• Uplink Port: Yes
• Modular: Yes
• Stack Port: Yes
• Port/Expansion Slot Details:
  • 48 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Uplink

Media & Performance

• Media Types Supported:
  • Twisted Pair
  • Optical Fiber
• Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
• Network Technology:
  • 10/100/1000Base-TX
  • 10GBase-X

Physical Characteristics

• Compatible Rack Unit: 1U
• Form Factor: Rack-mountable / Standalone
• Dimensions:
  • Height: 1.7 in
  • Width: 17.5 in
  • Depth: 11.6 in
  • Weight: Approx. 12.65 lb

Environmental Parameters

• Min Operating Temperature: 23 °F
• Max Operating Temperature: 113 °F
• Operating Humidity Range: 5 - 96% (non-condensing)
• Min Storage Temperature: -40 °F
• Max Storage Temperature: 158 °F

Power Description

• Power Source: Internal Power Supply
• PoE Power: 30 W on all ports
• Power Budget: 775 W
• Power Redundancy: Optional (1+1 with optional power supply)

Ports

The Cisco WS-C3650-48FQM-L Switch is equipped with 48 ports, making it an ideal solution for businesses that require a large number of network connections. These ports provide users with the ability to connect multiple devices to the switch, enabling seamless communication and data transfer across the network.

Increased Connectivity

With 48 ports, this switch offers a significant increase in connectivity options compared to switches with fewer ports. This is particularly beneficial for businesses that have a high number of network-connected devices, such as computers, printers, servers, and IP phones. Each port on the switch allows for the connection of a single device, ensuring that every device has access to the network.

The increased connectivity provided by the 48 ports allows businesses to expand their network infrastructure without having to invest in additional switches or networking equipment. This not only saves costs but also simplifies network management by consolidating all network connections into a single device.

Versatile Deployment Options

The Cisco WS-C3650-48FQM-L Switch's 48 ports offer versatile deployment options, allowing businesses to tailor their network setup to meet their specific needs. With numerous ports available, users can easily create separate VLANs (Virtual LANs) for different departments or groups within the organization.

This segregation helps improve network performance and security by isolating traffic and preventing unauthorized access to sensitive information. Additionally, different VLANs can be assigned varying levels of access and security policies, enabling administrators to have granular control over network resources.

Flexibility for Future Growth

The 48 ports on this switch provide businesses with flexibility for future growth. As technology advances and organizations expand, the demand for network connectivity increases. By having a switch with numerous available ports, businesses can easily accommodate new devices and additional network connections without the need for costly upgrades or replacements.

Furthermore, the Cisco WS-C3650-48FQM-L Switch supports advanced features such as Power over Ethernet (PoE), which allows devices such as IP phones, wireless access points, and surveillance cameras to receive power through the Ethernet cable. This eliminates the need for separate power outlets and simplifies installation, making it easier to deploy new devices throughout the network.

Improved Network Performance

The Cisco WS-C3650-48FQM-L Switch's 48 ports contribute to improved network performance by reducing congestion and minimizing data bottlenecks. With more ports available, each device has a dedicated connection to the switch, ensuring optimal bandwidth allocation and preventing network slowdowns.

In addition, this switch supports advanced switching technologies, such as Cisco StackWise-160, which enables the stacking of multiple switches into a single logical unit. This stacking technology increases network capacity and resiliency by combining the bandwidth of multiple switches and providing redundancy in case of a switch failure.

Ethernet

The Cisco WS-C3650-48FQM-L Switch features 1 Ethernet interface, offering high-speed connectivity for data transmission across the network. This Ethernet interface plays a key role in delivering fast and reliable network performance.

High-Speed Data Transfer

The 1 Ethernet interface on this switch allows for high-speed data transfer, enabling rapid communication between devices on the network. Whether it is transferring large files, streaming high-definition media, or conducting video conferences, users can experience seamless connectivity without any noticeable delays.

This high-speed data transfer is particularly important for businesses that rely heavily on data-intensive applications or require real-time communication. With the 1 Ethernet interface, users can enjoy smooth and uninterrupted access to network resources, enhancing productivity and collaboration.

Reliable Network Connectivity

The Cisco WS-C3650-48FQM-L Switch's Ethernet interface provides reliable network connectivity, ensuring that users can consistently access network resources without interruptions. This is crucial for businesses that rely on a stable network connection to perform their day-to-day operations.

In addition to the reliability of the Ethernet interface itself, this switch is built with redundant power supplies and hot-swappable fan modules, further enhancing network uptime and minimizing the risk of downtime. The redundant power supplies ensure that the switch remains operational even in the event of a power supply failure, while the hot-swappable fan modules allow for easy replacement without disrupting network operation.

Network Security

The 1 Ethernet interface on this switch also contributes to network security. By utilizing advanced security features such as IEEE 802.1X authentication and Access Control Lists (ACLs), administrators can create secure network environments and control access to network resources.

With IEEE 802.1X authentication, users must provide valid credentials before being granted access to the network. This helps prevent unauthorized devices or individuals from connecting to the network and mitigates the risk of unauthorized access to sensitive data.

Simplified Network Management

Aside from its performance and security benefits, the Cisco WS-C3650-48FQM-L Switch's Ethernet interface also simplifies network management. The switch can be easily configured and managed through a web-based interface or a command-line interface (CLI).

Administrators can easily monitor and control network traffic, configure VLANs, set Quality of Service (QoS) policies, and implement other network settings through the intuitive management interfaces. This simplifies the deployment and ongoing management of the switch, allowing administrators to optimize network performance and ensure the smooth operation of the network.
