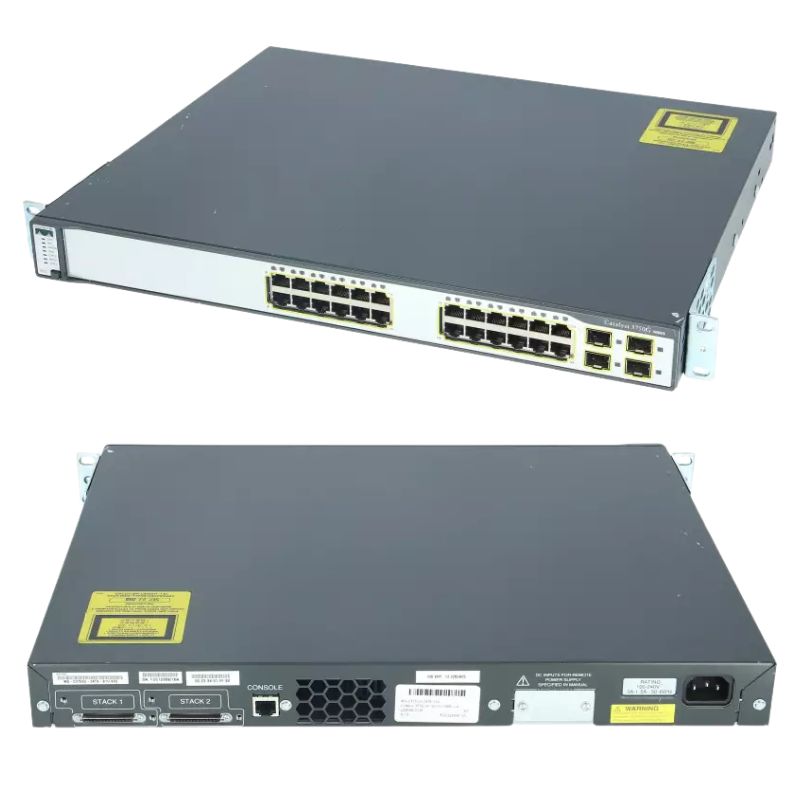

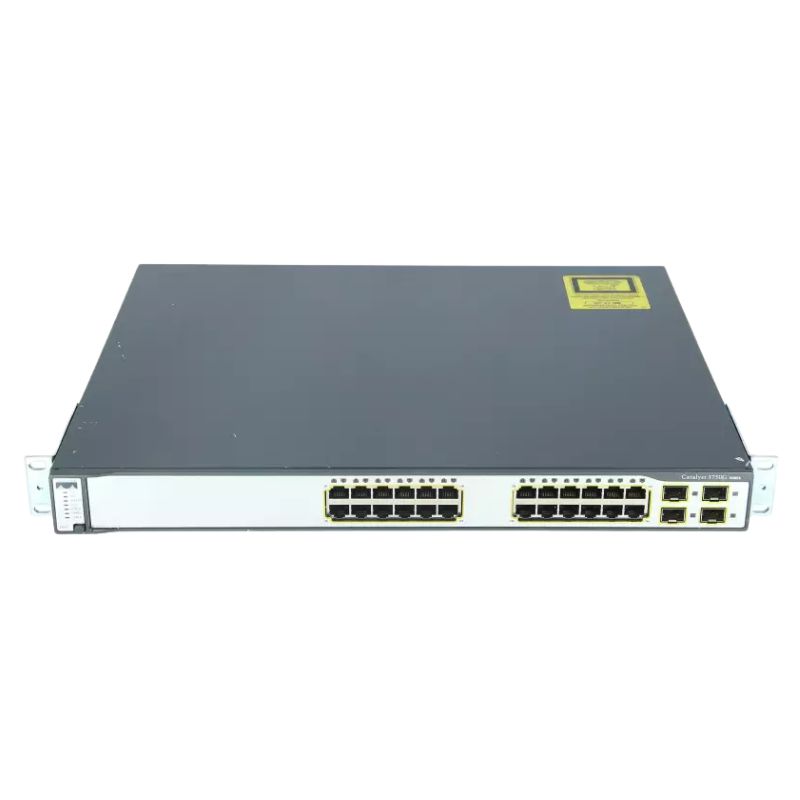

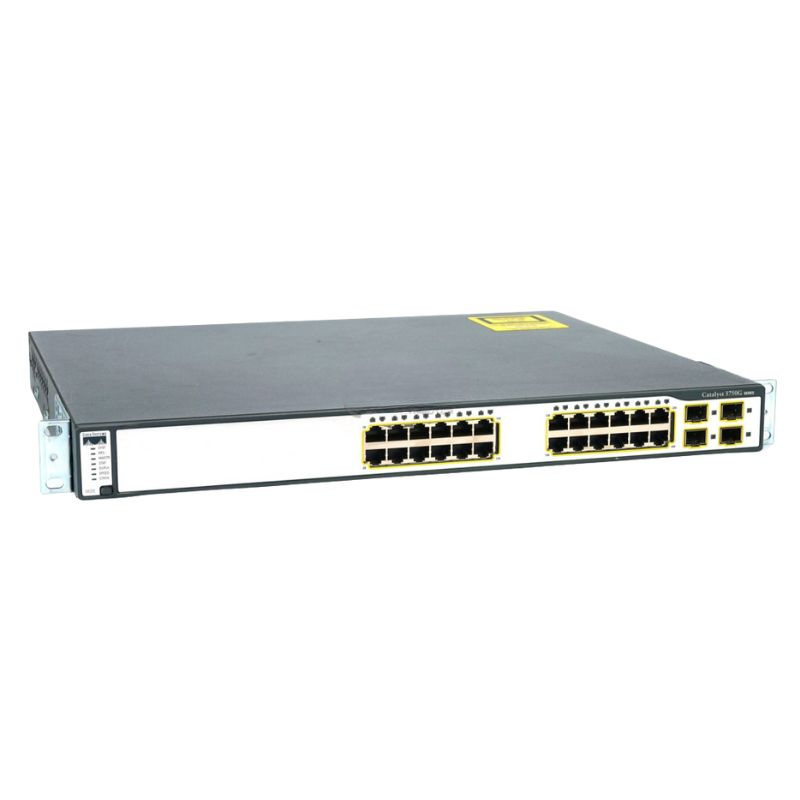

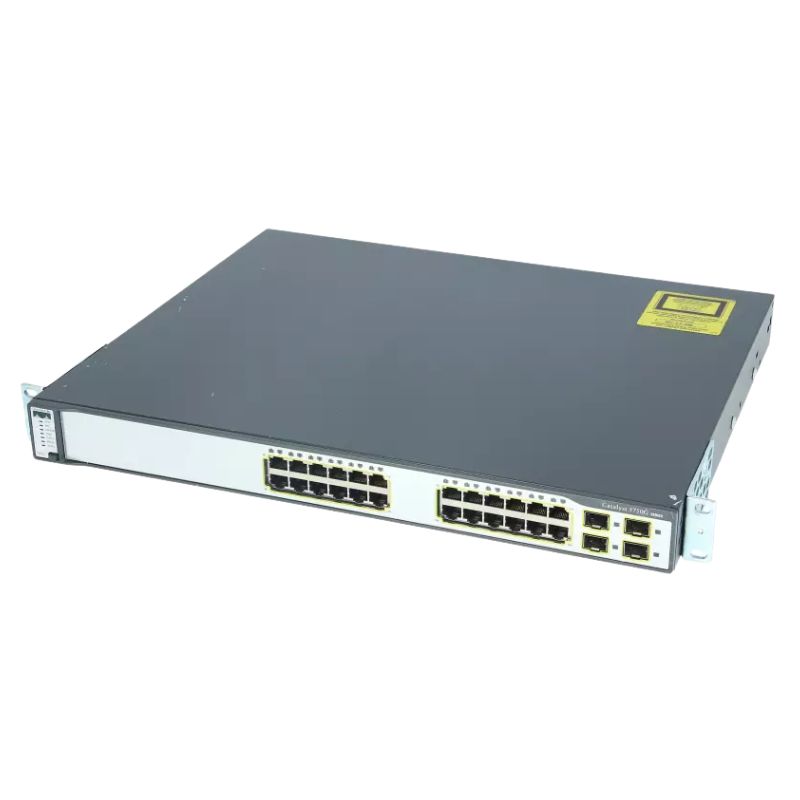

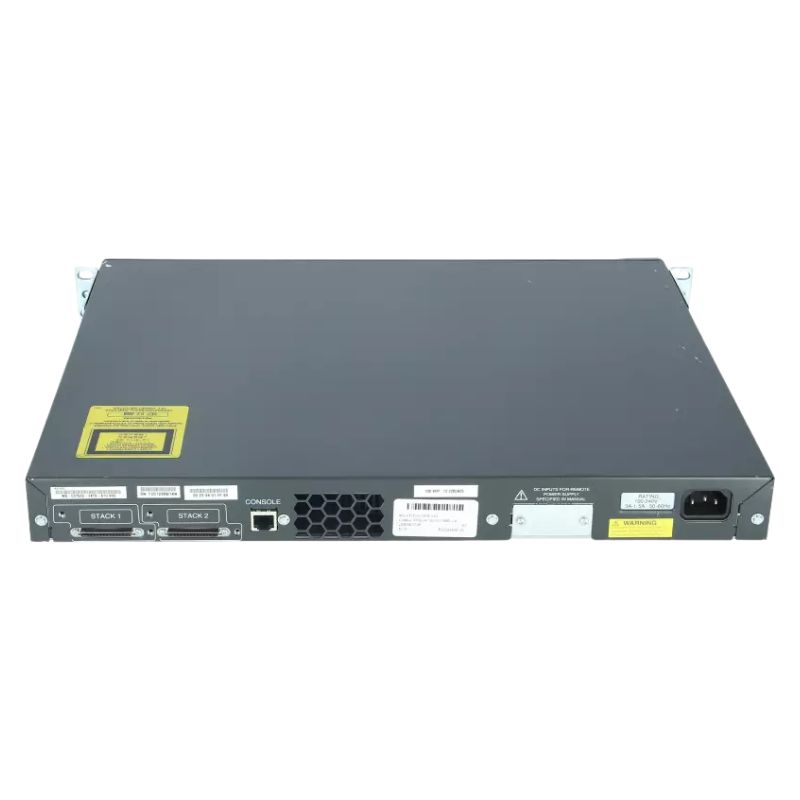

Cisco Catalyst WS-C3750G-24TS-S1U Switch - 24 Ports

Cisco WS-C3750G-24TS-S1U 24 Ports Switch

Manufacturer and Product Information

• Manufacturer: Cisco
• Part Number: WS-C3750G-24TS-S1U
• Product Line: Catalyst
• Series: 3750
• Model: 3750G-24TS
• Type: 24-Port Ethernet Switch

Port Configuration and Interface Details

• Total Network Ports: 24
• RJ-45 Ports: 24 Gigabit Ethernet Ports
• Expansion Slots: 4 x Gigabit Ethernet Slots

Comprehensive Port Setup

The Cisco WS-C3750G-24TS-S1U comes equipped with 24 Gigabit Ethernet network ports for seamless data transfers and supports four expansion slots for additional scalability. This flexible configuration ensures that your network can adapt to future needs.

Performance and Media Support

• Supported Media: Twisted Pair
• Cable Standard: Category 5
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10Base-T, 10/100/1000Base-T

High-Speed Ethernet for Improved Performance

Supporting Gigabit Ethernet technology, this switch provides reliable and high-speed data transmission across networks. It’s compatible with twisted-pair cables, making it suitable for both new installations and network upgrades using Category 5 cabling or higher.

Expansion and Scalability

• Expansion Slots: 4
• Slot Type: SFP (Small Form-Factor Pluggable)
• SFP Slots Available: 4

Flexible Expansion with SFP Modules

This switch provides four SFP slots for future expansion, allowing seamless integration of fiber modules or other high-speed connections. This makes the Cisco WS-C3750G-24TS-S1U an adaptable solution for dynamic networking environments.

Layer 4 Networking Capabilities

• Layer Supported: 4

Advanced Traffic Management with Layer 4

With support for Layer 4 networking, this switch delivers enhanced control over data flows, ensuring that critical applications, such as VoIP or streaming media, are prioritized for optimal performance.

Memory and Storage Capacity

• Standard Memory: 128 MB
• Memory Type: DRAM
• Flash Memory: 32 MB

Efficient Memory Management

The Cisco WS-C3750G-24TS-S1U is designed with 128 MB of DRAM for fast and responsive system performance. Additionally, 32 MB of flash memory allows for quick access to saved configurations and essential system files.

Reliability and Power Specifications

• MTBF (Mean Time Between Failures): 221,150 hours
• Input Voltage: 110-220 V AC
• Power Source: Internal Power Supply
• Redundant Power Supply Support: Yes

Power and Reliability for Long-Term Use

Boasting an impressive MTBF of 221,150 hours, the Cisco WS-C3750G-24TS-S1U is engineered for continuous operation. Its support for redundant power supplies enhances its reliability, ensuring minimal downtime in the event of a power failure.

Power Input Flexibility

• Voltage Range: 110 V AC, 220 V AC

Dual Voltage Input for Maximum Compatibility

This Ethernet switch is designed to work efficiently with both 110 V and 220 V AC power sources, providing flexibility across various environments and power setups.

Ports

The Cisco Catalyst 3750 Switch is equipped with 24 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports provide the necessary connectivity for connecting various devices such as computers, printers, IP phones, and servers.

Increased Connectivity

With 24 ports, the Cisco Catalyst 3750 Switch offers a significant increase in connectivity options compared to switches with fewer ports. This allows businesses to connect more devices to their network without the need for additional switches or complicated network configurations. Whether it's expanding your office space or accommodating a growing workforce, the 24 ports ensure that you have sufficient capacity to meet your connectivity needs.

Flexibility in Network Design

The abundance of ports on the Cisco Catalyst 3750 Switch allows for greater flexibility in network design. Businesses can easily create separate VLANs (Virtual Local Area Networks) for different departments or functions within their organization. This segmentation improves network performance by reducing broadcast traffic and enhancing security by isolating sensitive data.

Support for High-Bandwidth Applications

The 24 ports on the Cisco Catalyst 3750 Switch are capable of supporting high-bandwidth applications such as video conferencing, multimedia streaming, and data-intensive tasks. This is crucial for businesses that heavily rely on such applications to collaborate with remote teams, deliver training sessions, or provide real-time customer support. The switch ensures seamless and uninterrupted communication, enabling efficient workflow and enhancing productivity.

PoE Support

Certain models of the Cisco Catalyst 3750 Switch offer Power over Ethernet (PoE) support on some or all of the ports. PoE technology enables the switch to provide power to compatible devices such as IP phones, wireless access points, and surveillance cameras through the Ethernet cable. This eliminates the need for separate power sources, simplifies installation, and reduces costs. Additionally, PoE allows for centralized power management and troubleshooting, improving overall network efficiency.

Series

The Cisco Catalyst 3750 Switch belongs to the WS-C3750G series, which is renowned for its exceptional performance and reliability. This series is specifically designed for enterprise networks that demand high availability, scalability, and advanced security features.

Advanced Performance

The WS-C3750G series switches are equipped with powerful hardware and advanced software features that ensure superior performance. With a high-speed backplane, these switches can handle heavy network traffic and support demanding applications without compromising speed or efficiency. Whether it's transferring large files or running resource-intensive applications, users can rely on the WS-C3750G series to deliver exceptional performance consistently.

Scalability and Expandability

The WS-C3750G series switches offer scalability and expandability options to accommodate the evolving needs of growing businesses. These switches support stacking technology, allowing multiple switches to be interconnected and managed as a single entity. Stacking enhances scalability by increasing the number of available ports and enabling simplified management. Businesses can easily add more switches to their network as their requirements grow, without the hassle of complex configurations.

Advanced Security Features

Security is a top priority for any network infrastructure, and the WS-C3750G series addresses this concern with its advanced security features. These switches support features such as Access Control Lists (ACLs), Identity-Based Networking Services (IBNS), and port security to protect against unauthorized access and mitigate potential threats. With the WS-C3750G series, businesses can ensure the integrity and confidentiality of their data, preventing unauthorized access or data breaches.

Redundancy and High Availability

The WS-C3750G series switches incorporate redundant power supplies and hot-swappable fans to ensure high availability. Redundant power supplies provide backup power in case of a failure, minimizing downtime and ensuring uninterrupted operation. Hot-swappable fans allow for easy replacement without disrupting the functioning of the switch, further enhancing its reliability. These features are crucial for businesses that cannot afford network downtime, ensuring continuous connectivity and minimizing the risk of disruptions.

Model Number

The Cisco Catalyst 3750 Switch has a model number of 24TS-S1U, which signifies its specific configuration and form factor. This model is designed to meet the needs of businesses requiring a compact and space-saving network switch without compromising performance or functionality.

Compact Form Factor

The 24TS-S1U model is built with a compact form factor, making it ideal for environments with limited space. Its 1U (one rack unit) height allows for easy installation in standard server racks or cabinets, saving valuable space in data centers or equipment closets. The compact design of this model ensures efficient utilization of available space while providing all the necessary features and capabilities.

Ease of Installation

The compact size of the 24TS-S1U model enables easy installation in various environments. Its lightweight design simplifies the process of mounting the switch on racks or cabinets, reducing installation time and effort. The model also includes necessary mounting accessories and brackets to facilitate a hassle-free installation process. This makes it an optimal choice for businesses looking for a user-friendly switch that can be seamlessly integrated into their existing network infrastructure.

Energy Efficiency

The 24TS-S1U model incorporates energy-efficient components and features to minimize power consumption without compromising performance. These switches are designed to optimize power usage based on network traffic and demand, reducing energy costs and environmental impact. Additionally, the switch includes advanced power management features such as EnergyWise technology, which allows businesses to monitor and control power consumption across their network infrastructure.

Quiet Operation

The 24TS-S1U model is designed with quiet operation in mind, making it suitable for office environments or areas where noise reduction is essential. The switch includes noise-reducing features such as variable speed fans and optimized airflow design, ensuring quiet operation without compromising cooling efficiency. This allows businesses to deploy the switch in noise-sensitive areas without causing disturbances or discomfort to employees.

In conclusion, the Cisco Catalyst 3750 Switch offers 24 ports, belonging to the WS-C3750G series with the model number 24TS-S1U. The 24 ports provide increased connectivity, flexibility in network design, and support for high-bandwidth applications. The WS-C3750G series ensures advanced performance, scalability, and advanced security features. The 24TS-S1U model combines a compact form factor, ease of installation, energy efficiency, and quiet operation. Whether it's a small office or a growing enterprise, the Cisco Catalyst 3750 Switch with its various features and configurations is a reliable choice for building a robust and efficient network infrastructure.
