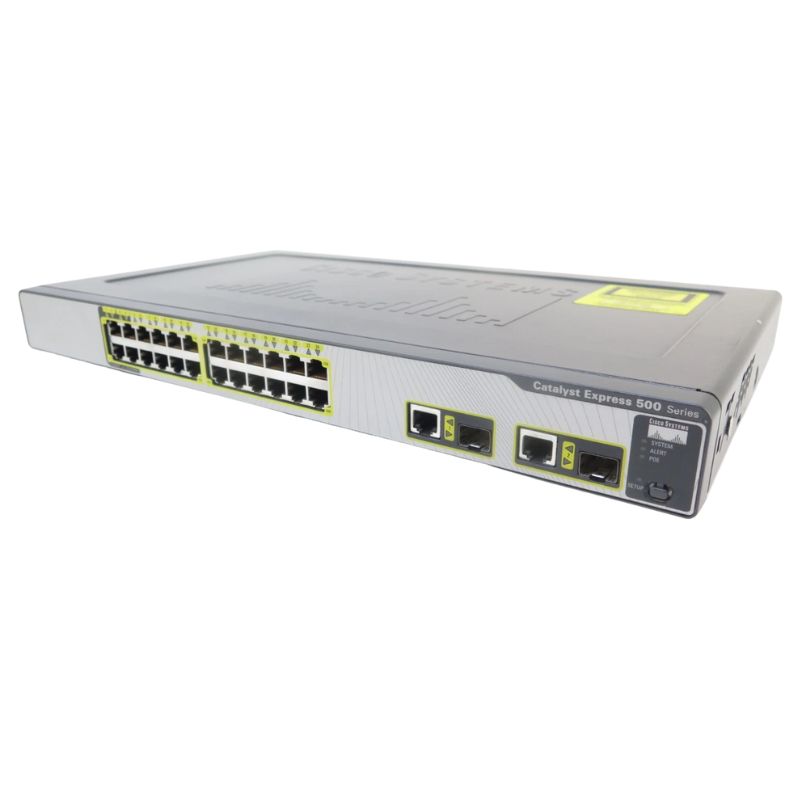

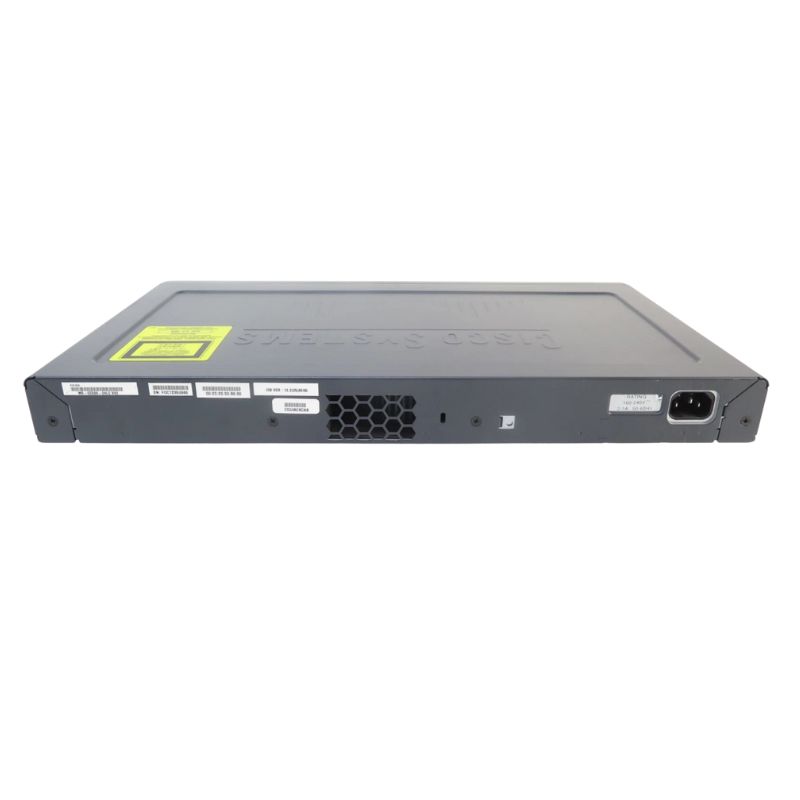

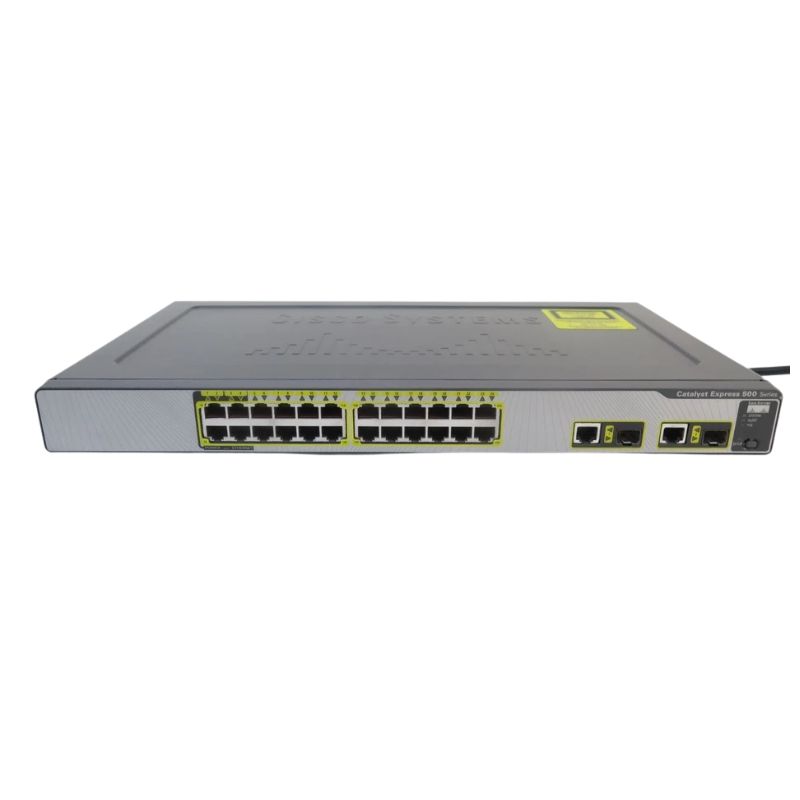

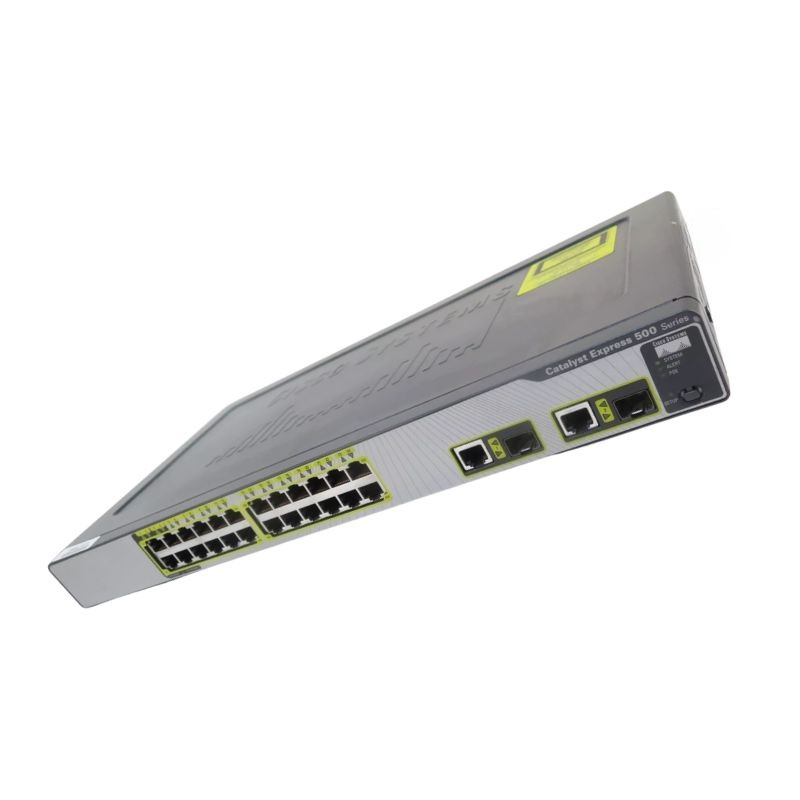

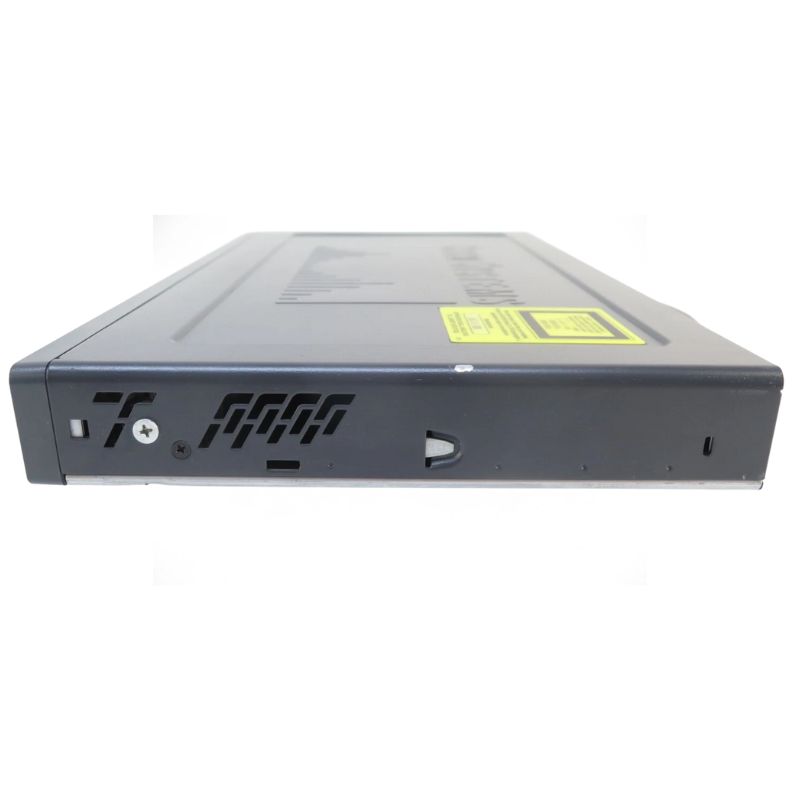

Cisco Catalyst WS-CE500-24PC Ethernet Switch (24 Ports)

General Overview of Cisco WS-CE500-24PC

• Manufacturer: Cisco
• Model Number: WS-CE500-24PC
• Series: Catalyst 500
• Type: Ethernet Switch

Interfaces and Ports

Network Ports

• Total Network Ports: 24
• PoE Ports: 24 (RJ-45)
• Uplink Ports: Yes

Expansion Slot Details

• Gigabit Ethernet Uplink Ports: 2
• Fast Ethernet Expansion Slots: 2

Technical Specifications

Connectivity

• Technology: Wired
• Encryption Algorithm: SSL

Supported Media

• Cable Type: Twisted Pair (Category 5 Standard)
• Ethernet Technology: Fast Ethernet
• Network Technology: 10/100/1000Base-T

Performance

• Switching Capacity: 8.8 Gbps
• Forwarding Rate: 6.6 Mpps at wire-speed

Expansion Capabilities

Total Expansion Slots

• Number of Expansion Slots: 2
• Expansion Slot Type: SFP
• SFP Slots: 2

Management and Protocols

Management Features

• Manageable: Yes
• Embedded Device Manager: Yes
• Management Tool: Cisco Network Assistant

Protocols

• Switching Protocol: Ethernet
• Routing Protocols: IGMP, IGMPv2, IGMPv3
• Remote Management Protocols: SNMPv3, SNMP, RMON

Power and Energy Consumption

Power Details

• Input Voltage: 110V AC / 220V AC
• Power Consumption (Operational): 90W
• Maximum Power Consumption: 460W (or 1570 BTU/hour)
• Power Supply: Internal

Environmental Specifications

Temperature Range

• Maximum Operating Temperature: 113°F
• Minimum Operating Temperature: 32°F

Layer and Network Support

Supported Layer

• Layer: 2

Additional Accessories

• Enclosure Type: Desktop
• Included Accessories: Power cord, Rack mounting brackets, screws, Cable guide, Mounting feet, Documentation

Ports

24 Gigabit Ethernet Ports

The Cisco Catalyst WS-CE500-24PC Ethernet Switch is equipped with 24 Gigabit Ethernet ports, making it an ideal choice for small to medium-sized businesses that require a high-performance network infrastructure. These 24 ports offer blazing-fast data transfer rates and are designed to handle heavy network traffic efficiently.

Increased Connectivity

The 24 Gigabit Ethernet ports on this Cisco Catalyst switch provide increased connectivity options for your network. With more ports available, you can easily connect multiple devices such as computers, printers, servers, and IP phones simultaneously. This ensures that your business can efficiently handle the growing demands of today's digital world.

Flexibility and Scalability

The 24 ports on the Cisco Catalyst WS-CE500-24PC switch offer flexibility and scalability, allowing you to expand your network as your business grows. You can easily add more devices or connect additional switches to these ports without experiencing any performance degradation. This flexibility ensures that your network can adapt to the changing needs of your organization without requiring significant infrastructure upgrades.

Power over Ethernet (PoE)

In addition to the 24 Gigabit Ethernet ports, the Cisco Catalyst WS-CE500-24PC switch also supports Power over Ethernet (PoE) technology on all of its ports. This feature eliminates the need for separate power cables for devices such as IP phones, wireless access points, and IP cameras. The switch can provide power to these devices through the Ethernet cables, simplifying installation and reducing clutter.

Simplified Installation

With PoE support on all 24 ports, the Cisco Catalyst WS-CE500-24PC switch simplifies the installation process for devices that require power. You no longer need to worry about locating power outlets near each device or dealing with tangled cables. This feature saves time and effort during the initial setup and future expansions of your network.

Cost Savings

By utilizing PoE technology, the Cisco Catalyst WS-CE500-24PC switch helps you save costs on additional power cables and outlets. This feature is particularly beneficial for businesses with multiple devices scattered throughout their premises, as it eliminates the need for extensive electrical wiring. Additionally, PoE allows for centralized power management, reducing energy consumption and lowering your electricity bills.

Enhanced Network Performance

The 24-port configuration of the Cisco Catalyst WS-CE500-24PC switch plays a vital role in enhancing your network's overall performance. Here are some key benefits:

Increased Bandwidth

With 24 Gigabit Ethernet ports, this switch provides a substantial amount of bandwidth to support data-intensive applications and large file transfers. The increased bandwidth helps eliminate network congestion and ensures smooth operation even during peak usage periods. Whether you are running bandwidth-hungry applications or transferring large files across your network, this switch can handle the load effortlessly.

Improved Network Speed

The Gigabit Ethernet ports on the Cisco Catalyst WS-CE500-24PC switch offer speeds of up to 1000 Mbps, enabling lightning-fast data transfer between devices connected to the network. Whether you are transferring files between computers, streaming high-definition media, or accessing cloud-based services, the switch's high-speed ports ensure minimal latency and an overall improved user experience.

Efficient Traffic Management

The Cisco Catalyst WS-CE500-24PC switch features advanced traffic management capabilities that optimize the flow of data across your network. With 24 ports, you can segment your network into logical groups, allowing you to prioritize certain types of traffic, such as voice or video, to ensure consistent performance. This feature is particularly beneficial for businesses that rely on real-time applications or remote collaboration tools.

Quality of Service (QoS)

The switch supports Quality of Service (QoS) features, which enable you to prioritize critical network traffic over less time-sensitive data. By implementing QoS policies, you can ensure that important applications receive the necessary bandwidth and latency requirements for optimal performance. This results in improved productivity and user satisfaction, especially for applications that require a consistent and reliable network connection.

VLAN Support

The Cisco Catalyst WS-CE500-24PC switch also offers VLAN support, allowing you to create virtual LANs within your network. VLANs provide a means of segmenting your network into smaller, isolated groups, which enhances security and improves network performance. With 24 ports available, you can create multiple VLANs to isolate different departments or guest networks, ensuring secure communication and preventing unauthorized access to sensitive data.

Link Aggregation

Link aggregation, also known as port trunking or bonding, is another valuable feature supported by the Cisco Catalyst WS-CE500-24PC switch. It allows you to combine multiple physical ports into a single logical link, increasing bandwidth and providing redundancy. By aggregating ports, you can achieve higher data transfer rates and ensure uninterrupted connectivity even if one of the physical links fails.

In conclusion, the Cisco Catalyst WS-CE500-24PC Ethernet Switch with its 24 Gigabit Ethernet ports offers significant benefits and importance for users. The increased connectivity options, flexibility, and scalability allow businesses to easily expand their networks as needed. The Power over Ethernet (PoE) support simplifies installation and reduces costs, while the advanced traffic management capabilities and QoS features ensure efficient network performance. With VLAN support and link aggregation, you can enhance security, improve network segmentation, and achieve higher data transfer rates. Overall, the 24-port configuration of this switch provides users with a reliable, high-performance network infrastructure that can meet the demands of today's digital world.
