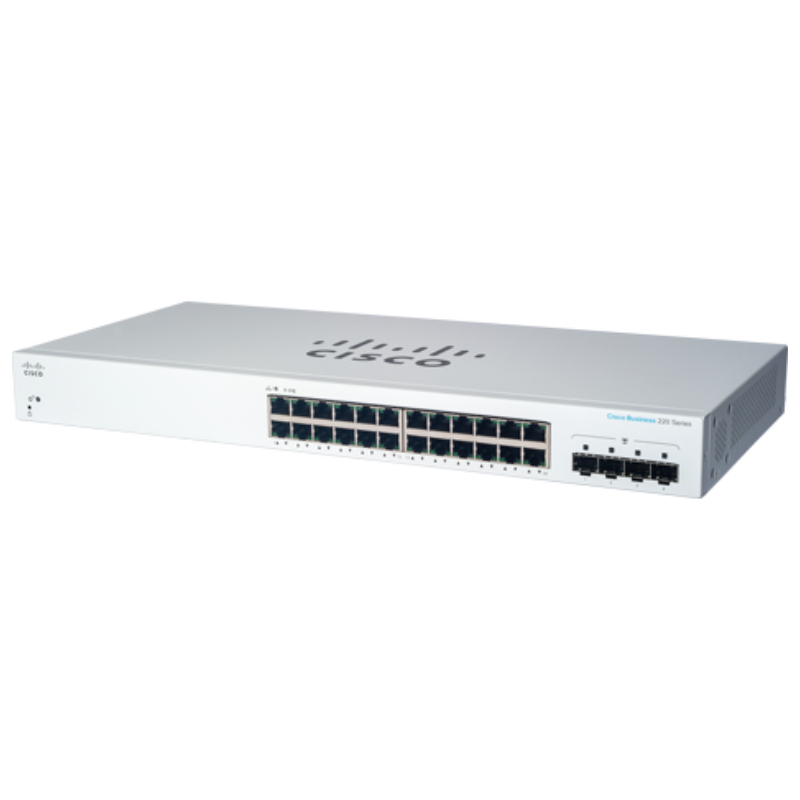

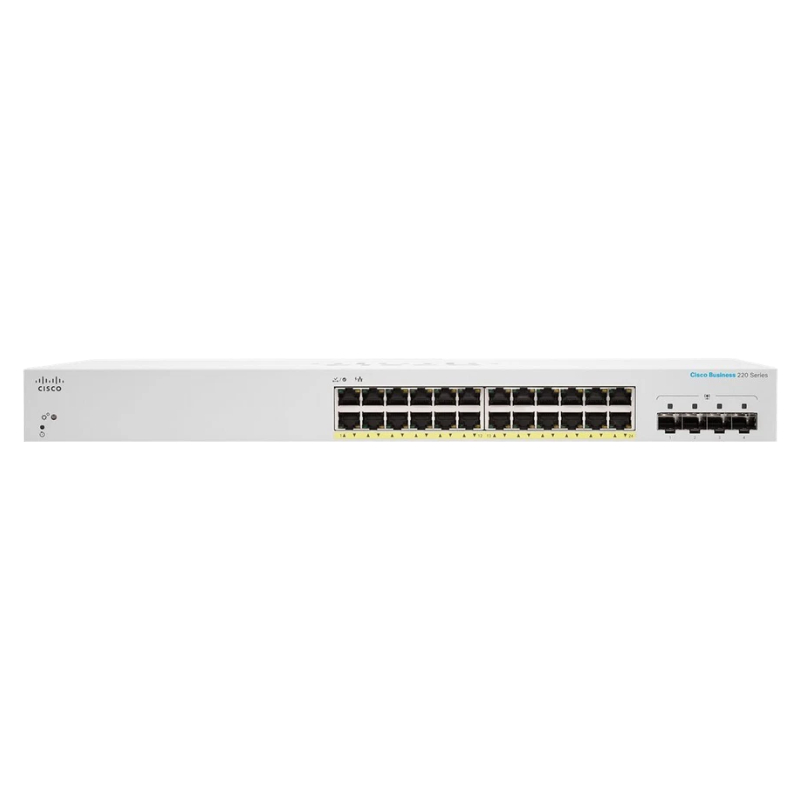

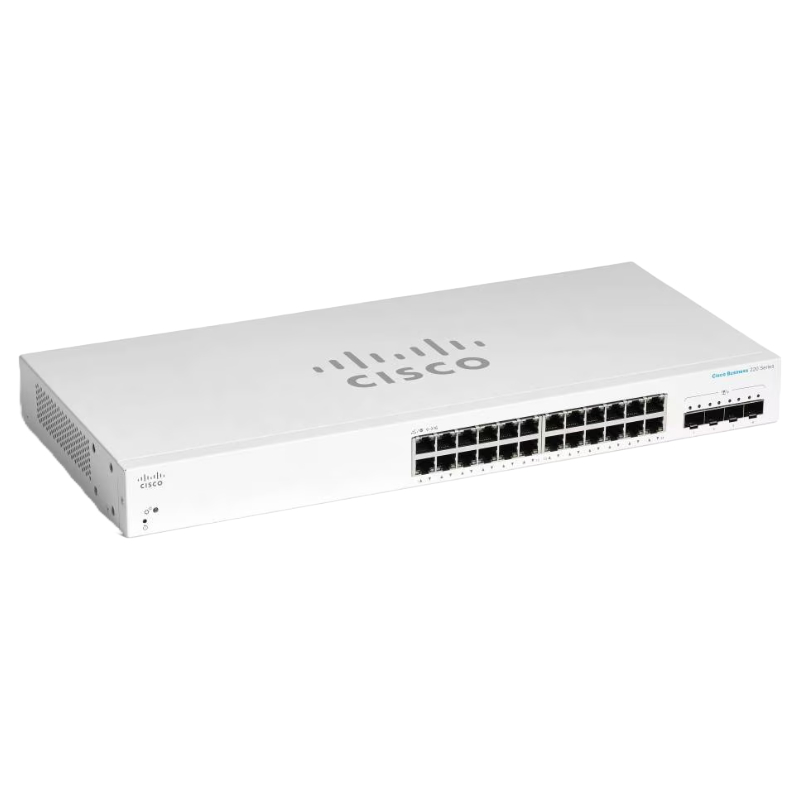

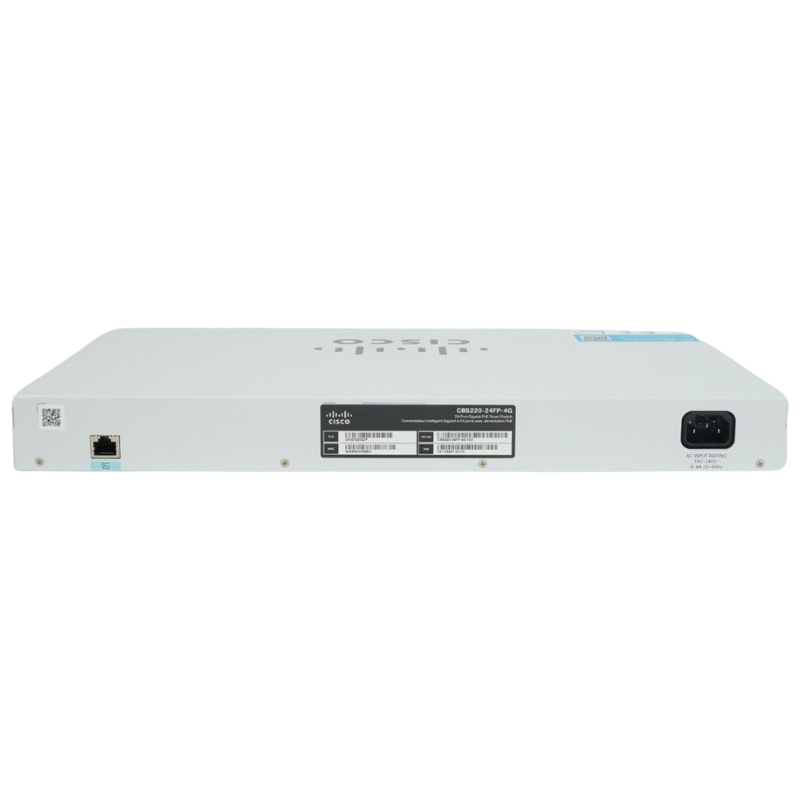

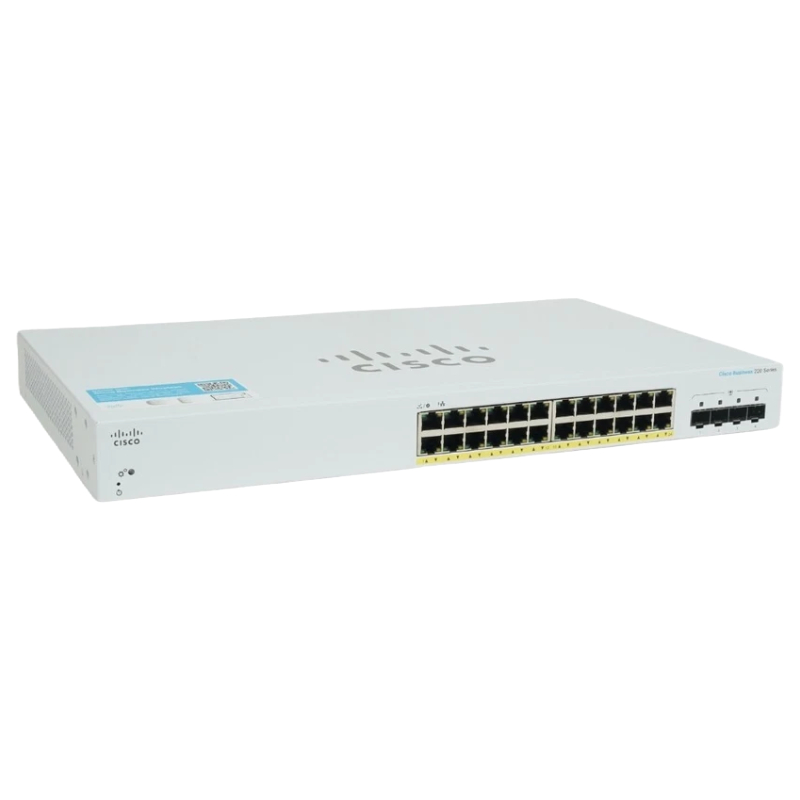

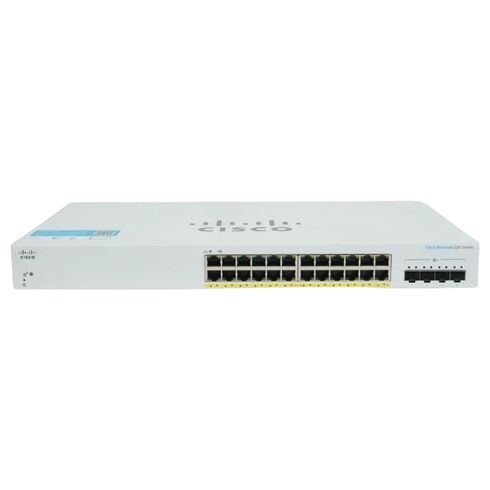

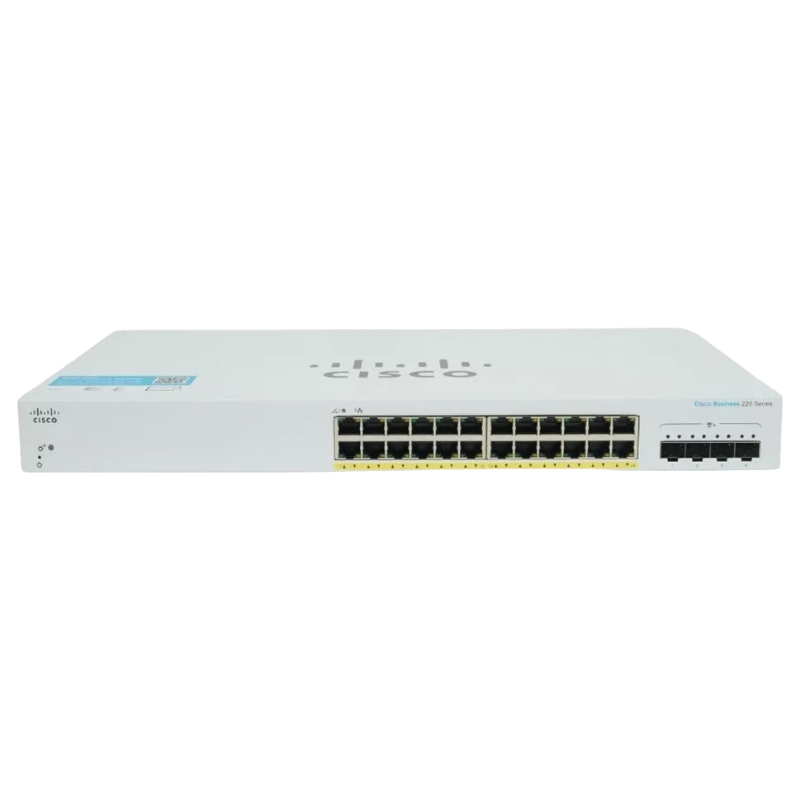

Cisco CBS220-24FP-4G Business 220 Series Ethernet Switch Managed 24 Ports

Overview of the Cisco CBS220-24FP-4G Managed Switch

• Manufacturer: Cisco
• Model Number: CBS220-24FP-4G
• Series: 220
• Type: Managed Switch

Specifications for the 24-Port Switch

• Total Ports: 24 Gigabit Ethernet (PoE+), 4 Gigabit SFP (Uplink)
• Enclosure Type: Rack-mountable
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 382 W
• Forwarding Performance: 41.66 Mpps (64-byte packet size)

Performance Metrics

• Switching Capacity: 56 Gbps
• MSTP Instances Supported: 16
• VLAN Support: 256 VLANs
• ACL Rules: 512
• Buffer Capacity: 4.1 MB
• MAC Address Table Size: 8192 entries
• Jumbo Frame Support: 9216 Bytes

Supported Protocols

• IGMPv2, IGMPv3, MLDv2, MLD
• MSTP, RSTP, STP
• Routing Protocols: IGMP, IGMPv3, MLDv2, MLD

Remote Management

• Supported Protocols: SNMP v1, SNMP v2c, SNMP v3
• Management Interfaces: Telnet, HTTP, HTTPS, SSH, SSH-2, CLI, SCP
• Additional Support: RMON, ICMP, DHCP, TACACS+, RADIUS

Port Configuration

• Network Ports: 24 x Gigabit Ethernet PoE
• Expansion Slots: 4 x Gigabit Ethernet SFP

Media and Performance

• Media Types: Optical Fiber, Twisted Pair
• Ethernet Technology: Gigabit Ethernet (10/100/1000Base-T, 1000Base-X)

Management Capabilities

• Manageable: Yes
• Layer Supported: Layer 2

Key Features

• VLAN Management and Support
• IGMP Snooping
• Port Mirroring and MAC Address Filtering
• Broadcast and Multicast Storm Control
• Quality of Service (QoS) and DiffServ Support
• Port Security and DHCP Client
• Energy Efficient Ethernet and Cable Diagnostics
• Layer 2 Loop Guard and Head-of-Line Blocking Prevention
• Automatic Media-Dependent Interface Crossover (MDIX)

Compliance and Standards

• IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q
• IEEE 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad (LACP)
• IEEE 802.1w, 802.1x, 802.1s, 802.1ab (LLDP)
• IEEE 802.3at, 802.3az

Package Contents

• Cisco CBS220-24FP-4G Ethernet Switch
• Power Cord
• Mounting Kit
• Quick Start Guide

Environmental Impact

• Environmentally Friendly: Yes
• Certification: WEEE

Managed

The Cisco CBS220-24FP-4G Ethernet Switch is a powerful networking device that comes with the added benefit of being managed. This feature offers users a wide range of advantages, making it an essential component for any business or organization.

Enhanced Control and Configuration

One of the key benefits of the managed feature in the Cisco CBS220-24FP-4G Ethernet Switch is the enhanced control and configuration options it provides. With a managed switch, users can customize and fine-tune network settings to meet their specific requirements. This includes features such as VLANs (Virtual Local Area Networks), Quality of Service (QoS) settings, and port mirroring. By having complete control over these settings, users can optimize their network performance and ensure that critical applications receive the necessary bandwidth.

Efficient Network Traffic Management

Another advantage of the managed feature is its ability to efficiently manage network traffic. With a managed switch like the Cisco CBS220-24FP-4G, users can prioritize network traffic based on their needs. This means that mission-critical applications, such as VoIP (Voice over Internet Protocol) or video conferencing, can be given priority over less important traffic. By effectively managing network traffic, businesses can ensure a smooth and uninterrupted flow of data, leading to increased productivity and customer satisfaction.

Improved Security

Managed switches also offer improved security features compared to unmanaged switches. With a managed switch like the Cisco CBS220-24FP-4G, users can implement advanced security measures such as access control lists (ACLs), which allow them to control which devices have access to specific parts of the network. Additionally, features like port security and MAC address filtering help prevent unauthorized access to the network. These security measures are essential for protecting sensitive data and preventing unauthorized users from compromising the network.

Network Monitoring and Troubleshooting

The managed feature of the Cisco CBS220-24FP-4G Ethernet Switch also includes network monitoring and troubleshooting capabilities. With the help of tools like SNMP (Simple Network Management Protocol) and Syslog, users can monitor the performance of their network in real time. This allows for proactive troubleshooting and identification of potential issues before they impact the network's efficiency. Additionally, logs and statistics provided by managed switches help network administrators analyze network behavior, identify patterns, and make informed decisions to improve overall network performance.

Scalability and Flexibility

Managed switches like the Cisco CBS220-24FP-4G offer scalability and flexibility that are crucial for growing businesses. These switches typically support features like link aggregation, which allows multiple ports to be combined for increased bandwidth and redundancy. This ensures that the network can easily handle increased traffic as the business expands. Additionally, managed switches support firmware upgrades, enabling users to take advantage of new features and technologies as they become available.

Number Of Ports

The Cisco CBS220-24FP-4G Ethernet Switch is equipped with 24 ports, making it a highly versatile networking device suitable for businesses of all sizes. The number of ports is a critical feature that directly impacts the connectivity options and scalability of the network.

Increased Connectivity

With 24 ports, the Cisco CBS220-24FP-4G offers increased connectivity options for connecting various devices to the network. This is especially important in business environments where numerous computers, servers, printers, and other network-enabled devices need to be connected simultaneously. The abundance of ports ensures that each device can have its dedicated connection, eliminating bottlenecks and ensuring smooth data transmission.

Support for Multiple VLANs

The high number of ports in the Cisco CBS220-24FP-4G also allows for the creation of multiple VLANs. VLANs are virtual networks that segregate traffic based on logical groupings, providing increased security and network segmentation. With 24 ports, users can create multiple VLANs to separate different departments or groups within the organization. This enhances security and improves network performance by reducing unnecessary broadcast traffic.

Scalability and Future-Proofing

Having 24 ports in the Cisco CBS220-24FP-4G ensures that the switch can accommodate future growth and expansion. As businesses evolve, their networking requirements also increase. With enough ports, the switch can easily handle additional devices and users without the need for additional hardware investments. This scalability allows businesses to future-proof their network infrastructure and save costs in the long run.

Redundancy and High Availability

The number of ports in the Cisco CBS220-24FP-4G also enables the implementation of redundancy and high availability measures. By utilizing link aggregation and port redundancy protocols such as Spanning Tree Protocol (STP) or Rapid Spanning Tree Protocol (RSTP), users can create redundant links between switches, ensuring uninterrupted network connectivity even in the event of a port or link failure. This redundancy is crucial for businesses that rely heavily on their network for critical operations.

In conclusion, the managed feature of the Cisco CBS220-24FP-4G Ethernet Switch provides users with enhanced control, efficient traffic management, improved security, network monitoring capabilities, scalability, and flexibility. With 24 ports, this switch offers increased connectivity options, support for multiple VLANs, scalability for future growth, and redundancy for high availability. These features make the Cisco CBS220-24FP-4G an ideal choice for businesses seeking a reliable and versatile networking solution.
