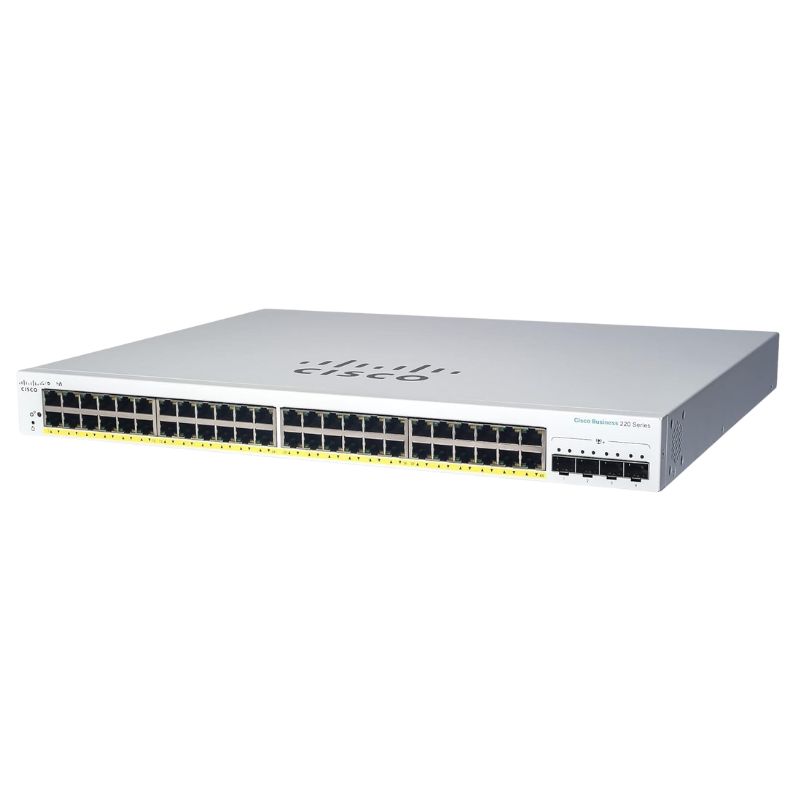

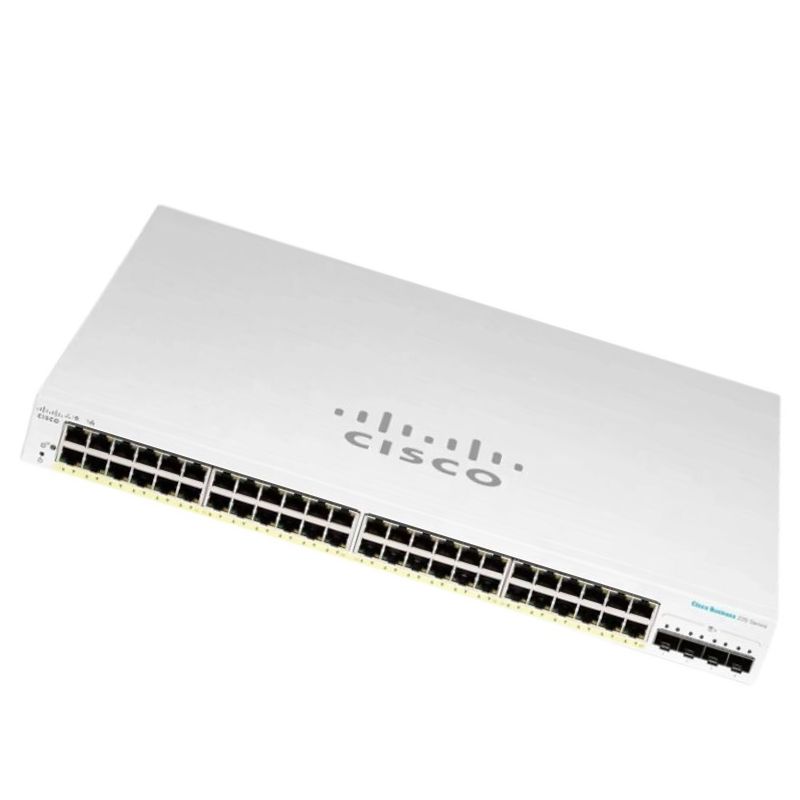

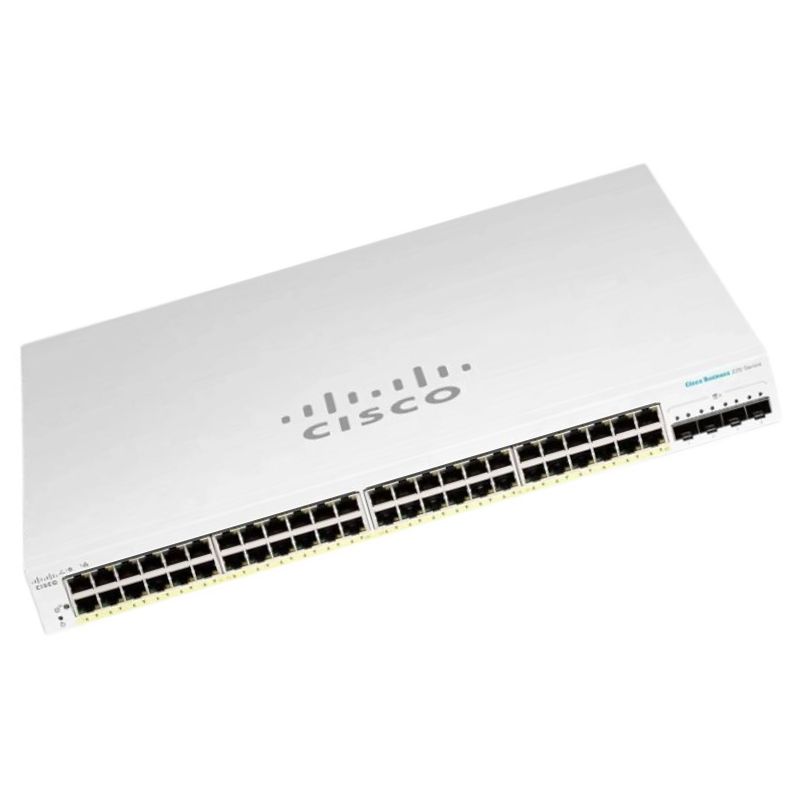

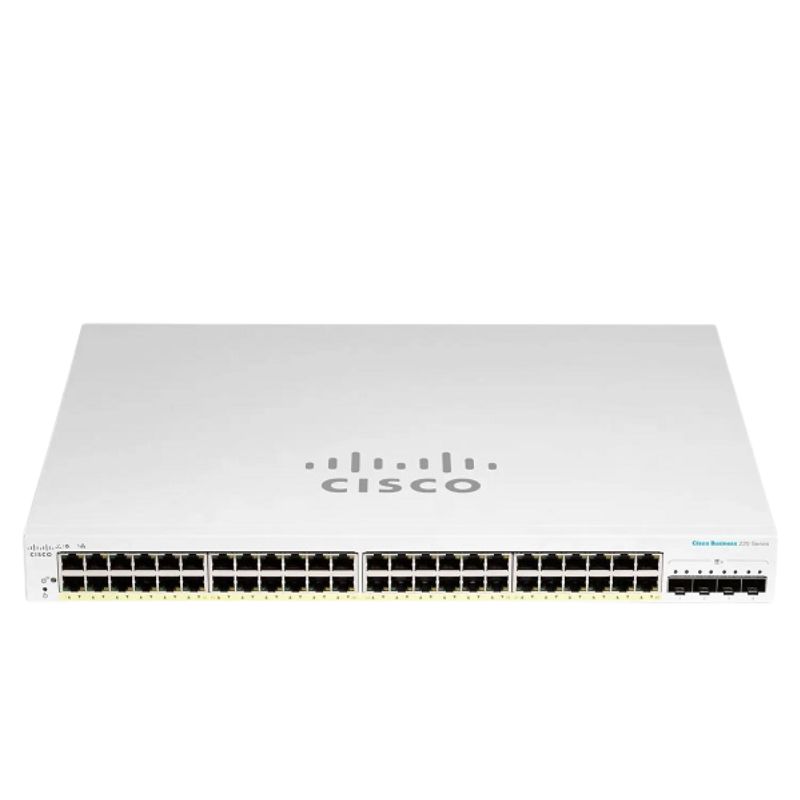

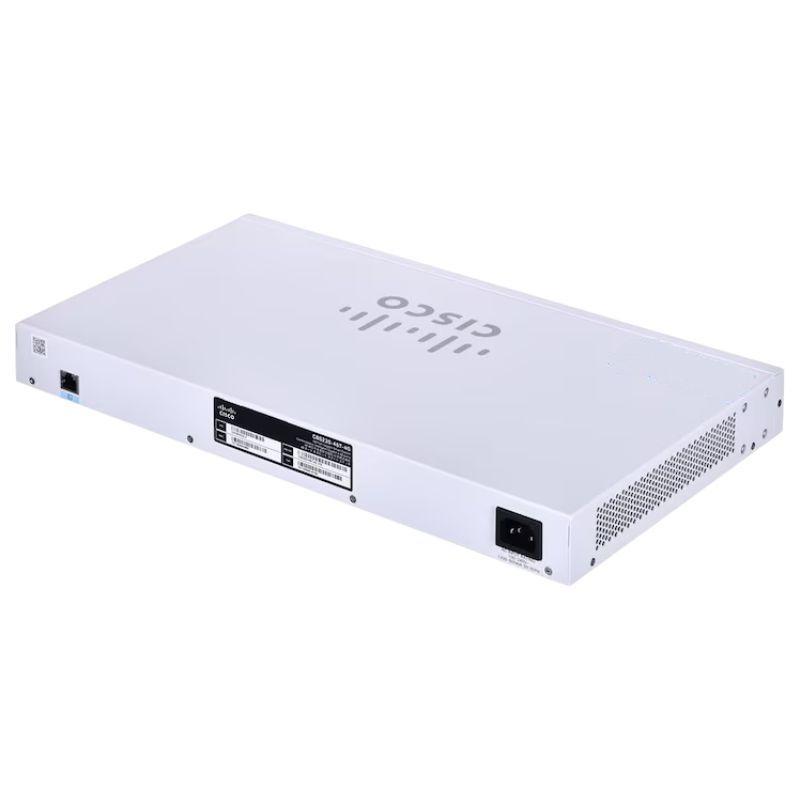

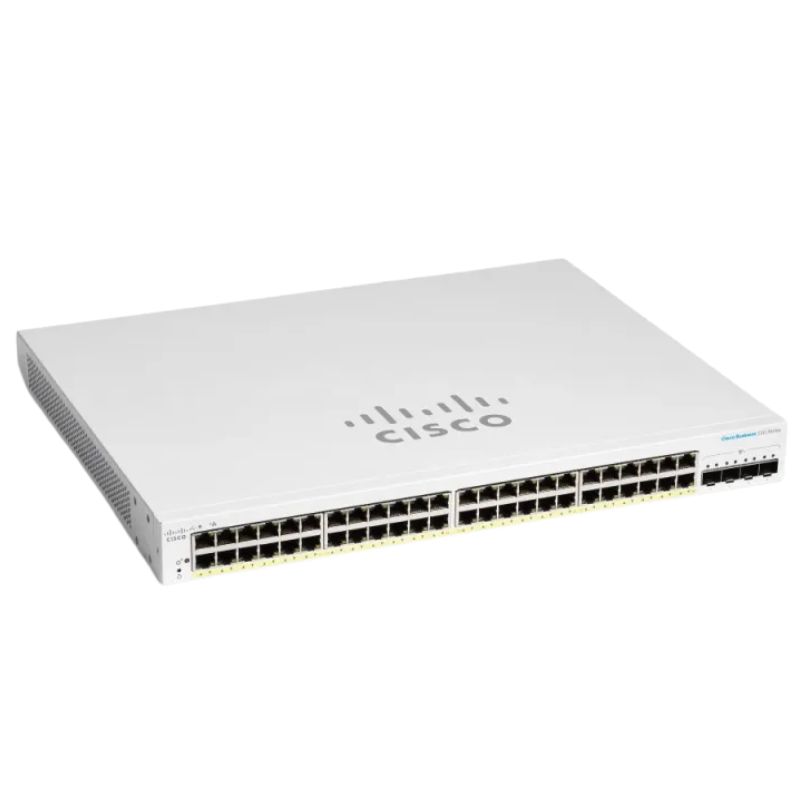

Cisco CBS220-48T-4X 48-Port Managed Switch

Cisco CBS220-48T-4X Managed Switch Overview

• Manufacturer: Cisco
• Part Number: CBS220-48T-4X
• Type: 48-Port Managed Switch

Port Configuration

• Ports: 48 x 10/100/1000 Mbps + 4 x 10 Gigabit SFP+
• Forwarding Rate: 130.94 Mpps (64-byte packets)
• Switching Capacity: 176 Gbps
• Jumbo Frame Support: Up to 9216 Bytes

Capacity and Performance

• MAC Address Table Size: 8192 entries
• Buffer Capacity: 16 MB
• VLANs Supported: 256
• STP Instances: 16
• ACL Rules: 512

Routing and Management

• Supported Protocols: IGMPv2, IGMPv3, MLDv2, MSTP, RSTP, STP
• Management Protocols: SNMP (v1, v2c, v3), Telnet, SSH, HTTP, HTTPS, TFTP, RMON, CLI
• Encryption: SSL
• Authentication: SSH, TACACS, RADIUS

Advanced Features

• BootP Support
• VLAN Configuration and Management
• IGMP Snooping
• Syslog Support
• DoS Attack Prevention
• Port Mirroring
• Diffserv and DSCP Support
• MAC Address Filtering
• Broadcast and Multicast Storm Control
• Access Control Lists (ACL)
• Quality of Service (QoS)
• Cable Diagnostics
• LACP and LLDP Support
• Port Security
• DHCP Client
• Energy Efficient Ethernet
• Dual Firmware Images
• Neighbor Discovery Protocol (NDP)
• Generic VLAN Registration Protocol (GRP)
• 802.1X Authentication
• Type of Service (TOS)
• One Fan
• Guest VLAN Support
• UDP Support
• STP Loop Guard
• Weighted Round Robin (WRR)
• Head-of-Line (HOL) Blocking Prevention
• Loopback Detection
• Telnet Server
• Unknown Storm Control
• BPDU Guard
• CISCO Discovery Protocol (CDP)
• Duplicate Address Detection (DAD)
• TCP Support
• Auto Voice VLAN
• Automatic Media-dependent Interface Crossover (MDI-X)

Compliance and Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1d
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s
• IEEE 802.1ab (LLDP)
• IEEE 802.3az

Memory and Indicators

• RAM: 256 MB
• Flash Memory: 64 MB
• Status Indicators: System, Link/Activity/Speed

Power Specifications

• Power Supply: Internal
• Voltage Required: AC 100-240V (50/60 Hz)
• Power Consumption: 41.2 Watts

Connectivity

• Interfaces:
• 48 x 10/100/1000 Base-T RJ-45
• 4 x 10GBASE-X SFP+ Uplinks

Ports

The Cisco CBS220-48T-4X Managed Switch is equipped with a remarkable 48 ports, making it an ideal choice for businesses of all sizes. These ports enable seamless connectivity between various devices, ensuring efficient data transfer and communication within your network infrastructure.

Increased Flexibility and Scalability

With 48 ports at your disposal, you can effortlessly connect multiple devices, such as computers, servers, printers, and IP phones, to the Cisco CBS220-48T-4X Managed Switch. This level of flexibility allows you to expand your network infrastructure as your business grows without the need for additional switches or complex configurations. Whether you are a small startup or a large enterprise, this switch offers the scalability required to meet your evolving network demands.

Enhanced Network Performance

The abundance of ports on the Cisco CBS220-48T-4X Managed Switch ensures that each connected device can communicate seamlessly with others. This eliminates bottlenecks and reduces network congestion, leading to enhanced overall network performance. You can enjoy smooth data transfers, rapid file sharing, and seamless video conferencing without experiencing lag or interruptions. The 48 ports enable simultaneous high-speed data transmission across your network, ensuring that your business operations run efficiently and without any hiccups.

Improved Productivity and Collaboration

In today's fast-paced business environment, collaboration is crucial for success. The Cisco CBS220-48T-4X Managed Switch's 48 ports facilitate teamwork and productivity by enabling multiple users to connect their devices simultaneously. Employees can share files, collaborate on projects, and access shared resources effortlessly. With a larger number of available ports, the switch encourages seamless communication and collaboration among team members, boosting overall productivity within your organization.

Simplified Network Management

Managing a network can be a complex task, especially when dealing with numerous devices and connections. The Cisco CBS220-48T-4X Managed Switch simplifies network management by consolidating multiple connections into a single device. With 48 ports, you can reduce the number of switches required in your network infrastructure, streamlining the management process. This not only saves time but also reduces the chances of errors or misconfigurations that can occur when dealing with multiple switches.

Cost-Effective Solution

Investing in a switch with 48 ports, such as the Cisco CBS220-48T-4X, offers a cost-effective solution for businesses. By providing a higher number of ports in a single device, you can reduce the overall cost of purchasing additional switches. Additionally, the consolidation of connections and simplified management lead to lower maintenance and operational costs. The switch's longevity and scalability further contribute to its cost-effectiveness, as it can cater to your expanding network needs without requiring frequent upgrades or replacements.

Future-Proofing Your Network

As technology advances and networks become more complex, future-proofing your network infrastructure is essential. The Cisco CBS220-48T-4X Managed Switch with its 48 ports ensures that your network can accommodate future growth and changing requirements. By investing in a switch with a generous number of ports now, you can avoid the need for costly upgrades or overhauls later on. This level of scalability allows you to stay ahead of technological advancements and ensures that your network can support emerging technologies without any limitations.

In conclusion, the Cisco CBS220-48T-4X Managed Switch's 48 ports offer numerous benefits for users. They provide increased flexibility and scalability, enhanced network performance, improved productivity and collaboration, simplified network management, cost-effectiveness, and future-proofing capabilities. Whether you are a small business or an enterprise-level organization, this switch empowers you to build a robust and efficient network infrastructure that can meet your current and future needs.
