CBS220-8FP-E-2G Cisco 8-Port Managed Network Gigabit PoE Switch

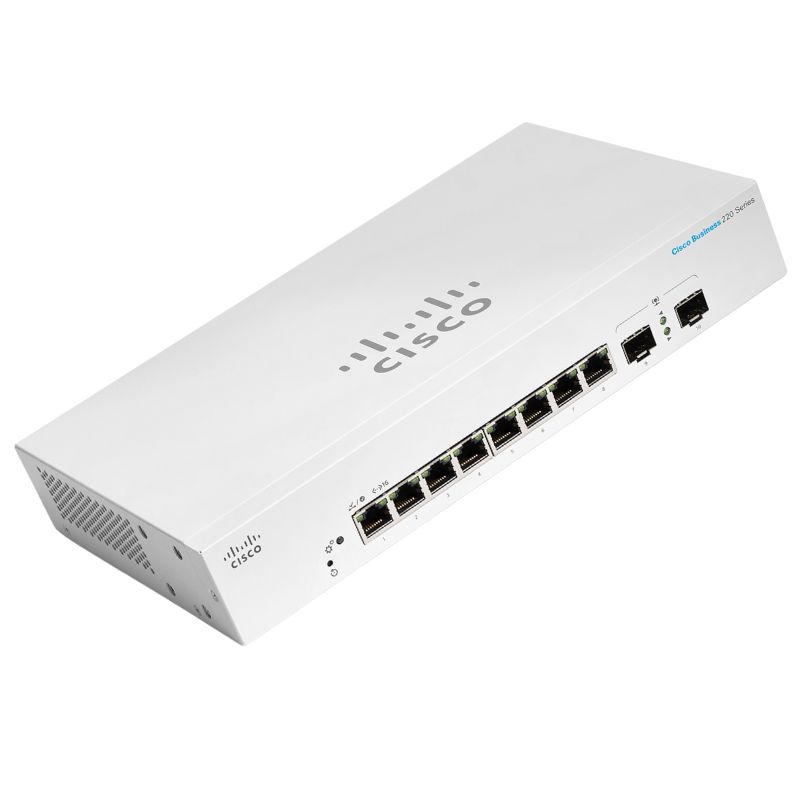

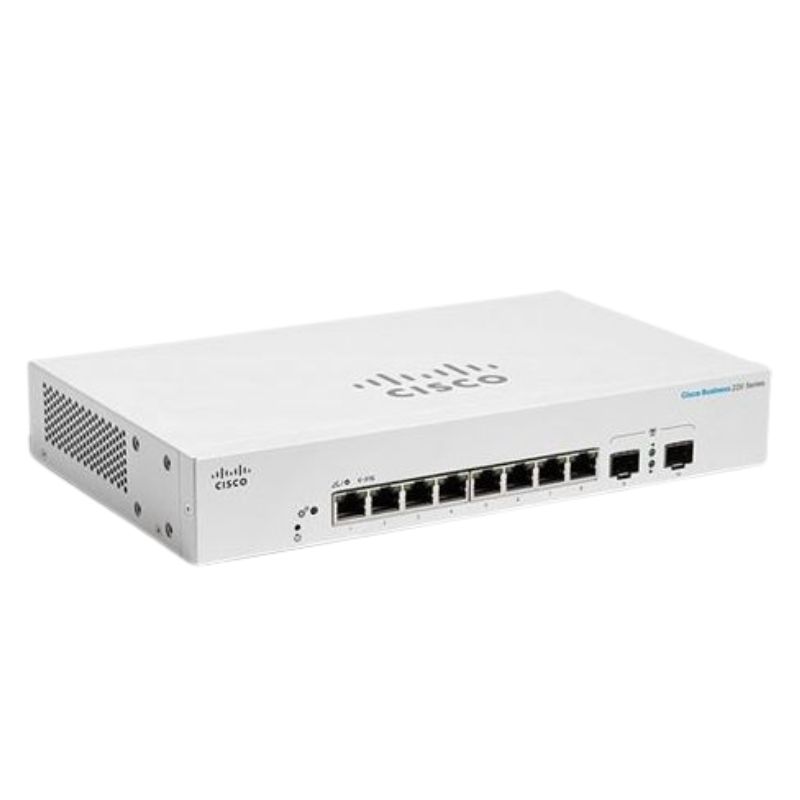

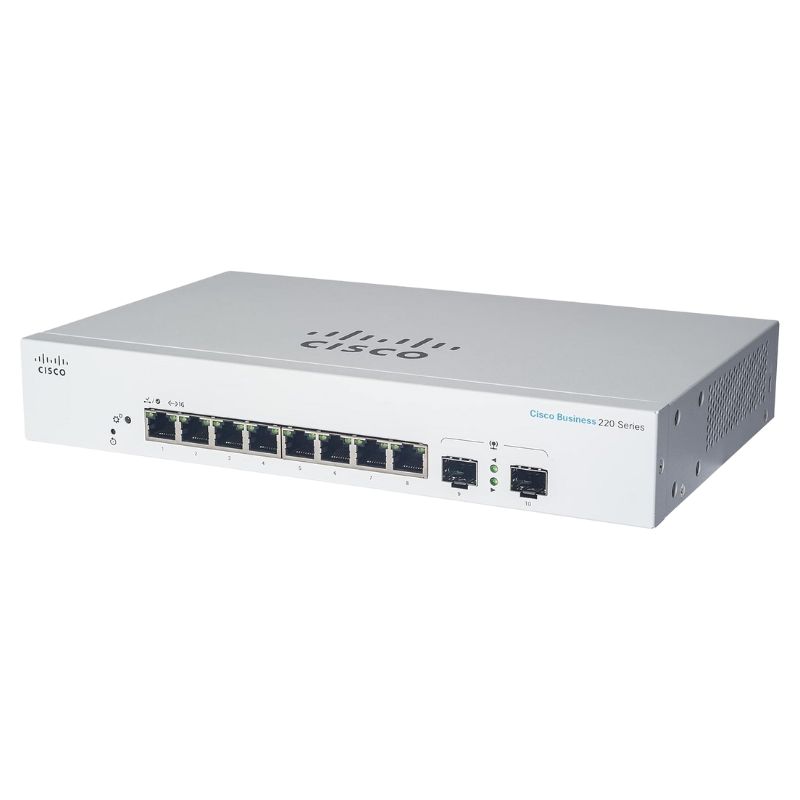

Cisco CBS220-8FP-E-2G Managed Switch

The Cisco CBS220-8FP-E-2G is an advanced 8-port Gigabit PoE managed switch, designed to deliver high-performance networking solutions for small to medium-sized enterprises. This rack-mountable switch combines reliability, energy efficiency, and robust management capabilities to ensure optimal network performance and simplified operations.

General Information

• Manufacturer: Cisco
• Model Number: CBS220-8FP-E-2G
• Device Type: Managed Ethernet Switch

Ethernet Connectivity

• 8 x 10/100/1000 Mbps PoE+ ports for powering devices over Ethernet
• 2 x Gigabit SFP uplink ports for flexible network expansion
• Supports IEEE 802.3ab, 802.3u, 802.3z standards

Power over Ethernet (PoE) Features

• PoE+ support delivering up to 30W per port
• Total PoE budget of 130W for powering multiple devices
• Energy-efficient Ethernet design for reduced power consumption

Performance and Switching Capacity

• Forwarding performance of 14.88 Mpps (64-byte packets)
• Switching capacity: 20 Gbps
• Supports jumbo frames up to 9216 bytes for large data transmission

Network Capabilities

• MSTP (Multiple Spanning Tree Protocol) instances: 16
• Supports up to 256 VLANs for segmenting network traffic
• MAC address table with 8192 entries
• ACL rules: 512
• Advanced multicast support including IGMPv2, IGMPv3, MLDv2

Routing and Switching Protocols

• Spanning Tree Protocols: MSTP, RSTP, STP
• Link Aggregation Control Protocol (LACP) for increased bandwidth
• Quality of Service (QoS) for prioritizing critical network traffic
• Support for VLAN management and IGMP snooping

Remote Management Options

• SNMP versions 1, 2c, 3
• RMON monitoring, Telnet, HTTP/HTTPS access
• Secure protocols including SSH, SCP, and SSL encryption
• CLI support for advanced network configuration

Authentication and Access Control

• RADIUS and TACACS+ support for centralized authentication
• 802.1X authentication for secure network access
• Port security with MAC address filtering and unknown storm control

Standards Compliance and Memory

• Compliant with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.1D, 802.1Q, 802.1w, 802.1S, 802.1X, 802.3af/at, 802.3x, 802.3ad, 802.3az
• RAM: 256 MB
• Flash memory: 64 MB for firmware and configuration storage

Indicators and Interfaces

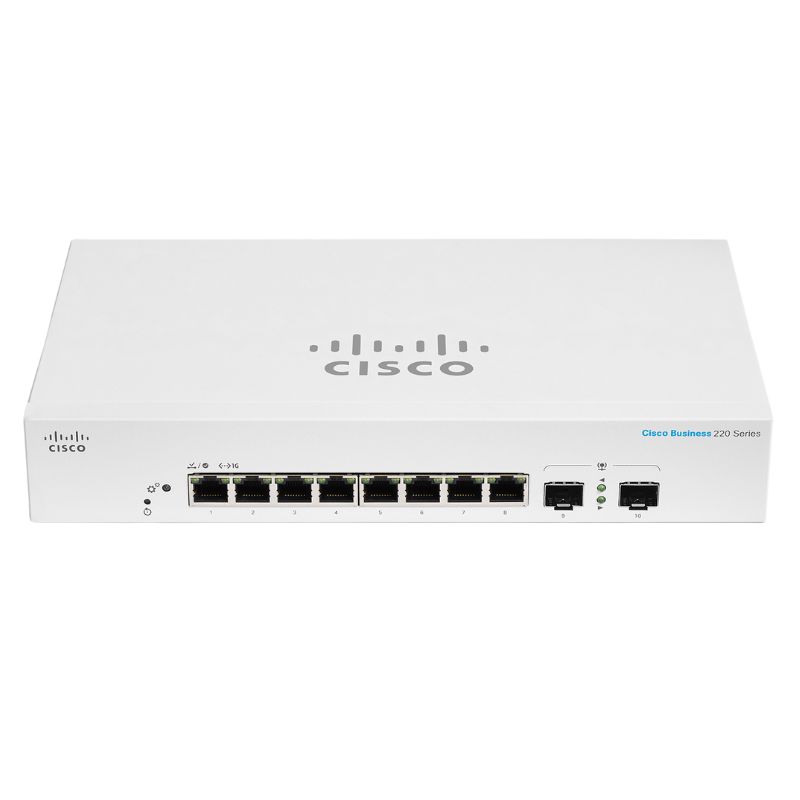

• Status indicators: system, link/activity, and speed lights
• 8 x 10/100/1000 Base-T RJ-45 PoE+ ports (30W each)
• 2 x 1000Base-X SFP uplink ports

Power Requirements

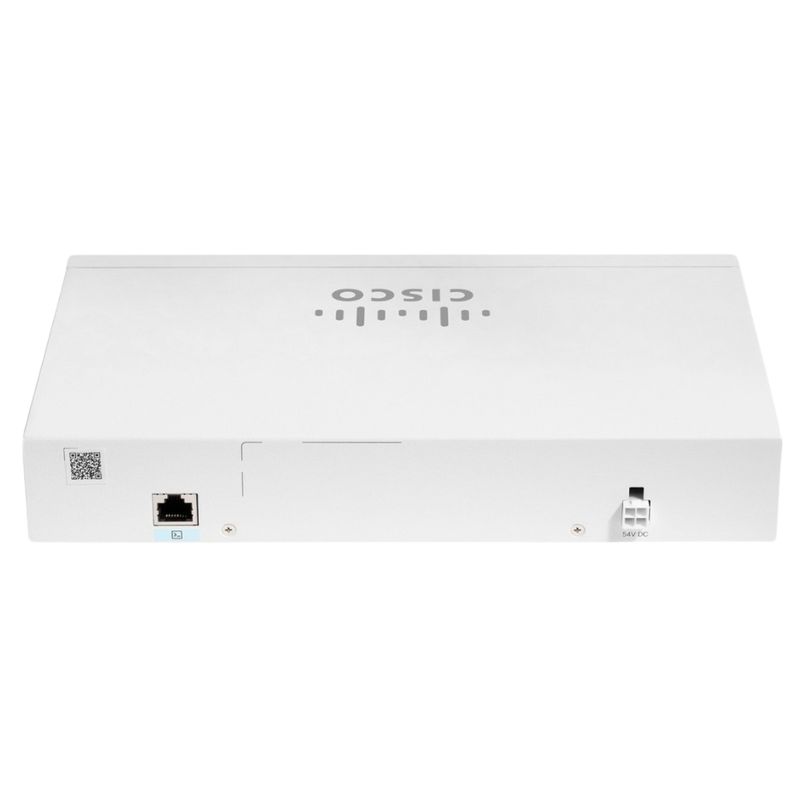

• External power adapter
• Voltage: AC 100-240V, 50/60 Hz
• Total power consumption: 151.4 Watts

Enhanced Traffic Management

• Weighted Round Robin (WRR) scheduling and HOL blocking prevention
• DiffServ QoS support for prioritizing latency-sensitive applications
• Cable diagnostics for easy troubleshooting

Security and Reliability Enhancements

• Denial-of-Service (DoS) attack mitigation
• Port mirroring for traffic analysis
• Loop prevention and unknown unicast storm control

Energy Efficiency and Sustainability

• Energy Efficient Ethernet (EEE) compliant
• Fanless, low-power design for quiet operation and reduced energy costs

Cisco CBS220-8FP-E-2G Ethernet Switch

The Cisco CBS220-8FP-E-2G is an advanced 8-port Gigabit PoE managed switch designed for small to medium-sized businesses that require high-performance networking with energy-efficient capabilities. As part of Cisco’s CBS220 series, this rack-mountable switch provides seamless connectivity, reliable Power over Ethernet support, and robust management features that enhance network performance and simplify administration.

Key Technical Features of CBS220-8FP-E-2G

This switch offers 8 Gigabit Ethernet ports with full PoE support, allowing devices such as IP phones, wireless access points, and security cameras to be powered directly through the network cable. The dual Gigabit uplink ports provide flexible network expansion options, ensuring smooth integration with existing network infrastructure. With its managed capabilities, the CBS220-8FP-E-2G enables network administrators to configure VLANs, apply QoS policies, and monitor traffic efficiently, providing optimal network performance and security.

Advanced Network Management

The CBS220-8FP-E-2G comes with Cisco’s intuitive web-based management interface, offering a simple yet powerful platform to manage the switch. Administrators can leverage features such as centralized device monitoring, traffic analysis, and network diagnostics to maintain high availability and reliability. In addition, the switch supports CLI and SNMP protocols for more advanced configurations, making it suitable for businesses with technical IT teams seeking detailed network control.

VLAN and Traffic Segmentation

VLAN support on the CBS220-8FP-E-2G enables network segmentation to improve security and manage bandwidth effectively. Businesses can create multiple virtual networks to separate traffic for different departments, ensuring sensitive data remains isolated. Traffic prioritization through QoS features ensures mission-critical applications, such as video conferencing and VoIP, receive the necessary bandwidth, reducing latency and enhancing user experience.

Power over Ethernet Capabilities

The CBS220-8FP-E-2G provides up to 60W of total PoE power across its ports, making it ideal for powering multiple devices simultaneously. Its intelligent power allocation ensures that critical devices receive sufficient power while maintaining energy efficiency. By integrating PoE support, businesses can reduce the need for additional power outlets and simplify device deployment, especially in offices with limited electrical infrastructure.

Reliability and Energy Efficiency

Reliability is a core advantage of the CBS220-8FP-E-2G, featuring advanced Cisco software for consistent performance and minimal downtime. The switch is engineered for continuous operation in demanding environments, and its energy-efficient design reduces operational costs by optimizing power usage. Intelligent fan control and low-power modes further contribute to a quieter and greener network environment.

Seamless Integration with Cisco Ecosystem

Being part of the Cisco CBS220 series, this switch integrates smoothly with other Cisco network devices. Compatibility with Cisco Meraki and Cisco Business management tools allows businesses to unify their networking hardware under a single monitoring and management platform. This integration ensures simplified configuration, centralized control, and enhanced network visibility, streamlining IT operations and reducing maintenance overhead.

Security Features

Network security is a priority with the CBS220-8FP-E-2G, offering comprehensive features to safeguard critical business data. Access control lists, port security, and MAC-based authentication prevent unauthorized access to the network. Additionally, advanced security protocols help protect against network attacks and vulnerabilities, ensuring sensitive information remains secure across the network. These security capabilities make the switch suitable for offices, retail environments, and educational institutions.

Scalability for Growing Businesses

As a managed switch, the CBS220-8FP-E-2G provides scalability for expanding networks. Its modular management tools allow businesses to add additional switches and network devices without compromising performance. The dual uplink ports facilitate easy uplink aggregation and redundancy, ensuring continuous connectivity even during network expansion. This flexibility supports long-term growth and investment protection.

Rack-Mountable Design

The CBS220-8FP-E-2G features a compact 1U rack-mountable form factor, allowing easy installation in standard server racks or network cabinets. This space-efficient design makes it suitable for office closets or small data rooms. The switch’s sturdy construction ensures durability, while its quiet operation makes it ideal for deployment in open office environments without causing noise disruptions.

Performance and Reliability Metrics

The switch delivers high-speed Gigabit performance across all ports, with non-blocking architecture and low-latency switching. It supports up to thousands of simultaneous sessions, ensuring uninterrupted connectivity for all networked devices. Built-in diagnostics and performance monitoring help administrators identify and troubleshoot potential network issues quickly, maintaining optimal network uptime and operational efficiency.

Quality of Service and Traffic Management

Advanced QoS features allow administrators to prioritize traffic based on application type, port, or VLAN. This ensures that critical services such as voice and video receive priority over less time-sensitive traffic, improving overall network efficiency and user experience. Traffic monitoring and reporting tools provide insights into bandwidth usage patterns, helping IT teams make informed decisions for future network upgrades.

Applications and Use Cases

The CBS220-8FP-E-2G is suitable for a wide range of small and medium-sized business applications. It is ideal for powering IP cameras in surveillance systems, connecting VoIP phones for office communication, or linking wireless access points to expand Wi-Fi coverage. Its managed capabilities also make it suitable for educational institutions, healthcare facilities, and retail environments that require secure, reliable, and scalable networking solutions.

Integration in Hybrid Networks

With dual Gigabit uplinks and support for multiple VLANs, the CBS220-8FP-E-2G can be integrated into hybrid network architectures combining wired and wireless connectivity. IT teams can efficiently manage traffic across different segments while ensuring seamless communication between devices. The switch’s compatibility with other Cisco solutions enhances interoperability, allowing businesses to leverage existing infrastructure while adopting new technologies.

Ease of Deployment and Management

The CBS220-8FP-E-2G simplifies deployment with plug-and-play features for basic network setups, while its managed capabilities provide advanced configuration options for IT professionals. The web-based interface, along with SNMP and CLI support, offers flexible management suited for both small IT teams and more complex organizational networks. This ensures that the switch can be quickly deployed and efficiently managed without extensive technical expertise.
