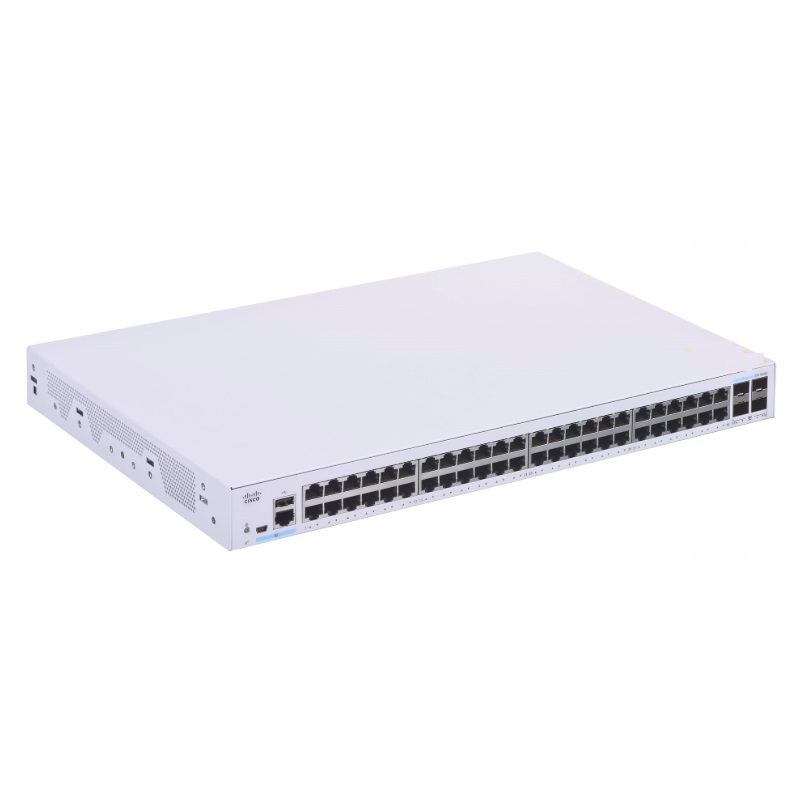

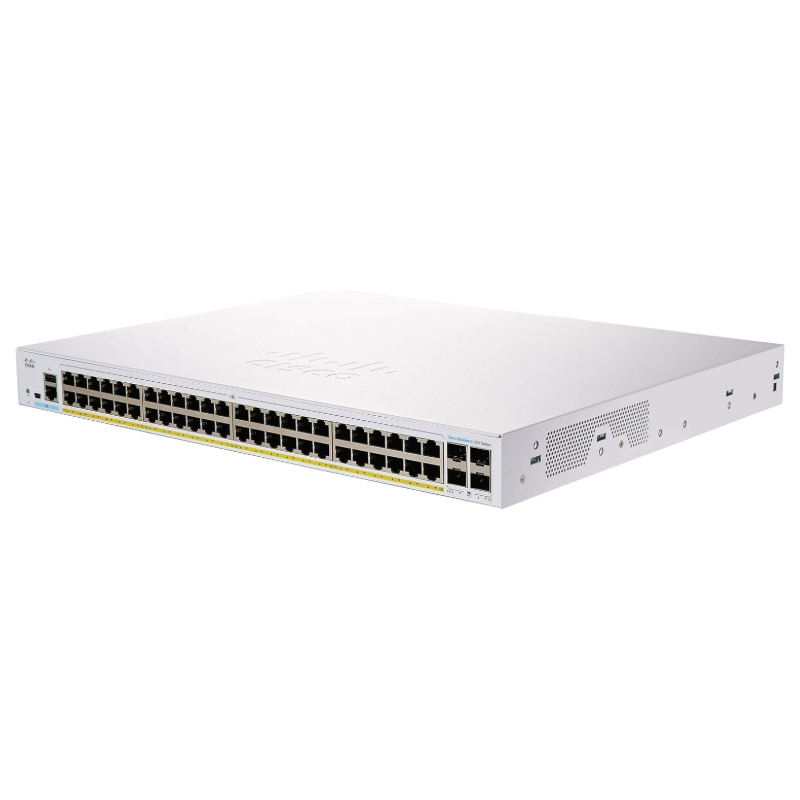

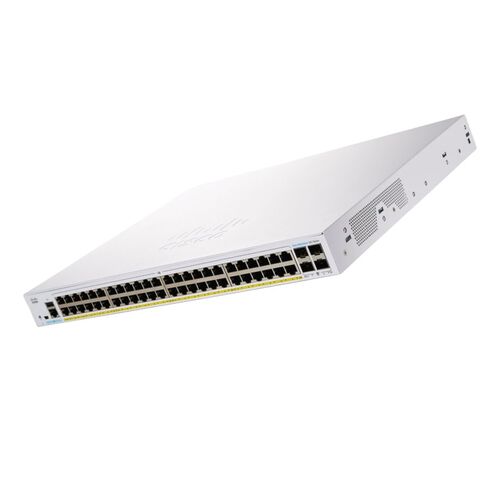

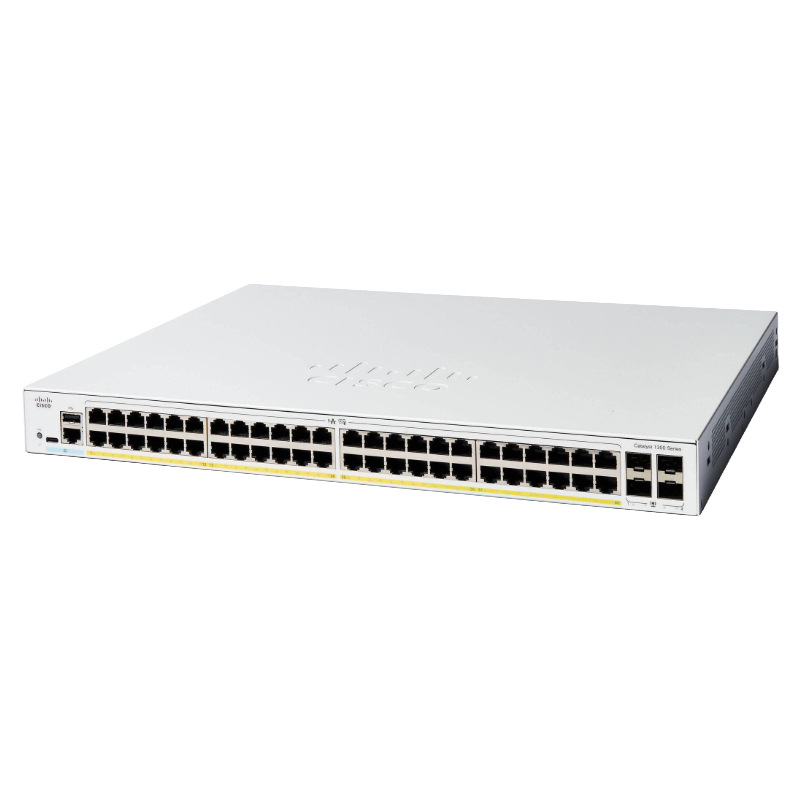

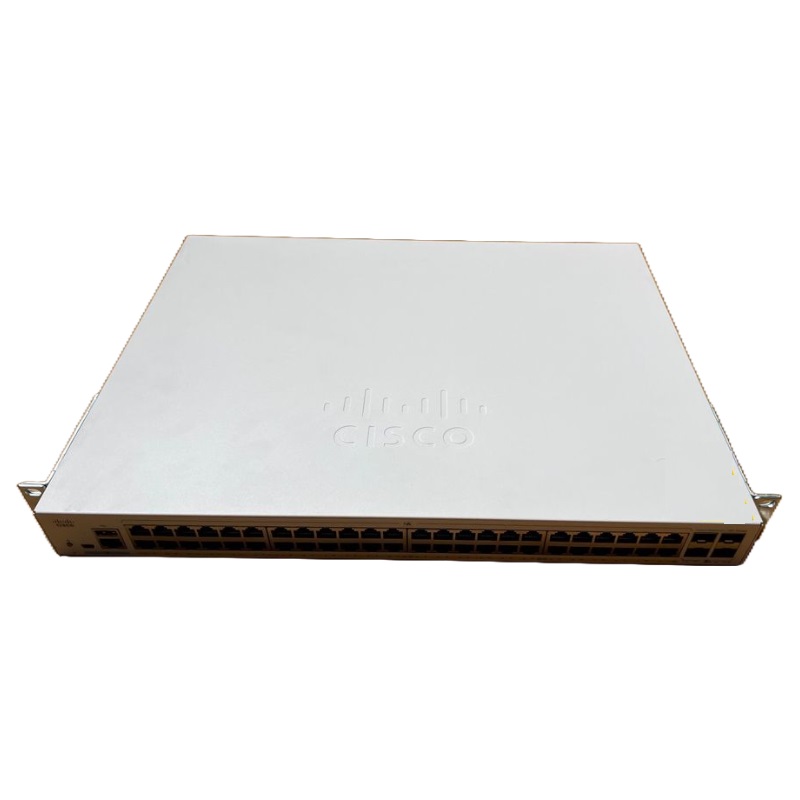

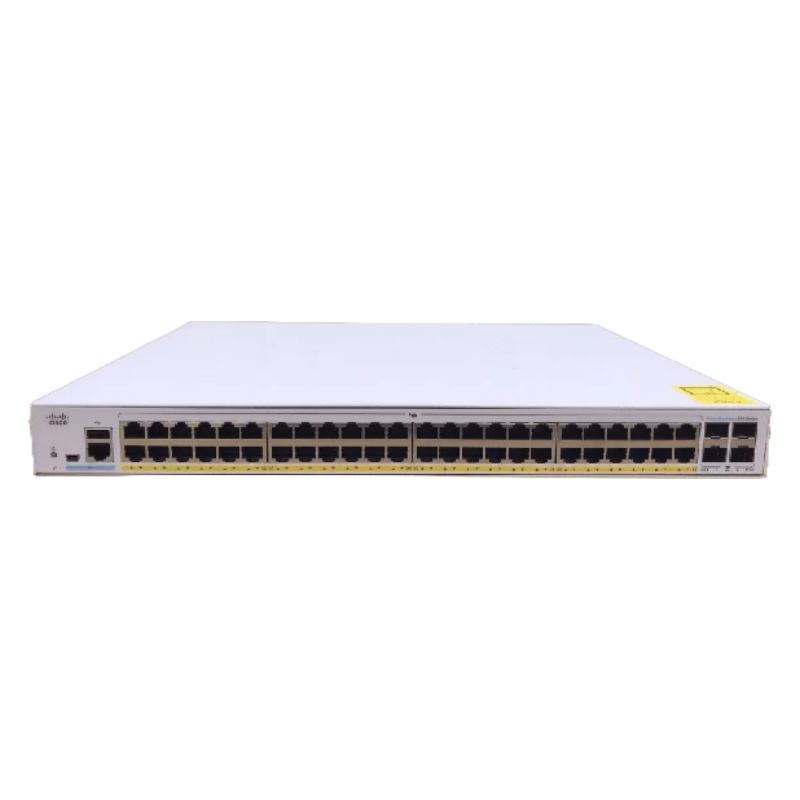

Cisco CBS350-48P-4X Business 350 Series 48 Ports Managed Switch

Manufacturer Details of Cisco CBS350-48P-4X

• Brand: Cisco
• Model Number: CBS350-48P-4X
• Device Type: Managed Switch

Switch Performance and Capacity

• Power over Ethernet (PoE) Budget: 370 W
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.94 Mpps (64-byte packet size)

Link Aggregation and VLAN Support

• Link Aggregation Groups: 8
• VLANs Supported: 4094
• Buffer Size: 3 MB
• MAC Address Table Capacity: 16k Entries
• Total Ports: 48
• Jumbo Frame Support: Up to 2KB

Routing Protocols and Remote Management

• Routing Protocols: IGMP, Policy-based Routing (PBR), CIDR
• Remote Management Protocols: SNMP v1, SNMP v2c, SNMP v3, RMON, SSH, SSH-2, ICMP
• Encryption: SSL
• Authentication Methods: SSH, RADIUS, TACACS+

Processor and Memory Specifications

• Processor: X ARM, 800 MHz
• RAM: 512 MB
• Flash Memory: 256 MB

Power Supply Information

• Power Source: Internal Power Supply
• Voltage Requirement: AC 120/230 V (50/60 Hz)

Port Configuration

• Ports:
• 48 x 10/100/1000 Base-T RJ-45 PoE+
• 4 x 10GBASE-X SFP+
• 1 x Console (USB) Type B
• 1 x USB Type A
• 1 x Console RJ-45

Features and Compliance Standards

• Support for DHCP, ARP, VLAN
• Protection against DoS attacks
• Support for STP, MSTP, and PVST+
• Advanced security with ACLs, DAI, and IP Source Guard
• Quality of Service (QoS) and storm control
• Support for Voice VLAN and LLDP-MED

Compliance Standards

• IEEE 802.3, 802.3u, 802.3z, 802.1d, 802.1q, 802.3ab
• IEEE 802.1p, 802.3af, 802.3x, 802.3ad (LACP), 802.1w
• IEEE 802.1x, 802.3ae, 802.1s, 802.1AB (LLDP), 802.3an
• IEEE 802.3at, 802.3az

48 Ports for High Connectivity

The Cisco CBS350-48P-4X Managed Switch is equipped with 48 ports, offering high connectivity options for your network infrastructure. These ports provide a reliable and efficient way to connect multiple devices such as computers, servers, printers, and other network devices.

Increased Scalability and Flexibility

Having 48 ports on the Cisco CBS350-48P-4X Managed Switch allows your network to grow and expand without the need for additional switches or equipment. This increased scalability and flexibility make it easier to add new devices to your network or reconfigure existing connections as your business needs change. With a sufficient number of ports, you can easily accommodate future growth and ensure that your network remains efficient and reliable.

Efficient Network Management

The Cisco CBS350-48P-4X Managed Switch's 48 ports enable efficient network management by providing a centralized hub for all your devices. With all your devices connected to a single switch, it becomes easier to monitor and manage their performance, troubleshoot issues, and implement security measures. This centralization simplifies the overall network management process, saving time and effort for IT administrators.

VLAN Support for Enhanced Security

One of the key benefits of having 48 ports is the ability to support Virtual Local Area Networks (VLANs). VLANs allow you to segment your network into smaller virtual networks, improving security and reducing network congestion. By isolating different departments or groups within VLANs, you can control access to sensitive data and prevent unauthorized users from accessing critical resources. This feature enhances overall network security and ensures that your data remains protected.

Power over Ethernet (PoE) Capabilities

The Cisco CBS350-48P-4X Managed Switch also supports Power over Ethernet (PoE) technology on all its 48 ports. This feature allows you to power compatible devices, such as IP phones, wireless access points, and security cameras, directly through the Ethernet cables. PoE eliminates the need for separate power adapters or electrical outlets, simplifying installation and reducing cable clutter. It also provides flexibility in device placement as you can position them wherever Ethernet cables are available without worrying about power sources.

Benefits of PoE:

• Cost Savings:

  With PoE, you can save on the costs of additional electrical infrastructure and avoid the need for separate power outlets for each device.

• Flexibility:

  PoE allows for flexible device placement and easier installation, as devices can be powered through the Ethernet cable alone.

• Centralized Power Management:

  The switch's PoE capabilities enable centralized power management, making it easier to monitor and control power usage for connected devices.

• Scalability:

  PoE simplifies the process of adding new devices to your network, as there is no need to install additional power outlets or reconfigure electrical wiring.

Quality of Service (QoS) Prioritization

The Cisco CBS350-48P-4X Managed Switch comes with advanced Quality of Service (QoS) features that allow you to prioritize network traffic based on specific criteria. With 48 ports available, you can assign different levels of priority to various devices or applications. This ensures that critical services, such as VoIP calls or video conferencing, receive the necessary bandwidth and are not affected by other less time-sensitive traffic. The ability to prioritize traffic enhances overall network performance and delivers a better user experience.

Key Features of QoS:

• Bandwidth Allocation:

  You can allocate specific amounts of bandwidth to different devices or applications, ensuring that critical services receive sufficient resources.

• Traffic Classification:

  QoS allows you to classify traffic based on parameters such as source/destination IP addresses, protocols, or port numbers, enabling granular control over network traffic.

• Packet Prioritization:

  By assigning different priority levels to packets, you can ensure that time-sensitive applications receive preferential treatment and experience minimal latency.

• Improved Performance:

  QoS helps prevent network congestion and ensures that critical services have the necessary resources for consistent and reliable performance.

Support for Advanced Network Technologies

The Cisco CBS350-48P-4X Managed Switch is designed to support various advanced network technologies, making it suitable for modern business environments. With its 48 ports, the switch can handle high-speed data transfers, multimedia streaming, and real-time collaboration applications without compromising performance. It supports features like Link Aggregation (LAG), which allows you to combine multiple ports into a single logical interface for increased bandwidth and redundancy. The switch also supports Spanning Tree Protocol (STP) for loop prevention and Rapid Spanning Tree Protocol (RSTP) for faster network convergence in case of link failures.

Benefits of Advanced Network Technologies:

• Enhanced Performance:

  With support for high-speed data transfers and advanced features like LAG, the switch ensures optimal performance even under heavy network loads.

• Redundancy and Resilience:

  The switch's support for STP and RSTP provides network redundancy, minimizing downtime in the event of link failures and improving overall network reliability.

• Future-Proofing:

  By supporting advanced network technologies, the switch is prepared to handle the evolving demands of modern business networks, ensuring long-term compatibility and scalability.

• Seamless Integration:

  The switch can seamlessly integrate with existing network infrastructure, allowing for easy deployment and integration without disrupting current operations.

In conclusion, the Cisco CBS350-48P-4X Managed Switch's 48 ports offer numerous benefits and capabilities for users. With high connectivity options, increased scalability, and flexible network management, this switch provides a reliable foundation for your network infrastructure. The support for VLANs enhances security, while Power over Ethernet (PoE) simplifies device deployment. Quality of Service (QoS) prioritization ensures optimal performance for critical applications, and advanced network technologies enable seamless integration and future-proofing. Whether you're a small business or a large enterprise, the Cisco CBS350-48P-4X Managed Switch's 48 ports deliver the necessary features to meet your networking needs efficiently.
