CBS350-8FP-E-2G Cisco 8 Ports Managed Switch Layer 3 Supported

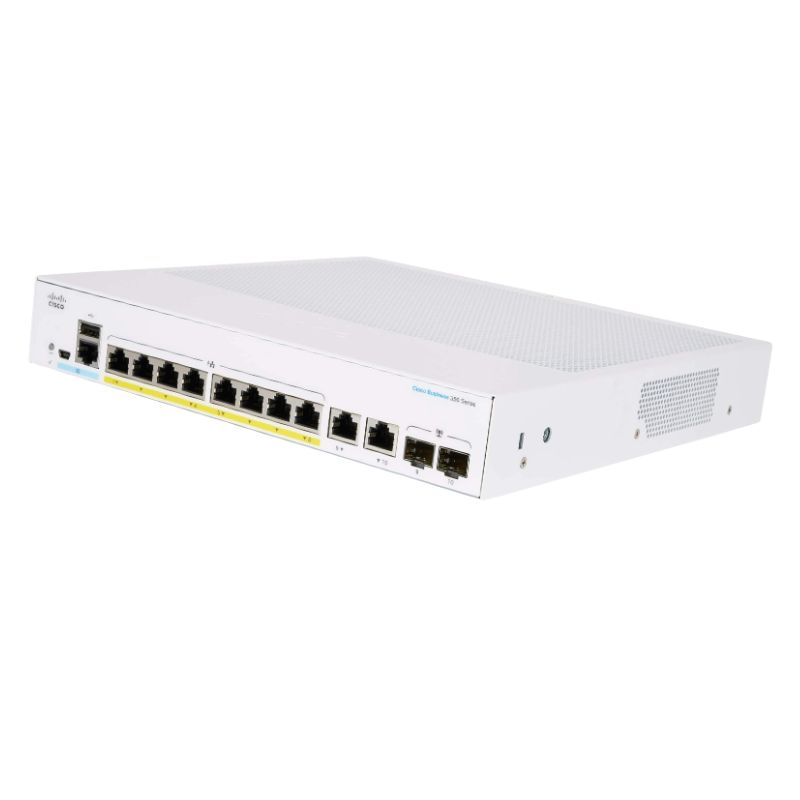

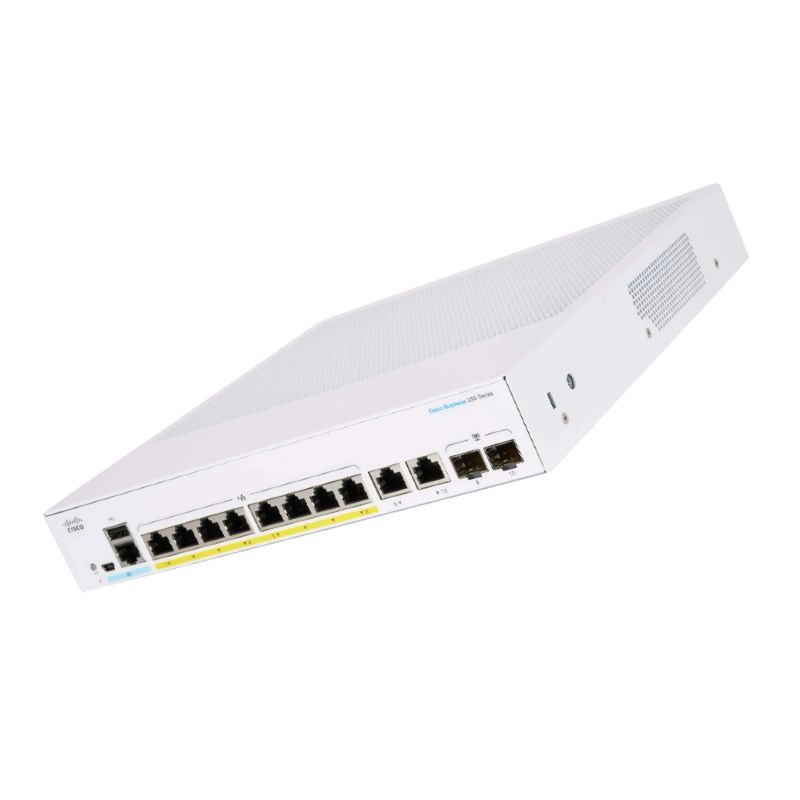

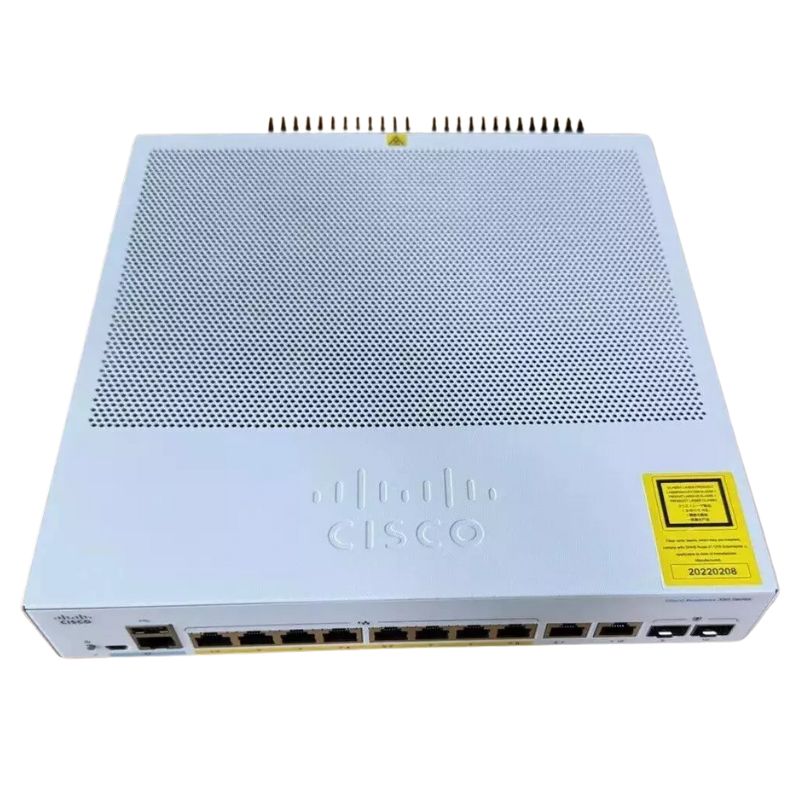

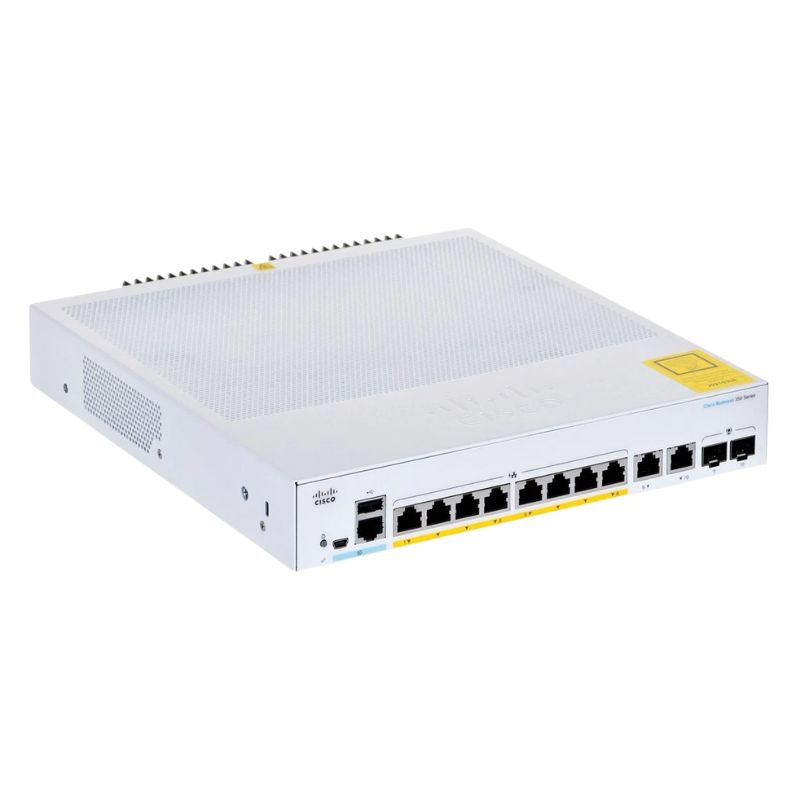

Cisco CBS350-8FP-E-2G Managed Ethernet Switch Overview

The Cisco CBS350-8FP-E-2G is a high-performance, 8-port managed Ethernet switch designed to deliver reliable connectivity and advanced network management for modern business environments.

Key Features of the CBS350-8FP-E-2G

• Manufacturer: Cisco
• Part Number: CBS350-8FP-E-2G
• Product Category: Ethernet Switch
• Port Count: 8 Gigabit Ethernet ports with PoE+ support
• Layer Support: 2-Layer switching with advanced L3 capabilities
• Stackable design for scalable network growth

Technical Specifications

Hardware Details

• Device Type: Managed L3 Switch with 8 Ports
• Rack-Mountable Enclosure for seamless integration
• Ports Configuration: 8 x 10/100/1000 PoE+ ports + 2 x Combo SFP ports
• Processor: 800 MHz ARM for efficient data processing
• RAM: 512 MB
• Flash Memory: 256 MB

Power and PoE Capabilities

• PoE Type: Power over Ethernet Plus (PoE+)
• PoE Budget: 120 W, sufficient for IP phones, cameras, and access points
• Input Power: AC 120/230 V, 50/60 Hz compatibility

Performance Metrics

• Switching Capacity: 20 Gbps for high-speed data transfer
• Forwarding Rate: 14.88 Mpps for 64-byte packets
• MAC Address Table Size: 16k entries
• Jumbo Frame Support: Up to 2 KB for larger data packets

Advanced Networking and Routing Protocols

• Supports IGMPv2, IGMPv3, and multicast management (MLDv2, MLD)
• Static IPv4 and IPv6 routing
• Policy-Based Routing (PBR) for optimized traffic control
• Spanning Tree Protocols: MSTP, RSTP, STP
• Classless Inter-Domain Routing (CIDR) support

Remote Management and Security

• Management via SNMPv1, SNMPv2c, SNMPv3, RMON, Telnet, HTTP, HTTPS, SSH, SCP, TFTP, and CLI
• Network security with TACACS+ and RADIUS authentication
• ICMP and DHCP support for enhanced network monitoring

Physical Dimensions

• Width: 10.6 inches
• Depth: 7.3 inches
• Height: 1.7 inches
• Weight: 7.72 lbs

Cisco CBS350-8FP-E-2G 8 Ports Switch

The Cisco CBS350-8FP-E-2G Ethernet switch represents a pivotal component in modern small to medium-sized business networks, offering 8 high-performance ports and advanced management capabilities. Designed for reliability and scalability, this 2-layer supported switch provides enterprises with the flexibility required to manage their network infrastructure efficiently. Its combination of Layer 2 switching features and intelligent management functions ensures optimal performance for critical applications, while its compact form factor allows seamless integration into existing network environments.

Technical Specifications of Cisco CBS350-8FP-E-2G

Port Configuration and Connectivity

The Cisco CBS350-8FP-E-2G switch features eight full-featured Ethernet ports with support for Power over Ethernet (PoE) functionality, allowing network devices such as IP phones, wireless access points, and cameras to receive power directly through the network cable. Additionally, it includes two Gigabit SFP uplink ports to provide enhanced connectivity options for uplinks and inter-switch links, ensuring high-speed data transfer across different network segments.

Layer 2 Switching Capabilities

As a Layer 2 switch, the CBS350-8FP-E-2G supports essential switching functions including VLAN segmentation, link aggregation, port mirroring, and Spanning Tree Protocol. These capabilities allow administrators to create secure and efficient network topologies, prevent network loops, and optimize bandwidth utilization. VLAN support ensures separation of network traffic based on department, application, or security level, enhancing both performance and network security.

Power over Ethernet Functionality

The PoE capabilities of the CBS350-8FP-E-2G enable up to 67 watts of total power distribution across the eight ports, providing sufficient power to a wide range of devices. This simplifies network deployment by eliminating the need for separate power supplies, reducing cable clutter, and facilitating easy installation of devices in locations where power outlets are not readily available. Intelligent power management further ensures efficient power allocation to connected devices, optimizing energy consumption without compromising performance.

Management and Security Features

Web-Based Management Interface

The CBS350-8FP-E-2G switch is equipped with a user-friendly web-based management interface that allows network administrators to configure, monitor, and troubleshoot the switch with ease. This interface provides real-time statistics, port status, traffic analysis, and event logging, helping to maintain a reliable network environment. Administrators can perform firmware upgrades, configure VLANs, and manage PoE settings without the need for complex command-line interactions.

Advanced Security Capabilities

Security is a critical aspect of the Cisco CBS350-8FP-E-2G switch. The switch supports advanced features such as access control lists (ACLs), 802.1X port security, DHCP snooping, and IP source guard to protect against unauthorized access and network attacks. These measures ensure that sensitive data is protected and that only authorized devices can communicate within the network. Additionally, the switch supports dynamic ARP inspection and port isolation, further enhancing security in multi-user environments.

Quality of Service (QoS) and Traffic Management

The CBS350-8FP-E-2G switch provides sophisticated Quality of Service (QoS) features that allow prioritization of network traffic based on application type or device. Critical services such as voice and video are given higher priority, reducing latency and ensuring consistent performance. Bandwidth management and rate limiting features prevent network congestion and enable efficient allocation of resources, making the switch ideal for environments with high traffic demands.

Deployment Scenarios and Use Cases

Small Office and Home Office Networks

For small office and home office deployments, the Cisco CBS350-8FP-E-2G offers a compact, reliable solution that simplifies network management while providing essential Layer 2 functionality. With PoE support, network devices such as IP phones, cameras, and wireless access points can be powered directly, minimizing the need for additional power sources and cabling infrastructure. Its ease of configuration and intuitive management interface make it ideal for IT teams with limited networking expertise.

Branch Office Connectivity

In branch office environments, the CBS350-8FP-E-2G serves as a cost-effective solution for interconnecting multiple devices and ensuring seamless communication with the main office. The SFP uplink ports facilitate high-speed connections to other switches or core network devices, ensuring reliable data transfer between branches. VLAN support and QoS features enable optimized traffic flow and secure segmentation, allowing branch offices to operate efficiently without compromising security or performance.

Integration with Cisco Network Ecosystem

As part of the Cisco Business 350 Series, the CBS350-8FP-E-2G is fully compatible with other Cisco networking products, providing seamless integration and centralized management. Network administrators can use Cisco Network Assistant or Cisco DNA Center to manage multiple switches and devices from a single interface, simplifying configuration, monitoring, and troubleshooting. This integration allows organizations to scale their network infrastructure while maintaining consistent policies and security across all devices.
