Cisco CS-KITPLUS-K9 Quad Camera Ethernet Room Kit Plus w/Codec Plus and Touch 10

Includes

The Cisco CS-KITPLUS-K9 Quad Camera Ethernet Room Kit Plus is a comprehensive solution that includes various components to enhance your video conferencing experience. This kit is specifically designed to meet the needs of businesses and organizations that require high-quality video communication capabilities. The key components included in this kit are the Codec Plus and the Touch 10 control panel.

Overview of Cisco CS-KITPLUS-K9 Video Conferencing Kit

Manufacturer Details

• Brand: Cisco
• Model Number: CS-KITPLUS-K9
• Product Category: Telephony Conferencing System

Technical Specifications

Voice and Video Protocols

• VoIP Protocols: H.323
• Supported Voice Codecs: G.711, G.722, G.729, G.722.1, AAC-LD, Opus
• Video Codecs: H.264

Device and Quality of Service

• Device Type: Phone Accessories
• Quality of Service Features: IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p
• IP Address Configuration: DHCP
• Security Protocols: IEEE 802.1X, H.235 v3
• Network Protocols: HTTP, DNS, HTTPS, NTP

Video and Audio Capabilities

Digital Signaling and Compression

• Signaling Protocols: H.323, SIP, H.460.18, H.460.19, BFCP
• Data Compression: H.264

Video Specifications

• Type: External Digital Color Video Camera
• Interface: HDMI
• Resolution Options: 3840 x 2160, 1080p
• Display Graphics: 3840×2160
• Video Standard: High-Definition Multimedia Interface (HDMI)

Audio Features

• Microphones: 6 integrated microphones
• Speakers: Integrated speaker(s)
• Frequency Range: 70 – 20000 Hz

Networking and Connectivity

Connectivity Technology

• Connection Types: Wireless and Wired
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b/g/n/ac, Bluetooth 4.0 LE
• Network Protocols: NTP, DHCP, DNS

Features and Connectivity Options

• Quality of Service (QoS) Support
• Wall Mountable
• Audio Return Channel (ARC)
• 4K Resolution Compatibility
• Security Lock Slot (Cable Lock Sold Separately)
• Automatic Gain Control (AGC)
• 802.1x Authentication
• URI Dialing
• Administrator Password Protection

Compliant Standards

• IEEE 802.1Q
• IEEE 802.1p
• IEEE 802.1x

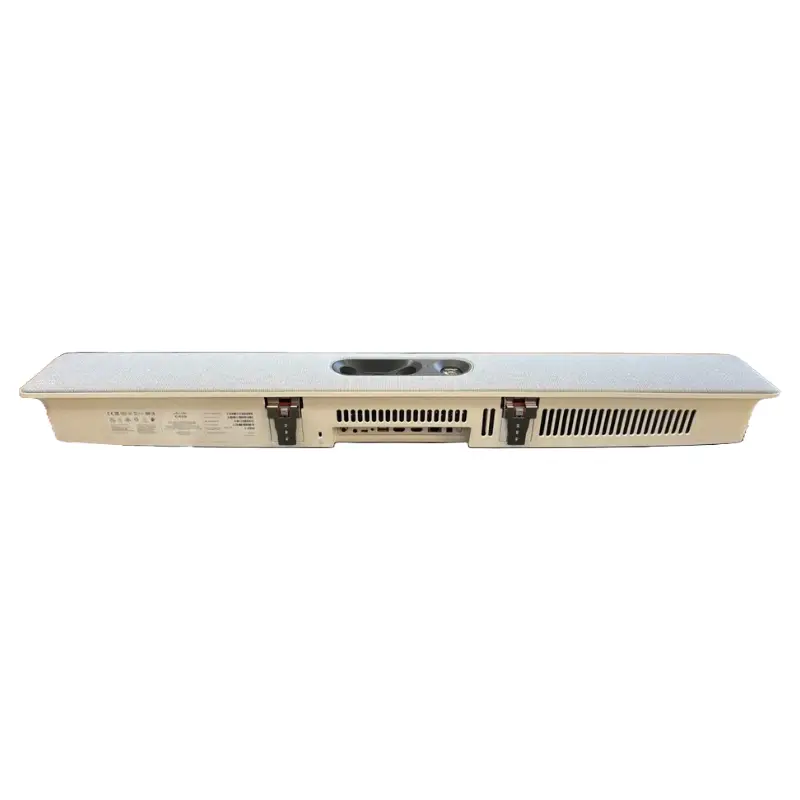

Expansion and Connectivity Ports

Available Ports

• 2 x HDMI Input (19-pin HDMI Type A)
• 1 x HDMI Input (19-pin HDMI Type A)
• 2 x HDMI Output (19-pin HDMI Type A)
• 1 x Audio Output (Mini-phone Stereo 3.5 mm)
• 1 x Audio Output (RCA)
• 3 x Audio Input (Mini-phone 3.5 mm)
• 3 x Network Ports (RJ-45)
• 1 x USB 2.0 Port

Additional Features

• High-Quality 20 kHz Audio
• Subwoofer Line Out for Quad Camera
• Prepared for Inductive Loop (Line Out)
• Automatic Noise Reduction
• Active Lip Synchronization

Power Requirements

• Power Device: External Power Supply
• Required Voltage: AC 120/230 V (50/60 Hz)
• Operational Power Consumption: 70 Watts

Miscellaneous Information

• Cables Included: 1 x Network Cable (8 meters)
• Mounting Kit Included

Compliant Standards and Regulations

• AES
• RoHS
• WWEBCEC
• Directive 2002/96/EC
• Directive 2011/65/EU
• FCC CFR47 Part 15 B Class A
• Directive 2014/35/EU
• Directive 2014/30/EU
• Directive 2014/53/EU

Codec Plus

The Codec Plus is the heart of the Cisco CS-KITPLUS-K9 Quad Camera Ethernet Room Kit Plus. It is a powerful and advanced codec that enables seamless video conferencing with exceptional clarity. This codec supports high-definition video, ensuring that every participant in the meeting can see and hear each other with utmost clarity.

With the Codec Plus, you can experience lifelike video quality that makes you feel like you are sitting in the same room as your colleagues or clients. The high-definition video allows for better non-verbal communication, enhancing understanding and collaboration between participants.

Benefits of Codec Plus

- Improved Communication: The Codec Plus ensures that every detail is captured and transmitted accurately, allowing participants to have a more engaging and productive conversation.
- Cost-Effective Solution: By investing in the Cisco CS-KITPLUS-K9 Quad Camera Ethernet Room Kit Plus, you can eliminate the need for expensive business trips. The Codec Plus enables you to conduct face-to-face meetings remotely, saving both time and money.
- Increased Productivity: With the high-quality video provided by Codec Plus, participants can easily share content and collaborate effectively. This leads to increased productivity and faster decision-making.
- Scalability: The Codec Plus is designed to accommodate the needs of small to large meeting spaces. Whether you have a small huddle room or a large conference room, the Codec Plus can adapt to your requirements.

Touch 10 Control Panel

The Touch 10 control panel is an essential component of the Cisco CS-KITPLUS-K9 Quad Camera Ethernet Room Kit Plus. It provides a user-friendly interface that allows participants to control and manage their video conferencing experience with ease. The Touch 10 control panel offers a range of features that simplify the operation of the system.

Benefits of Touch 10 Control Panel

- Intuitive Interface: The Touch 10 control panel features a user-friendly interface that requires minimal training. Participants can easily navigate through the options and control various aspects of the video conferencing system effortlessly.
- One-Touch Join: With the Touch 10 control panel, joining a meeting is as simple as touching a button. This feature eliminates the need for participants to manually dial in or enter meeting details, saving time and ensuring a prompt start to every meeting.
- Content Sharing: The Touch 10 control panel allows participants to share content from their devices with just a few taps. This feature enhances collaboration and makes it easier to present information during meetings.
- Customization Options: The Touch 10 control panel can be customized to match your organization's branding and preferences. This adds a professional touch to your video conferencing setup and creates a consistent user experience across different meeting spaces.

Features

The Cisco CS-KITPLUS-K9 Quad Camera Ethernet Room Kit Plus offers several key features that make it an ideal solution for businesses and organizations seeking comprehensive video communication capabilities.

Quad Camera Setup

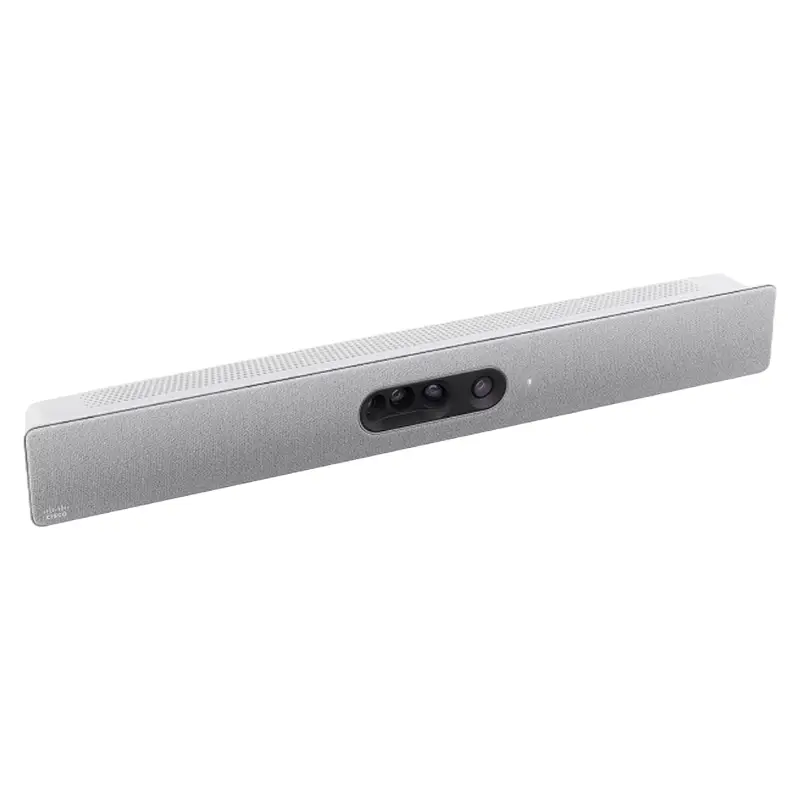

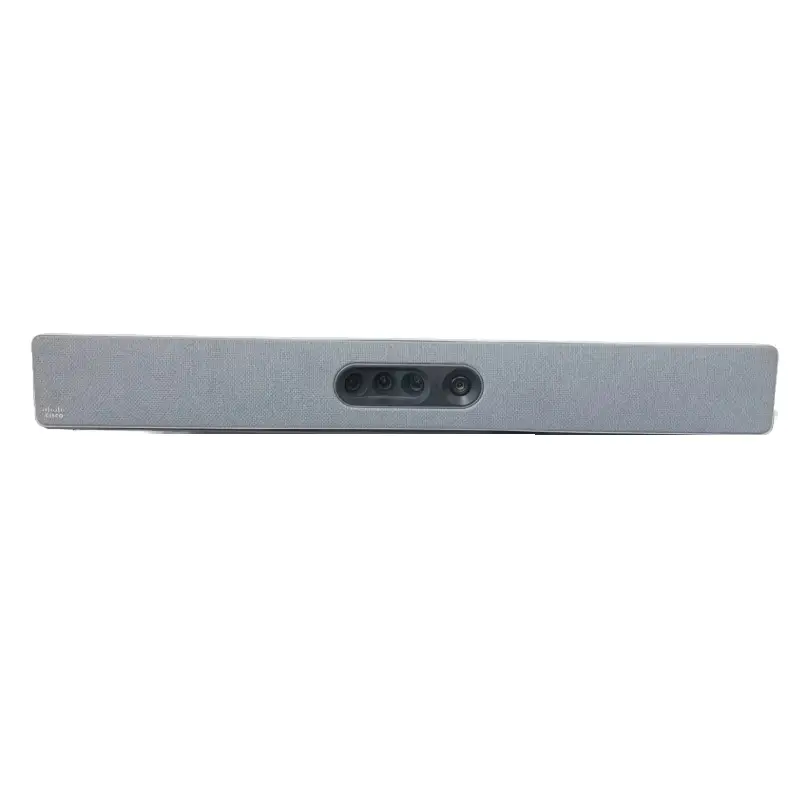

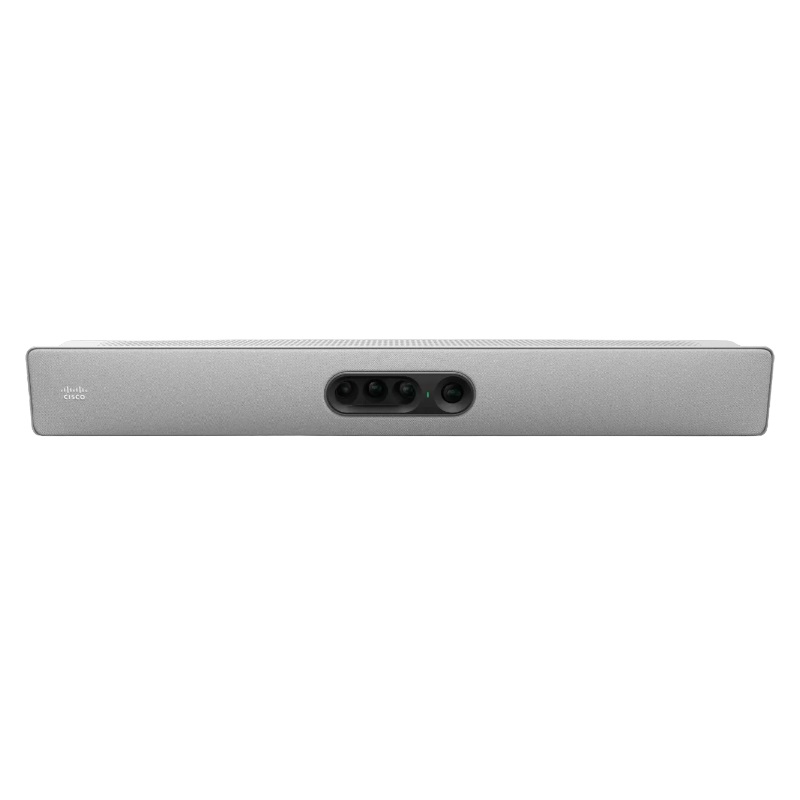

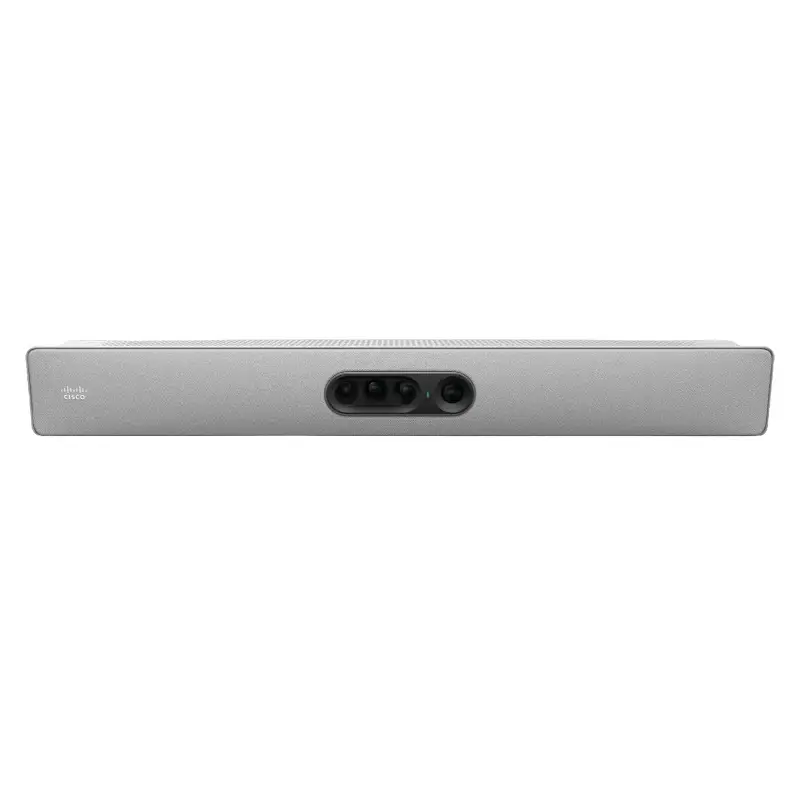

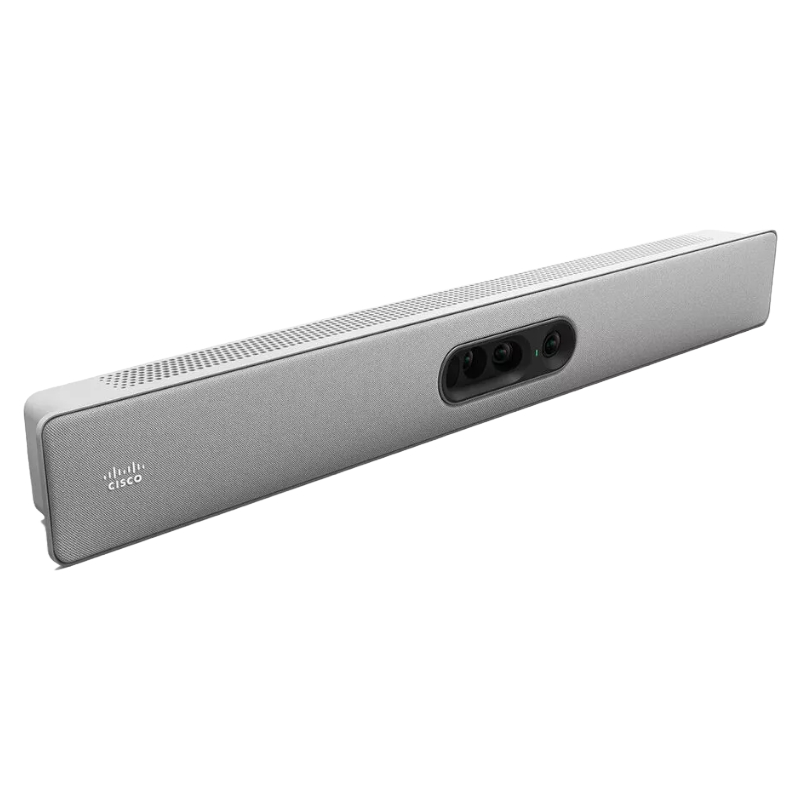

One of the standout features of the Cisco CS-KITPLUS-K9 Quad Camera Ethernet Room Kit Plus is its quad camera setup. This setup consists of four high-definition cameras strategically positioned to capture different angles and perspectives of the meeting room. This ensures that every participant is visible on screen, regardless of their location in the room.

Benefits of Quad Camera Setup

- Enhanced Visibility: The quad camera setup eliminates the need for participants to constantly adjust their position or camera angle. Everyone in the room can be seen clearly, facilitating better engagement and collaboration.
- Immersive Experience: The quad camera setup creates an immersive video conferencing experience by providing a wide-angle view of the meeting room. This makes participants feel more connected and involved in the conversation.
- Flexible Layouts: With four cameras capturing different angles, the quad camera setup allows for flexible layouts during meetings. Participants can rearrange furniture or seating positions without compromising visibility, adapting to different meeting requirements.

Ethernet Connectivity

The Cisco CS-KITPLUS-K9 Quad Camera Ethernet Room Kit Plus offers Ethernet connectivity, ensuring a stable and reliable network connection for your video conferencing needs.

Benefits of Ethernet Connectivity

- High-Quality Video and Audio: Ethernet connectivity provides a consistent and reliable network connection, which is crucial for high-quality video and audio transmission. This ensures that your video conferences are smooth and uninterrupted, without any lag or loss of data.
- Secure Communication: Ethernet connections are inherently more secure than wireless connections, reducing the risk of unauthorized access or interference during your video conferences. This is especially important for organizations dealing with sensitive information.
- Increased Bandwidth: Ethernet connections offer higher bandwidth compared to wireless connections, allowing for faster data transfer and better overall performance. This is beneficial when sharing large files or streaming high-definition content during meetings.

In conclusion, the Cisco CS-KITPLUS-K9 Quad Camera Ethernet Room Kit Plus is a comprehensive video conferencing solution that includes the Codec Plus and Touch 10 control panel. These components offer a range of benefits, such as improved communication, cost-effectiveness, increased productivity, scalability, intuitive control, one-touch join, content sharing, customization options, enhanced visibility, immersive experience, flexible layouts, high-quality video and audio, secure communication, and increased bandwidth. With its quad camera setup and Ethernet connectivity, this kit provides businesses and organizations with a powerful and reliable solution for their video communication needs.
