Cisco FPR4110-NGIPS-K9 Firepower Security Appliance 4110 1U Rack-mountable

Key Features of FPR4110-NGIPS-K9

• Device Type: Advanced firewall with high-performance capabilities
• Bundled Accessories: Includes 2 x Netmod bays for flexible configuration

Processor, Memory, and Storage

• Storage Capacity: Equipped with a reliable 200 GB SSD for enhanced data management

Networking Capabilities

• Form Factor: Rack-mountable design for easy integration into data centers
• Connection Type: Wired connectivity for stable network performance

Performance Specifications

• Firewall Throughput: Delivers up to 35 Gbps for optimal security
• Maximum Throughput with AVC: Capable of 12 Gbps with application visibility and control (AVC)
• Advanced Threat Prevention: NGIPS delivers a maximum throughput of 10 Gbps
• Inspection Power: Ensures comprehensive network protection with 35 Gbps maximum inspection throughput
• Multiprotocol Performance: Handles up to 15 Gbps for diverse protocol traffic
• VPN Capability: IPsec VPN throughput reaching 8 Gbps for secure remote access

Capacity and Scalability

• New Connections per Second: Supports up to 150,000 new connections per second
• Concurrent Sessions: Manages up to 9 million sessions simultaneously
• Virtual Interfaces: Provides support for 1,024 VLANs for extensive network segmentation
• Firewall Connections: Concurrent firewall connections can reach up to 10 million
• Latency: Maintains low latency at 3.5 microseconds for real-time data processing
• Security Contexts: Supports up to 250 security contexts, allowing for tailored security policies

Features and Enhancements

• High Availability: Ensures uninterrupted service with redundancy and failover capabilities
• URL Filtering: Blocks access to malicious or inappropriate websites
• DDoS Prevention: Protects against distributed denial-of-service attacks
• Clustering Technology: Supports clustering for enhanced performance and scalability

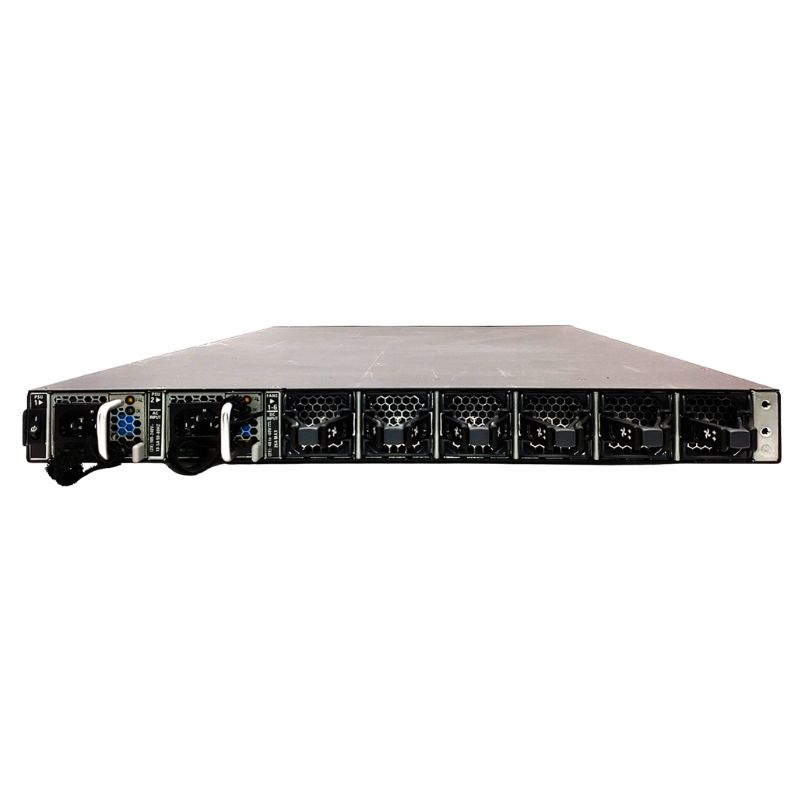

• Cooling Mechanism: Equipped with 6 fans to maintain optimal operating temperature
• AVC Integration: Provides detailed application visibility and control

Expansion and Connectivity Options

• Ethernet Interfaces:
  • 8 x 10Gb Ethernet (SFP - Mini-GBIC)
  • 4 x 40Gb Ethernet (SFP+)
  • 1 x 1000Base-T (Management) - SFP (Mini-GBIC)
• Other Interfaces:
  • 1 x Serial - RJ-45
  • 1 x USB 2.0 - Type A for peripheral connections

Expansion Slots

• Available Slots: 2 total, both free for future expansion

Compliance and Standards

• Certified Standards:
  • CISPR 22 Class A, CISPR 24
  • EN 61000-3-2, EN 61000-3-3
  • EN 55024, AS/NZS 60950-1
  • ICES-003 Class A, UL 60950-1
  • IEC 60950-1, EN 60950-1
  • GB 4943, VCCI Class A
  • KN24, KN22 Class A
  • EN 55022 Class A, FCC CFR47 Part 15B Class A
  • CNS 13438 Class A, EN 300 386
  • TVCN 7317, CAN/CSA-C22.2 No. 60950-1

Power and Redundancy

• Power Supply: Internal power unit with hot-plug capability
• Maximum Units Supported: Up to 2 power supplies can be installed
• Power Redundancy: Optional redundancy feature to ensure uninterrupted power

FormFactor: 1U Rack-mountable

Introduction

The Cisco FPR4110-NGIPS-K9 Firepower Security Appliance is a cutting-edge solution designed to provide enhanced security and protection for modern networks. One of the standout features of this appliance is its compact form factor, specifically designed to fit into a standard 1U rack-mountable space. In this section, we will explore the benefits and importance of this form factor and how it can greatly benefit users in various network environments.

Space Efficiency

Maximum Utilization of Rack Space

In today's data centers and network environments, space efficiency is of paramount importance. Limited rack space can be a significant challenge for organizations, often leading to cluttered and inefficient setups. The Cisco FPR4110-NGIPS-K9 Firepower Security Appliance addresses this concern by offering a 1U rack-mountable form factor. This means that it occupies only a single unit of space within a standard rack enclosure.

By utilizing just one unit of rack space, organizations can maximize their utilization of available space. They can stack multiple appliances vertically in the same rack, efficiently using the vertical space while leaving room for other critical infrastructure components. This form factor ensures that valuable rack space is not wasted and allows for better organization and management of network equipment.

Flexible Deployment Options

Another advantage of the 1U rack-mountable form factor is its flexibility in deployment options. The compact size makes it ideal for various network environments, including small to medium-sized businesses, branch offices, and enterprise data centers.

For small to medium-sized businesses with limited physical space, the 1U form factor allows them to easily integrate the Cisco FPR4110-NGIPS-K9 Firepower Security Appliance into their existing setup without requiring additional racks or cabinets. This simplifies the deployment process and reduces the overall cost of infrastructure expansion.

Branch offices, often faced with space constraints, can also benefit from the compact size of the appliance. It can be seamlessly integrated into existing rack enclosures or wall-mounted cabinets, optimizing space utilization while providing robust security capabilities.

Enterprise data centers, handling large volumes of network traffic, can leverage the 1U form factor to scale their security infrastructure efficiently. The ability to fit multiple appliances in a single rack unit enables them to deploy a high-density security solution without requiring excessive space. This scalability ensures that the network remains secure and protected as it grows, without compromising on performance.

Easy Installation and Maintenance

Straightforward Installation

The 1U rack-mountable form factor of the Cisco FPR4110-NGIPS-K9 Firepower Security Appliance simplifies the installation process. It is designed to be easily mounted onto standard racks using the provided mounting brackets. With clear and concise instructions, even non-technical personnel can efficiently install and set up the appliance without any hassle.

Efficient Cable Management

Proper cable management is crucial for maintaining a tidy and organized network infrastructure. The compact size of the 1U form factor helps in keeping cables neat and manageable. With limited space requirements, there is less chance for cables to become tangled or accidentally disconnected, reducing the risk of downtime and ensuring optimal performance.

Convenient Maintenance

Regular maintenance is vital for ensuring the longevity and functionality of any network appliance. The 1U rack-mountable design of the Cisco FPR4110-NGIPS-K9 Firepower Security Appliance simplifies maintenance tasks. With its easy accessibility, technicians can quickly swap out components or perform routine maintenance without causing disruption to other devices in the rack.

Conclusion

In conclusion, the 1U rack-mountable form factor of the Cisco FPR4110-NGIPS-K9 Firepower Security Appliance offers numerous benefits and holds significant importance for users in various network environments. Its space efficiency, flexibility in deployment options, and ease of installation and maintenance make it an ideal security solution for organizations of all sizes. By choosing this appliance, users can maximize their rack space utilization, simplify their infrastructure setup, and ensure the security and performance of their network environment.
