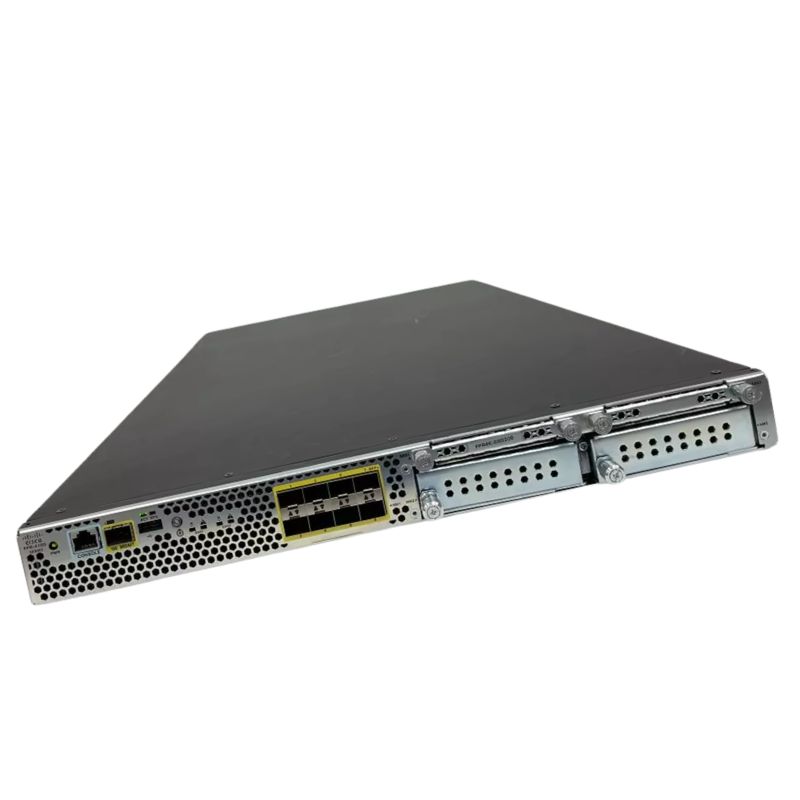

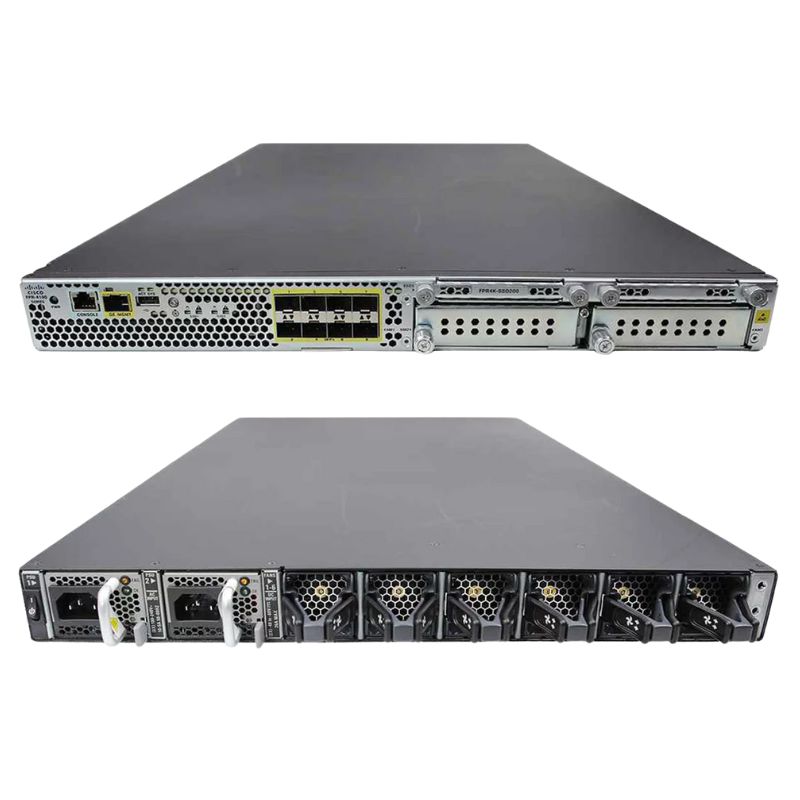

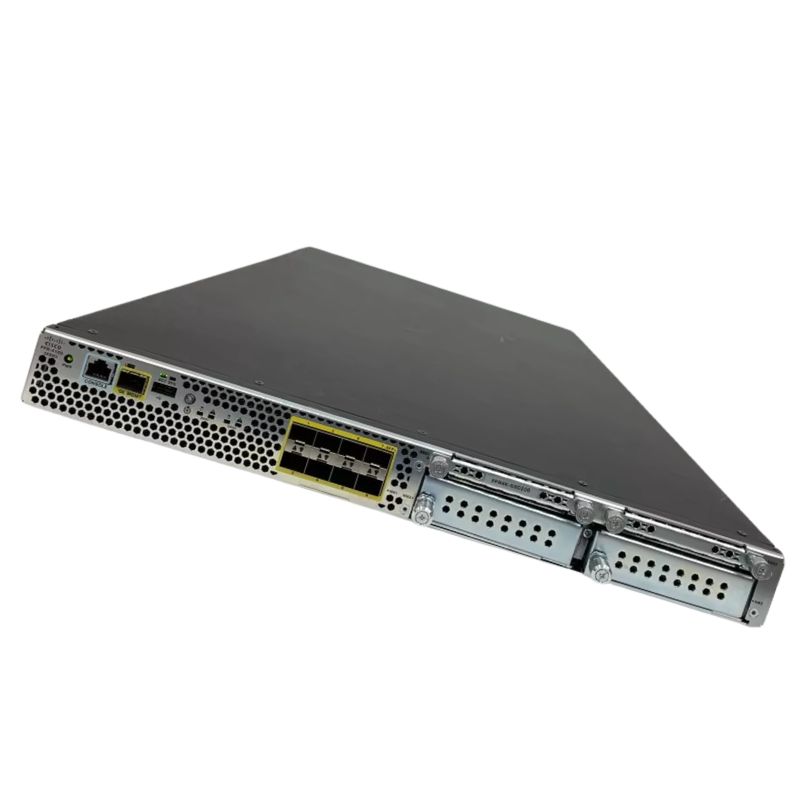

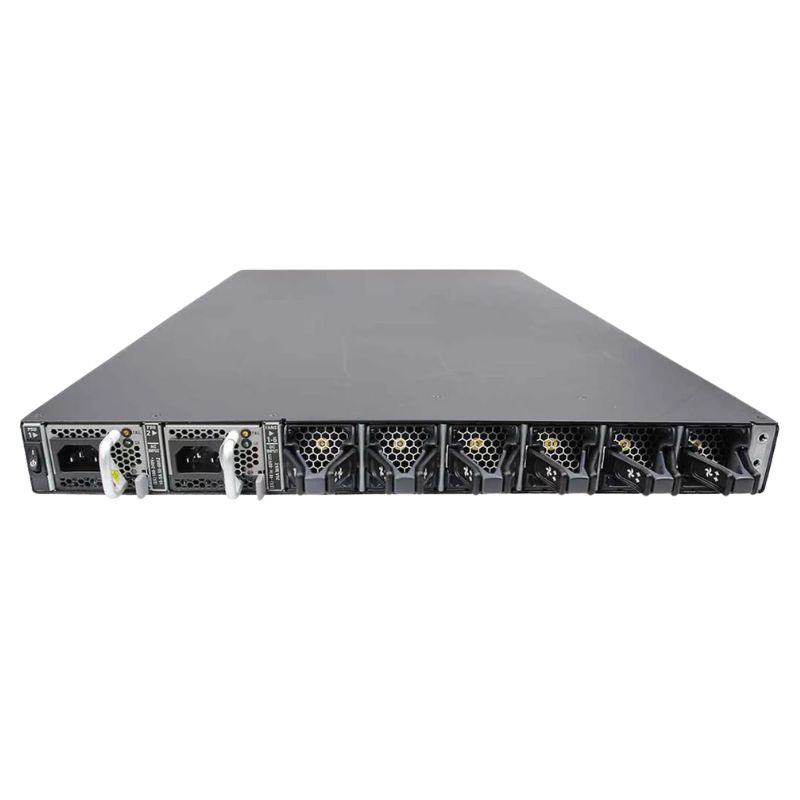

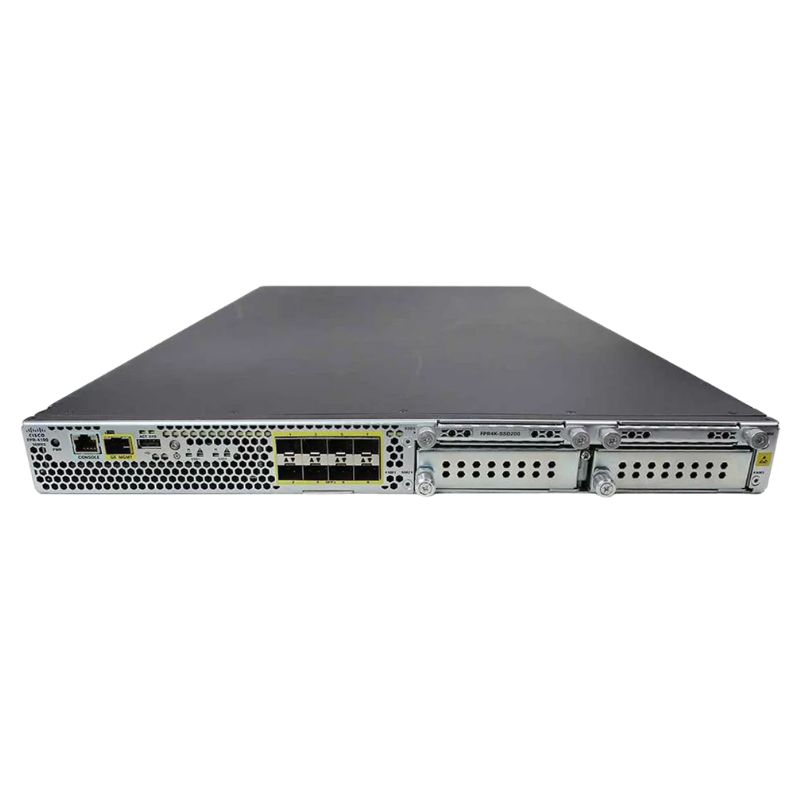

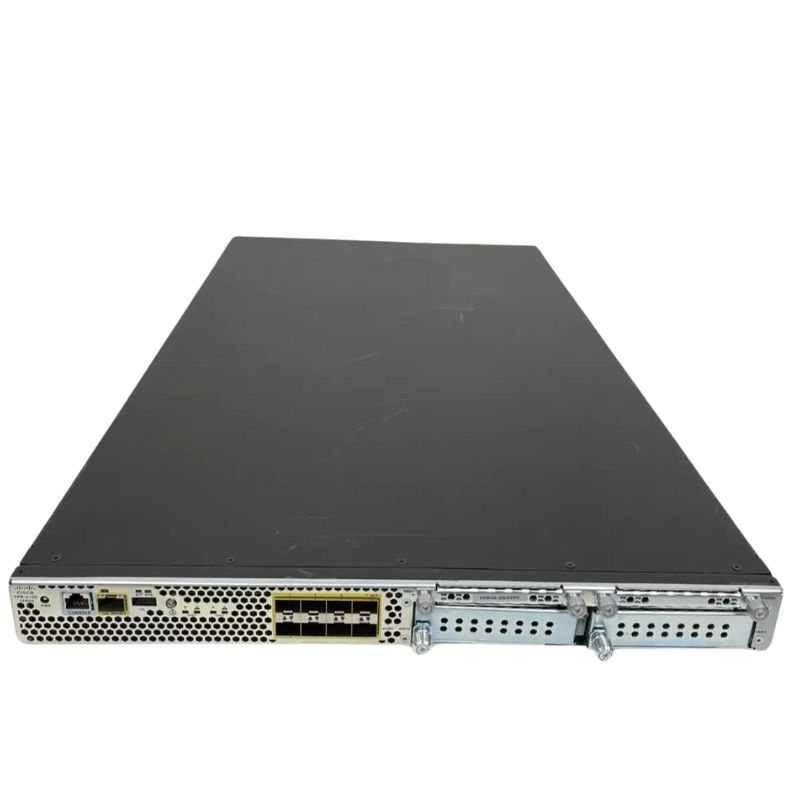

Cisco FPR4120-NGFW-K9 Firewall Security Appliance 1U-Rack Rail Mountable

Key Features of the FPR4120-NGFW-K9 Security Appliance

Device Specifications

• Type: Security Appliance
• Rack Height: 1U
• Included Accessories: 2 x Netmod Bays

Processor, Memory, and Storage

Memory Specifications

• RAM: 128 GB DDR4 SDRAM

Storage Capacity

• SSD: 1 x 200 GB

Networking Capabilities

Form Factor and Connectivity

• Mounting: Rack-mountable
• Connectivity Type: Wired

Performance Metrics

• Firewall Throughput: Up to 40 Gbps
• Maximum Throughput with AVC: 20 Gbps
• Maximum Throughput with NGIPS: 15 Gbps
• Application Control and IPS Throughput: 15 Gbps
• Application Control or IPS Sizing Throughput: 8 Gbps
• VPN Throughput (IPsec): 10 Gbps

Capacity Overview

• New Connections per Second: 120,000
• Max Concurrent Sessions: 11,000,000
• Concurrent Firewall Connections: 15,000,000
• Virtual Interfaces (VLANs): 1,024
• Security Contexts: 250

Status Indicators

• Power
• System
• Active

Essential Features

• Advanced Firewall Protection
• VLAN Support
• URL Filtering
• Cooling System: 6 Fans

Expansion and Connectivity Options

Expansion Slots

• Total Expansion Slots: 2 (all available)

Interface Details

• 10GBASE-X SFP+ Ports: 8
• Console Port: 1 x RJ-45
• Management Port: 1 x 1000BASE-T (RJ-45)
• USB Interface: 1 x USB 2.0 (Type A)

Power Specifications

• Power Supply: Internal
• Maximum Supported Quantity: 2
• Power Redundancy: Yes
• Voltage Requirements: AC 120/230 V (50/60 Hz)
• Power Output: 1,100 Watts

Rack Mountable

The Cisco FPR4120-NGFW-K9 Firewall Security Appliance is designed with the rack mountable feature, making it an ideal choice for organizations that need to maximize their rack space. This feature allows the firewall security appliance to be securely mounted within a standard rack, providing a neat and organized solution for network security.

Benefits of Rack Mountable Design

1. Space Optimization: The rack mountable design of the Cisco FPR4120-NGFW-K9 ensures efficient utilization of valuable rack space. By mounting the appliance in a rack, organizations can free up valuable floor space and reduce clutter in their network infrastructure.

2. Easy Installation: The rack mountable design simplifies the installation process. The appliance can be easily mounted in a standard 19-inch rack, eliminating the need for additional hardware or complex installation procedures.

3. Enhanced Security: By securely mounting the firewall security appliance within a rack, organizations can prevent unauthorized access and tampering. This ensures that the appliance remains protected and operational at all times.

Importance of Rack Mountable Design

The rack mountable design of the Cisco FPR4120-NGFW-K9 holds significant importance for organizations seeking a reliable and efficient network security solution.

1. Scalability: As businesses grow, their network infrastructure needs to scale accordingly. With the rack mountable design, organizations can easily add or remove appliances as per their changing requirements, without any disruption to their existing setup.

2. Centralized Management: When multiple appliances are deployed, managing them individually can be a tedious task. By mounting the firewall security appliance in a rack, organizations can achieve centralized management, enabling them to monitor and control network security from a single location.

3. Improved Airflow and Cooling: The rack mountable design facilitates proper airflow and cooling, preventing overheating of the appliance. This enhances the overall performance and longevity of the firewall security appliance, ensuring uninterrupted network security.

Considerations for Rack Mountable Design

Before opting for the Cisco FPR4120-NGFW-K9 Firewall Security Appliance, it is essential to consider a few factors related to its rack mountable design.

1. Rack Compatibility: Ensure that the rack mountable design of the appliance is compatible with your existing rack infrastructure. Check the dimensions and specifications provided by Cisco to ensure a seamless fit.

2. Cable Management: Proper cable management is crucial for maintaining a clean and organized network setup. Opt for a rack that offers cable management features, such as cable trays or routing options, to keep the cables organized and easily accessible.

3. Accessibility: Consider the accessibility of the appliance when mounted in a rack. Ensure that there is enough space around the appliance for easy maintenance and cable connectivity.

Rack Size - 1U

The Cisco FPR4120-NGFW-K9 Firewall Security Appliance is designed with a rack size of 1U, making it a compact and space-saving solution for network security. This feature allows organizations to efficiently utilize their rack space without compromising on performance or functionality.

Benefits of 1U Rack Size

1. Space Efficiency: The 1U rack size of the Cisco FPR4120-NGFW-K9 ensures efficient utilization of limited rack space. It occupies minimal vertical space, allowing organizations to accommodate more devices or utilize the remaining space for other critical equipment.

2. Compatibility: The 1U form factor is widely adopted in the industry, ensuring compatibility with standard 19-inch racks. This means that the Cisco FPR4120-NGFW-K9 can seamlessly fit into most rack setups, eliminating the need for costly modifications or specialized infrastructure.

3. Scalability: With the compact 1U form factor, organizations can easily scale their network security infrastructure without requiring additional rack space. This scalability enables businesses to expand their security capabilities as their network demands grow.

Importance of 1U Rack Size

The 1U rack size of the Cisco FPR4120-NGFW-K9 Firewall Security Appliance holds significant importance for organizations looking to optimize their network infrastructure.

1. Cost Savings: By utilizing the compact 1U form factor, organizations can save on rack space costs. As rack space is typically a valuable resource, maximizing its usage by deploying 1U devices allows businesses to reduce their overall infrastructure expenses.

2. Flexibility: The 1U rack size offers flexibility in terms of deployment options. Organizations can choose to mount the appliance in a rack or use it in standalone mode, depending on their specific requirements. This flexibility ensures that the Cisco FPR4120-NGFW-K9 can adapt to different network setups and environments.

3. Easy Maintenance: The compact size of the Cisco FPR4120-NGFW-K9 makes it easier to access and maintain. IT teams can quickly perform routine maintenance tasks or troubleshoot any issues without the need for extensive disassembly or disruption to the overall network setup.

Considerations for 1U Rack Size

Before opting for the Cisco FPR4120-NGFW-K9 Firewall Security Appliance with its 1U rack size, consider the following factors related to its deployment and compatibility.

1. Rack Depth: Check the depth of your rack to ensure that it can accommodate the 1U device without any constraints. Some racks may have limited depth, which can affect the installation and accessibility of the appliance.

2. Weight Distribution: Ensure that the rack is capable of supporting the weight of the Cisco FPR4120-NGFW-K9 and other devices mounted in the same rack. Proper weight distribution is essential to maintain stability and prevent any damage or accidents.

3. Ventilation and Cooling: The compact size of the 1U device may lead to increased heat generation. Ensure that the rack has adequate ventilation and cooling mechanisms in place to prevent overheating and optimize the performance of the firewall security appliance.
