HWIC-1GE-SFP Cisco High Speed WAN Interface Card SFP

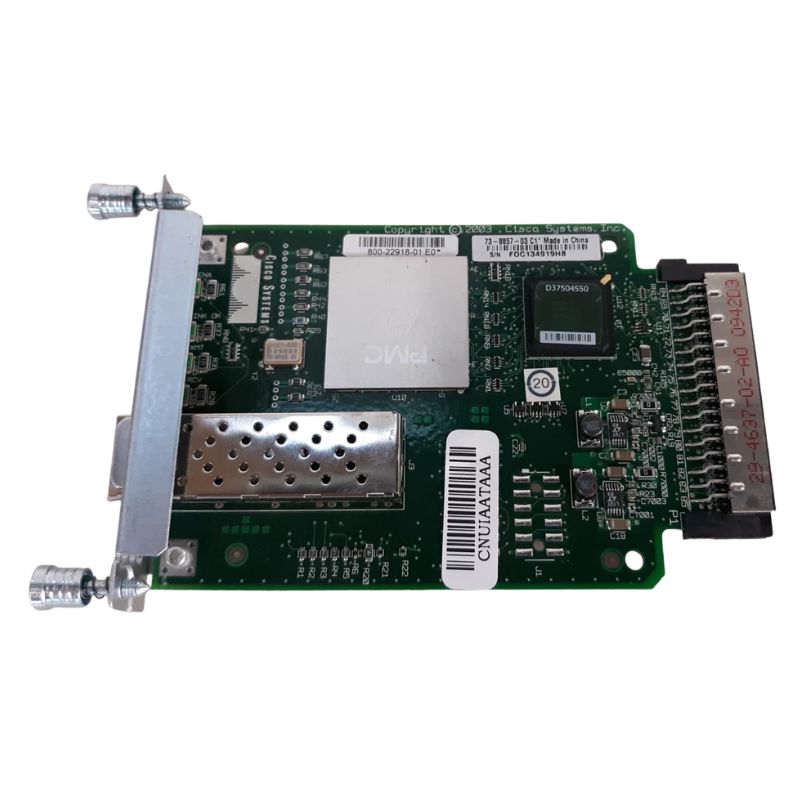

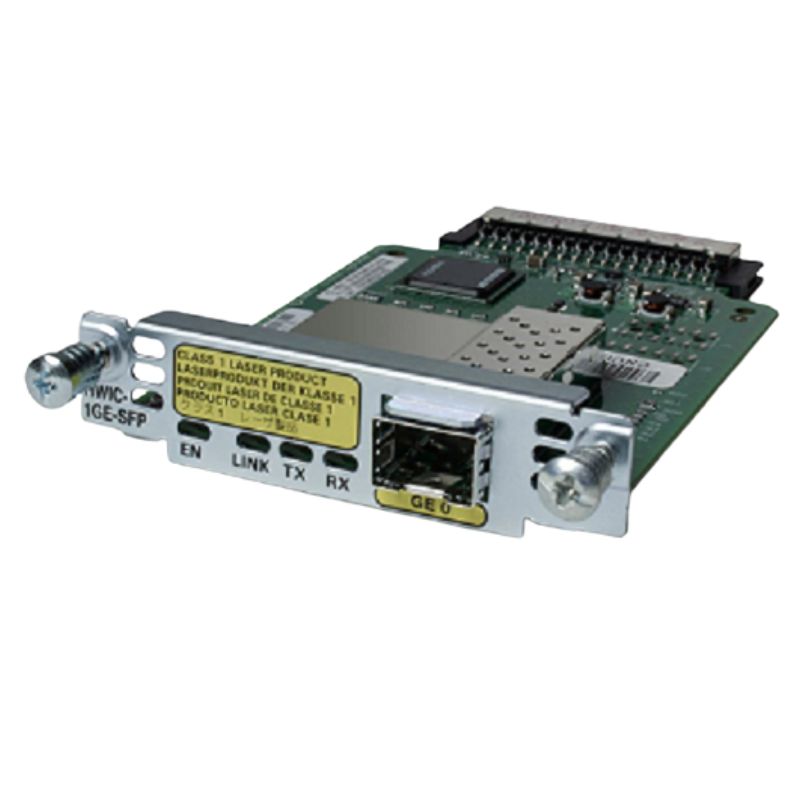

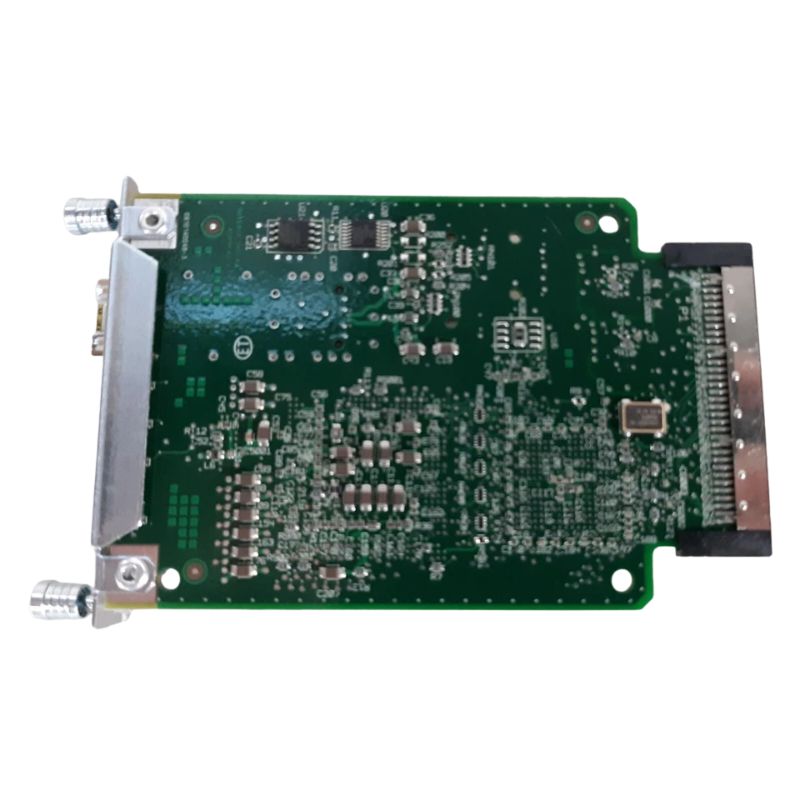

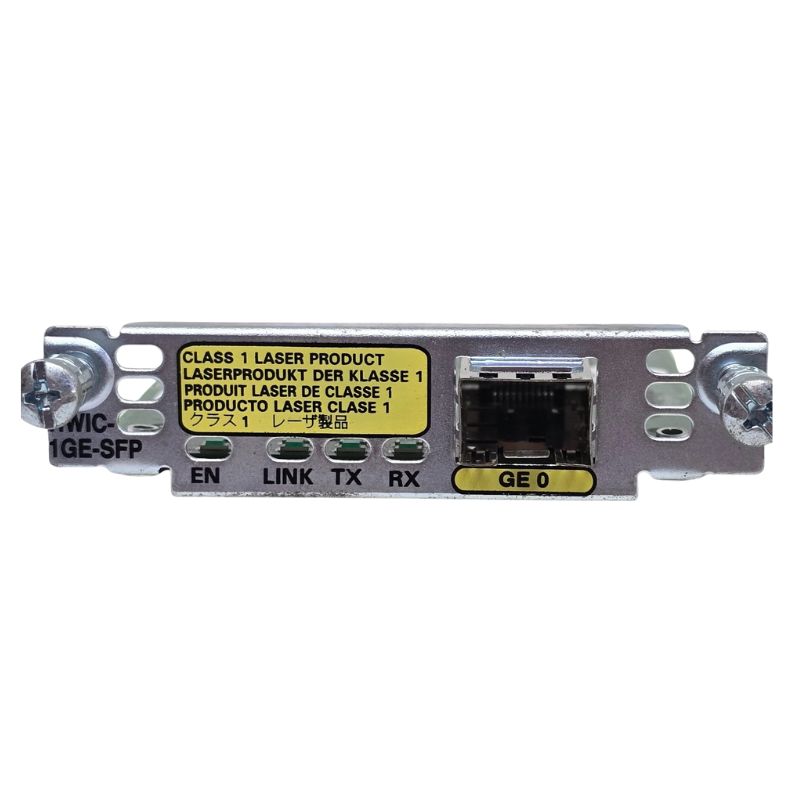

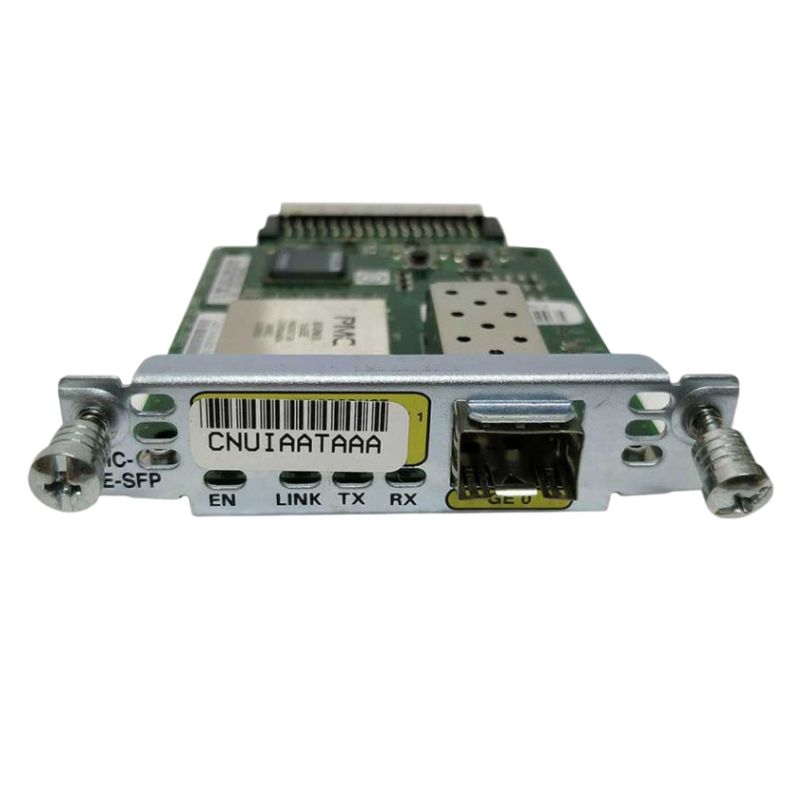

Cisco HWIC-1GE-SFP High-Speed WAN Interface Card Overview

The Cisco HWIC-1GE-SFP is a high-performance Gigabit Ethernet WAN Interface Card designed for Cisco Integrated Services Routers (ISRs). This advanced interface module enables flexible fiber and copper connectivity through an SFP (Small Form-Factor Pluggable) slot, making it a reliable solution for scalable enterprise networking, WAN expansion, and routed network architectures.

General Information

• Manufacturer: Cisco
• Part Number: HWIC-1GE-SFP
• Product Type: WAN Interface Card (HWIC Module)
• Interface Standard: Gigabit Ethernet over SFP

Technical Information

Interface Capabilities

• 1 x SFP (mini-GBIC) slot
• Gigabit Ethernet connectivity support
• Hot-swappable SFP transceiver module (card itself is not hot-swappable)

Data Transfer Performance

• Maximum Data Rate: Up to 1 Gbps (Gigabit Ethernet)
• Optimized for routed WAN and LAN uplink traffic

Compatible Transceiver Types

• Fiber optics: SX, LX/LH, ZX, BX modules
• Copper Ethernet: GLC-T modules
• Enterprise-grade SFP modular expansion support

Layer 3 Capabilities

• Direct IP address assignment on interface
• Full routed port functionality
• Optimized for WAN and enterprise routing environments

Enterprise Networking Enhancements

• IEEE 802.1Q VLAN tagging for segmentation
• Quality of Service (QoS) traffic prioritization
• MPLS support for carrier-grade networking
• Jumbo frame support up to 9,576 bytes

Supported Redundancy Features

• HSRP (Hot Standby Router Protocol)
• VRRP (Virtual Router Redundancy Protocol)
• GLBP (Gateway Load Balancing Protocol)
• Gigabit Ether Channel support

Router Compatibility

• 2811, 2821, 2851
• 3825, 3845
• Note: Not supported on Cisco 2801 model

Supported Cisco ISR G2 Series

• 1921, 1941
• 2901, 2911, 2921, 2951
• 3925, 3945

Software Requirements

• Minimum Cisco IOS: 12.3(8)T4 or later

Key Performance Notes

• Real-world throughput depends on router CPU limitations
• Designed for WAN aggregation and enterprise routing tasks
• Not intended for full line-rate saturation in legacy systems

Operational Handling Rules

• SFP modules can be replaced while system is powered on (hot-swappable)
• HWIC card itself must NOT be removed while system is running
• Proper shutdown recommended before HWIC replacement

Common Deployment Environments

• Enterprise WAN edge connectivity
• Branch office routing expansion
• Service provider access networks
• Data center aggregation layers

Core Features

• 1 x Gigabit Ethernet SFP interface slot
• Supports fiber and copper transceivers
• Layer 3 routed port architecture
• Advanced QoS, VLAN, and MPLS support
• Redundancy protocols for high availability
• Compatible with Cisco ISR G1 and G2 series routers
• Jumbo frame support up to 9,576 bytes

Cisco HWIC-1GE-SFP High Speed WAN Interface Card SFP

The Cisco HWIC-1GE-SFP High Speed WAN Interface Card is an enterprise-grade networking expansion module designed to enhance router connectivity by enabling high-speed Gigabit Ethernet WAN access through SFP (Small Form-factor Pluggable) optical or copper transceivers. This interface card is widely used in branch office routers, enterprise WAN aggregation points, service provider edge networks, and mission-critical communication infrastructures where scalable and flexible network expansion is required.

Built to integrate seamlessly with Cisco modular router platforms, this High Speed WAN Interface Card (HWIC) provides organizations with the ability to extend WAN capabilities without replacing entire routing systems. It delivers a cost-efficient and scalable approach to network evolution, enabling businesses to adapt to increasing bandwidth demands while maintaining existing infrastructure investments.

The Cisco HWIC-1GE-SFP module is particularly valuable in environments where fiber connectivity, high-speed data transmission, and flexible media types are required. It supports SFP-based uplinks, allowing IT administrators to choose from a wide range of optical fiber or copper transceivers depending on network design requirements.

Enterprise WAN Connectivity and High-Speed Networking

Modern enterprise networks require high-speed and reliable WAN connectivity to support cloud applications, distributed offices, and real-time communication systems. The Cisco HWIC-1GE-SFP High Speed WAN Interface Card addresses these requirements by providing Gigabit-level throughput and flexible connectivity options.

This WAN interface module enables organizations to build scalable network architectures that support increasing data traffic, secure remote access, and seamless inter-office communication. It is designed to operate in demanding environments where uptime, reliability, and consistent bandwidth performance are essential.

Gigabit Ethernet WAN Expansion Capability

The HWIC-1GE-SFP module delivers Gigabit Ethernet performance, enabling routers to handle high-bandwidth applications such as VoIP, video conferencing, cloud computing, virtualization, and large-scale data transfers. This makes it an ideal solution for enterprises transitioning from legacy network infrastructure to modern high-speed WAN environments.

By adding a dedicated Gigabit WAN interface, organizations can separate traffic loads, improve network segmentation, and enhance overall performance across distributed network systems.

Flexible SFP-Based Connectivity

One of the key advantages of the Cisco HWIC-1GE-SFP module is its support for SFP transceivers. This allows network administrators to choose between different types of fiber optic or copper modules based on distance, speed requirements, and infrastructure design.

This flexibility makes the module suitable for both short-range and long-range WAN deployments, ensuring compatibility with a wide variety of enterprise networking environments.

Advanced Network Architecture Integration

The Cisco HWIC-1GE-SFP High Speed WAN Interface Card is designed for seamless integration into Cisco modular routers. It enhances the capabilities of existing routing platforms without requiring complete hardware replacement, making it a cost-effective solution for network expansion.

Modular Router Compatibility

This WAN interface card is compatible with Cisco router platforms that support HWIC expansion slots. It enables IT teams to upgrade network infrastructure by simply inserting the module into available expansion bays, reducing deployment complexity and downtime.

This modular approach ensures long-term scalability and supports evolving network requirements in enterprise and service provider environments.

Scalable Network Growth Strategy

Scalability is a critical requirement in modern networking environments. The HWIC-1GE-SFP module supports incremental network expansion, allowing organizations to add bandwidth and connectivity options as needed without redesigning the entire network architecture.

This approach reduces capital expenditure while maintaining operational continuity and ensuring consistent network performance during expansion phases.

Multi-Site Enterprise Networking

In multi-site enterprise environments, the ability to scale WAN connectivity is essential. The Cisco HWIC module enables organizations to connect branch offices, remote locations, and centralized data centers using high-speed links that support secure and reliable communication.

High Performance WAN Data Transmission

Performance is a critical factor in WAN interface design, especially in environments where latency-sensitive applications are deployed. The Cisco HWIC-1GE-SFP module is engineered to deliver stable and efficient data transmission across WAN links.

Low Latency Data Processing

The module is optimized for low-latency communication, ensuring fast packet processing and minimal delay during data transmission. This is essential for applications such as real-time voice communication, video conferencing, and financial transaction systems.

Enterprise-Grade Hardware Engineering

The Cisco HWIC-1GE-SFP High Speed WAN Interface Card is built with durable hardware components designed for continuous operation in enterprise networking environments. Its engineering focuses on reliability, stability, and long-term operational performance.

Compact Modular Design

The compact HWIC form factor allows for easy installation within Cisco routers while maintaining efficient use of chassis space. This design supports high-density networking configurations where multiple interface cards may be deployed within a single device.

The modular architecture ensures simplified upgrades and maintenance procedures without requiring full system replacement.

Thermal Efficiency

The interface card is designed with thermal efficiency in mind, ensuring stable operation even under continuous high-load conditions. Effective heat management helps maintain consistent performance and extends the operational lifespan of the module.

Traffic Segmentation and Load Distribution

Network segmentation allows organizations to separate different types of traffic, improving security and performance. The HWIC module supports efficient traffic distribution by providing dedicated WAN pathways for critical applications and services.

This improves network stability and ensures that mission-critical applications receive priority bandwidth allocation.

Improved Network Reliability

By using redundant and high-speed WAN links, organizations can enhance network reliability and reduce downtime risks. The Cisco HWIC-1GE-SFP module supports resilient network configurations that help maintain continuous connectivity even in the event of link failures.

Security and Network Control Features

Security is a fundamental requirement in WAN connectivity. The Cisco HWIC-1GE-SFP module supports secure data transmission by integrating with Cisco router security frameworks and access control policies.

Enterprise Branch Connectivity

Organizations use this module to connect branch offices to central headquarters, enabling secure and high-speed communication across distributed locations.

Data Center and Cloud Integration

The module supports high-speed connectivity between data centers and cloud environments, ensuring efficient data synchronization and workload distribution.
