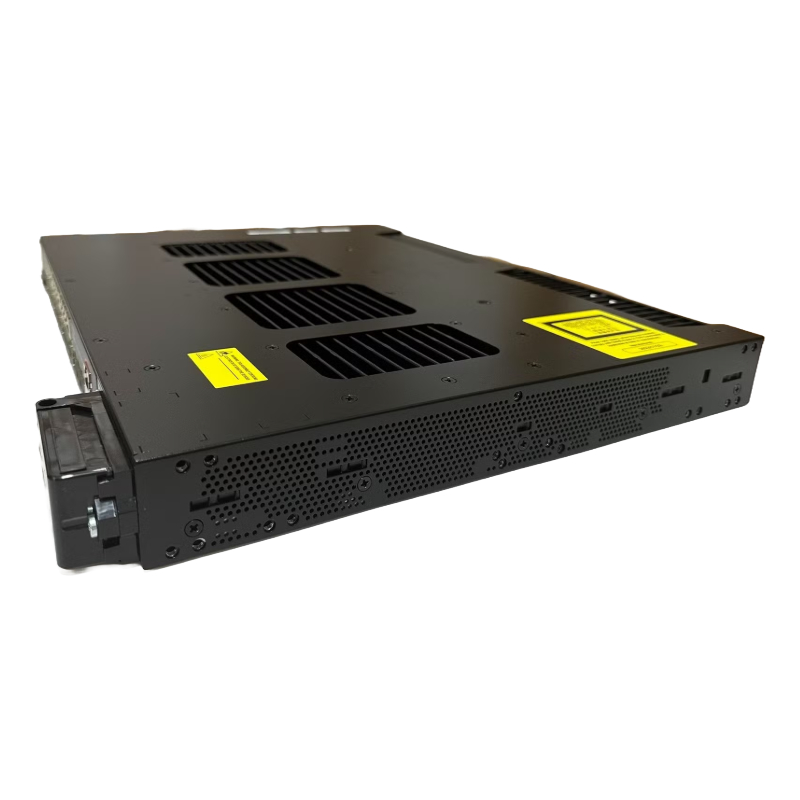

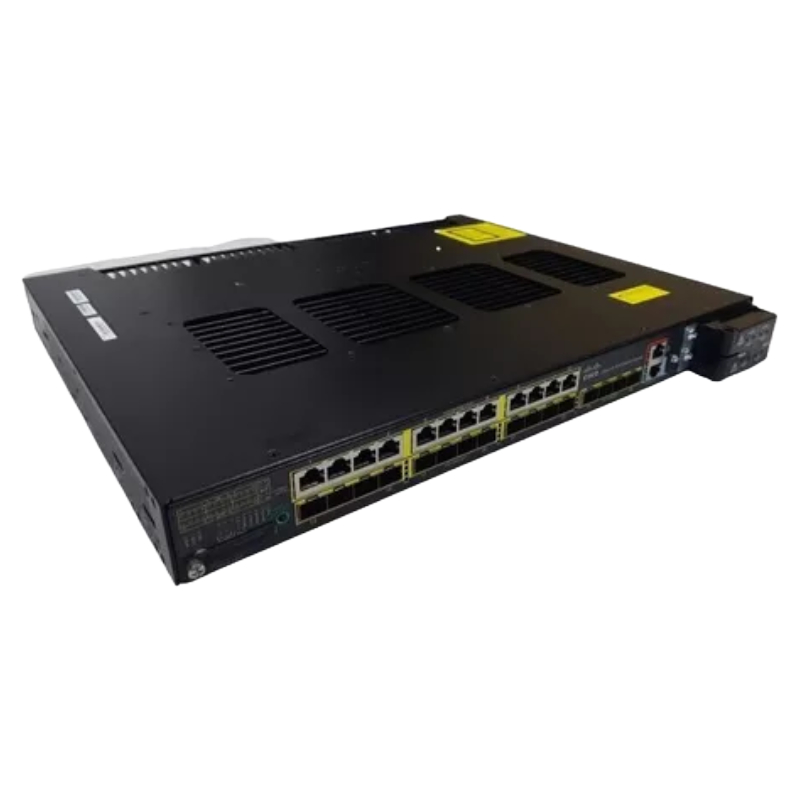

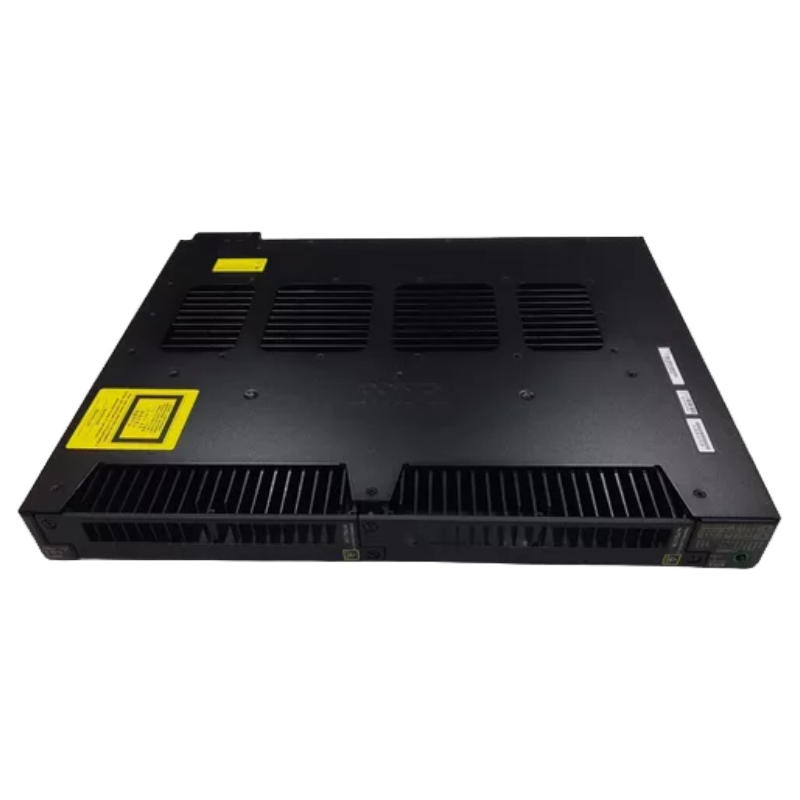

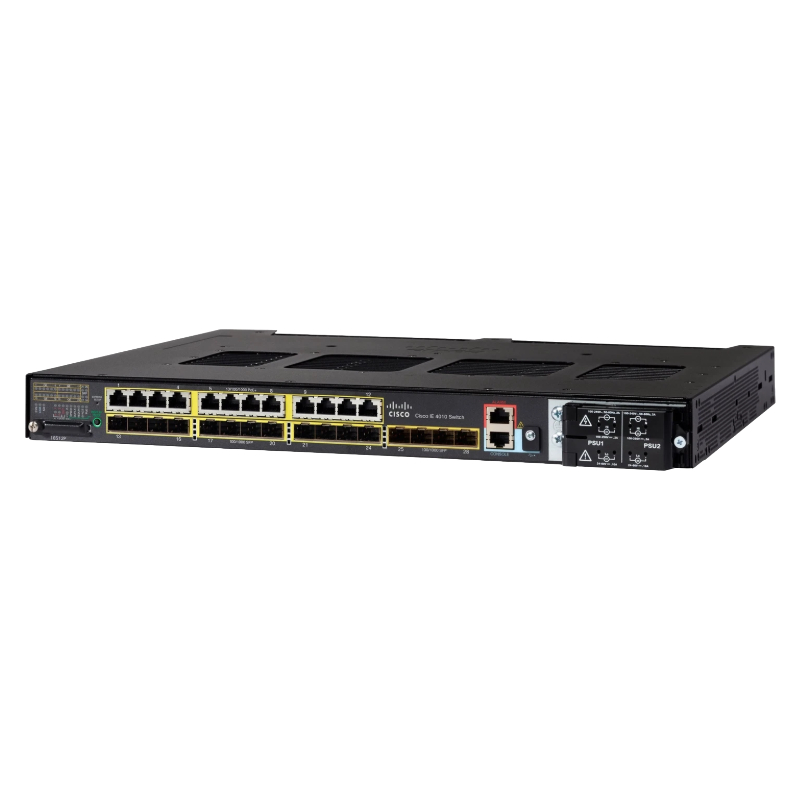

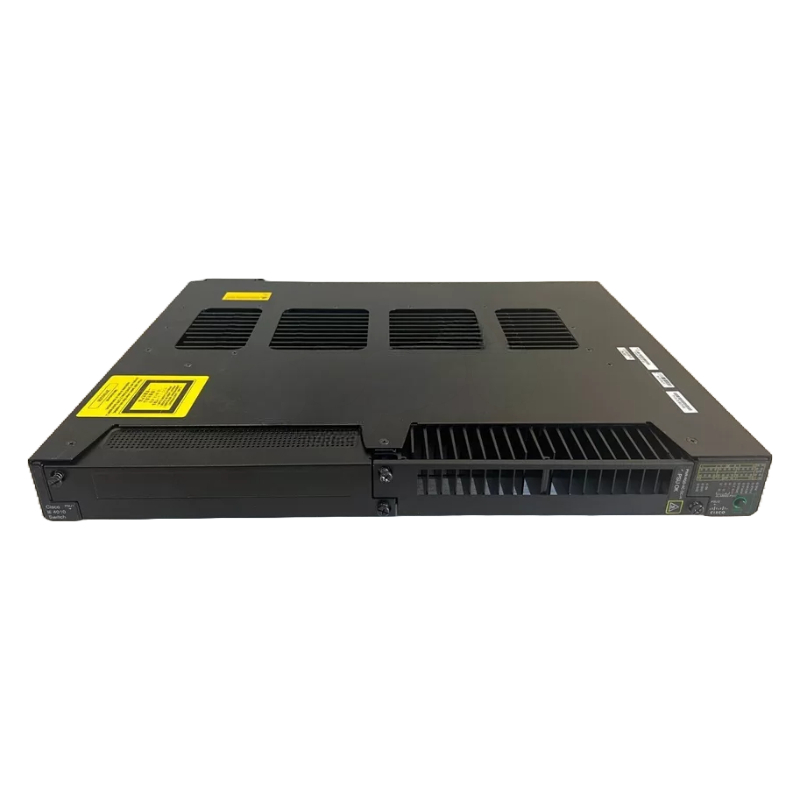

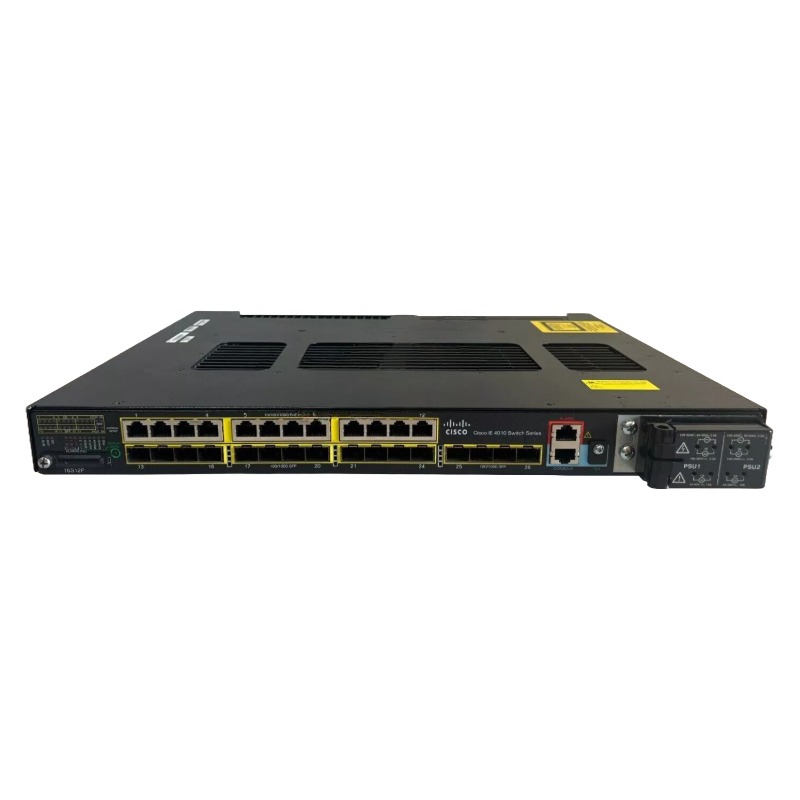

IE-4010-16S12P Cisco 1U Rack Mountable 28 Ports Managed Switch

Cisco IE-4010-16S12P 28 Ports Managed Switch Overview

The Cisco IE-4010-16S12P is a high-performance 28-port managed switch, engineered for industrial environments. Ideal for network-intensive operations, this 1U rack-mountable device ensures reliable connectivity and flexible deployment options.

Key Features of Cisco IE-4010-16S12P

• Manufacturer: Cisco
• Model/Part Number: IE-4010-16S12P
• Device Type: Industrial Ethernet 4010 Series Switch
• Total Ports: 28 ports, including PoE+ and uplink SFP
• Enclosure: DIN rail mountable, 1U form factor
• Managed Layer 3 support with modular capabilities

Network and Port Specifications

• 12 x 10/100/1000Base-T PoE+ ports
• 4 x 10/100/1000Base-T/SFP uplink ports
• 12 x 1000Base-TX SFP ports for flexible fiber connections
• Interfaces include RJ-45 console, Mini-USB Type B, and multiple SFP uplinks
• 1 expansion slot (total), supporting future network growth

Performance and Capacity

• Forwarding Bandwidth: 28 Gbps
• Switching Bandwidth: 56 Gbps
• Supports up to 1000 VLANs and 1000 IGMP groups
• MAC Address Table: 16k entries for extensive device connectivity
• NAT translations supported: 128

Routing and Management

• Routing Protocols: Static IPv4, IGMPv2, IGMPv3
• Remote Management: SNMP v1/v2/v3, RMON 2, Telnet, SSH, HTTP, CLI, SCP
• Redundant Power Supply Supported for uninterrupted operations

Power and Physical Specifications

• Input Voltage: AC 120/230V, 50-60Hz
• Dimensions: 17.5 in x 14 in x 1.8 in
• Weight: 12.74 lbs

Cisco IE-4010-16S12P Managed Switch

The Cisco IE-4010-16S12P 1U Rack Mountable 28 Ports Managed Switch is part of the robust 4010 Series, engineered specifically for industrial environments and mission-critical network deployments. Designed with resilience and scalability in mind, this managed switch provides organizations with the ability to connect multiple devices securely while maintaining high performance and minimal downtime. The 28-port configuration ensures comprehensive connectivity options for complex industrial networks, including support for both standard Ethernet devices and Power over Ethernet (PoE) powered equipment.

This model is particularly valued in industrial automation, manufacturing plants, and utility networks where network stability is paramount. By integrating advanced Layer 2 and Layer 3 capabilities, the Cisco IE-4010-16S12P ensures efficient traffic management, optimal resource allocation, and enhanced reliability for time-sensitive data transmission. Its 1U rack-mountable form factor allows seamless integration into existing data center or industrial rack setups, offering a compact and space-saving networking solution without compromising on performance.

Key Features and Performance Capabilities

High-Density Connectivity

The Cisco IE-4010-16S12P delivers a total of 28 ports, combining 16 standard Ethernet ports with 12 high-performance PoE ports. This combination enables simultaneous data transfer and device powering, eliminating the need for separate power infrastructure for PoE-enabled devices. High-density connectivity ensures that organizations can support a growing number of devices, from industrial sensors and controllers to IP cameras and wireless access points, without network bottlenecks or configuration complexity.

Advanced Managed Switch Functions

As a fully managed switch, the Cisco IE-4010-16S12P provides comprehensive network control and monitoring capabilities. Network administrators gain access to advanced features such as VLAN segmentation, Quality of Service (QoS) prioritization, and traffic shaping, which allow critical applications to maintain optimal performance. The device also supports robust security features, including Access Control Lists (ACLs), secure authentication protocols, and role-based access control, which collectively safeguard sensitive industrial data against unauthorized access and cyber threats.

Industrial-Grade Reliability

Built to withstand harsh environmental conditions, the IE-4010-16S12P is engineered with industrial-grade components that resist extreme temperatures, vibration, and electromagnetic interference. This reliability is essential in manufacturing plants, power distribution networks, and other industrial applications where consistent network operation is critical. The switch supports redundant power inputs and features rapid failover capabilities, ensuring uninterrupted connectivity even in the event of a power supply or link failure.

Power over Ethernet (PoE) Capabilities

Flexible Device Power Management

One of the standout features of the Cisco IE-4010-16S12P is its PoE support on 12 of its 28 ports. This functionality allows the switch to deliver electrical power directly to connected devices such as IP cameras, wireless access points, and industrial controllers. By centralizing power management, organizations can reduce cabling complexity, lower installation costs, and ensure reliable operation of critical network endpoints. The switch supports dynamic PoE allocation, enabling optimal power distribution based on device requirements, which maximizes energy efficiency and network reliability.

Enhanced Energy Efficiency

The IE-4010-16S12P is designed with energy-efficient mechanisms that reduce overall power consumption while maintaining peak performance. The switch automatically detects idle or low-activity ports and adjusts power output accordingly, conserving energy without affecting network functionality. This intelligent energy management aligns with modern sustainability practices and contributes to reduced operational costs in large-scale industrial networks.

Advanced Layer 2 and Layer 3 Networking

VLAN Segmentation and Traffic Management

By supporting both Layer 2 and Layer 3 functionalities, the Cisco IE-4010-16S12P enables organizations to create segmented, secure, and high-performing network environments. VLAN configuration allows network administrators to separate traffic logically, isolating critical systems from non-essential devices. This segmentation enhances both security and network efficiency by reducing broadcast traffic and minimizing the risk of unauthorized access to sensitive segments.

Routing and Redundancy Features

The Layer 3 capabilities of the IE-4010-16S12P include static routing, RIP, and OSPF support, which facilitate dynamic traffic management across larger and more complex network topologies. The switch also features rapid spanning tree protocol (RSTP) and link aggregation control protocol (LACP), enabling high-availability network designs with minimized downtime and improved fault tolerance. These advanced protocols ensure that mission-critical operations continue uninterrupted even in the event of link or hardware failures.

Industrial Applications and Use Cases

Manufacturing and Automation

In manufacturing environments, the Cisco IE-4010-16S12P supports industrial automation systems that require deterministic and low-latency networking. Programmable logic controllers (PLCs), robotic systems, and sensor networks all benefit from the switch’s high throughput, PoE support, and industrial-grade resilience. By providing reliable connectivity across production lines, the switch helps maintain continuous operations and reduces the risk of costly production downtime.

Transportation and Utilities

Transportation systems and utility networks also leverage the IE-4010-16S12P for secure and reliable network management. Intelligent transportation systems, traffic control devices, and remote monitoring infrastructure require consistent data flow and real-time communication. The switch’s redundancy features, robust security, and ability to handle large volumes of data traffic make it an ideal choice for these demanding industrial environments.

Surveillance and Security Networks

Security and surveillance networks rely heavily on PoE-powered devices such as IP cameras and access control systems. The 12 PoE ports on the IE-4010-16S12P allow organizations to deploy high-density surveillance setups without additional power infrastructure. Advanced QoS features ensure that video streams and critical alerts receive priority bandwidth, maintaining high-quality real-time monitoring and security reporting.

Security Features and Network Protection

Access Control and Authentication

The Cisco IE-4010-16S12P incorporates advanced security features designed to protect industrial networks from unauthorized access. Role-based access control (RBAC) allows administrators to assign permissions based on user roles, limiting exposure of critical configuration settings. 802.1X authentication ensures that only authorized devices can connect to the network, strengthening overall security and minimizing vulnerability to intrusions.

Traffic Encryption and Threat Mitigation

To further enhance network security, the switch supports encrypted management protocols such as HTTPS, SSH, and SNMPv3. These protocols safeguard sensitive network communications from interception and tampering. Additionally, ACLs and port security configurations provide granular control over network traffic, allowing organizations to prevent unauthorized data transfers and mitigate potential security threats before they impact operations.

Scalability and Future-Proof Design

Modular and Expandable Infrastructure

The IE-4010-16S12P is designed to grow with the needs of industrial networks. Its modular architecture allows organizations to expand port capacity and integrate additional network devices as operational demands increase. This scalability ensures long-term network viability and minimizes the need for costly replacements or disruptive upgrades.

Support for Emerging Technologies

As industrial networks evolve, the switch’s support for IPv6, enhanced routing protocols, and advanced QoS mechanisms ensures compatibility with modern applications and emerging technologies. This future-proof design enables organizations to adopt innovative industrial solutions, including Internet of Things (IoT) devices, smart factory automation, and real-time analytics, without network limitations.

Reliability and Maintenance Considerations

Redundant Power Supplies and Failover

The Cisco IE-4010-16S12P supports dual power inputs, enabling seamless failover in the event of a power supply failure. This redundancy is critical in environments where uninterrupted network operation is essential. The switch’s internal monitoring and diagnostic tools allow administrators to detect potential issues before they affect network performance, ensuring high availability and consistent operation.

Durability in Harsh Environments

Industrial networks often operate under extreme environmental conditions, including high temperatures, vibration, dust, and humidity. The IE-4010-16S12P is engineered with rugged components and conforms to stringent industrial standards to provide reliable operation in such conditions. Its robust construction reduces the risk of hardware failure, extending the operational lifespan of the switch and lowering maintenance costs over time.
