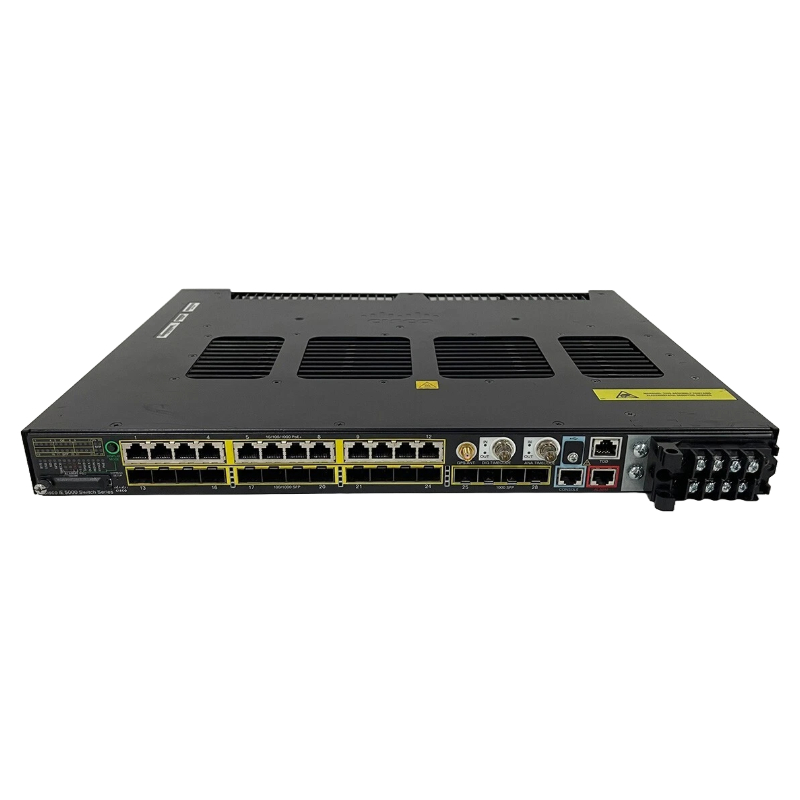

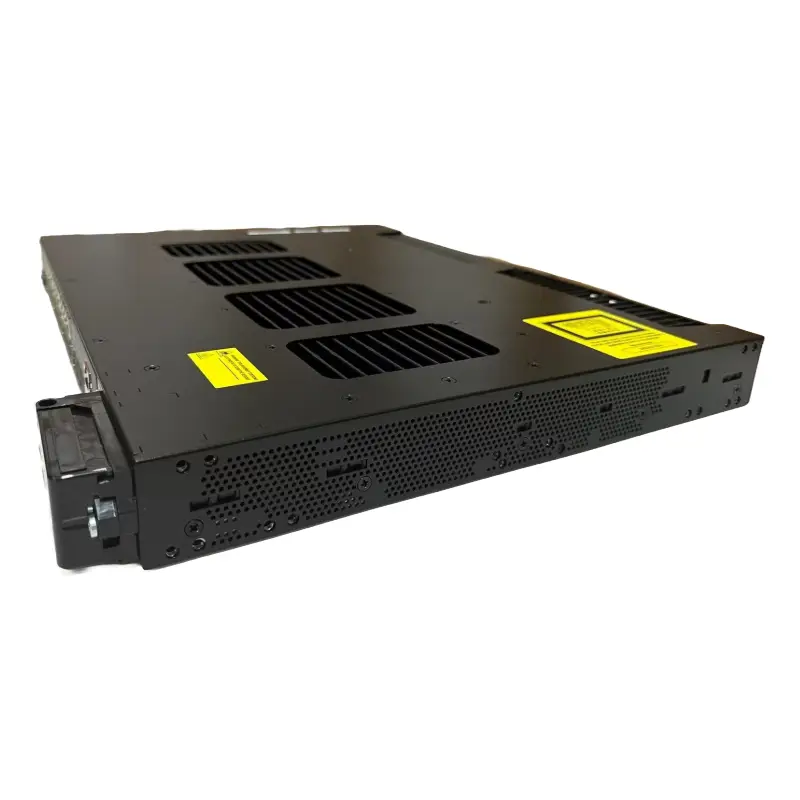

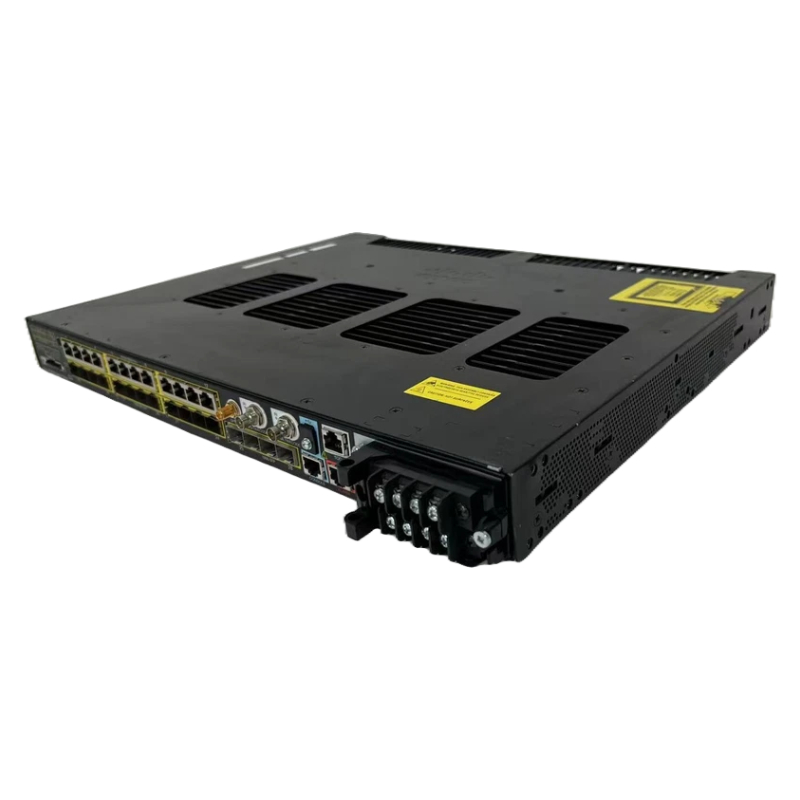

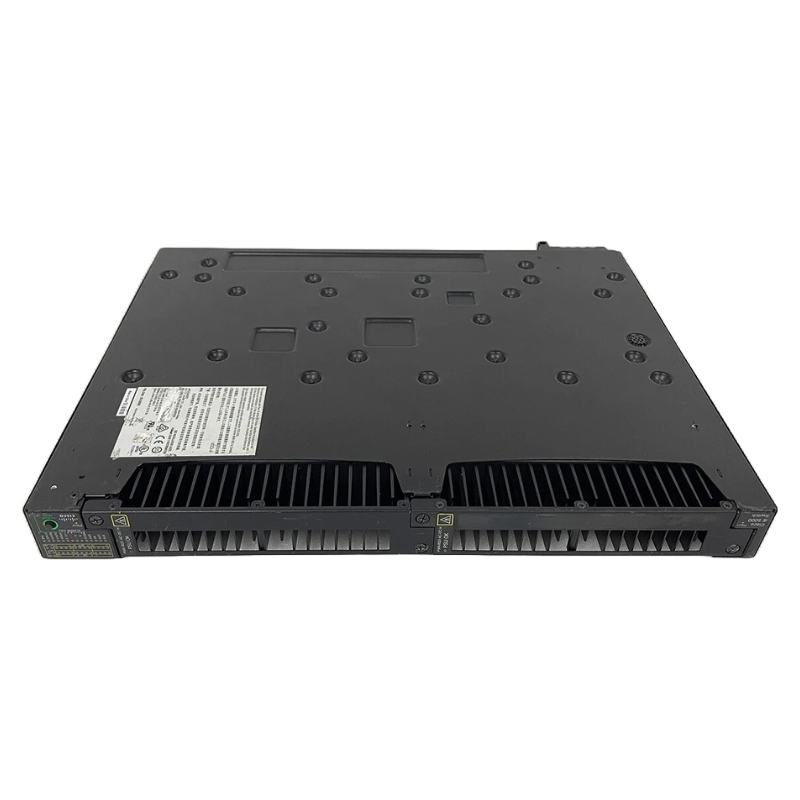

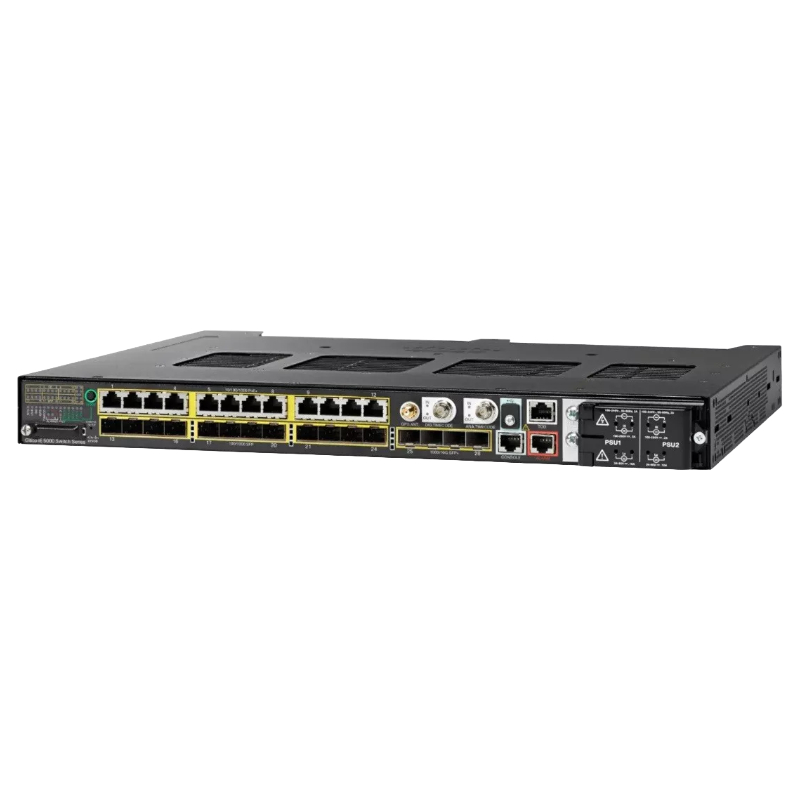

IE-5000-16S12P Cisco Industrial Ethernet Switch Managed 2 Ports 5000 Series

Cisco IE-5000-16S12P Industrial Ethernet Switch Overview

The Cisco IE-5000-16S12P is a high-performance managed industrial switch designed for robust network environments. Engineered to deliver reliable connectivity and advanced features, this switch ensures seamless operation in critical applications.

Key Features

• Manufacturer: Cisco
• Part Number or SKU: IE-5000-16S12P
• Device Type: Managed Ethernet Switch
• Port Count: 28 Ports (16 Gigabit SFP + 12 10/100/1000 PoE+)

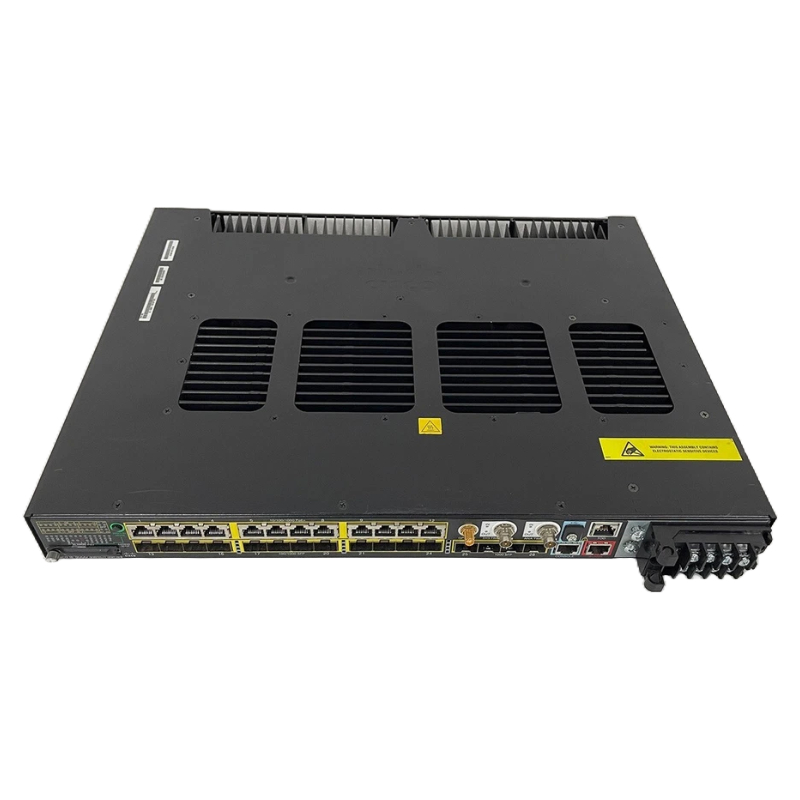

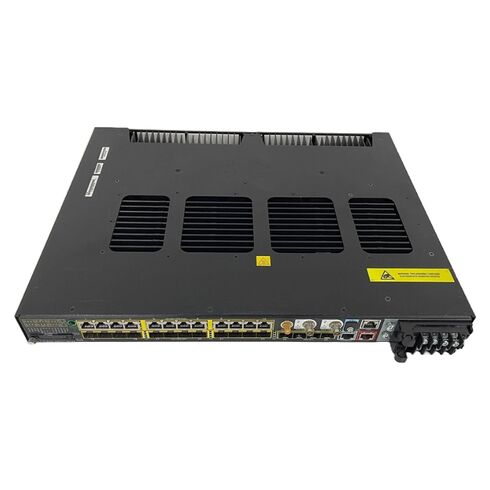

• Enclosure: 1U Rack-mountable
• Supports Power over Ethernet (PoE+)
• Advanced routing protocols for versatile network management

Technical Specifications

Ports & Interfaces

• 16 x Gigabit SFP slots
• 12 x 10/100/1000 RJ-45 PoE+ ports
• 4 x SFP uplinks
• 1 x Mini-USB Type B port
• 1 x Console RJ-45 port
• 1 x Antenna input for wireless modules

Expansion & Memory

• 1 total SD memory card slot (0 free)
• Supports firmware upgrades and configuration storage

Power & Redundancy

• Internal power supply (not installed)
• Supports power redundancy with 1+1 scheme
• Operational power consumption: 90 W
• PoE+ capabilities to power connected devices

Performance & Networking

• MAC Address Table: 16,000 entries
• Routing Protocols: OSPF, BGP-4, IS-IS, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPF for IPv6, Static IPv4 Routing, Policy-Based Routing (PBR), RIPng, Bidirectional Forwarding Detection (BFD)
• Remote Management Protocols: SNMPv1/v2/v3, RMON, Telnet, HTTP, TFTP, SSH, CLI, SCP

Physical Dimensions & Weight

• Width x Depth x Height: 17.5 in x 14 in x 1.8 in
• Weight: 13.69 lbs

Cisco IE-5000-16S12P Industrial Ethernet Switch Overview

The Cisco IE-5000-16S12P Industrial Ethernet Switch is a highly reliable and robust network solution designed specifically for demanding industrial environments. As part of Cisco’s 5000 Series, this managed switch offers unparalleled performance, advanced security features, and extensive connectivity options to ensure seamless network operations in industrial settings. With 28 total ports, including 16 SFP and 12 PoE+ ports, this switch is engineered to support a wide range of industrial applications, from factory automation to critical infrastructure networking.

Advanced Industrial Network Performance

The Cisco IE-5000-16S12P switch is built to deliver high-performance networking capabilities for industrial environments. With support for both Layer 2 and Layer 3 functionality, it enables highly efficient data transfer, routing, and network segmentation. The switch is designed to handle harsh conditions, including extreme temperatures, vibrations, and electromagnetic interference, making it suitable for deployment in manufacturing plants, transportation systems, energy distribution networks, and other industrial facilities.

Layer 2 and Layer 3 Features

The switch supports extensive Layer 2 features, including VLAN segmentation, Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP). These capabilities ensure redundancy, prevent loops, and enhance network reliability. On the Layer 3 side, the IE-5000-16S12P provides static routing, routing protocols, and advanced multicast support, allowing industrial networks to scale efficiently while maintaining optimal performance. The combination of Layer 2 and Layer 3 capabilities ensures the switch can handle complex industrial network topologies and meet stringent operational requirements.

High-Density Port Configuration

With 16 SFP ports and 12 PoE+ ports, the Cisco IE-5000-16S12P provides high-density connectivity for various industrial devices. The SFP ports offer flexible fiber connectivity options, supporting both short and long-distance connections to meet the unique requirements of industrial facilities. Meanwhile, the PoE+ ports deliver reliable power to connected devices such as IP cameras, wireless access points, and industrial sensors, eliminating the need for separate power sources and simplifying network infrastructure. This combination of high-speed fiber connectivity and PoE+ support ensures efficient integration of critical devices into the network.

Resilient Design for Industrial Environments

Industrial networks require switches that can operate reliably in challenging environments, and the Cisco IE-5000-16S12P meets this requirement with a rugged design. The switch is equipped with a hardened chassis, capable of withstanding extreme temperature variations, from sub-zero to high heat conditions, as well as mechanical stress from vibrations and shocks. Additionally, the switch is resistant to electromagnetic interference (EMI), ensuring stable network performance even in environments with high electrical noise. These features make it ideal for deployment in factories, refineries, mining operations, and transportation hubs where environmental conditions can compromise standard network devices.

Redundant Power and Connectivity Options

To ensure continuous operation in industrial settings, the Cisco IE-5000-16S12P supports redundant power inputs and dual network connections. The redundant power design allows the switch to maintain functionality even if one power source fails, while dual uplink ports provide network redundancy and failover capabilities. This ensures minimal downtime and maximizes network reliability for mission-critical applications. Industrial operators can configure failover scenarios to maintain uninterrupted communication across the network, which is essential for safety and operational efficiency.

Security Features and Network Protection

Security is a critical concern in industrial networking, and the Cisco IE-5000-16S12P addresses this with comprehensive security features. The switch supports IEEE 802.1X authentication, ensuring that only authorized devices can access the network. Additionally, advanced Access Control Lists (ACLs) allow administrators to control traffic flow and prevent unauthorized access. The switch also includes features such as Dynamic ARP Inspection (DAI), IP Source Guard, and DHCP Snooping, providing protection against common network attacks and unauthorized communications. These security mechanisms ensure the integrity and confidentiality of data transmitted across industrial networks.

Segmentation and Policy Enforcement

Network segmentation is critical in industrial environments to prevent cross-contamination of traffic between different systems. The Cisco IE-5000-16S12P supports VLAN segmentation, enabling administrators to separate traffic based on device type, function, or security level. Policy-based controls allow the application of specific network rules for individual devices or groups, ensuring that sensitive systems are protected from unauthorized access. Combined with real-time monitoring and logging, these features enable proactive network management and reduce the risk of disruptions caused by malicious activity or configuration errors.

Energy Efficiency and Environmental Considerations

Industrial environments not only require reliable performance but also energy-efficient solutions to reduce operational costs and environmental impact. The Cisco IE-5000-16S12P switch is designed with energy-saving features, including intelligent PoE management, power optimization for SFP ports, and adaptive cooling mechanisms. The PoE+ capabilities allow the switch to deliver only the required power to connected devices, reducing energy wastage. Additionally, the switch meets stringent environmental standards, ensuring low power consumption and efficient heat dissipation without compromising performance. These features make the switch both economically and environmentally responsible.

Flexible Deployment Options

The Cisco IE-5000-16S12P offers flexible deployment options to suit a variety of industrial settings. The switch can be mounted on DIN rails or installed in standard racks, allowing integration into existing network infrastructure with minimal disruption. The compact form factor and modular design make it suitable for constrained spaces such as control cabinets and remote enclosures. Additionally, the switch supports both copper and fiber connectivity, providing versatility in deployment scenarios that require varying distances and media types. This flexibility ensures that industrial operators can deploy the switch in the most efficient and cost-effective manner.

Reliability and Longevity

One of the key advantages of the Cisco IE-5000-16S12P is its exceptional reliability and longevity. Designed for industrial-grade applications, the switch undergoes rigorous testing to withstand harsh operating conditions and maintain consistent performance over time. Its components are sourced for durability, and the overall design focuses on minimizing downtime and maintenance requirements. With Cisco’s reputation for quality and support, industrial operators can rely on this switch to deliver long-term performance, ensuring operational continuity and reducing the total cost of ownership.

Scalability for Industrial Networks

The Cisco IE-5000-16S12P is built to support scalable industrial networks, allowing organizations to expand their infrastructure as operational needs grow. Its high port density, Layer 2/3 capabilities, and advanced management features enable seamless integration with existing network components, including routers, controllers, and other switches. Industrial operators can scale their networks without the need for significant redesigns, ensuring efficient growth while maintaining network performance and security standards. The switch’s modular architecture also allows future upgrades, extending its operational life and adaptability to evolving industrial demands.

Industrial Applications and Use Cases

The Cisco IE-5000-16S12P is suitable for a wide range of industrial applications. In manufacturing, it can connect PLCs, robotic systems, sensors, and monitoring devices, ensuring real-time data transfer for automation and process control. In transportation systems, the switch can manage communication between traffic signals, surveillance cameras, and intelligent transportation systems. In energy and utilities, it supports reliable networking for substations, power generation, and smart grid applications. The switch’s combination of reliability, performance, and security makes it an ideal choice for industries that require uninterrupted network operations and precise control over critical infrastructure.

Integration with IoT and Smart Systems

As industrial IoT adoption grows, the Cisco IE-5000-16S12P provides the connectivity and performance needed to support smart devices and sensors. Its PoE+ capabilities allow direct powering of IoT devices, while its high-speed SFP ports ensure efficient data transfer for time-sensitive applications. The switch can be integrated into broader IoT ecosystems, enabling predictive maintenance, data analytics, and process optimization. By supporting advanced industrial protocols and real-time monitoring, the IE-5000-16S12P ensures that industrial operators can leverage IoT technologies to improve efficiency and operational insights.
