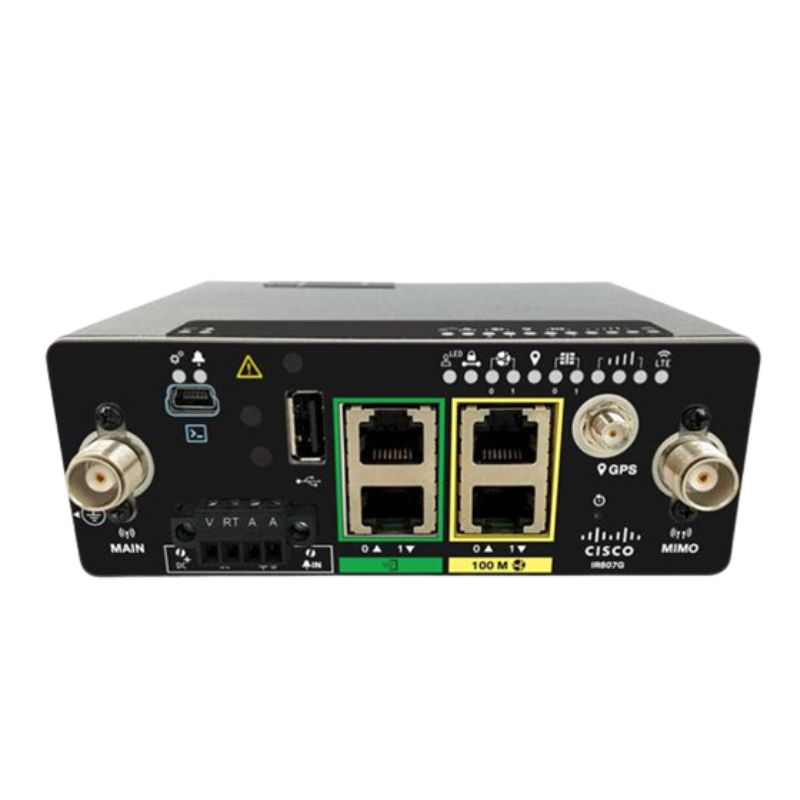

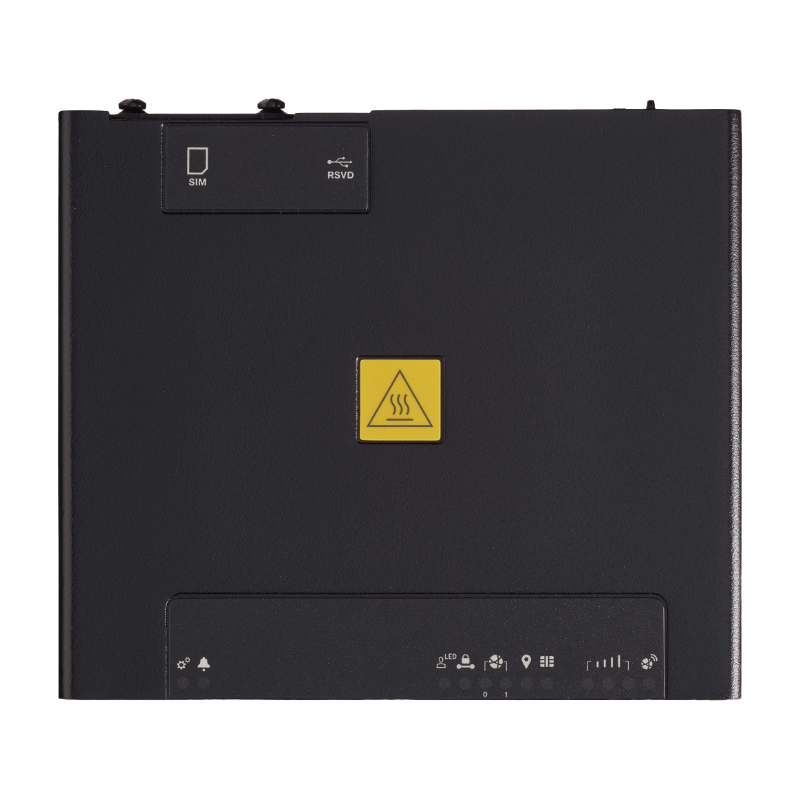

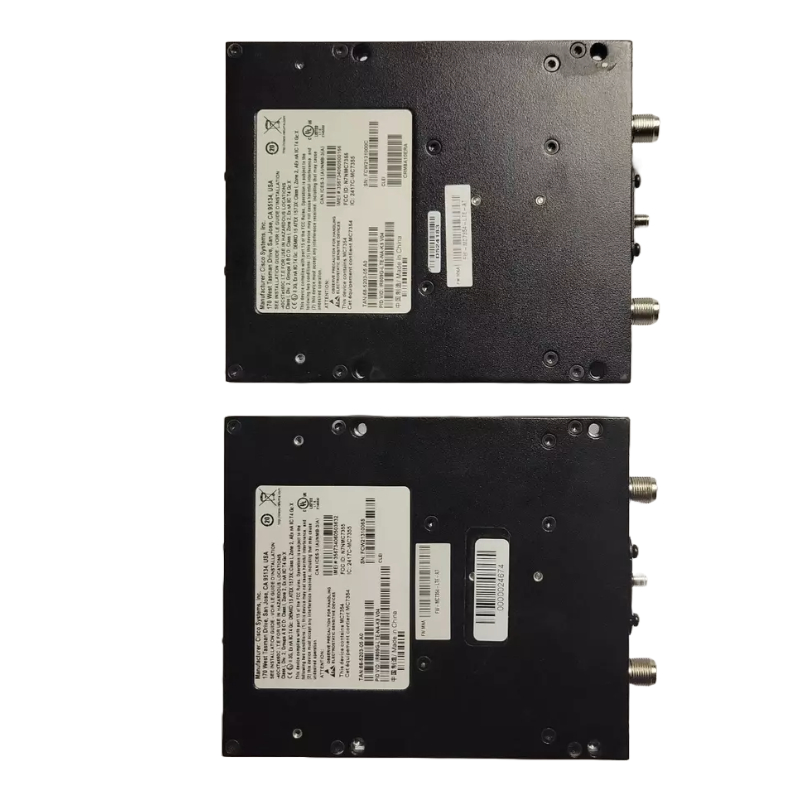

IR807G-LTE-NA-K9 Cisco Industrial Wireless Rail Mount ISR

The Cisco IR807G-LTE-NA-K9 Integrated Services Router is a rugged, rail-mountable networking solution designed for industrial environments. It combines LTE wireless connectivity with wired Ethernet ports, ensuring reliable performance in demanding conditions.

Manufacturer Details

• Brand Name: Cisco
• Model Number: IR807G-LTE-NA-K9
• Product Category: Wireless Router

Key Specifications

Port Configuration

• Total Ports: 4
• Mounting Options: Din Rail Mountable, Wall Mountable

Connectivity Features

• Connectivity Types: Wireless, Wired
• Cellular Protocols Supported: GSM, GPRS, UMTS, EDGE, HSPA+, LTE, DC-HSPA+
• Maximum Transfer Speed: 100 Mbps

Power Requirements

• Power Source: External Power Adapter
• Required Voltage: DC 9.6 – 60 V
• Operational Power Consumption: 10 Watts

Management & Protocols

Data Link Protocols

• Ethernet, Fast Ethernet

Network and Transport Protocols

• RSVP, FTP, DHCP, DDNS, RTP

Routing Protocols

• RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE
• Policy-based Routing, RSVP

Remote Management

• Supported Protocols: SNMP v1, v2, v3, HTTP, HTTPS, SSH-2, CLI

Advanced Features

• NAT Support
• Low-Latency Queuing
• Class-Based Weighted Fair Queuing
• Weighted Fair Queuing
• Spanning Tree Protocol (STP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• DHCP Server Functionality
• Virtual Route Forwarding-Lite
• DNS Proxy
• DHCP Relay
• DHCP Client Support
• Virtual Routing and Forwarding (VRF)
• DiffServ Code Point (DSCP) Support
• Control Plane Protection (CoPP)
• Embedded Event Manager

Compliance Standards

• IEEE 802.1D
• CB
• RSS-102
• EN 61000 Series
• UL 60950-1 Second Edition
• FCC CFR47 Part 15 C
• IEC 60950-1 Second Edition
• IP30
• CISPR 11 Class A
• ANSI
• CAN/CSA C22.2 No. 60950-1 Second Edition
• Other Standards: EN 300 386, EN 301 908 Series, etc.

Memory and Storage

• RAM: 1 GB (Installed) / 1 GB (Maximum)
• Flash Memory: 4 GB (Installed) / 4 GB (Maximum)

Status Indicators

• System Status
• Status LED
• WAN
• VPN
• GPS

Expansion and Connectivity

Interfaces

• WAN/LAN: 2 x 10Base-T/100Base-TX – RJ-45
• Serial: 2 x RS-232
• USB: 1 x Mini-USB Type B

Expansion Slots

• 2 Slots (Total) / 2 Slots (Free) for SIM

Cisco IR807G-LTE-NA-K9 Industrial Integrated Router Overview

The Cisco IR807G-LTE-NA-K9 4 Ports Industrial Wireless Rail Mountable Integrated Services Router is engineered to deliver highly reliable, secure, and scalable connectivity for industrial and remote environments. Designed for rugged deployments, this industrial-grade router integrates advanced networking capabilities with cellular connectivity, making it ideal for industries such as transportation, utilities, oil and gas, manufacturing, and smart city infrastructure. Its compact design, combined with DIN rail mount compatibility, ensures seamless installation in harsh environments where space and durability are critical factors.

Industrial-Grade Design for Harsh Environments

The Cisco IR807G-LTE-NA-K9 router is specifically built to withstand extreme environmental conditions. It operates efficiently across a wide temperature range and is resistant to dust, vibration, and electrical interference. This durability ensures uninterrupted performance in challenging industrial settings such as factory floors, railway systems, and outdoor installations.

Rugged Construction and Longevity

The router features a hardened metal chassis that provides enhanced protection against physical damage. This industrial-grade construction guarantees long-term reliability, reducing maintenance costs and ensuring continuous operation. The robust build quality aligns with industry standards for mission-critical networking equipment.

Environmental Compliance and Reliability

The Cisco IR807G-LTE-NA-K9 meets strict industrial compliance standards, ensuring safe operation in hazardous locations. It supports extended temperature ranges and offers high resistance to electromagnetic interference, making it suitable for deployment in electrically noisy environments.

Integrated LTE Connectivity for Remote Networking

One of the key features of the Cisco IR807G-LTE-NA-K9 router is its integrated LTE connectivity. This functionality enables reliable wireless communication in remote or mobile environments where traditional wired connections are not feasible. The LTE capability ensures consistent network performance, even in geographically dispersed locations.

High-Speed Cellular Data Transmission

The integrated LTE module provides high-speed data transfer rates, enabling real-time communication between remote devices and central systems. This feature is particularly valuable for applications such as remote monitoring, telemetry, and industrial automation.

Seamless Failover and Redundancy

The router supports automatic failover mechanisms that switch between wired and wireless connections to maintain continuous connectivity. This redundancy ensures minimal downtime and enhances network reliability, which is essential for mission-critical applications.

Optimized Network Performance

Advanced traffic management and Quality of Service capabilities allow the router to prioritize critical data streams. This ensures optimal performance for latency-sensitive applications such as video surveillance, SCADA systems, and industrial control processes.

Four-Port Ethernet Switching Capabilities

The Cisco IR807G-LTE-NA-K9 includes four integrated Ethernet ports that provide flexible connectivity options for various devices. These ports support high-speed data transmission and enable seamless integration with existing network infrastructure.

Flexible Network Integration

The four Ethernet ports allow multiple devices to connect directly to the router, simplifying network design and reducing the need for additional hardware. This flexibility is particularly beneficial in industrial environments where space and resources are limited.

Enhanced Data Throughput

The router supports fast Ethernet connectivity, ensuring efficient data transfer between connected devices. This capability is crucial for applications that require high bandwidth, such as video streaming and data-intensive industrial operations.

Secure Device Connectivity

Built-in security features protect connected devices from unauthorized access and cyber threats. The router implements advanced encryption and authentication mechanisms to safeguard network communications.

Advanced Security Features for Industrial Networks

Security is a critical aspect of industrial networking, and the Cisco IR807G-LTE-NA-K9 router incorporates robust security measures to protect sensitive data and infrastructure. These features ensure secure communication across both wired and wireless networks.

Comprehensive Threat Protection

The router includes advanced firewall capabilities, intrusion prevention systems, and secure VPN support. These features work together to defend against cyber threats and unauthorized access attempts.

Secure Remote Access

Support for virtual private networks enables secure remote connectivity for administrators and field personnel. This allows for safe monitoring and management of network resources from remote locations.

Data Encryption and Authentication

Strong encryption protocols ensure that data transmitted over the network remains confidential and protected. Authentication mechanisms verify the identity of users and devices, preventing unauthorized access.

Compact and Rail-Mountable Design

The Cisco IR807G-LTE-NA-K9 router is designed for easy installation in industrial settings. Its compact form factor and DIN rail mount compatibility make it ideal for deployment in control cabinets, vehicles, and other space-constrained environments.

Space-Efficient Deployment

The small footprint of the router allows it to fit into tight spaces without compromising performance. This is particularly important in industrial environments where equipment density is high.

DIN Rail Mount Compatibility

The router supports standard DIN rail mounting, enabling quick and secure installation. This mounting option simplifies deployment and ensures stability in environments subject to vibration.

Scalable Networking for Industrial Applications

The Cisco IR807G-LTE-NA-K9 router is designed to support scalable network architectures. It can be easily integrated into larger systems, making it suitable for expanding industrial networks.

Support for Multiple Applications

The router can handle a wide range of applications, including industrial automation, asset tracking, remote monitoring, and smart grid systems. Its versatility makes it a valuable component in diverse industrial scenarios.

Future-Proof Technology

With support for modern networking protocols and standards, the router ensures compatibility with future technologies. This reduces the need for frequent upgrades and protects investment in network infrastructure.

Centralized Management Capabilities

The router can be managed centrally using network management platforms, allowing administrators to monitor performance, configure settings, and troubleshoot issues remotely.

Performance Optimization and Reliability

Performance and reliability are essential for industrial networking, and the Cisco IR807G-LTE-NA-K9 router delivers both through advanced hardware and software features.

High Availability Networking

The router supports features that enhance network availability, including redundancy and failover mechanisms. These capabilities ensure continuous operation even in the event of network disruptions.

Efficient Resource Utilization

Optimized processing and memory management enable the router to handle multiple tasks simultaneously without performance degradation. This ensures smooth operation in demanding environments.

Consistent Network Throughput

The router maintains stable data throughput, ensuring reliable communication between devices and systems. This consistency is critical for applications that require real-time data exchange.

Applications in Remote Environments

The Cisco IR807G-LTE-NA-K9 router is widely used across various industries due to its robust capabilities and reliable performance.

Transportation and Rail Systems

The router provides secure and reliable connectivity for rail networks, enabling communication between trains, control centers, and monitoring systems. Its rail-mountable design makes it particularly suitable for transportation applications.

Energy and Utilities

In the energy sector, the router supports smart grid applications, remote monitoring of power stations, and communication between distributed energy resources. Its rugged design ensures reliable operation in harsh environments.

Manufacturing and Automation

The router facilitates industrial automation by connecting machines, sensors, and control systems. It enables real-time data exchange, improving efficiency and productivity in manufacturing processes.

Advanced Networking Features and Capabilities

The Cisco IR807G-LTE-NA-K9 router includes a comprehensive set of networking features that enhance functionality and performance.

Routing and Switching Capabilities

The router supports advanced routing protocols and switching features, enabling efficient data flow across the network. These capabilities ensure optimal performance in complex network environments.

Deployment Flexibility and Integration

The Cisco IR807G-LTE-NA-K9 router offers flexible deployment options and seamless integration with existing network infrastructure.

Compatibility with Existing Systems

The router is compatible with a wide range of networking equipment and protocols, making it easy to integrate into existing systems. This reduces deployment complexity and accelerates implementation.

Support for IoT Applications

The router is well-suited for Internet of Things deployments, providing secure connectivity for sensors, devices, and edge computing systems. Its capabilities enable efficient data collection and analysis.

Remote Configuration and Management

Administrators can configure and manage the router remotely, reducing the need for on-site intervention. This capability is particularly valuable for geographically dispersed deployments.

Low Power Consumption

The router consumes minimal power compared to traditional networking equipment, making it suitable for deployments where energy resources are limited.

Reduced Maintenance Requirements

The durable design and reliable performance minimize the need for frequent maintenance, reducing operational expenses and improving overall efficiency.
