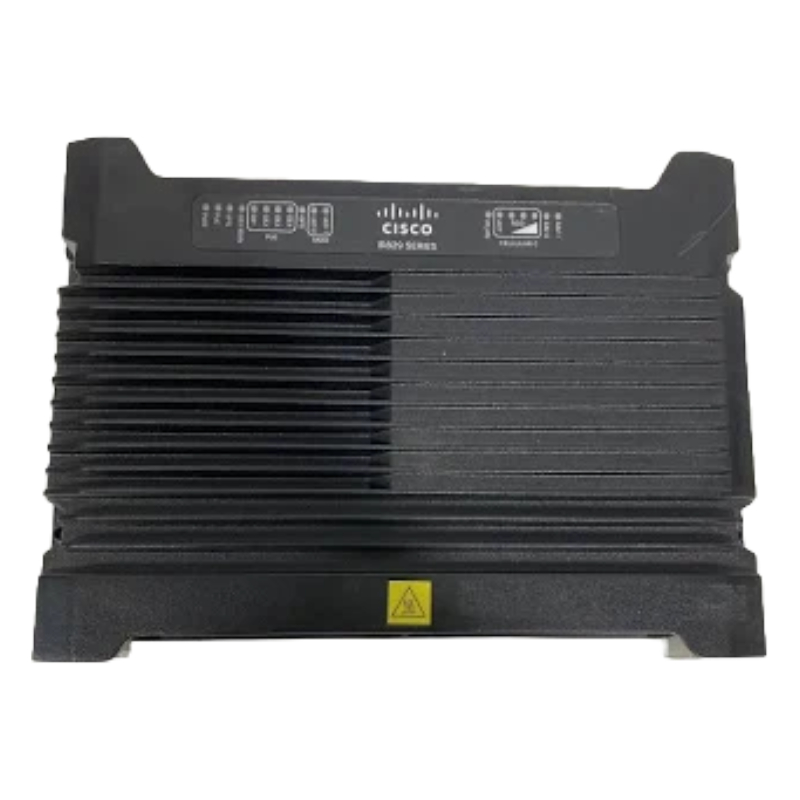

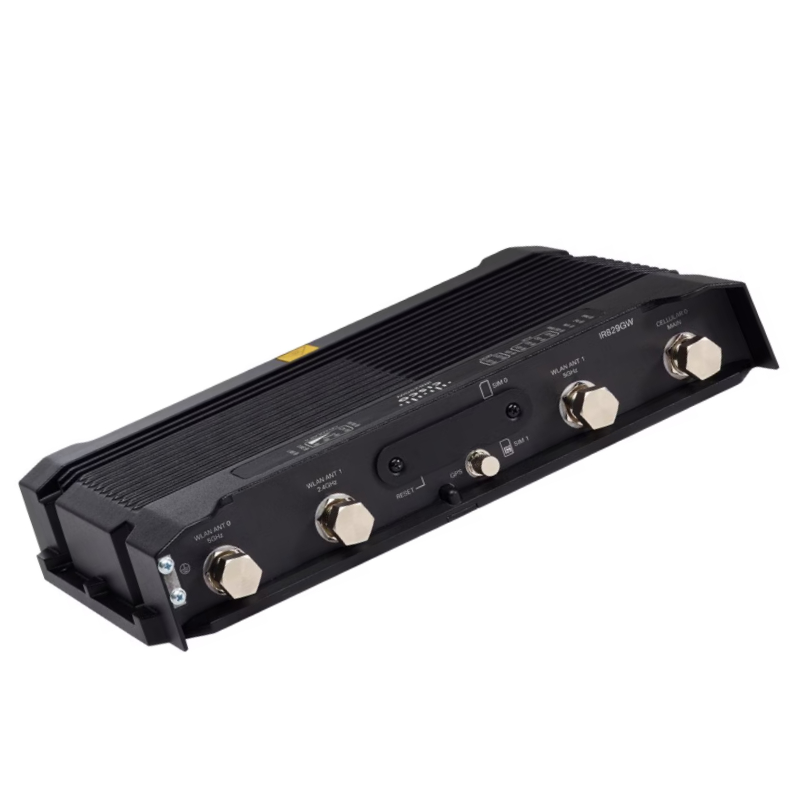

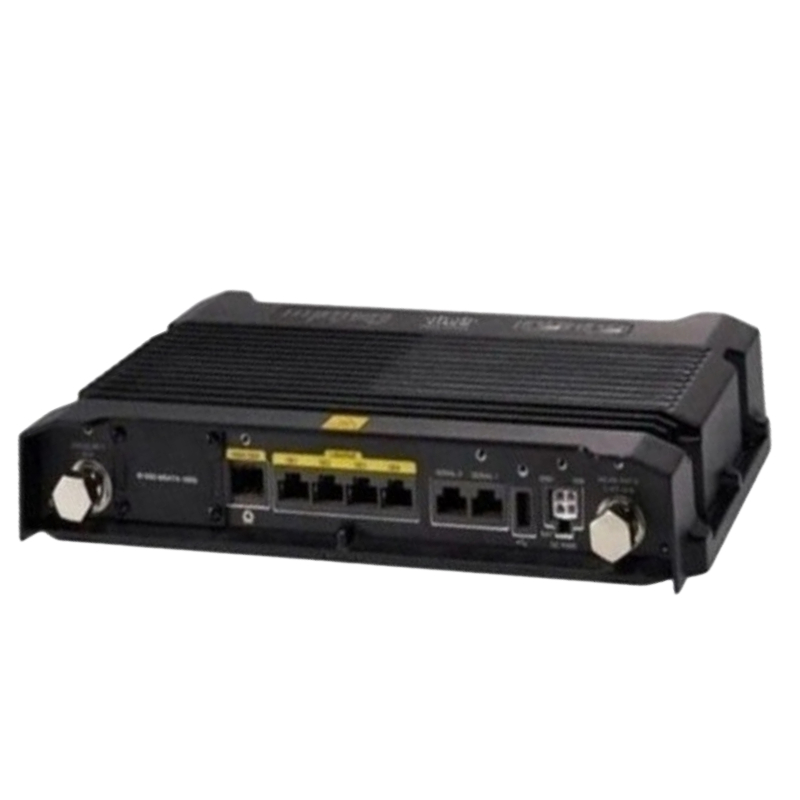

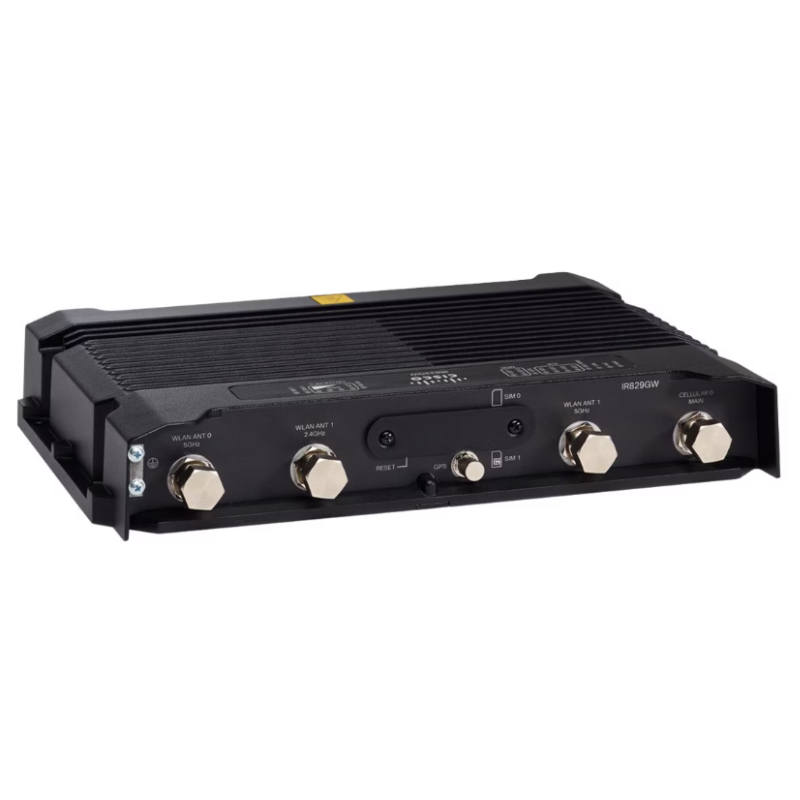

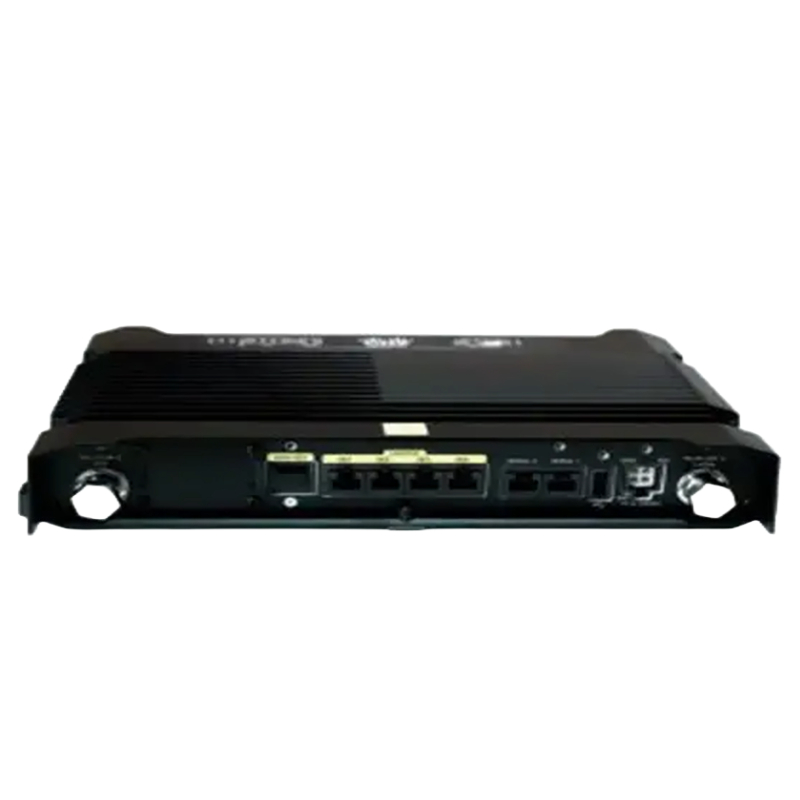

Cisco IR829B-LTE-EA-BK9 Industrial 4 Ports Router Wireless Ethernet

Cisco IR829B-LTE-EA-BK9 Overview

Product Specifications

• Manufacturer: Cisco
• Part Number: IR829B-LTE-EA-BK9
• Model: IR829
• Product Type: Wireless Router

Technical Details

Network Ports and Connectivity

• Number of Network Ports (RJ-45): 4
• Form Factor: Panel-mountable, Door Mount
• Connectivity Types: Wired, Wireless
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a/b/g/n
• WAN Ports: 1
• Wireless LAN Standards: 802.11a/b/g/n

Performance Specifications

• Maximum Transfer Rate: 100 Mbps
• Ethernet Technology: Gigabit Ethernet
• VPN Support: Yes
• Multi-SIM Capability: Yes
• Supported SIM Cards: 2

Management and Protocol Support

• Management Interfaces: CLI, HTTP, HTTPS, SNMP 3, SSH, Telnet
• Supported Protocols:
  • BGP, Bidirectional Forwarding Detection (BFD)
  • EIGRP, GRE, HSRP
  • IGMPv3, NHRP, OSPF
  • Policy-based Routing (PBR), RIP-1, RIP-2
  • VRRP, WCCP

Key Features

• 802.1x Authentication
• Access Control List (ACL) Support
• Auto-uplink (Auto MDI/MDI-X)
• Bidirectional Forwarding Detection (BFD)
• Class of Service (CoS)
• Class-Based Weighted Fair Queuing (CBWFQ)
• Cyclic Shift Diversity (CSD)
• DFS Support
• DiffServ Code Point (DSCP) Support
• Dynamic Multipoint VPN (DMVPN)
• Firewall Protection
• IGMP Snooping
• IPv4 and IPv6 Support
• Link Fragmentation and Interleaving (LFI)
• Low-latency Queuing (LLQ)
• MAC Address Filtering
• Management Information Base (MIB)
• Maximum Ratio Combining (MRC)
• NAT Support
• Quality of Service (QoS)
• Spanning Tree Protocol (STP) Support
• Storm Control
• Virtual Route Forwarding-Lite (VRF-Lite)
• Virtual Routing and Forwarding (VRF)
• Weighted Fair Queuing (WFQ)

Compliance and Standards

• CISPR 24
• EN 300 328, EN 300386
• EN 301 489-1, EN 301 489-17
• EN 50385, EN 60945
• EN 60950-1, EN 61000-4-11
• EN 61000-4-2, EN 61000-4-3
• EN 61000-4-4, EN 61000-4-5
• EN 61000-4-6, EN 61131-2
• EN 62311, EN50155
• EN55024
• FCC, FCC CFR47 Part 15
• IP40
• MIL-STD 810G

Wireless

Enhanced Connectivity

The Cisco IR829B-LTE-EA-BK9 Industrial 4 Ports Router offers wireless connectivity, allowing users to stay connected even in remote locations where wired connections may not be available. This feature provides enhanced connectivity options for users, ensuring that they can access the internet and other network resources without any limitations.

Increased Mobility

With the wireless feature of the Cisco IR829B-LTE-EA-BK9 router, users can enjoy increased mobility. They are not restricted to a specific location or confined to a wired connection. This flexibility allows users to move around freely while staying connected to the network, making it ideal for applications such as mobile workforce, transportation systems, and temporary deployments.

Cost Savings

The wireless feature of the Cisco IR829B-LTE-EA-BK9 router can also result in cost savings for users. By eliminating the need for extensive cabling infrastructure, users can save on installation and maintenance costs. Additionally, wireless connectivity can be more cost-effective in certain scenarios where running cables may not be feasible or cost-prohibitive.

Improved Scalability

Wireless connectivity offers improved scalability for users. The Cisco IR829B-LTE-EA-BK9 router supports multiple wireless devices simultaneously, allowing organizations to expand their network easily as their needs grow. Whether it is adding new devices or accommodating a larger number of users, the wireless feature provides the flexibility to scale up the network infrastructure without significant disruptions or additional costs.

Reliable Performance

The Cisco IR829B-LTE-EA-BK9 router's wireless feature ensures reliable performance by leveraging advanced technologies. It supports high-speed wireless standards such as 4G LTE, delivering fast and stable connections. This reliability is crucial for applications that require uninterrupted connectivity, such as industrial automation, surveillance systems, and remote monitoring.

Enhanced Security

The wireless feature of the Cisco IR829B-LTE-EA-BK9 router incorporates robust security measures to protect sensitive data and network resources. It supports various encryption protocols, authentication methods, and firewall capabilities to safeguard against unauthorized access and potential threats. This level of security is essential for industries where data privacy and network integrity are critical, such as healthcare, finance, and government sectors.

Ethernet

Reliable Wired Connectivity

The Cisco IR829B-LTE-EA-BK9 Industrial 4 Ports Router offers Ethernet connectivity, providing users with reliable wired connections. This feature ensures stable and consistent network performance, making it suitable for applications that demand high reliability and low latency.

High Bandwidth

Ethernet connectivity offers high bandwidth capabilities, allowing users to transfer large amounts of data quickly and efficiently. The Cisco IR829B-LTE-EA-BK9 router supports Gigabit Ethernet ports, enabling fast data transmission rates that can meet the demands of bandwidth-intensive applications such as video streaming, file sharing, and cloud-based services.

Low Latency

The Ethernet feature of the Cisco IR829B-LTE-EA-BK9 router ensures low latency connections, minimizing delays in data transmission. This is crucial for real-time applications that require immediate responses, such as VoIP (Voice over IP), video conferencing, and online gaming. With low latency, users can experience smooth and uninterrupted communication without noticeable delays.

Secure Connections

Ethernet connectivity provides secure connections for users. The Cisco IR829B-LTE-EA-BK9 router supports advanced security features such as VLAN (Virtual Local Area Network) and VPN (Virtual Private Network) capabilities. These features enhance network security by isolating traffic and encrypting data, protecting sensitive information from unauthorized access and potential threats.

Flexible Deployment

The Ethernet feature of the Cisco IR829B-LTE-EA-BK9 router offers flexibility in deployment options. It can be easily integrated into existing wired networks or act as a primary connectivity solution in environments where wired connections are preferred. This flexibility ensures compatibility with various network setups, making it suitable for a wide range of applications and industries.

Easy Management

Ethernet connectivity simplifies network management tasks. The Cisco IR829B-LTE-EA-BK9 router provides intuitive management interfaces, allowing users to monitor and configure their network easily. With a centralized management system, users can streamline operations, troubleshoot connectivity issues efficiently, and optimize network performance.

Ports

Multiple Connectivity Options

The Cisco IR829B-LTE-EA-BK9 Industrial 4 Ports Router features four ports, offering multiple connectivity options for users. These ports provide the flexibility to connect various devices simultaneously, enabling seamless integration within the network infrastructure.

Device Expansion

The four ports of the Cisco IR829B-LTE-EA-BK9 router allow users to expand their network by connecting additional devices. Whether it is connecting computers, printers, IP cameras, or other network-enabled devices, users can easily expand their network capabilities without the need for additional routers or switches.

Redundancy and Failover

The multiple ports of the Cisco IR829B-LTE-EA-BK9 router offer redundancy and failover capabilities. Users can configure the ports for load balancing or failover scenarios, ensuring uninterrupted connectivity even in the event of a port or device failure. This redundancy feature is crucial for applications where continuous uptime is essential, such as critical infrastructure, industrial automation, and remote monitoring.

Network Segmentation

The four ports of the Cisco IR829B-LTE-EA-BK9 router allow for network segmentation, enabling users to separate different devices or departments within their network infrastructure. This segmentation enhances security, improves network performance, and simplifies network management by isolating traffic and optimizing bandwidth allocation.

Simplified Installation

The multiple ports of the Cisco IR829B-LTE-EA-BK9 router simplify the installation process. Users can easily connect their devices using standard Ethernet cables, eliminating the need for complex wiring configurations. This simplicity saves time and effort during installation, making it ideal for deployments in remote or temporary locations.

Improved Network Performance

The four ports of the Cisco IR829B-LTE-EA-BK9 router contribute to improved network performance. With multiple ports, users can distribute network traffic evenly, reducing congestion and bottlenecks. This ensures smooth data transmission and optimal network performance, especially in environments with demanding applications or high user density.
