Cisco ISR1100-4G Router 4 Port Ethernet 1 LAN/WAN Ports

Overview of Cisco ISR1100-4G Router

Manufacturer Details

Brand: Cisco

Part Number/SKU: ISR1100-4G

Device Type

Category: 4-Port Router

Technical Specifications

Data Link Protocols

• Ethernet
• Fast Ethernet
• Gigabit Ethernet

Network and Transport Protocols

• IPSec
• PPP over Ethernet (PPPoE)
• Dynamic Host Configuration Protocol (DHCP)
• Domain Name System (DNS)
• Layer 2 Tunneling Protocol version 3 (L2TPv3)

Port and Routing Information

Number of Ports: 4

Routing Protocols Supported

• Open Shortest Path First (OSPF)
• Intermediate System to Intermediate System (IS-IS)
• Routing Information Protocol versions 1 and 2 (RIP-1, RIP-2)
• Border Gateway Protocol (BGP)
• Enhanced Interior Gateway Routing Protocol (EIGRP)
• Hot Standby Router Protocol (HSRP)
• Distance Vector Multicast Routing Protocol (DVMRP)
• Virtual Router Redundancy Protocol (VRRP)
• Protocol Independent Multicast Sparse Mode (PIM-SM)
• Static IP Routing
• Internet Group Management Protocol version 3 (IGMPv3)
• Generic Routing Encapsulation (GRE)
• Protocol Independent Multicast Sparse Mode (PIM-SSM)
• Policy-Based Routing (PBR)
• Multiprotocol Label Switching (MPLS)
• Bidirectional Forwarding Detection (BFD)
• Resource Reservation Protocol (RSVP)

Remote Management

• Simple Network Management Protocol (SNMP)
• Remote Network Monitoring (RMON)
• Command Line Interface (CLI)

Authentication Methods

• RADIUS

Key Features

Performance and Control

• Maximum Ratio Combining (MRC)
• NetFlow
• IPFIX
• Cyclic Shift Diversity (CSD)
• Location ID Separation Protocol
• Access Control List (ACL) Support
• Weighted Random Early Detection (WRED)
• Weighted Random Early Queuing (CBF)
• Dynamic Multipoint VPN (DMVPN) (LISP)
• Authentication, Authorization, and Accounting (AAA)
• Dynamic Frequency Selection
• Application Visibility and Control (AVC)

Data Management

• Packet Aggregation A-MPDU
• Packet Aggregation A-MSDU
• Management Information Base (MIB) II (DFS)
• Remote Span Encapsulated (ERSPAN)
• Embedded Event Manager (EEM)

Expansion and Connectivity

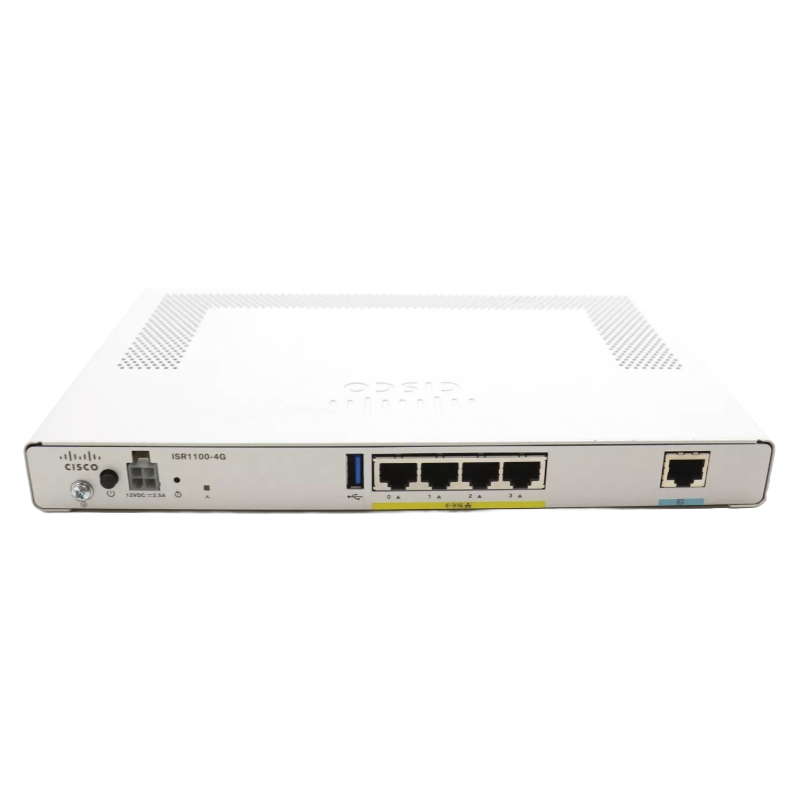

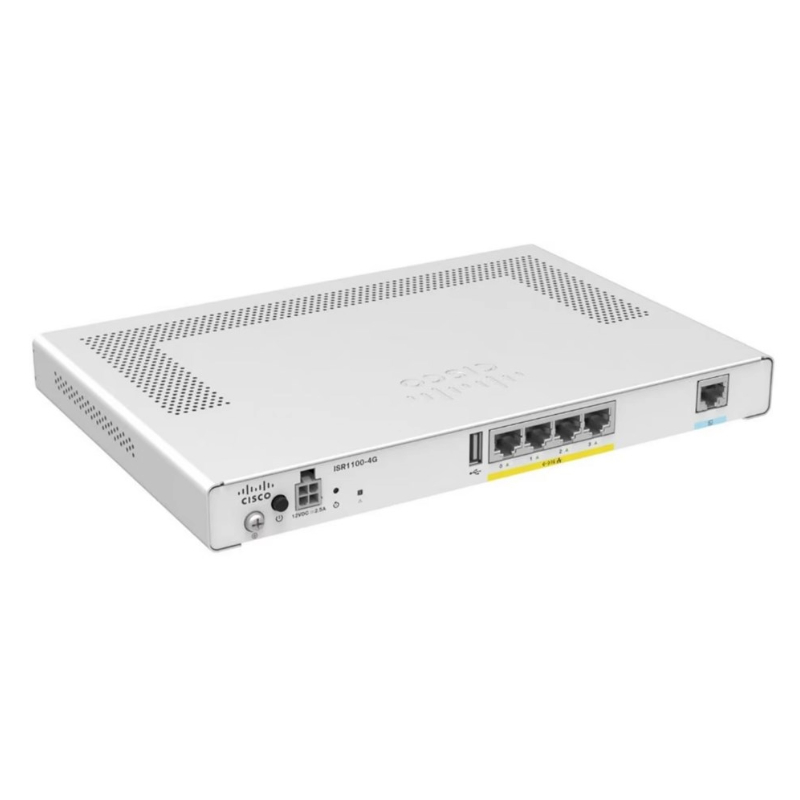

Interfaces

• LAN: 5 x 10Base-T/100Base-TX/1000Base-T – RJ-45
• USB 3.0: 1 x

Power Requirements

• Power Device: External Power Adapter 30 Watt
• Voltage Required: AC 120/230 V / DC 12 V (50/60 Hz)
• Operational Power Consumption: 30 Watt

LAN Ports

Enhanced Connectivity and Flexibility

The Cisco ISR1100-4G 4 Port Ethernet Router is equipped with 4 LAN ports, providing users with enhanced connectivity and flexibility. These LAN ports allow users to connect their devices, such as computers, printers, and servers, directly to the router, enabling seamless communication and data transfer within the local area network.

Seamless Data Transfer

With the Cisco ISR1100-4G 4 Port Ethernet Router's LAN ports, users can experience seamless data transfer between their devices. Whether it's sharing files between computers or printing documents from a connected printer, the LAN ports ensure a smooth and efficient data flow within the network.

Improved Network Performance

By connecting devices directly to the router via the LAN ports, users can enjoy improved network performance. The direct connection eliminates the need for additional network switches, reducing latency and potential bottlenecks. This results in faster data transfer speeds and overall improved network efficiency.

Increased Scalability

The presence of 4 LAN ports on the Cisco ISR1100-4G 4 Port Ethernet Router allows for increased scalability within the local area network. Users can easily add more devices to the network without the need for additional equipment. This scalability feature is especially beneficial for growing businesses or households with expanding connectivity needs.

Centralized Network Management

With multiple LAN ports, users can create a centralized network management system. They can assign specific ports to different devices or departments, making it easier to monitor and control network activity. This centralized management enhances security by allowing administrators to implement access controls and monitor traffic effectively.

Enhanced Network Security

The utilization of LAN ports on the Cisco ISR1100-4G 4 Port Ethernet Router contributes to enhanced network security. By connecting devices directly to the router, users can isolate their local area network from external threats. This reduces the risk of unauthorized access or data breaches, ensuring the privacy and safety of sensitive information.

WAN Ports

Reliable Internet Connectivity

The Cisco ISR1100-4G 4 Port Ethernet Router features 1 WAN port, offering users reliable internet connectivity. This WAN port allows users to connect their router directly to their internet service provider's modem, ensuring a stable and uninterrupted internet connection.

High-Speed Internet Access

With the Cisco ISR1100-4G 4 Port Ethernet Router's WAN port, users can experience high-speed internet access. The router is designed to support various internet speeds, allowing users to take full advantage of their internet service provider's bandwidth. Whether it's streaming high-definition videos, online gaming, or downloading large files, the WAN port ensures a fast and seamless internet experience.

Seamless Integration with ISP Networks

The WAN port on the Cisco ISR1100-4G 4 Port Ethernet Router enables seamless integration with internet service provider (ISP) networks. Users can easily connect their router to their ISP's modem, eliminating the need for additional equipment or complex configurations. This plug-and-play functionality makes it convenient for users to set up their network and get online quickly.

Load Balancing and Failover Support

The inclusion of a WAN port on the Cisco ISR1100-4G 4 Port Ethernet Router offers load balancing and failover support. Load balancing distributes network traffic across multiple internet connections, optimizing performance and preventing congestion. In the event of a primary connection failure, the router can automatically switch to a backup connection, ensuring uninterrupted internet connectivity.

Secure Remote Access

The WAN port on the Cisco ISR1100-4G 4 Port Ethernet Router enables secure remote access to the network. Users can configure virtual private network (VPN) connections to securely access their network resources from remote locations. This feature is particularly beneficial for businesses with remote employees or individuals who require secure access to their home network while traveling.

Improved Network Performance

By connecting the router directly to the ISP's modem via the WAN port, users can experience improved network performance. The direct connection eliminates potential bottlenecks and latency that may occur when using additional networking devices. This results in faster internet speeds, reduced lag, and overall improved network performance.

In conclusion, the Cisco ISR1100-4G 4 Port Ethernet Router's LAN and WAN ports offer users enhanced connectivity, flexibility, and improved network performance. The LAN ports enable seamless data transfer, centralized management, increased scalability, and enhanced network security within the local area network. On the other hand, the WAN port provides reliable internet connectivity, high-speed internet access, seamless integration with ISP networks, load balancing and failover support, secure remote access, and improved network performance. These features make the Cisco ISR1100-4G 4 Port Ethernet Router an ideal choice for individuals and businesses seeking a robust and efficient networking solution.
