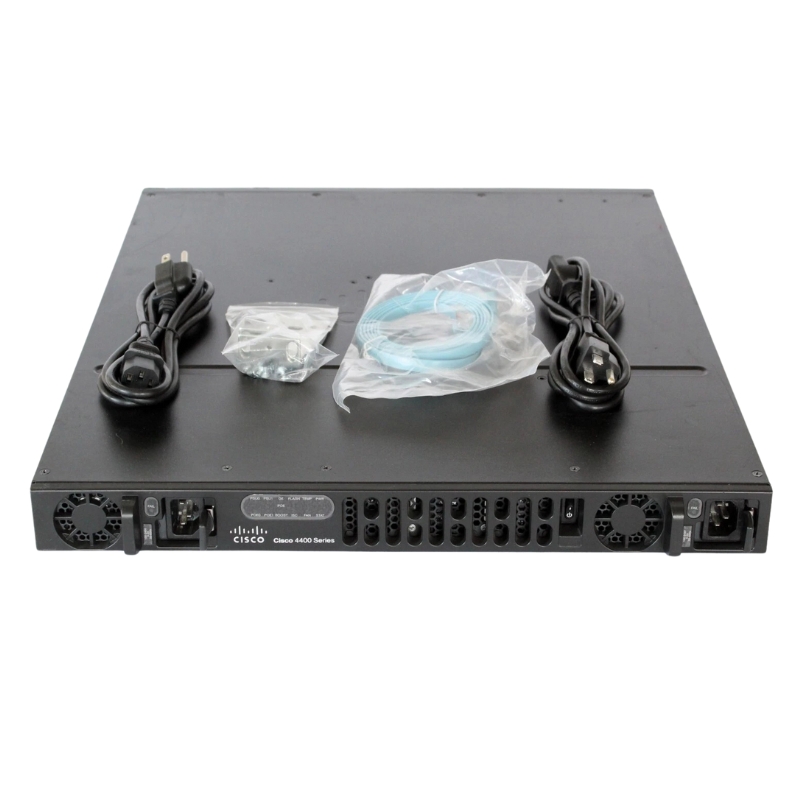

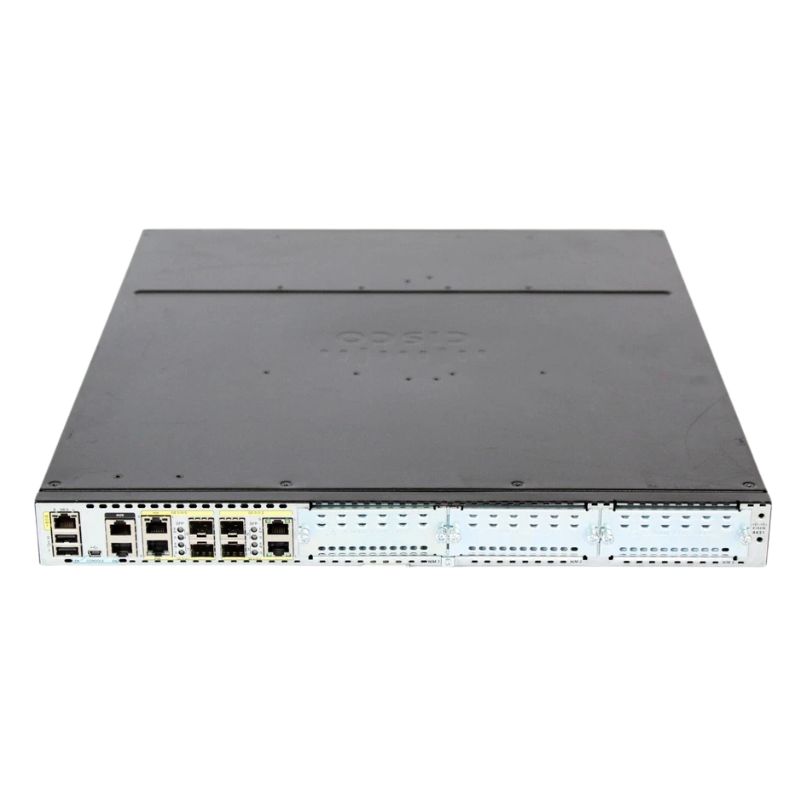

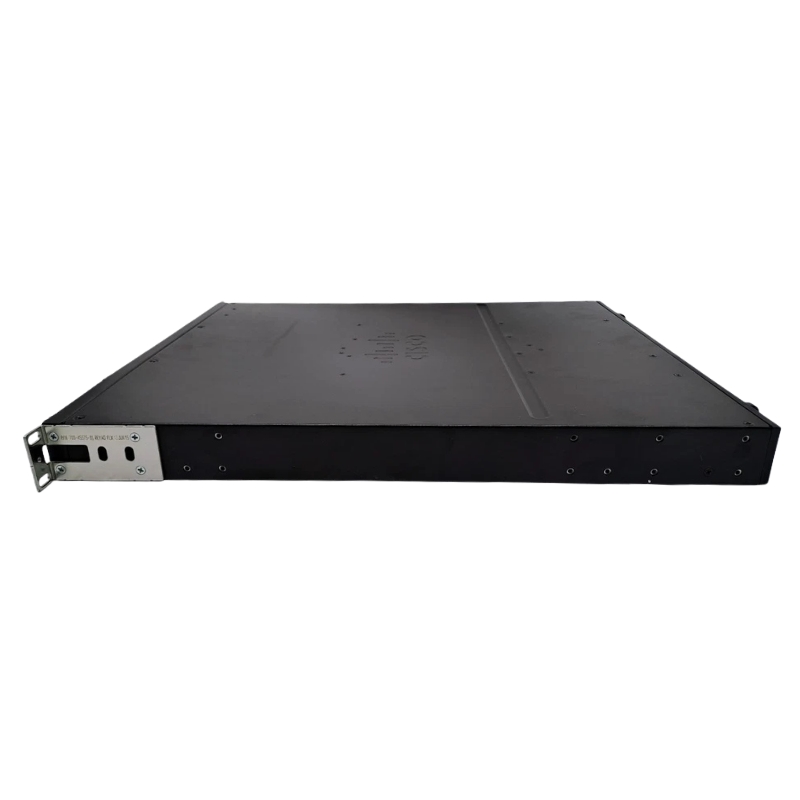

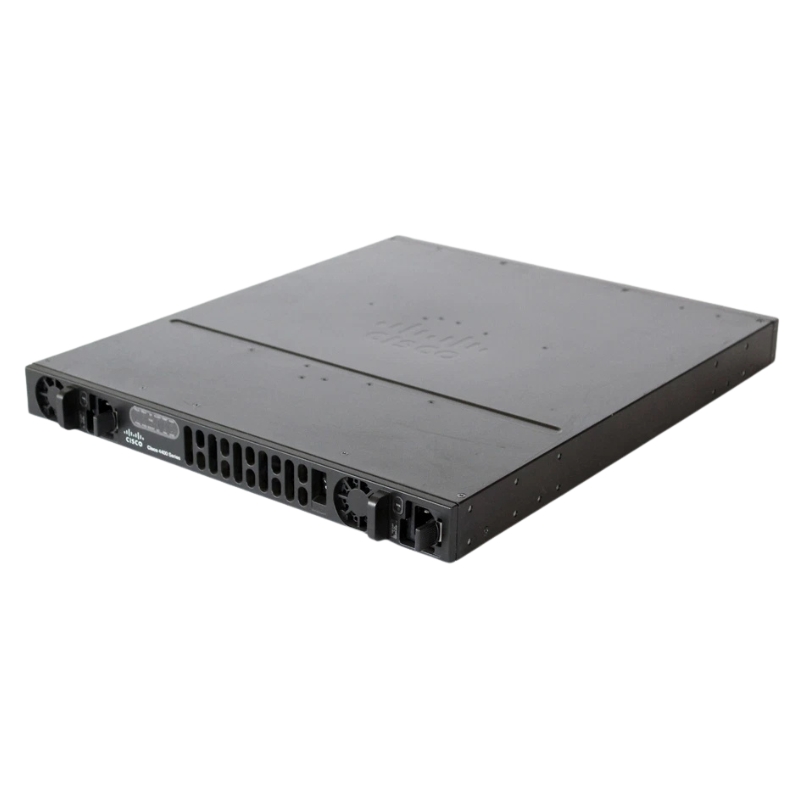

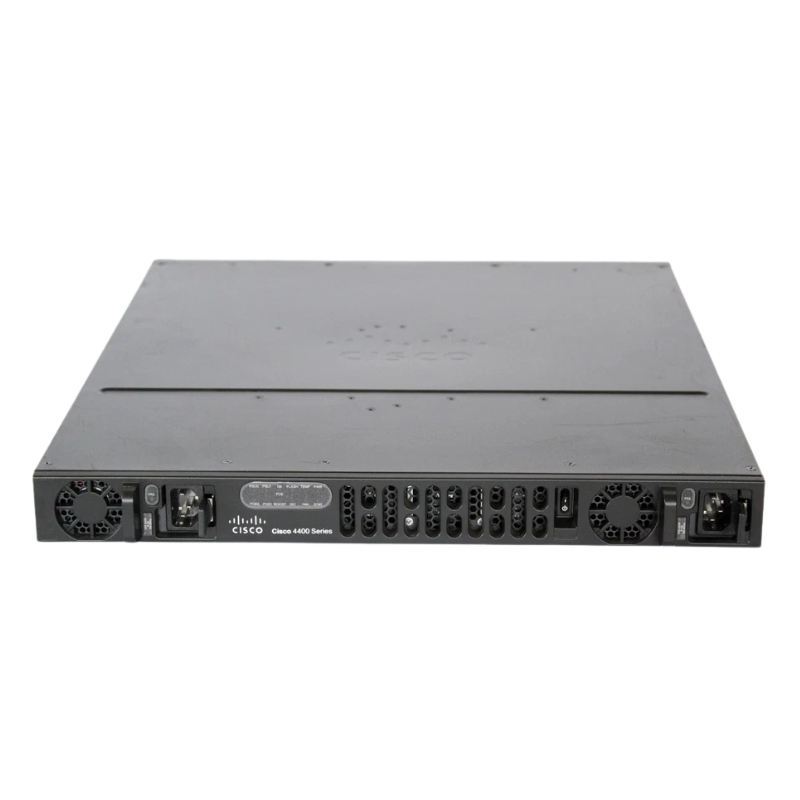

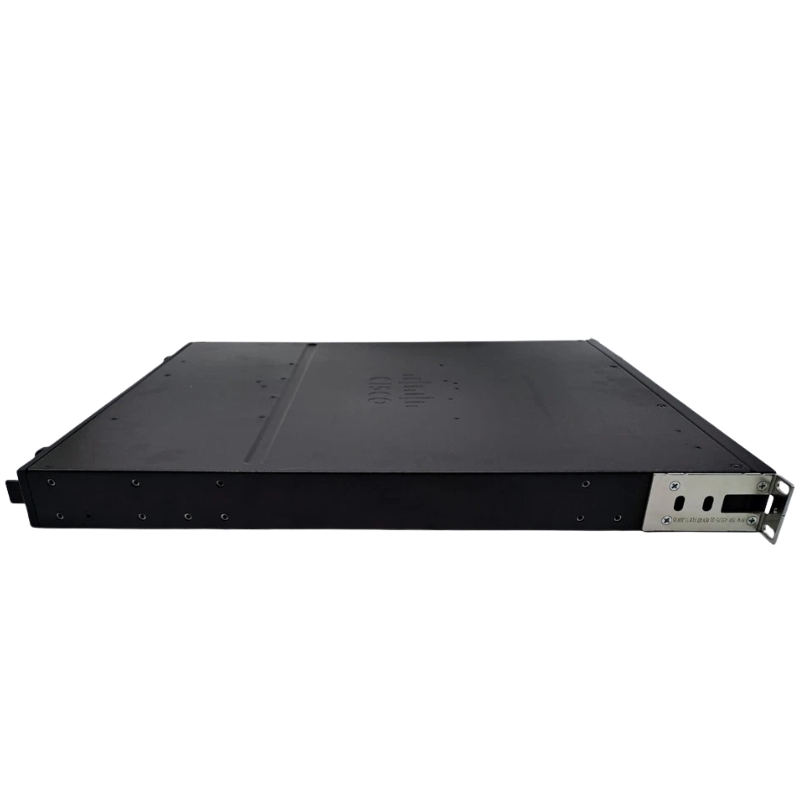

Cisco ISR4431-V/K9 Router, 4 Ports, 8 Slots Ethernet, Management Port

Overview of Cisco ISR4431-V/K9 Router

Manufacturer Details

Company: Cisco

Model Number: ISR4431-V/K9

Series: 4000

Product Specifications

Router Type and Ports

• Type: Router
• Ports: 4 total ports
• USB Ports: Yes
• Management Port: Yes
• Network Ports (RJ-45): 4
• Powerline Ports: No
• Token Ring Ports: No

Expansion Capabilities

• Total Expansion Slots: 8
• Slot Types: Integrated Services Card (ISC), SFP, Network Interface Module (NIM)

Network and Communication Features

• Network Technology: 10/100/1000Base-T
• Ethernet Technology: Gigabit Ethernet
• VoIP Compatibility: Yes

Memory Specifications

Standard and Maximum Memory

• Standard Memory: 4 GB
• Maximum Memory: 16 GB
• Memory Technology: DRAM

Flash Memory

• Flash Storage: 8 GB

Power Requirements

• PoE (RJ-45) Port: No
• Input Voltage: 120 V AC, 230 V AC
• Power Sources: PoE, Power Supply

Ports

The Cisco ISR4431-V/K9 Router is equipped with 4 ports, making it a versatile and efficient networking solution for businesses of all sizes. These ports play a crucial role in facilitating the connectivity and communication between various devices within a network. In this section, we will explore the benefits and importance of the 4 ports featured in this router.

Increased Connectivity Options

One of the primary advantages of having 4 ports in the Cisco ISR4431-V/K9 Router is the increased connectivity options it offers. With multiple ports, users can connect a wide range of devices to the router simultaneously. This includes computers, printers, servers, IP phones, and other network-enabled devices. The ability to connect multiple devices directly to the router eliminates the need for additional networking equipment such as switches or hubs, simplifying the overall network setup.

Improved Network Performance

The 4 ports in this router also contribute to improved network performance. Each port operates at high speeds, allowing for fast and efficient data transfer between connected devices. This is particularly beneficial for businesses that rely on data-intensive applications or require large file transfers on a regular basis. With the Cisco ISR4431-V/K9 Router's 4 ports, users can experience minimal latency and faster response times, resulting in a more productive and seamless network experience.

Enhanced Network Security

In addition to improved connectivity and performance, the 4 ports on this router also play a critical role in enhancing network security. Each port can be configured with specific security policies and access controls to ensure that only authorized devices can connect to the network. This helps prevent unauthorized access or potential security breaches, safeguarding sensitive data and protecting the overall integrity of the network.

Port-Based VLANs

The Cisco ISR4431-V/K9 Router's 4 ports support port-based VLANs (Virtual Local Area Networks). VLANs enable the segmentation of a network into logical groups, allowing for better control over network traffic and improved security. By assigning devices to specific VLANs based on their port connections, businesses can isolate sensitive data, restrict access to certain resources, and create separate network segments for different departments or user groups.

Link Aggregation

Another notable feature made possible by the 4 ports is link aggregation. With link aggregation, multiple ports can be combined to form a single high-bandwidth channel. This not only increases the overall capacity of the network but also provides redundancy in case of a port failure. Link aggregation ensures that network traffic is distributed evenly across the available ports, optimizing performance and minimizing bottlenecks.

Quality of Service (QoS)

The 4 ports in the Cisco ISR4431-V/K9 Router also support Quality of Service (QoS) capabilities. QoS allows for the prioritization of network traffic based on predefined parameters, ensuring that critical applications or services receive sufficient bandwidth and low latency. By assigning different levels of priority to specific ports or types of traffic, businesses can optimize their network performance and ensure a consistent user experience even during periods of high demand.

Management Port

The Cisco ISR4431-V/K9 Router features a dedicated management port, providing users with a centralized and efficient way to manage their network infrastructure. This management port serves as a dedicated interface for accessing the router's configuration settings, monitoring network performance, and performing administrative tasks. Let's explore the benefits and importance of this feature in more detail.

Streamlined Network Management

The management port in the Cisco ISR4431-V/K9 Router simplifies network management by providing a separate interface dedicated solely to administrative tasks. This separation of management traffic from regular user traffic ensures that network performance is not compromised by administrative activities. Users can access the router's management interface without disrupting the flow of regular network traffic, allowing for seamless monitoring and configuration changes.

Secure Remote Access

With the dedicated management port, users can securely access and manage the router remotely. This is especially valuable for businesses with multiple locations or remote workers who need to perform network management tasks from off-site locations. By connecting to the management port, authorized administrators can securely configure the router, monitor network performance, and troubleshoot issues without needing to be physically present at the router's location.

Out-of-Band Management

The management port also enables out-of-band management, which means that even if the primary data ports are experiencing issues or are temporarily unavailable, administrators can still access and manage the router through the dedicated management interface. This ensures that critical network management tasks can always be performed, regardless of any network interruptions or failures.

Secure Shell (SSH) Access

The management port in the Cisco ISR4431-V/K9 Router supports Secure Shell (SSH) access, providing an encrypted and secure method for remote management. SSH ensures that sensitive information, such as login credentials and configuration changes, are protected from unauthorized access or interception. By utilizing SSH access through the management port, administrators can confidently manage their network infrastructure while maintaining a high level of security.

Simple Network Management Protocol (SNMP)

The dedicated management port also supports Simple Network Management Protocol (SNMP). SNMP allows for the centralized monitoring and management of network devices by collecting and analyzing data from various devices on the network. With SNMP support on the management port, administrators can easily integrate the Cisco ISR4431-V/K9 Router into their existing network monitoring systems, enabling proactive monitoring, fault detection, and performance optimization.

Ethernet Slots

The Cisco ISR4431-V/K9 Router boasts 8 Ethernet slots, providing users with a scalable and flexible networking solution. These Ethernet slots offer numerous benefits and play a vital role in meeting the evolving connectivity needs of modern businesses. Let's delve into the importance and advantages of the 8 Ethernet slots featured in this router.

Increased Network Capacity

The 8 Ethernet slots in the Cisco ISR4431-V/K9 Router significantly enhance network capacity. Each slot can accommodate different types of Ethernet interfaces, such as Gigabit Ethernet or Fast Ethernet, depending on the specific needs of the network. With more slots available, businesses can connect a larger number of devices and expand their network infrastructure without compromising performance or experiencing bandwidth limitations.

Flexible Network Expansion

The presence of 8 Ethernet slots grants businesses the flexibility to expand their network infrastructure as their needs grow. Whether it's adding more devices, connecting remote locations, or integrating new technologies, the Cisco ISR4431-V/K9 Router's Ethernet slots provide ample room for network expansion. Users can easily install additional interface modules into the available slots, allowing for seamless integration of new devices or technologies into the existing network.

Modular Design

The modular design of the Cisco ISR4431-V/K9 Router's Ethernet slots offers several advantages. Each slot can be populated with different interface modules to meet specific requirements. For example, businesses can choose modules that support different speeds, media types, or network protocols based on their unique needs. This modular approach allows for easy customization and ensures that the router can adapt to changing networking technologies and standards.

High-Speed Connectivity

The Ethernet slots in this router support high-speed connectivity options such as Gigabit Ethernet. Gigabit Ethernet offers significantly faster data transfer rates compared to traditional Fast Ethernet connections. With high-speed connectivity, businesses can handle large amounts of data more efficiently, support bandwidth-intensive applications, and ensure smooth and reliable communication between devices.

Redundancy and Resilience

The 8 Ethernet slots also provide redundancy and resilience to the network infrastructure. By utilizing multiple slots, businesses can implement redundant connections or link aggregation to ensure uninterrupted connectivity in case of a hardware failure or link outage. Redundancy is crucial for maintaining high availability and minimizing downtime, especially for mission-critical applications or businesses that rely heavily on uninterrupted network connectivity.

Network Segmentation

With 8 Ethernet slots, businesses can easily segment their network into separate broadcast domains, enhancing security and optimizing network performance. Network segmentation allows for the isolation of different departments, user groups, or applications within their own virtual networks. This improves overall network security by limiting the scope of potential security breaches and enables more efficient traffic management by reducing broadcast traffic and congestion.

VLAN Support

The Cisco ISR4431-V/K9 Router's Ethernet slots support VLANs, enabling businesses to create separate virtual networks within a single physical infrastructure. VLANs provide enhanced security, as devices within different VLANs cannot directly communicate with each other unless explicitly configured. Additionally, VLANs allow for better traffic management by isolating specific types of traffic or prioritizing certain applications, resulting in improved network performance and efficiency.

Network Flexibility and Scalability

With the support for 8 Ethernet slots, the Cisco ISR4431-V/K9 Router offers businesses the flexibility and scalability required to adapt to evolving networking needs. As technology advances and new devices are introduced into the market, having multiple Ethernet slots ensures that businesses can easily incorporate these devices into their network without requiring significant infrastructure changes. This scalability allows businesses to future-proof their network investment and stay ahead in a rapidly changing digital landscape.

In conclusion, the Cisco ISR4431-V/K9 Router's 4 ports, management port, and 8 Ethernet slots provide users with a robust and versatile networking solution. The 4 ports offer increased connectivity options, improved network performance, and enhanced network security. The management port streamlines network management, enables secure remote access, and ensures uninterrupted network administration. The 8 Ethernet slots provide increased network capacity, flexibility for network expansion, modular design, high-speed connectivity, redundancy and resilience, network segmentation options, and support for VLANs. Together, these features make the Cisco ISR4431-V/K9 Router an ideal choice for businesses seeking a reliable and scalable networking solution.
