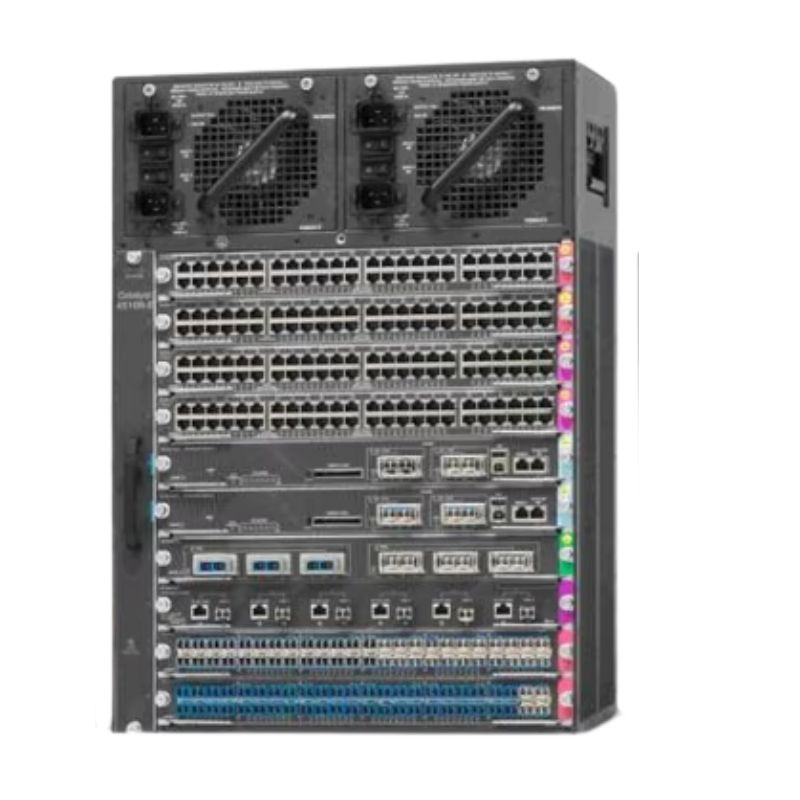

Cisco ME-C4510E-S7+96SFP 96-Port Chassis Switch

General Information

Manufacturer Details

• Company: Cisco Systems, Inc
• Model Number: ME-C4510E-S7+96SFP
• Brand: Cisco

Device Specifications

• Type: Managed Switch
• Ports: 96 Gigabit SFP + 4 SFP+
• Enclosure: Rack-mountable, 14U
• Subtype: Gigabit Ethernet

Included Components

• Supervisor Engine: Cisco Catalyst 4500E Supervisor Engine 7-E
• Line Cards: 2 x Cisco Line Cards (ME-X4748-SFP-E)

Performance Specifications

Switching Capacities

• IPv4 Switching: 250 Mpps
• IPv6 Switching: 125 Mpps

Capacity Metrics

• IPv4 Routes: 256,000
• IPv6 Routes: 128,000
• QoS Hardware Entries: 128,000
• Active VLANs: 4,096
• Spanning Tree Protocol Instances: 10,000
• Switched Virtual Interfaces (SVIs): 4,096

Additional Features

• MAC Address Table Size: 55,000 entries
• Jumbo Frame Support: Up to 9,216 bytes

Routing and Authentication

Routing Protocols

• Supported Protocols: PIM-SM, PIM-DM, PIM-SSM

Authentication Methods

• Protocols: Secure Shell (SSH), RADIUS, TACACS+
• Version: Secure Shell v.2 (SSH2)

Features and Standards

Device Features

• Design: Modular
• Power Over Ethernet (PoE): Supported
• Auto-Negotiation: Enabled
• Trunking: Supported
• VLAN Support: Included
• IPv6 Support: Enabled
• Access Control List (ACL) Support: Yes
• Quality of Service (QoS): Supported
• Jumbo Frames Support: Yes
• PoE+: Supported

Compliant Standards

• IEEE 802.3z
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1ae
• IEEE 802.3az

Hardware Specifications

Processor and Memory

• Processor Speed: 1.5 GHz
• RAM: 2 GB installed, up to 4 GB max SDRAM

Expansion and Connectivity

• Interfaces:
• 1 x Console RJ-45 Management
• 1 x 1000Base-T RJ-45 Management
• 96 x 1000Base-T SFP
• 1 x USB Type A
• 4 x 10GBase-X SFP+
• Expansion Slots: 10 total (7 free) / 1 SD Memory Card (1 free)
• Installed Modules: 3 installed / 10 max
• Installed Qty: 0 installed / 2 max

Power and Mounting

Power Specifications

• Power Device: Internal power supply with hot-plug capability
• Redundancy: Optional
• Redundancy Scheme: 1+1 (with optional power supply)

Mounting

• Rack Mounting Kit: Included

Compliance and Standards

Regulatory Compliance

• NEBS Level 3
• FCC Class A certified
• CISPR 22 Class A
• EN 60950
• EN 61000-3-2
• EN55022
• VCCI Class A ITE
• IEC 60950
• EN 61000-3-3
• EN55024
• EN55022 Class A
• UL 60950
• EN50082-1
• CSA 22.2 No. 60950
• EN 61000-6-1
• ACA TS001
• AS/NZS 3260
• FCC Part 68
• AS/NZ 3548 Class A
• JATE
• ICES-003 Class A
• CS-03
• FCC CFR47 Part 15

Name

The Cisco 4510r+e Chassis comes with the ME-C4510E-S7+96SFP module, which is a powerful and versatile component of this networking solution. With its exceptional performance and advanced features, the ME-C4510E-S7+96SFP adds significant value to the Cisco 4510r+e Chassis, making it an ideal choice for businesses of all sizes.

Benefits of ME-C4510E-S7+96SFP

The ME-C4510E-S7+96SFP module offers numerous benefits that enhance the overall performance and functionality of the Cisco 4510r+e Chassis. Some of the key advantages include:

High Performance

The ME-C4510E-S7+96SFP is designed to deliver high-performance networking capabilities. With its powerful processing capabilities and advanced routing features, it can handle heavy workloads and ensure smooth data transmission, even in demanding environments.

Scalability

One of the major advantages of the ME-C4510E-S7+96SFP is its scalability. It provides ample room for expansion and supports a large number of network devices, allowing businesses to accommodate their growing networking needs without investing in additional infrastructure.

Flexibility

The ME-C4510E-S7+96SFP module offers great flexibility in terms of connectivity options. It comes with a total of 96 SFP (Small Form-Factor Pluggable) ports, which can be used for various purposes such as connecting servers, switches, and other network devices. This flexibility allows businesses to create customized network configurations based on their specific requirements.

Reliability

Reliability is crucial in any networking environment, and the ME-C4510E-S7+96SFP delivers on that front. It is built with high-quality components and advanced fault-tolerant features, ensuring uninterrupted connectivity and minimizing downtime. This reliability is especially important for businesses that rely on constant network availability for their day-to-day operations.

Cost-Effectiveness

By incorporating the ME-C4510E-S7+96SFP module into the Cisco 4510r+e Chassis, businesses can benefit from a cost-effective networking solution. The module's scalability and flexibility eliminate the need for additional hardware investments, while its high performance and reliability reduce maintenance and operational costs over time.

Ports

The Cisco 4510r+e Chassis shines in terms of its port capabilities, particularly with its 96 ports. This feature provides users with a wide range of possibilities and benefits, making it an excellent choice for organizations seeking a versatile networking solution.

Benefits of 96 Ports

The 96 ports offered by the Cisco 4510r+e Chassis bring several advantages to the table, empowering users to optimize their network infrastructure and streamline their operations effectively.

Increased Connectivity

Having a generous number of ports allows businesses to connect multiple devices simultaneously. This feature is particularly useful in environments where numerous devices need to be interconnected, such as data centers or large offices. With 96 ports at their disposal, users can effortlessly establish connections between servers, switches, routers, and other network devices.

Network Expansion

The 96 ports of the Cisco 4510r+e Chassis offer remarkable scalability potential. As businesses grow and their networking requirements increase, having an abundance of ports ensures that new devices can be seamlessly integrated into the network without causing disruptions or necessitating significant infrastructure changes.

Flexibility and Versatility

The availability of 96 ports provides users with the flexibility to adapt their network configurations according to their specific needs. They can allocate ports for different purposes, such as connecting devices to different VLANs (Virtual Local Area Networks), segregating traffic, or setting up redundant connections for enhanced reliability.

Optimized Performance

The ample number of ports allows for efficient load distribution and balancing across the network. By spreading the load across multiple ports, users can prevent bottlenecks and congestion, ensuring smooth and uninterrupted data transmission. This optimized performance is especially critical in bandwidth-intensive environments or during periods of high network activity.

Management

A standout feature of the Cisco 4510r+e Chassis is its comprehensive management capabilities. With its managed functionality, this chassis empowers users to have full control over their network infrastructure, streamlining operations, enhancing security, and optimizing performance.

Benefits of Managed Functionality

The managed functionality of the Cisco 4510r+e Chassis offers a plethora of benefits that enable efficient network management and administration.

Centralized Control

With managed functionality, users can centrally monitor and control their network infrastructure. They can access a centralized management interface, allowing them to configure and manage multiple devices from a single location. This centralized control simplifies network administration tasks and ensures consistent configurations across the network.

Enhanced Security

Managed functionality enhances network security by providing advanced security features and protocols. Administrators can implement access control policies, monitor traffic patterns, and detect potential security threats in real time. This proactive approach to security helps protect sensitive data, prevent unauthorized access, and mitigate potential risks.

Performance Optimization

The managed functionality of the Cisco 4510r+e Chassis enables administrators to optimize network performance. They can monitor bandwidth usage, identify bottlenecks, and implement Quality of Service (QoS) policies to prioritize critical applications and ensure optimal performance for all network users. This optimization allows businesses to deliver reliable and consistent network services to their users.

Fault Detection and Troubleshooting

Managed functionality provides comprehensive fault detection and troubleshooting capabilities. Administrators can monitor network devices, detect potential issues, and receive alerts or notifications in case of failures or abnormalities. This proactive approach to fault management reduces downtime, improves network availability, and minimizes the impact on business operations.

SwitchType

The Cisco 4510r+e Chassis is built as a powerful switch, providing users with a robust and versatile networking solution. The SwitchType feature is a key component of this chassis, offering numerous benefits and ensuring seamless connectivity and efficient data transmission.

Benefits of SwitchType

The SwitchType feature of the Cisco 4510r+e Chassis delivers several advantages that make it an ideal choice for businesses seeking reliable and high-performing networking solutions.

Versatility

The SwitchType feature enables the Cisco 4510r+e Chassis to function as a versatile switch. It supports various networking protocols, including Ethernet, VLANs, and Spanning Tree Protocol (STP), allowing businesses to create complex network topologies and adapt to different networking requirements. This versatility empowers users to design and implement networks tailored to their specific needs.

Efficient Data Transmission

With its SwitchType feature, the Cisco 4510r+e Chassis ensures efficient data transmission within the network. It leverages advanced switching technologies, such as store-and-forward packet switching and cut-through packet switching, to minimize latency, optimize data flow, and deliver high-speed connectivity. This efficiency is essential for bandwidth-intensive applications or environments where real-time data transmission is critical.

Network Segmentation

The SwitchType feature allows for network segmentation, enabling businesses to create separate broadcast domains within the network. By dividing the network into smaller segments, users can enhance security, improve performance, and simplify network management. Network segmentation also enables the implementation of different security policies and access controls for different segments, ensuring better control over network traffic.

Redundancy and High Availability

The SwitchType feature supports redundancy and high availability configurations, ensuring uninterrupted network connectivity. By configuring redundant links and implementing protocols like Rapid Spanning Tree Protocol (RSTP) or Virtual Router Redundancy Protocol (VRRP), businesses can achieve automatic failover and seamless switchover in case of link failures or network disruptions. This redundancy enhances network reliability and minimizes downtime.

In conclusion, the Cisco 4510r+e Chassis is an exceptional networking solution that offers a wide range of features and capabilities. The ME-C4510E-S7+96SFP module, with its high performance and scalability, provides users with a powerful networking component that can meet their growing needs. The 96 ports of the chassis offer flexibility and versatility, allowing for easy expansion and optimized network configurations. The managed functionality ensures centralized control, enhanced security, and improved performance management. Lastly, the SwitchType feature enables the chassis to function as a versatile switch, delivering efficient data transmission, network segmentation capabilities, and high availability configurations. With these features combined, the Cisco 4510r+e Chassis becomes an ideal choice for businesses seeking a reliable and scalable networking solution.
