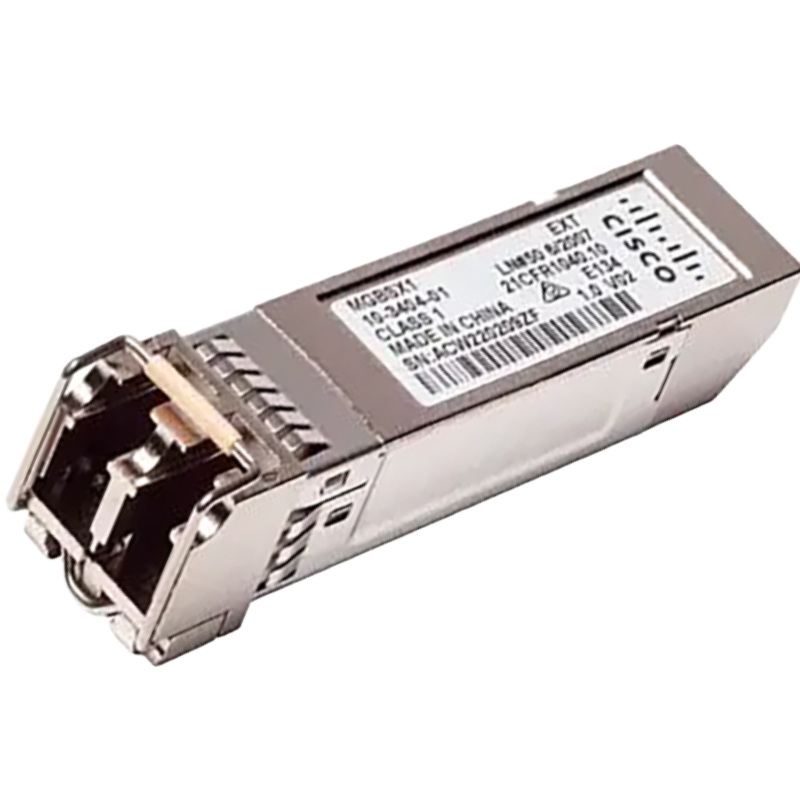

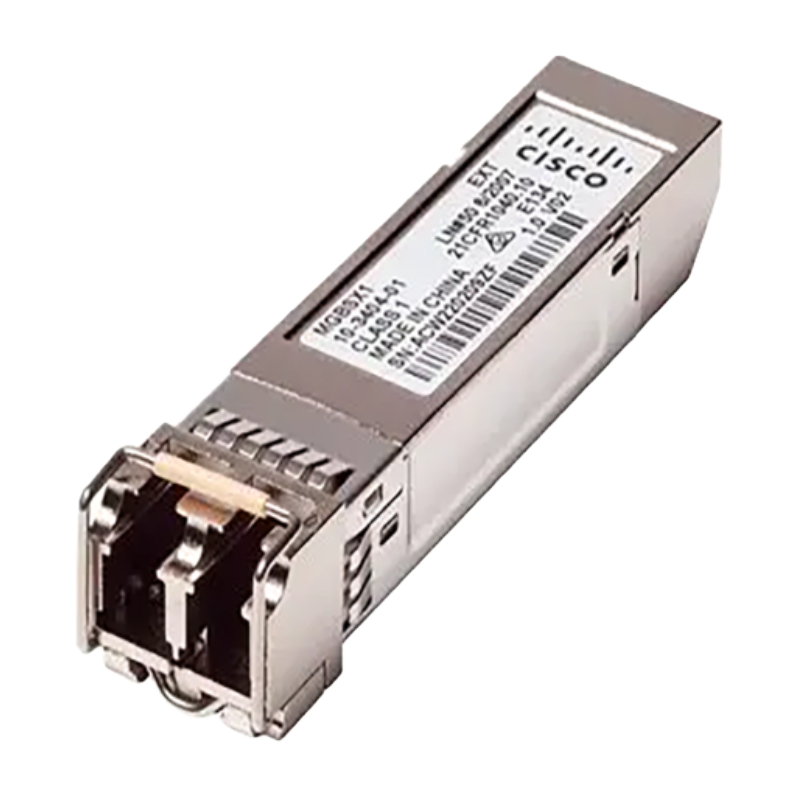

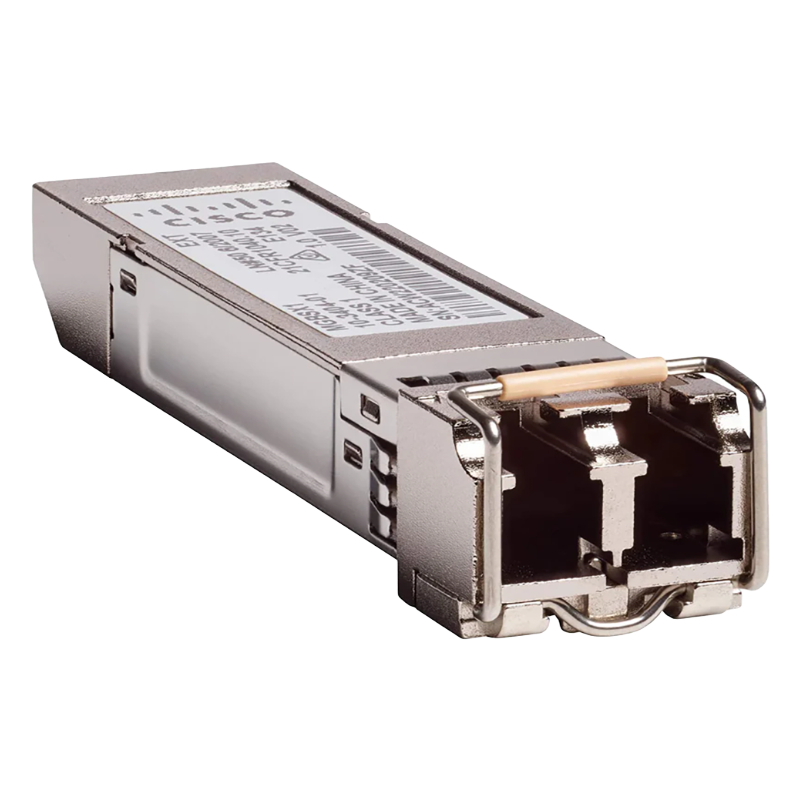

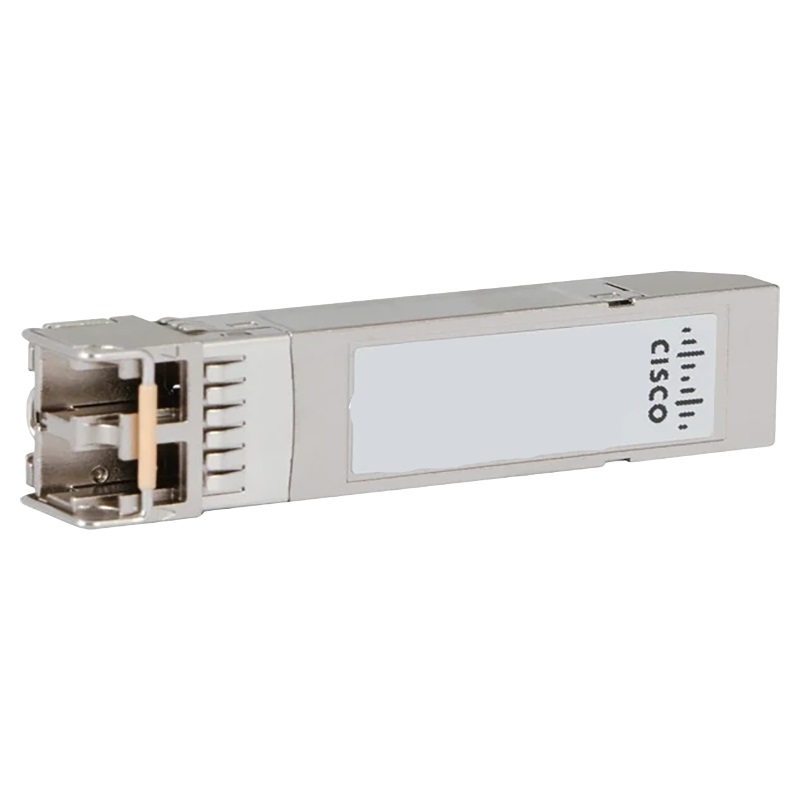

Cisco MGBSX1 Gigabit Ethernet Transceiver Module GBIC SFP

MGBSX1
Hover on image to enlarge

Brief Overview of MGBSX1

Gigabit Ethernet Transceiver Module GBIC SFP Cisco MGBSX1. Excellent Refurbished
QR Code of Cisco MGBSX1 Gigabit Ethernet Transceiver Module GBIC SFP
$156.60
$96.00
You save: $60.60 (39%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNMGBSX1Availability✅ In StockProcessing TimeUsually ships same day ManufacturerCisco Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Cisco MGBSX1 Gigabit Ethernet Transceiver Module

Overview

The Cisco MGBSX1 Gigabit Ethernet Transceiver Module is a high-performance networking solution designed for small to medium-sized businesses. It offers reliable and cost-effective connectivity options, allowing you to expand your network and enhance data transfer speeds.

General Overview of Cisco MGBSX1 Transceiver Module

Manufacturer Details

  • Brand: Cisco
  • Part Number: MGBSX1
  • Product Type: Transceiver Module

Transceiver Module Performance

Interface and Data Rate

  • Interface Type: SFP (mini-GBIC)
  • Data Transfer Speed: 1 Gbps Gigabit Ethernet

Connectivity Media

  • Supported Optical Fiber Types:
    • 50/125 µm Multi-mode Optical Fiber
    • 62.5/125 µm Multi-mode Optical Fiber

Distance and Reach

Distance Capabilities

  • With 62.5/125 µm Optical Fiber:
    • Up to 902.23 feet (275 meters)
    • Up to 721.78 feet (220 meters)
  • With 50/125 µm Optical Fiber:
    • Up to 1804.46 feet (550 meters)
    • Up to 1640.42 feet (500 meters)

Environmental Specifications

Temperature Ranges

  • Storage Temperature: -4°F (-20°C) to 158°F (70°C)
  • Operating Temperature: 32°F (0°C) to 104°F (40°C)

Humidity Levels

  • Storage Humidity: 5% to 95% (Non-condensing)
  • Operating Humidity: 0% to 85% (Non-condensing)

Technical Specifications

Transmitter and Receiver

  • Transmitter Power: -9.5 to -4 dBm
  • Receiver Sensitivity: -20 to -17 dBm
  • Receiver Input Power: -20 to -17 dBm

Stress Sensitivity

  • 50/125 µm Optical Fiber: -13.5 dBm
  • 62.5/125 µm Optical Fiber: -12.5 dBm

Wavelength and Fiber Specifications

  • Wavelength: 850 nm (Typical 850 nm, Range 830-860 nm)
  • Performance with Optical Fiber:
    • 62.5/125 µm MMF at 160 MHz/km: Up to 220 meters
    • 62.5/125 µm MMF at 200 MHz/km: Up to 275 meters
    • 50/125 µm MMF at 400 MHz/km: Up to 500 meters
    • 50/125 µm MMF at 500 MHz/km: Up to 550 meters

Compatibility Information

Supported Devices

  • Cisco SR2024 – 24-Port 10/100/1000 Gigabit Switch
  • Cisco SR224G – 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
  • Cisco SRW2016 – 16-Port 10/100/1000 Gigabit Switch with WebView
  • Cisco SRW2024 – 24-Port 10/100/1000 Gigabit Switch with WebView
  • Cisco SRW224 – 24-port 10/100 + 2-Port Gigabit Switch with WebView

Key Features

1. Gigabit Ethernet Connectivity

With the Cisco MGBSX1 module, you can enjoy Gigabit Ethernet speeds of up to 1000 Mbps, ensuring fast and efficient data transmission across your network. This enables smooth communication and collaboration between various devices and users, boosting overall productivity.

2. SFP Interface

This transceiver module utilizes the Small Form-factor Pluggable (SFP) interface, making it compatible with a wide range of Cisco networking devices. It allows for easy installation and hot-swapping, reducing downtime during network upgrades or maintenance.

3. Multimode Fiber Support

The MGBSX1 module supports multimode fiber optic cables, enabling long-range connectivity with minimal signal loss. It offers a maximum reach of up to 550 meters, making it suitable for both small office environments and larger campus networks.

4. Duplex LC Connector

Equipped with a duplex LC connector, this transceiver module ensures secure and reliable connections. The LC connector is widely recognized for its compact size and excellent performance in high-speed data transmissions.

Benefits

1. Enhanced Network Performance

By incorporating the Cisco MGBSX1 module into your network infrastructure, you can experience significant improvements in network performance. The Gigabit Ethernet speeds allow for faster file transfers, smoother video streaming, and reduced latency, resulting in a more efficient and productive network environment.

2. Scalability and Flexibility

The MGBSX1 module offers scalability and flexibility, allowing you to expand your network as your business grows. Its compatibility with various Cisco devices ensures seamless integration, making it an ideal choice for evolving network requirements.

3. Cost-Effective Solution

Investing in the Cisco MGBSX1 module is a cost-effective solution for upgrading your network. It eliminates the need for costly infrastructure overhauls by providing high-speed connectivity over existing multimode fiber optic cables. This saves both time and money, allowing you to optimize your budget for other critical business needs.

4. Easy Installation and Maintenance

The transceiver module's SFP interface simplifies installation and maintenance processes. It can be easily inserted or removed from compatible devices without disrupting network operations. This feature minimizes downtime and enhances overall network reliability.

5. Industry-Leading Quality

Cisco is renowned for its commitment to producing high-quality networking equipment, and the MGBSX1 module is no exception. With rigorous testing and quality control measures in place, you can trust in the reliability and durability of this transceiver module, ensuring uninterrupted network performance.

Applications

1. Local Area Networks (LANs)

The Cisco MGBSX1 module is ideal for connecting devices within a local area network (LAN). Whether it's connecting workstations, servers, or other networking equipment, this module ensures fast and reliable data transfer, enabling efficient communication and collaboration.

2. Campus Networks

For larger-scale networks such as campus environments, the MGBSX1 module offers the necessary reach and performance to connect various buildings or departments. Its compatibility with multimode fiber optics allows for extended distances without compromising signal quality.

3. Data Centers

The high-speed Gigabit Ethernet connectivity of the MGBSX1 module makes it suitable for data center environments. It enables quick and efficient data transfers between servers, storage systems, and other critical infrastructure components, supporting the demanding requirements of modern data centers.

4. Telecommunication Networks

Telecommunication networks often require reliable and high-performance networking solutions, and the MGBSX1 module can meet these demands. Its compatibility with Cisco devices and support for multimode fiber optics make it a reliable choice for telecommunication network deployments.

Conclusion

The Cisco MGBSX1 Gigabit Ethernet Transceiver Module is a versatile and cost-effective networking solution that offers high-speed connectivity, scalability, and easy installation. With its compatibility with various Cisco devices and support for multimode fiber optics, it is suitable for a wide range of applications, including LANs, campus networks, data centers, and telecommunication networks. Invest in the MGBSX1 module to enhance your network performance and take your business to new heights.

Features
Product/Item Condition:
Excellent Refurbished
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
