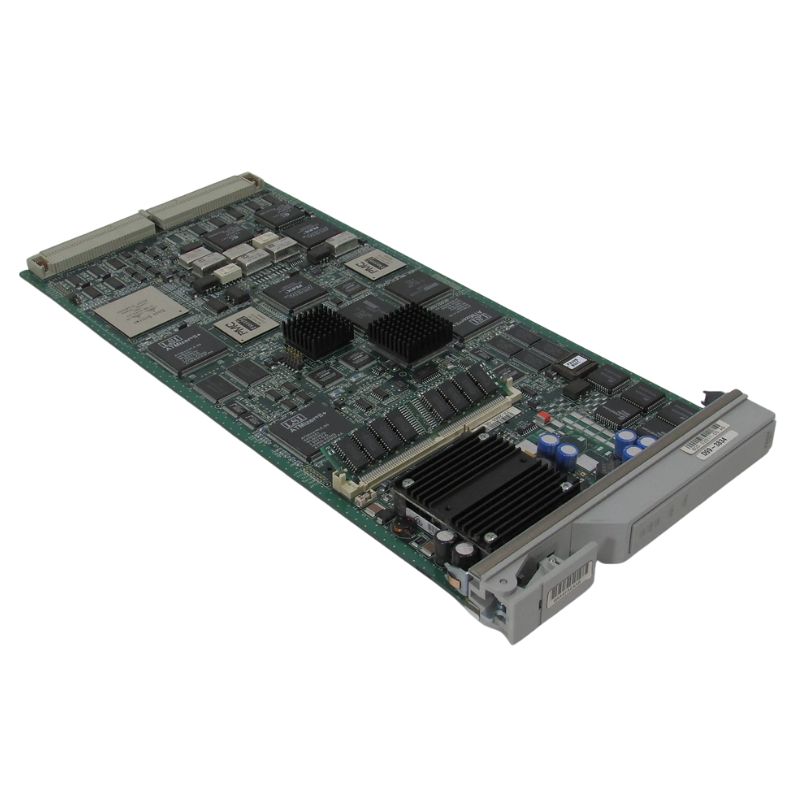

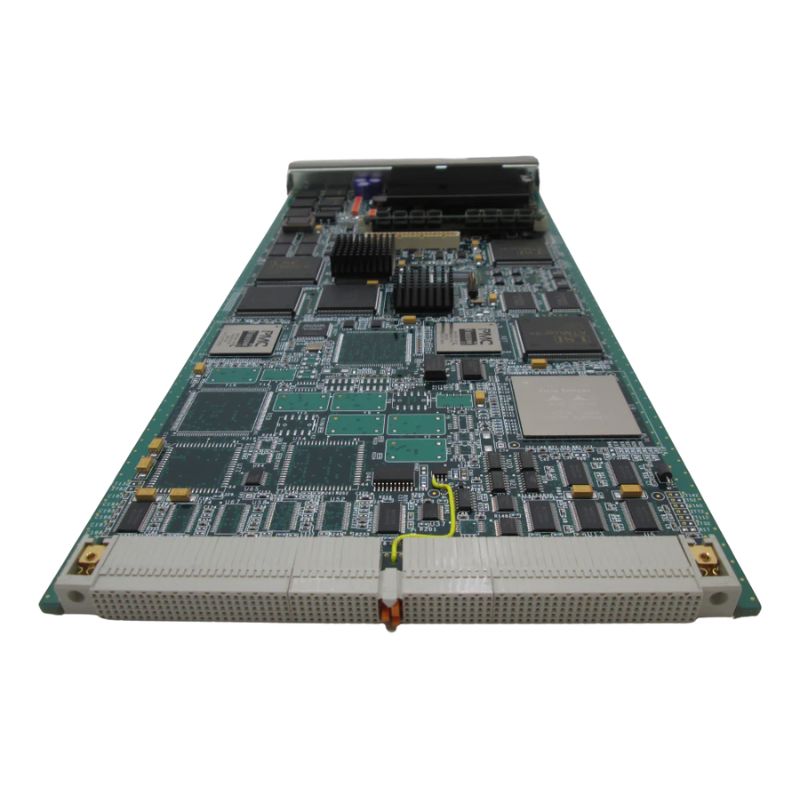

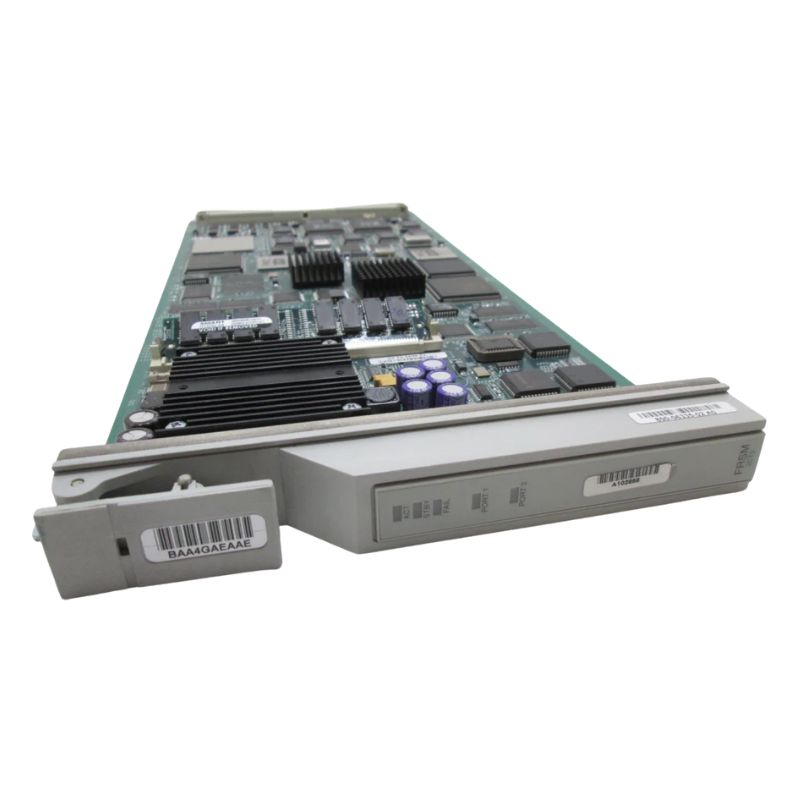

MGX-XM60 Cisco Fabric Card Switch Module

Cisco MGX-XM60 Fabric Card Switch Module Overview

The Cisco MGX-XM60 is a high-performance switch module designed for robust network operations. Engineered by Cisco, this module offers reliable connectivity and seamless integration within compatible chassis, making it a crucial component for modern networking environments.

Manufacturer and Product Details

• Manufacturer: Cisco
• Part Number / SKU: MGX-XM60
• Product Type: Switch
• Sub-Type: Module

Technical Specifications

Chassis and Software Compatibility

• Compatible Chassis: MGX 8950
• Supported Software: MGX Software Releases 4.0.15 and above

Network Management

• Managed via Cisco WAN Manager software suite
• Supports SNMP-based network management

Power Requirements

• Input Power: -48 VDC
• Power Consumption: 61 W

Physical Characteristics

• Dimensions (H x D): 7.25 x 16.5 in (18.41 x 41.91 cm)
• Weight: 3.5 lb

Environmental Conditions

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Temperature: Normal 5°C to 40°C (41°F to 104°F), Short-term -5°C to 50°C (23°F to 122°F)
• Relative Humidity: Normal 5% to 85%, Short-term 5% to 90% (max 0.024 kg water/kg dry air)
• Short-term defined as ≤96 consecutive hours, ≤15 occurrences per year

Approvals and Compliance

Safety Standards

• UL/CSA/IEC/EN 60950-1
• IEC/EN 60825 Laser Safety
• ACA TS001, AS/NZS 60950
• FDA Code of Federal Regulations – Laser Safety

Electromagnetic Interference (EMI)

• FCC Class A, ICES 003 Class A
• AS/NZS 3548 Class A, CISPR 22 (EN55022) Class A
• VCCI Class A, BSMI Class A
• IEC/EN 61000-3-2: Power Line Harmonics
• IEC/EN 61000-3-3: Voltage Fluctuations and Flicker

Immunity Standards

• IEC/EN-61000-4-2: Electrostatic Discharge (8kV Contact, 15kV Air)
• IEC/EN-61000-4-3: Radiated Immunity (10V/m)
• IEC/EN-61000-4-4: Electrical Fast Transient (2kV AC Power, 1kV DC Power)
• IEC/EN-61000-4-5: Surge AC Port (2kV CM/DM), Signal Ports (1kV), DC Port (1kV)
• IEC/EN-61000-4-6: Conducted Disturbances Immunity (10Vrms)
• IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
• IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, Variations

Network Equipment Building Systems (NEBS)

• Designed to meet SR-3580: NEBS Criteria Level 3
• GR-1089-CORE: NEBS EMC and Safety
• GR-63-CORE: NEBS Physical Protection

Telcordia CLEI Compliance

• GR-485-CORE: CLEI Coding
• GR-383-CORE: CLEI Product Label
• GR-209-CORE: PCN Process

Cisco MGX-XM60 Fabric Card Switch Module

The Cisco MGX-XM60 Fabric Card Switch Module is optimized for high-performance networking environments. It delivers low-latency packet processing, which is critical for applications such as voice, video, and real-time data services. The module leverages advanced traffic management techniques to prioritize critical traffic, prevent congestion, and maintain quality of service (QoS) across the network.

Low-Latency Switching

Low-latency switching is achieved through a combination of hardware acceleration and efficient data path design. The MGX-XM60 minimizes packet delay, ensuring that real-time applications such as VoIP and video conferencing experience minimal jitter and latency. This capability is particularly important for service providers offering premium services that require stringent performance guarantees.

Quality of Service (QoS) Management

QoS management is a critical feature of the MGX-XM60. The module provides mechanisms to classify, prioritize, and manage traffic based on predefined policies. This ensures that high-priority traffic receives the necessary bandwidth and low-latency treatment, while less critical traffic is appropriately managed. The result is a more predictable and reliable network performance, enhancing customer satisfaction.

Intelligent Traffic Shaping

Intelligent traffic shaping allows the MGX-XM60 to dynamically adjust bandwidth allocation based on network conditions and service requirements. By actively monitoring traffic patterns, the module can optimize resource utilization, prevent congestion, and maintain consistent performance levels across all connected services. This capability is essential in multi-service networks that handle diverse traffic types.

Integration and Compatibility

The MGX-XM60 Fabric Card Switch Module is designed for seamless integration into the Cisco MGX series platform, ensuring compatibility with existing network infrastructure. The module supports standard interfaces and protocols, facilitating interoperability with other network components and third-party equipment. This compatibility simplifies deployment and reduces operational complexity for network operators.

Platform Interoperability

The module is fully interoperable with other Cisco MGX components, enabling operators to leverage existing investments while expanding network capabilities. This interoperability allows for a cohesive network architecture, where all components work in unison to deliver consistent performance, reliability, and scalability. The MGX-XM60 can also interface with legacy systems, providing a smooth transition path for network upgrades.

Software and Management Tools

Efficient management is facilitated through Cisco's comprehensive software suite, which provides configuration, monitoring, and diagnostic tools for the MGX-XM60. Network administrators can easily manage traffic flows, monitor performance metrics, and implement policy changes through an intuitive interface. Advanced analytics and reporting features enable proactive network management, helping operators identify and address potential issues before they impact service.

Applications and Use Cases

The Cisco MGX-XM60 Fabric Card Switch Module is suitable for a wide range of telecommunications and data networking applications. Its high performance, scalability, and reliability make it ideal for service providers delivering voice, video, and data services across large-scale networks. The module supports both residential and enterprise applications, providing a flexible and robust solution for various deployment scenarios.

Carrier-Grade Voice and Data Services

For carrier-grade voice and data services, the MGX-XM60 ensures high availability and low latency, meeting the demanding requirements of modern communications networks. It can handle large volumes of voice traffic, video streaming, and high-speed data transfers with minimal packet loss or delay. This makes it an essential component for service providers aiming to deliver premium-quality services to their subscribers.

Enterprise Network Solutions

In enterprise environments, the MGX-XM60 provides a robust switching fabric capable of supporting multiple data-intensive applications. Enterprises can leverage this module to connect various departments, branch offices, and data centers, ensuring seamless communication and collaboration. The module's reliability and scalability make it a valuable investment for organizations looking to future-proof their network infrastructure.

Data Center and Cloud Integration

The MGX-XM60 is well-suited for data center and cloud environments, where high-speed, low-latency connectivity is essential. Its ability to handle substantial data traffic and provide predictable performance ensures efficient operation of cloud services, virtualized workloads, and large-scale storage systems. By integrating the MGX-XM60 into data center networks, operators can achieve improved throughput, reduced latency, and optimized resource utilization.

Service Provider Edge and Core Networks

At the service provider edge and core networks, the MGX-XM60 plays a crucial role in aggregating traffic from multiple sources and efficiently routing it through the network. Its high-capacity switching fabric and advanced traffic management capabilities enable operators to meet growing bandwidth demands and maintain quality service delivery. The module supports seamless scalability, allowing providers to expand their network infrastructure as subscriber demand increases.

Technical Specifications

The Cisco MGX-XM60 Fabric Card Switch Module is built with high-performance hardware components and supports multiple interfaces, providing flexibility and adaptability to different network requirements. Key technical specifications include high port density, low-latency switching capabilities, redundancy features, and support for advanced QoS and traffic management protocols. These specifications ensure that the module can handle the rigorous demands of modern service provider networks while maintaining optimal performance and reliability.

High-Performance Hardware Components

The module's hardware architecture is designed for high-speed data processing and reliability. Components such as advanced switching ASICs, high-speed memory modules, and redundant power supplies contribute to the module's ability to maintain continuous operation under heavy traffic loads. This hardware foundation ensures that the MGX-XM60 can support demanding network environments without compromising performance.

Interface Support

The MGX-XM60 supports a wide range of interfaces, including high-speed Ethernet and legacy telecommunications interfaces. This flexibility allows network operators to connect various devices and services through a single switch fabric, reducing complexity and improving operational efficiency. The module's interface versatility ensures that it can accommodate current network demands while remaining adaptable to future technological advancements.

Redundancy and Failover Features

Redundancy and failover capabilities are integral to the MGX-XM60's design. The module includes hot-swappable components, dual power supplies, and automatic failover mechanisms to ensure continuous operation in the event of hardware failures. These features minimize downtime and maintain uninterrupted service delivery, which is essential for both service providers and enterprise networks.

Advanced Traffic Management

Advanced traffic management features, including QoS prioritization, traffic shaping, and load balancing, enable the MGX-XM60 to optimize network performance. By intelligently managing traffic flows, the module ensures that high-priority services receive the necessary bandwidth and low-latency treatment. This capability is critical for maintaining service quality in environments with mixed traffic types, such as voice, video, and data applications.
