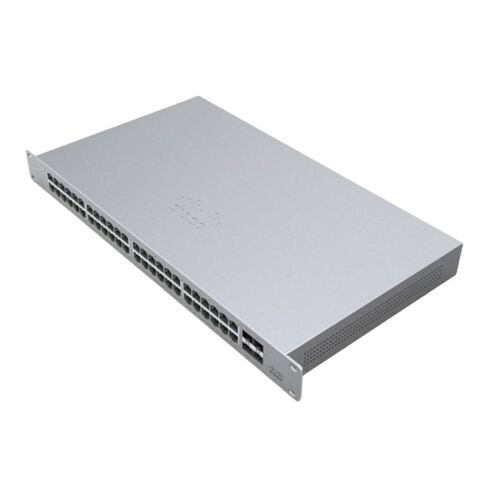

Cisco MS120-48FP-HW Meraki Cloud Managed 48 Ports Switch

Cisco MS120-48FP-HW 48-Port Managed Switch Features

Manufacturer Details

• Brand: Cisco
• Model Number: MS120-48FP-HW
• Product Name: Meraki Cloud Managed MS120-48FP
• Type: Managed Ethernet Switch
• Form Factor: Rack-mountable 1U (Fits in standard server racks)
• Network Subtype: Gigabit Ethernet

Port Configuration

• 48 x 10/100/1000 Mbps RJ-45 PoE ports
• 4 x Gigabit SFP uplink ports

Performance Specifications

Data Transfer and Forwarding

• Switching Capacity: 104 Gbps
• Forwarding Rate: 77.38 Mpps

Compliant Standards

• IEEE 802.1d - Spanning Tree Protocol
• IEEE 802.1q - VLAN Tagging
• IEEE 802.1p - Priority Tagging
• IEEE 802.3af - Power over Ethernet (PoE)
• IEEE 802.3ad - Link Aggregation (LACP)
• IEEE 802.1w - Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1x - Port-based Network Access Control
• IEEE 802.1ab - Link Layer Discovery Protocol (LLDP)

Advanced Features

• Flow Control & Auto-negotiation: Optimizes data flow and network stability
• VLAN Support: Enables efficient network segmentation
• IGMP Snooping: Enhances multicast traffic management
• Port Mirroring & Syslog Support: Provides tools for monitoring network activity
• Email & SMS Alerts: Notifies admins of important network events
• Broadcast Storm Control: Prevents network congestion
• Spanning Tree Protocol (STP): Supports STP and Rapid STP for loop prevention
• Access Control Lists (ACL): Enhances security by managing traffic permissions
• Quality of Service (QoS): Prioritizes critical network traffic for optimized performance
• Zero-Touch Provisioning (ZTP): Simplifies initial setup and deployment
• Single Sign-On (SSO) & Role-Based Access Control (RBAC): Improves access management and security
• Cisco Discovery Protocol & STP BPDU Guard: Ensures efficient network discovery and enhanced security

Ports

The Cisco MS120-48FP-HW Switch is equipped with an impressive 48 ports, making it an ideal choice for businesses and organizations that require a high number of network connections. With this many ports, users can connect a wide range of devices, including computers, printers, servers, and IP phones. This abundance of ports ensures that all devices can be connected simultaneously without the need for additional switches or hubs.

Increased Connectivity

Having 48 ports on a single switch allows for increased connectivity options within a network infrastructure. This means that multiple devices can be connected directly to the switch, eliminating the need for additional equipment and reducing complexity. With more ports available, businesses can easily expand their network without worrying about running out of connection points.

Streamlined Network Management

The Cisco MS120-48FP-HW Switch simplifies network management by providing a centralized location for connecting and monitoring multiple devices. By consolidating connections onto a single switch, IT administrators can easily keep track of network activity and troubleshoot any issues that arise. This streamlines the management process and reduces the time and effort required to keep the network running smoothly.

Improved Performance

The 48 ports on the Cisco MS120-48FP-HW Switch ensure that each device connected to the network receives optimal performance. With dedicated ports for each device, there is no contention for network resources, leading to faster data transfer speeds and reduced latency. This is particularly important in environments where high-demand applications are used, such as video conferencing or data-intensive tasks.

Furthermore, the Cisco MS120-48FP-HW Switch supports Power over Ethernet (PoE) on all 48 ports. This means that devices such as IP phones, wireless access points, and security cameras can be powered directly from the switch, eliminating the need for separate power sources. This feature simplifies installation and reduces clutter, making it an excellent choice for businesses that require a large number of powered devices.

Management

One of the standout features of the Cisco MS120-48FP-HW Switch is its Meraki Cloud Managed functionality. This management feature allows users to control and monitor the switch remotely through a cloud-based platform. The Meraki dashboard provides a user-friendly interface that offers a wealth of management and monitoring capabilities.

Remote Management

With the Meraki Cloud Managed feature, IT administrators can manage the Cisco MS120-48FP-HW Switch from anywhere with an internet connection. This remote management capability is particularly beneficial for organizations with multiple locations or distributed networks. Instead of requiring physical access to each switch, administrators can make changes, configure settings, and monitor performance from a central location. This saves time and resources while ensuring consistent management across the network.

Real-Time Monitoring

The Meraki dashboard provides real-time monitoring of the Cisco MS120-48FP-HW Switch, allowing administrators to keep a close eye on network performance. They can view detailed statistics, such as bandwidth utilization, port status, and traffic patterns, enabling proactive troubleshooting and capacity planning. By identifying potential issues before they become critical, administrators can ensure optimal network performance and minimize downtime.

Easy Configuration and Deployment

The Meraki Cloud Managed functionality simplifies the configuration and deployment process for the Cisco MS120-48FP-HW Switch. Administrators can easily configure multiple switches simultaneously using templates, reducing the time and effort required to set up a network infrastructure. The cloud-based platform also allows for seamless firmware upgrades, ensuring that switches are always running the latest software version with the latest security patches.

In addition, the Meraki dashboard provides comprehensive reporting capabilities, allowing administrators to generate detailed reports on network usage, device inventory, and security events. These reports provide valuable insights for capacity planning, compliance audits, and troubleshooting purposes.

In conclusion, the Cisco MS120-48FP-HW Switch with its 48 ports offers users increased connectivity options, streamlined network management, and improved performance. The Meraki Cloud Managed feature further enhances the switch's capabilities by providing remote management, real-time monitoring, and easy configuration and deployment. With these features, businesses can build a robust and efficient network infrastructure that meets their current needs and future growth requirements.
