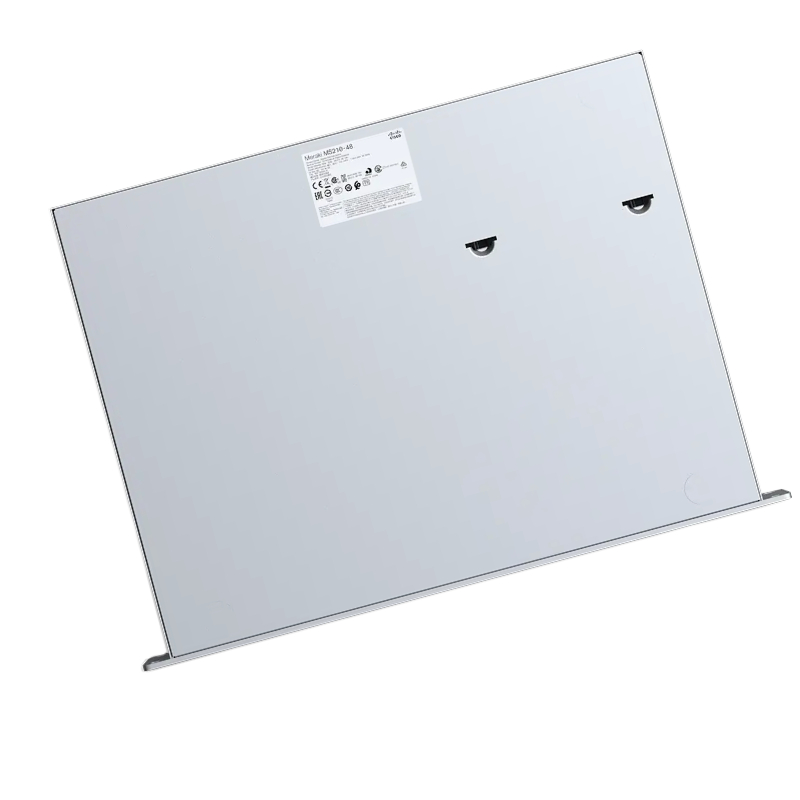

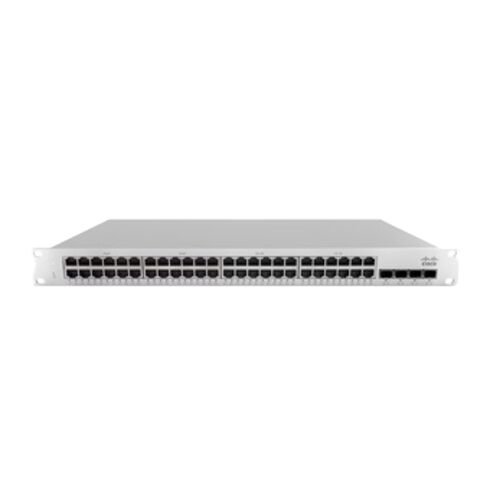

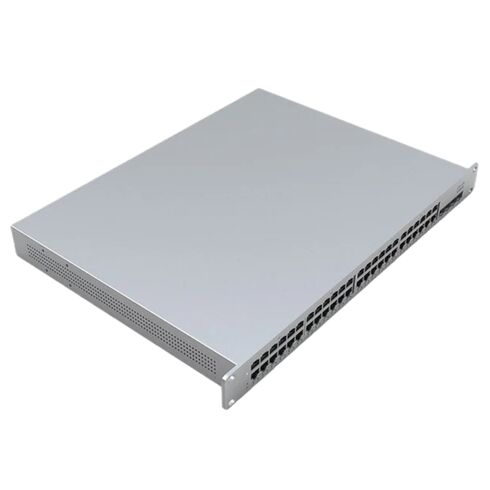

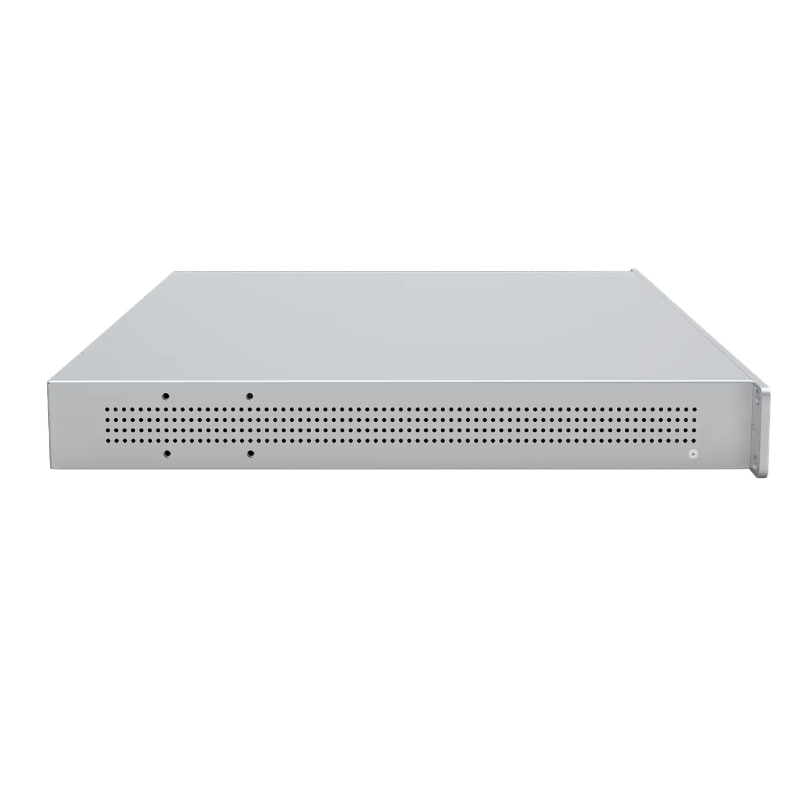

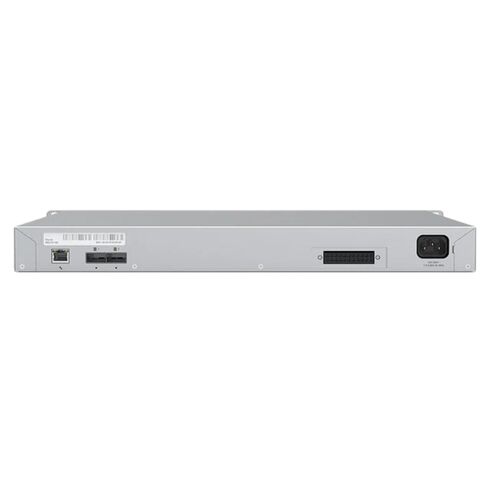

Cisco MS210-48LP-HW Managed Switch - 48 Ports

Product Overview of Cisco Meraki MS210-48LP-HW

The Cisco Meraki MS210-48LP-HW is a high-performance Ethernet switch designed to deliver robust connectivity and advanced network management features. This model, part of the Meraki MS series, excels in providing efficient network solutions in a 1U rack-mountable form factor.

General Information

• Model Number: MS210-48LP-HW
• Brand: Cisco Meraki
• Type: Managed Ethernet Switch
• Form Factor: 1U Rack-Mountable

Port Configuration

• Number of Ports: 48 x Gigabit Ethernet
• Uplink Ports: 4 x Gigabit SFP
• Port Types: 48 x 1000Base-T RJ-45, 4 x Gigabit LAN SFP

Power Features

• Power Over Ethernet (PoE): PoE+
• PoE Budget: 370W
• Power Consumption: Operational: 439.8 Watts
• Voltage Required: AC 120/230 V (47 - 63 Hz)

Key Features

• Email Alerts: Receive notifications on network events.
• Cable Testing: Built-in diagnostics for cable integrity.
• Zero-Touch Provisioning (ZTP): Simplified device setup without manual configuration.
• Dynamic Network Topology: Automatic network mapping for improved visibility.

Compliance and Standards

• IEEE Standards:
• IEEE 802.3af
• IEEE 802.3at

Technical Specifications

• Network Technology: 1000Base-T, 1000Base-X
• Layer Supported: Layer 2
• Expansion Slots: 4 x SFP (Shared)
• Management: Manageable via cloud-based Meraki dashboard

Ports

48 Gigabit Ethernet Ports

The Cisco MS210-48LP-HW Managed Switch is equipped with an impressive 48 Gigabit Ethernet ports. This feature allows for a high level of connectivity, making it an excellent choice for businesses that require a reliable and fast network infrastructure. With 48 ports available, users can connect multiple devices simultaneously without experiencing any slowdowns or bottlenecks.

Increased Flexibility

Having 48 Gigabit Ethernet ports offers users increased flexibility in setting up their network. This switch allows for the connection of a wide range of devices, including computers, printers, servers, and IP phones. With such a large number of ports, businesses can easily expand their network as their needs grow, without worrying about running out of available ports.

Improved Network Performance

The Cisco MS210-48LP-HW Managed Switch's 48 Gigabit Ethernet ports enable superior network performance. With gigabit speeds, users can experience faster data transfer rates and reduced latency. This is especially beneficial for businesses that rely on bandwidth-intensive applications or frequently transfer large files across their network. The increased speed and reduced latency contribute to enhanced productivity and efficiency.

VLAN Support

This managed switch supports Virtual Local Area Networks (VLANs) on its 48 Gigabit Ethernet ports. VLANs allow for the segmentation of a network into separate logical networks, even though they may physically share the same switches. This feature provides improved security and network management by isolating traffic between different departments or groups within an organization. It also enables more efficient use of available bandwidth by prioritizing traffic based on specific requirements or needs.

PoE+ Capabilities

In addition to the 48 Gigabit Ethernet ports, the Cisco MS210-48LP-HW Managed Switch also offers Power over Ethernet Plus (PoE+) capabilities. This feature allows the switch to provide both data and power to compatible devices, such as IP phones, wireless access points, and surveillance cameras, over a single Ethernet cable. With PoE+, businesses can simplify their network setup and reduce cable clutter, all while ensuring that their devices receive a reliable power source.

Easy Device Deployment

The 48 Gigabit Ethernet ports with PoE+ capabilities make device deployment a breeze. Users can simply connect their compatible devices to the switch using Ethernet cables, eliminating the need for separate power adapters or electrical outlets. This simplifies the installation process and reduces the overall cost of deploying network devices.

Cost Efficiency

The Cisco MS210-48LP-HW Managed Switch's 48 Gigabit Ethernet ports offer excellent cost efficiency. With a high port density, businesses can save money by avoiding the need for additional switches or network equipment. The switch's ability to provide both data and power to devices with PoE+ capabilities also eliminates the need for separate power sources, further reducing costs.

Future-Proofing

Investing in a switch with 48 Gigabit Ethernet ports ensures future-proofing for businesses. As technology continues to advance and network demands increase, having a high number of ports available allows for scalability and growth. This eliminates the need for frequent upgrades or replacements, providing businesses with a reliable and long-lasting networking solution.

In conclusion, the Cisco MS210-48LP-HW Managed Switch's 48 Gigabit Ethernet ports offer numerous benefits to users. The increased flexibility, improved network performance, VLAN support, PoE+ capabilities, easy device deployment, cost efficiency, and future-proofing are all essential features that make this switch an excellent choice for businesses. With its impressive port count, this switch provides a reliable and efficient network infrastructure that can support the growing needs of modern businesses.
