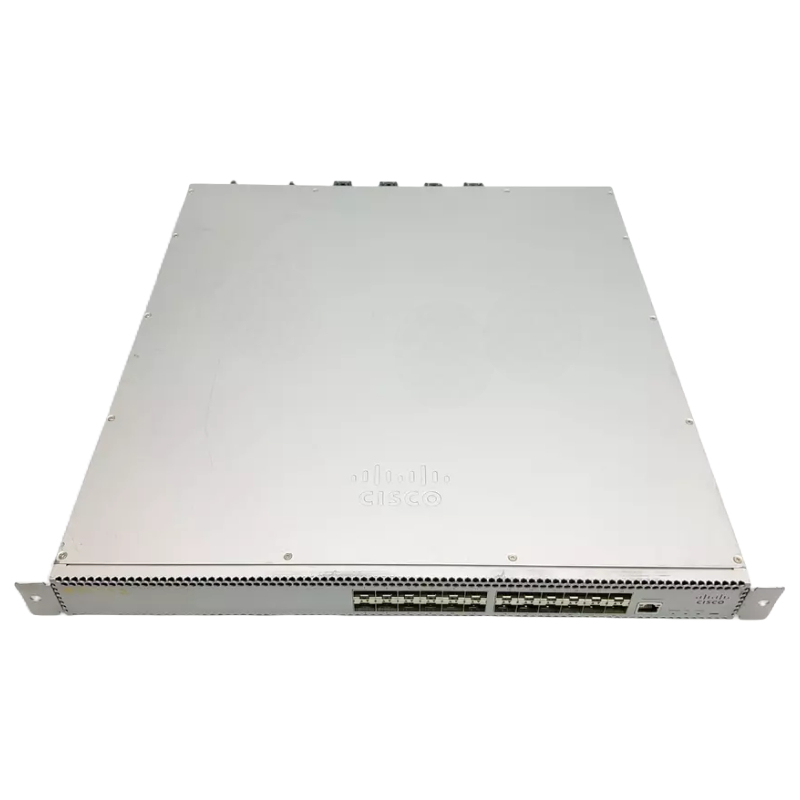

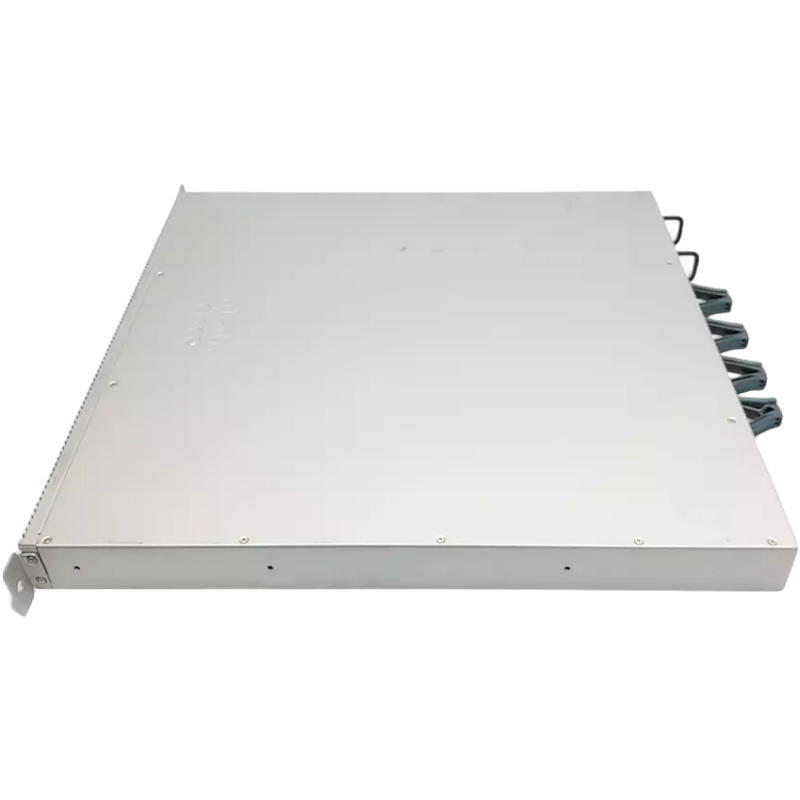

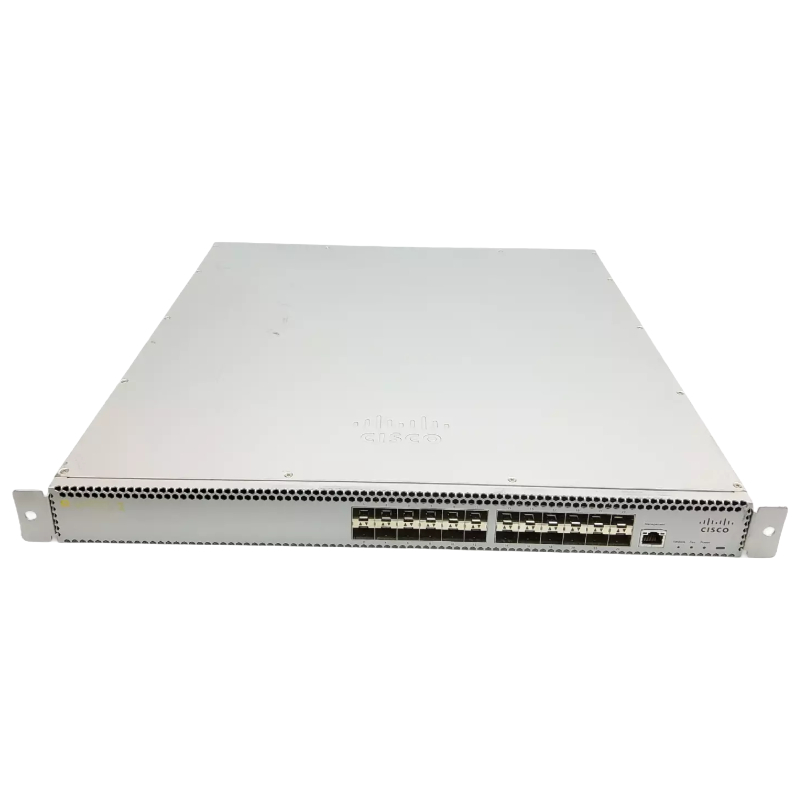

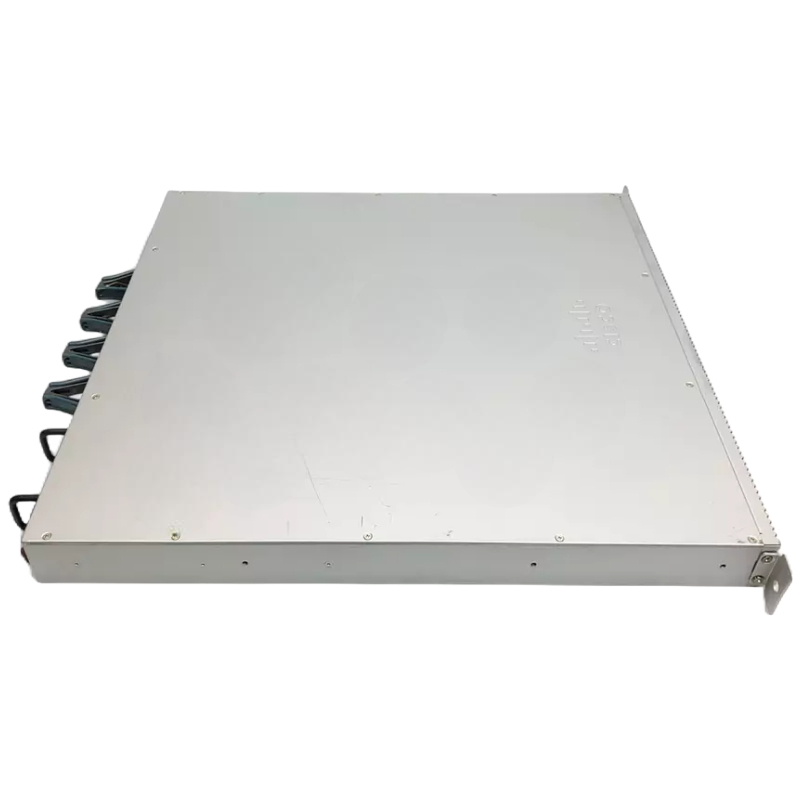

Cisco MS420-24-HW Rack-mountable Managed Switch Meraki Cloud MS420-24 L3 SFP

Meraki MS420-24-HW Ethernet Switch Specifications

General Product Information

• Brand: Meraki
• Part Number: MS420-24-HW
• Product Type: Layer 3 Switch

Hardware Details

• Device Type: Managed 24-Port Switch
• Enclosure Type: 1U Rack-Mountable
• Form Factor: Rack-Mountable
• Dimensions: Height: 1.8 inches, Width: 17.3 inches, Depth: 18.6 inches

Ports and Connectivity

• Ethernet Ports: 24 x 10 Gigabit Ethernet SFP+
• Uplink Ports: None
• Expansion Slots: 24 x SFP+ Slots
• Management Port: 1 x RJ-45
• Modular: No

Performance and Technology

• Ethernet Technology: 10 Gigabit Ethernet
• Network Technology: 10GBase-X
• Layer Support: Layer 3

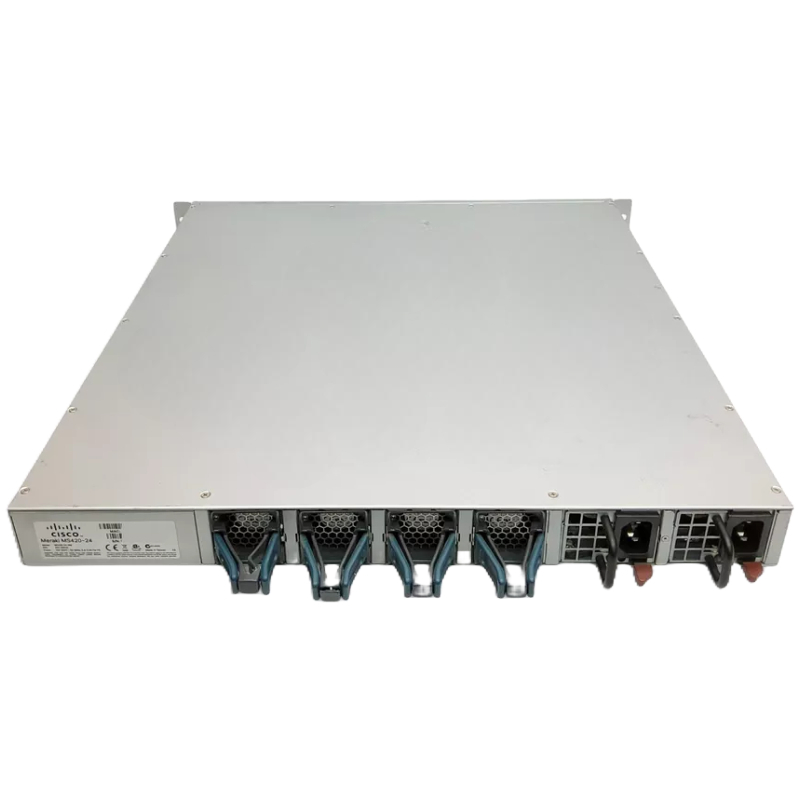

Power Specifications

• Power Source: Internal Power Supply
• Redundant Power Supply: Supported (Optional)
• Power Provided: 370 Watts
• Voltage Required: AC 120/230 V (50/60 Hz)

Power over Ethernet (PoE) Capabilities

• PoE Standard: PoE+
• PoE Budget: 370 Watts
• PoE Ports: 24 x 1000Base-T RJ-45 (PoE+)
• Power per PoE Port: 25.5 Watts

Ports

The Cisco MS420-24-HW Rack-mountable Managed Switch is equipped with 24 ports, making it an ideal choice for businesses that require a high-density network infrastructure. With its ample number of ports, this switch offers users the flexibility to connect multiple devices simultaneously, ensuring seamless communication and data transfer within the network.

Improved Connectivity

Having 24 ports allows businesses to connect a wide range of devices such as computers, printers, servers, and IP phones. This enhanced connectivity enables efficient collaboration and communication across different departments, leading to increased productivity and streamlined workflows.

Scalability

The MS420-24-HW switch's 24 ports provide scalability options for businesses that anticipate future growth. As the company expands and adds more devices to its network, having additional ports ensures that there is enough capacity to accommodate the increased workload without sacrificing performance.

Redundancy

Another advantage of having 24 ports is redundancy. In case one port fails or experiences issues, businesses can quickly switch to an alternate port without disrupting the network operations. This redundancy feature ensures minimal downtime and helps maintain a stable and reliable network connection.

Flexibility

The numerous ports on the Cisco MS420-24-HW switch offer users the flexibility to configure their network infrastructure according to their specific needs. Whether it's segmenting different departments or creating virtual LANs (VLANs) for improved security, the switch's 24 ports provide ample room for customization and adaptability.

High-Speed Data Transfer

Each of the 24 ports on this switch supports Gigabit Ethernet connectivity, allowing for high-speed data transfer within the network. This feature is particularly beneficial for businesses that handle large data files or require real-time data transmission, such as video conferencing or multimedia streaming.

Management

The Cisco MS420-24-HW Rack-mountable Managed Switch stands out with its advanced management capabilities. As a managed switch, it offers users a wide range of features and tools to monitor and control their network, ensuring optimal performance and security.

Remote Configuration

One of the key benefits of a managed switch is the ability to configure and manage the network remotely. With the Cisco MS420-24-HW, users can access the switch's management interface from anywhere, providing convenience and flexibility for network administrators. This remote configuration allows for efficient troubleshooting, firmware updates, and overall network management without the need for physical access to the switch.

Real-Time Monitoring

The MS420-24-HW switch provides real-time monitoring capabilities, allowing administrators to keep a close eye on the network's performance and identify potential issues before they escalate. Through the switch's management interface, users can monitor traffic patterns, bandwidth utilization, and device connectivity, enabling proactive troubleshooting and ensuring optimal network performance.

Enhanced Security

Managed switches like the MS420-24-HW offer robust security features to protect the network from unauthorized access and potential threats. Administrators can implement access control lists (ACLs), VLANs, and other security measures to restrict access to sensitive data or specific network resources. This level of control enhances network security and reduces the risk of data breaches or unauthorized network usage.

Quality of Service (QoS)

QoS is crucial for businesses that prioritize certain types of network traffic over others. With the Cisco MS420-24-HW switch's management capabilities, administrators can configure QoS policies to ensure that critical applications or services receive priority bandwidth and resources. This feature helps maintain consistent performance for important business operations and prevents congestion or latency issues.

Efficient Troubleshooting

When issues arise within the network, having a managed switch like the MS420-24-HW simplifies the troubleshooting process. Administrators can access detailed logs, analyze network activity, and diagnose problems more effectively. This efficient troubleshooting saves time and resources, leading to faster resolution and minimized impact on business operations.

Cloud

The Cisco MS420-24-HW Rack-mountable Managed Switch offers seamless integration with the Meraki Cloud, providing users with enhanced network management capabilities and simplifying the overall network infrastructure.

Centralized Management

By leveraging the power of the Meraki Cloud, users can centrally manage all their Cisco MS420-24-HW switches from a single interface. This centralized management allows for efficient configuration changes, firmware updates, and monitoring across multiple switches within the network. Administrators can access the Meraki Cloud from anywhere, streamlining network management and reducing the need for on-site maintenance.

Automated Updates

One of the key advantages of connecting the MS420-24-HW switch to the Meraki Cloud is automated firmware updates. With traditional switches, firmware updates can be time-consuming and may require manual intervention. However, with Meraki Cloud integration, firmware updates are automated and pushed to the switches, ensuring that they are running on the latest software version with enhanced security features and performance improvements.

Network Analytics

The Meraki Cloud provides powerful network analytics tools that allow administrators to gain valuable insights into their network's performance and usage patterns. Through detailed reports and real-time analytics, users can identify bottlenecks, optimize traffic flow, and make informed decisions to improve overall network efficiency.

Alerts and Notifications

The integration with the Meraki Cloud enables administrators to receive alerts and notifications regarding any network issues or anomalies. Whether it's a device going offline or unusual network activity, these proactive alerts help administrators quickly address potential problems and maintain a stable network environment.

Scalability and Flexibility

The Meraki Cloud integration offers businesses scalability and flexibility. As the network expands, additional switches can be seamlessly integrated into the cloud management system, eliminating the need for complex manual configurations. This scalability ensures that the network can grow alongside the business without compromising performance or security.

Layer

The Cisco MS420-24-HW Rack-mountable Managed Switch boasts Layer 3 functionality, which provides advanced routing capabilities and enhances network performance and efficiency.

Inter-VLAN Routing

Layer 3 switches like the MS420-24-HW allow for inter-VLAN routing, enabling efficient communication between different VLANs within the network. This capability eliminates the need for an external router and simplifies network architecture. Inter-VLAN routing enhances security by segregating network traffic and improves performance by reducing broadcast traffic.

Dynamic Routing Protocols

The Layer 3 functionality of the MS420-24-HW switch supports dynamic routing protocols such as OSPF and RIP. These protocols enable routers to exchange routing information automatically, allowing for efficient route determination and optimal traffic flow. Dynamic routing protocols are particularly beneficial for large networks with multiple routers, as they ensure accurate and up-to-date routing information.

Quality of Service (QoS)

Layer 3 switches offer enhanced QoS capabilities compared to lower-layer switches. Administrators can prioritize certain types of traffic based on their specific requirements, ensuring critical applications or services receive the necessary bandwidth and resources. This QoS feature improves overall network performance and user experience.

Redundancy

The Layer 3 functionality of the MS420-24-HW switch enables redundancy through features like Virtual Router Redundancy Protocol (VRRP) or Hot Standby Router Protocol (HSRP). These protocols provide failover capabilities, ensuring uninterrupted network connectivity in case of a router failure. Redundancy increases network reliability and minimizes downtime, critical for businesses that rely heavily on their network infrastructure.

Increased Scalability

Layer 3 switches are designed to handle larger networks with more complex routing requirements. The MS420-24-HW switch's Layer 3 capability allows businesses to scale their network infrastructure as they grow, accommodating additional devices, subnets, and VLANs without compromising performance. This scalability feature future-proofs the network and ensures it can adapt to changing business needs.

Interface

The Cisco MS420-24-HW Rack-mountable Managed Switch features SFP (Small Form-Factor Pluggable) interfaces, providing users with versatile connectivity options and the ability to connect to various network media.

Flexibility in Network Connectivity

SFP interfaces offer flexibility in choosing the appropriate media for network connectivity. Administrators can use different SFP modules to adapt the switch's connectivity to different types of cables or fiber optics. This versatility allows businesses to connect to various network devices or extend the reach of their network over longer distances.

High-Speed Connections

The SFP interfaces on the MS420-24-HW switch support Gigabit Ethernet and, in some cases, even 10 Gigabit Ethernet. This high-speed connectivity ensures fast data transfer rates and low latency, critical for bandwidth-intensive applications or environments that require real-time data transmission.

Hot Swappable Modules

One of the significant advantages of SFP interfaces is their hot swappability. Administrators can insert or remove SFP modules while the switch is running, eliminating the need for network downtime during upgrades or replacements. This feature simplifies maintenance tasks and ensures minimal disruption to network operations.

Longer Distances

SFP interfaces support longer transmission distances compared to traditional copper Ethernet interfaces. By utilizing fiber optic cables, businesses can extend their network connectivity over longer distances without experiencing signal degradation or loss. This capability is particularly beneficial for organizations with large physical footprints or those operating in challenging environments.

Cost Savings

SFP interfaces offer cost savings by allowing businesses to choose the appropriate media for their network connectivity needs. Instead of investing in expensive copper cabling or fiber optic infrastructure throughout the entire network, SFP interfaces provide a more cost-effective solution by offering the flexibility to connect using the most suitable media only where necessary.

In conclusion, the Cisco MS420-24-HW Rack-mountable Managed Switch offers a range of features that cater to the needs of businesses seeking reliable and efficient network infrastructure. With its 24 ports, users can enjoy improved connectivity, scalability, redundancy, and flexibility. The switch's management capabilities enable remote configuration, real-time monitoring, enhanced security, and efficient troubleshooting. Integration with the Meraki Cloud provides centralized management, automated updates, network analytics, and alerts. Layer 3 functionality enhances routing capabilities, scalability, redundancy, and QoS. The SFP interfaces offer flexibility in network connectivity, high-speed connections, hot swappability, longer distances, and cost savings. Overall, the Cisco MS420-24-HW switch is a versatile and powerful solution that empowers businesses with a strong foundation for their network infrastructure needs.
