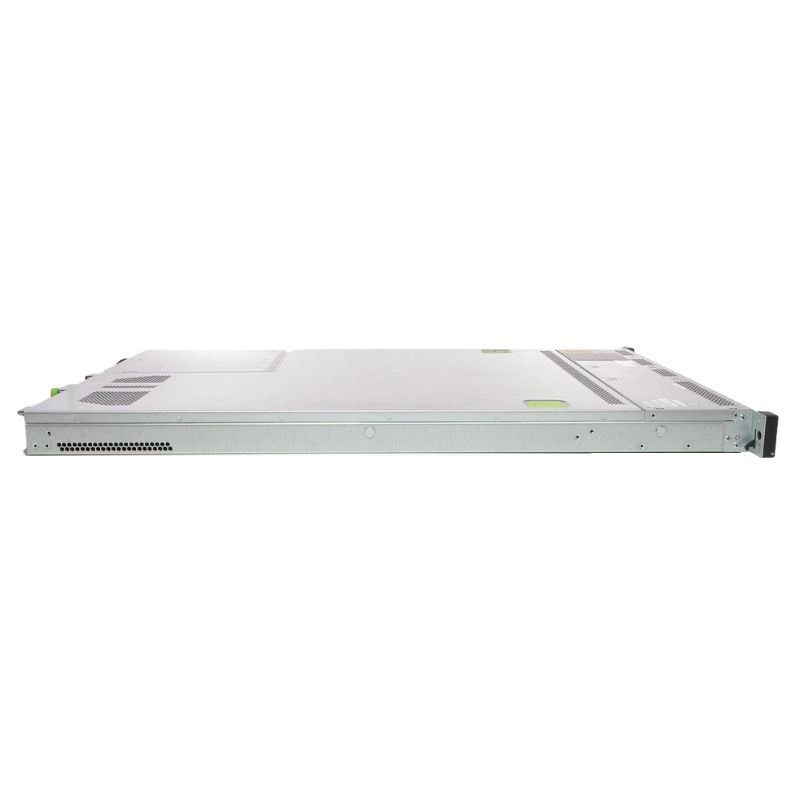

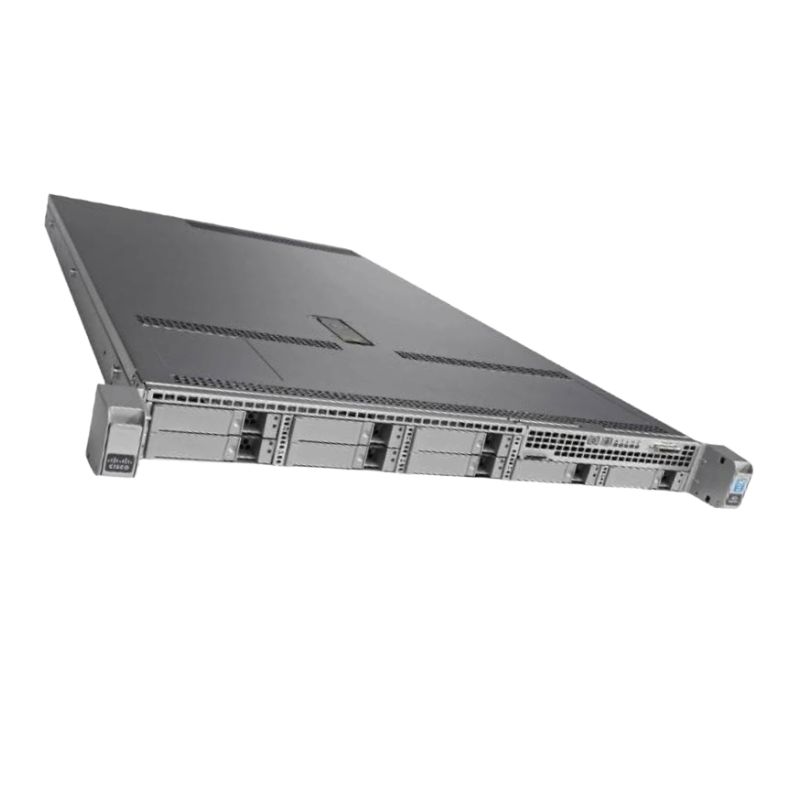

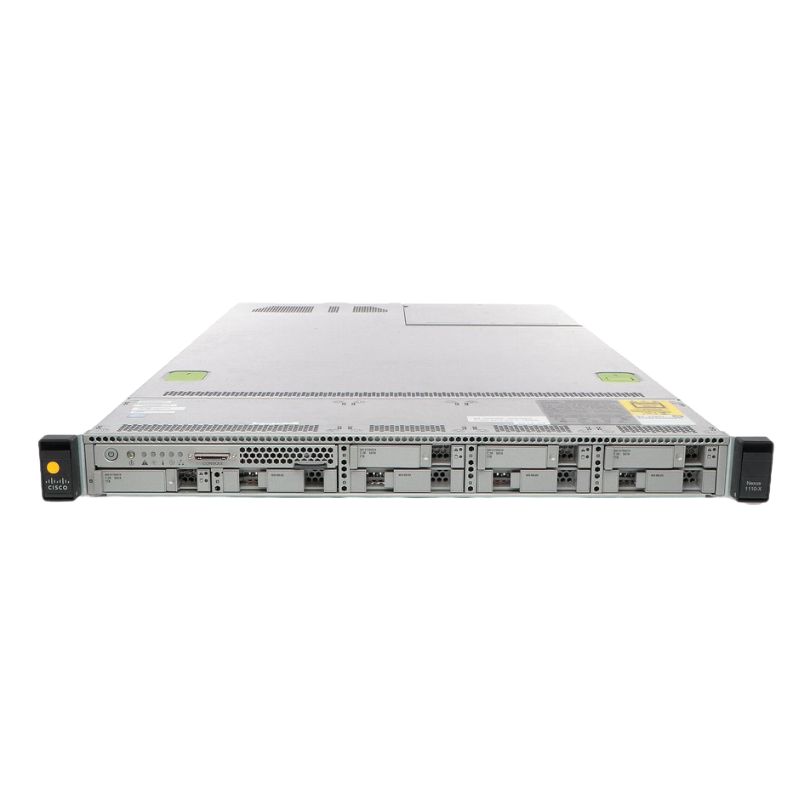

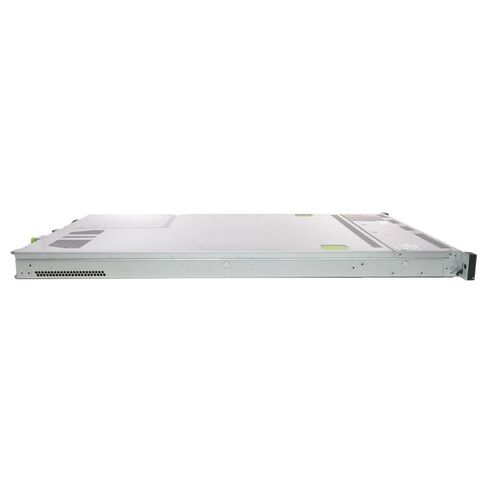

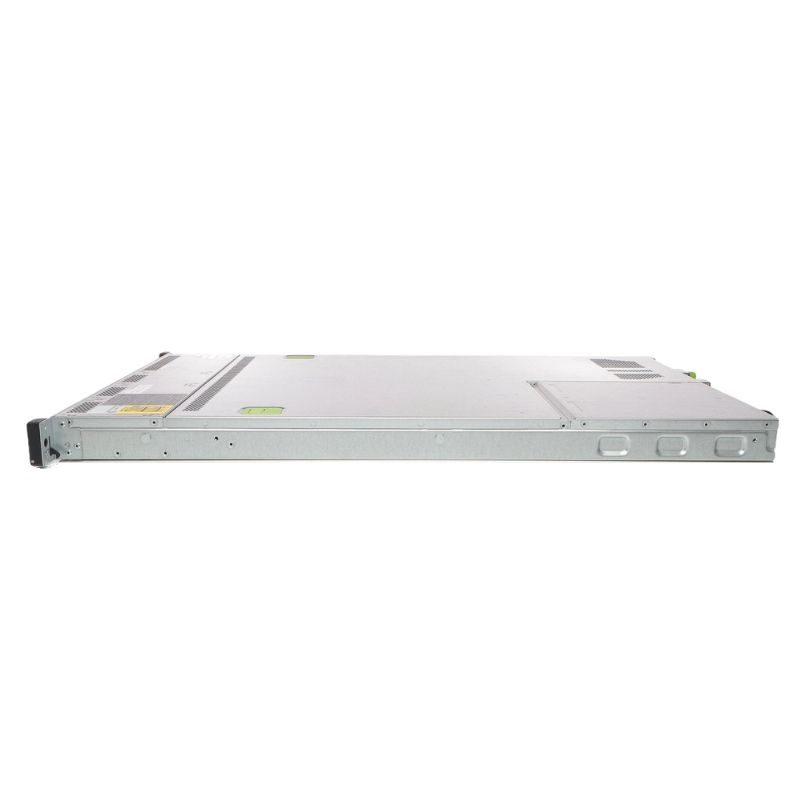

Cisco N1K-1110-X-HA00 Nexus 1110-X HA Pair App Accelerator

Overview of the Cisco N1K-1110-X-HA00

Manufacturer Details

• Brand: Cisco Systems, Inc.
• Part Number: N1K-1110-X-HA00
• Manufacturer: Cisco

Device Specifications

• Device Type: Application Accelerator
• Form Factor: Rack-mountable
• Ports Quantity: 6
• Connectivity Technology: Wired

Networking and Connectivity

Data Link Protocols

• Ethernet
• Fast Ethernet
• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Protocols

• TCP/IP
• UDP/IP
• NTP
• ICMP/IP
• ARP
• DNS

Remote Management

• SNMP 1
• SNMP 2
• SNMP 3
• Telnet
• HTTP
• IPMI 2.0
• SSH-2

Security and Compliance

• Features: Syslog support, Stateful Failover
• Authentication Methods: RADIUS, TACACS+
• Standards Compliance: IEEE 802.3, IEEE 802.1Q, IEEE 802.3ad (LACP)

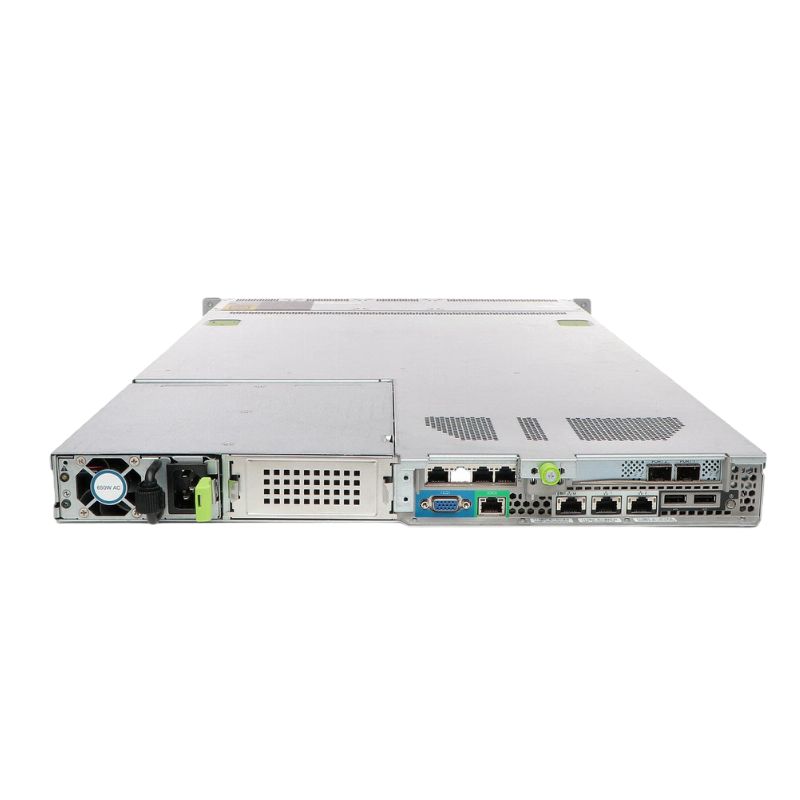

Expansion and Connectivity Interfaces

Available Interfaces

• 1 x 100Base-TX (management)
• 1 x Serial – DB-9
• 1 x Management Port
• 1 x VGA
• 2 x USB 2.0 – Type A
• 6 x 1000Base-T – RJ-45
• 2 x 10Gb Ethernet

Processor, Memory, and Storage

• Processors Installed: 2 x Intel Xeon E5-2600 Series, 2 GHz
• RAM: 64 GB DDR3 SDRAM
• Flash Memory: 16 GB
• Hard Drive: 1 TB x 4 – SATA 3Gb/s – 2.5″

Power Specifications

• Power Device: Internal Power Supply
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Provided: 650 Watt

Miscellaneous Information

• Rack Mounting Kit: Included

Compliance Standards:

• CISPR 22 Class A
• COST
• CISPR 24
• EN 61000-3-2
• SABS
• VCCI Class A ITE
• EN 61000-3-3
• EN55024
• EN55022 Class A
• CB
• AS/NZS 60950-1
• CCC
• ICES-003 Class A
• IRAM
• FCC CFR47 Part 15
• FCC CFR21 Part 1040
• UL 60950-1
• IEC 60950-1
• EN 60950-1
• CSA C22.2 No. 60950-1

High Availability

Introduction

The Cisco N1K-1110-X-HA00 Application Accelerator is equipped with an exceptional High Availability feature that enhances the reliability and performance of your network infrastructure. With a focus on providing seamless operation and minimal downtime, this feature ensures uninterrupted access to critical applications and services.

Benefits of High Availability

1. Redundancy

One of the primary benefits of the High Availability feature is its ability to offer redundancy. By deploying multiple Cisco N1K-1110-X-HA00 Application Accelerators in a redundant configuration, you can establish a fail-safe environment for your network. In the event of a hardware failure or system overload, the secondary unit seamlessly takes over the operations without any disruption to user experience. This redundancy eliminates single points of failure and improves overall network reliability.

2. Load Balancing

High Availability also enables load balancing across multiple units. The Cisco N1K-1110-X-HA00 Application Accelerator intelligently distributes incoming network traffic across all available units, ensuring optimal resource utilization and preventing any single device from becoming overwhelmed. This load-balancing capability results in improved application performance, reduced response times, and enhanced user satisfaction.

3. Fast Failover

With the High Availability feature, the failover time between the primary and secondary units is virtually instantaneous. This fast failover ensures minimal disruption to ongoing network operations, guaranteeing uninterrupted access to applications and services. Users will not experience any noticeable downtime or loss of connectivity during the transition, enabling them to continue their work without interruptions or delays.

Importance of High Availability

1. Business Continuity

High Availability is crucial for maintaining business continuity. Downtime can have severe consequences, resulting in lost productivity, revenue, and customer dissatisfaction. By implementing the Cisco N1K-1110-X-HA00 Application Accelerator with its High Availability feature, you can ensure that your critical applications and services remain accessible even in the face of hardware failures or other network disruptions. This uninterrupted availability ensures that your business can continue to operate smoothly, minimizing the impact of any potential issues.

2. Data Protection

Data protection is another significant aspect of High Availability. The Cisco N1K-1110-X-HA00 Application Accelerator safeguards your valuable data by ensuring redundancy and failover capabilities. In the event of a primary unit failure, the secondary unit seamlessly takes over, preventing any data loss or corruption. This feature provides peace of mind for organizations that rely on continuous access to their mission-critical data.

3. Scalability

High Availability also plays a vital role in network scalability. As your organization grows and demands increase, having a robust and scalable infrastructure becomes essential. The Cisco N1K-1110-X-HA00 Application Accelerator allows you to add additional units to your network without disrupting ongoing operations. The High Availability feature automatically incorporates the newly added units into the redundant configuration, ensuring seamless scalability and uninterrupted performance.

4. Disaster Recovery

In the event of a catastrophic failure or natural disaster, High Availability helps with disaster recovery efforts. By having redundant units in geographically separate locations, organizations can ensure that their critical applications and services remain accessible even if one location is affected. This capability enables businesses to quickly recover from disasters and resume operations with minimal downtime.

5. Cost Efficiency

Implementing High Availability can lead to cost savings in the long run. While the initial investment may be higher due to the redundancy requirements, the potential losses associated with downtime far outweigh the upfront costs. By avoiding business disruptions, lost productivity, and potential penalties for failing to meet service-level agreements, organizations can protect their bottom line and maintain a competitive edge.

Pairing

Introduction

The Cisco N1K-1110-X-HA00 Application Accelerator offers a versatile Pairing feature that allows seamless integration with other networking devices. This feature provides enhanced functionality, flexibility, and scalability to meet the evolving needs of modern networks.

Benefits of Pairing

1. Enhanced Performance

Pairing the Cisco N1K-1110-X-HA00 Application Accelerator with other networking devices, such as routers or switches, can significantly enhance overall network performance. By offloading resource-intensive tasks to the accelerator, the paired devices can focus on their core functions, resulting in improved efficiency and faster data transmission. This enhanced performance translates into better user experience and increased productivity.

2. Traffic Optimization

The Pairing feature enables intelligent traffic optimization by allowing the Cisco N1K-1110-X-HA00 Application Accelerator to analyze network traffic patterns. By identifying bottlenecks and optimizing data flow, this feature ensures that critical applications receive priority and resources are allocated efficiently. This optimization minimizes latency, reduces packet loss, and maximizes network throughput, resulting in improved application performance.

3. Seamless Integration

The Pairing feature facilitates seamless integration between the Cisco N1K-1110-X-HA00 Application Accelerator and other networking devices. The accelerator can be easily integrated into existing network infrastructures without requiring significant changes or disruptions. This compatibility ensures a smooth transition and allows organizations to leverage their existing investments while benefiting from the added capabilities of the accelerator.

Importance of Pairing

1. Scalability

Pairing is essential for network scalability. The Cisco N1K-1110-X-HA00 Application Accelerator can be paired with additional units to meet growing demands. This scalability allows organizations to expand their network capacities without replacing existing infrastructure, resulting in cost savings and reduced implementation complexity. The paired units work together seamlessly, ensuring uninterrupted performance and optimal resource utilization.

2. Flexibility

Pairing provides flexibility in network design and architecture. The Cisco N1K-1110-X-HA00 Application Accelerator can be paired with different types of networking devices, allowing organizations to tailor their network configurations to specific requirements. Whether it is load balancing, traffic optimization, or application acceleration, the pairing feature enables organizations to optimize their networks based on their unique needs.

3. Future-Proofing

By pairing the Cisco N1K-1110-X-HA00 Application Accelerator with other networking devices, organizations can future-proof their networks. As technology evolves and new networking standards emerge, having a flexible and adaptable infrastructure becomes crucial. The pairing feature ensures that the accelerator can seamlessly integrate with future devices and technologies, allowing organizations to stay ahead of the curve and adopt innovations without disrupting operations.

4. Improved ROI

Pairing the Cisco N1K-1110-X-HA00 Application Accelerator maximizes return on investment (ROI). By enhancing network performance, optimizing traffic flow, and enabling seamless integration, organizations can achieve greater efficiency and productivity. The improved user experience translates into increased customer satisfaction and loyalty. Additionally, the scalability and flexibility provided by pairing result in longer equipment lifecycles and reduced upgrade costs over time.

In conclusion, the High Availability and Pairing features of the Cisco N1K-1110-X-HA00 Application Accelerator deliver significant benefits to users. The High Availability feature ensures uninterrupted access to critical applications, enhances data protection and enables disaster recovery. On the other hand, the Pairing feature enhances network performance, optimizes traffic flow, and future-proofs the network infrastructure. By leveraging these features, organizations can achieve a reliable, scalable, and efficient network environment.
