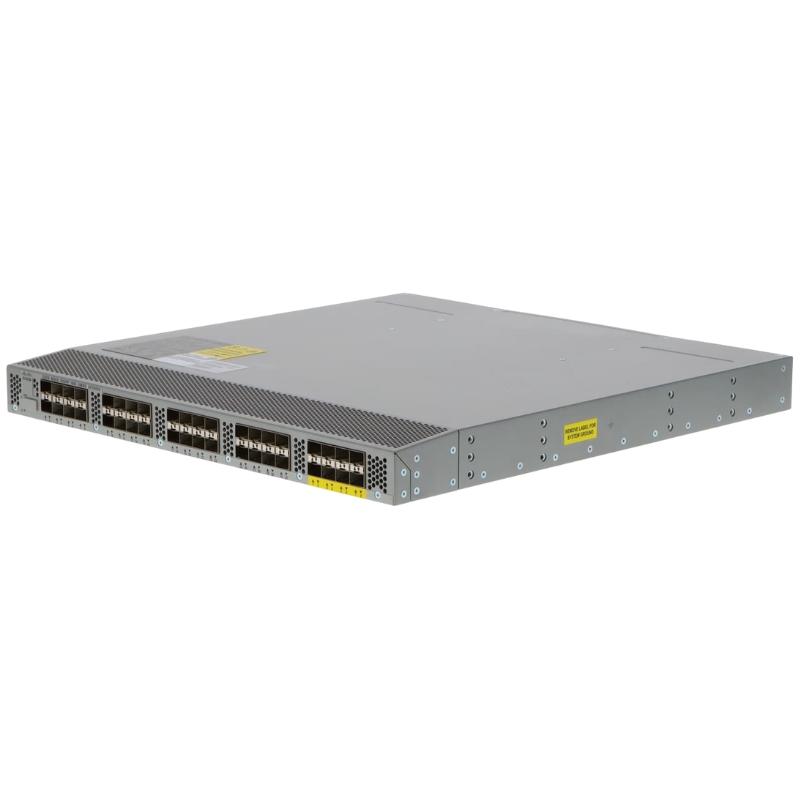

Cisco N2K-C2232PP-10GE Fabric Extender Expansion Module

Overview of Cisco N2K-C2232PP-10GE

Manufacturer and Model Information

• Manufacturer: Cisco
• Part Number: N2K-C2232PP-10GE
• Product Line: Nexus
• Series: 2000
• Type: Expansion Module

Technical Specifications

Form Factor and Ports

• Form Factor: Rack-mountable
• Network Ports: 32 Ports
• Auxiliary Ports: 8 x SFP+ (uplink)
• Fiber Optic Connectors: SFP, SFP+
• Installed SFP+ Modules: 8 Ports
• Color: Grey

Performance Metrics

• Data Transfer Rate: 10,000 Mbit/s
• Cabling Technology: 10/100/1000Base-T(X)
• CO2 Savings: 343.78 kg

Security and Management Features

• Static Port Security: Yes
• Access Control List (ACL): Yes
• Switch Type: Managed Network Switch
• Quality of Service (QoS): Supported
• Multicast Support: Yes
• Switch Layer: L2/L3

Data Transmission and Networking

Nexus Fabric Extender Specifications

• Jumbo Frames: 9216 bytes
• Throughput: 595 Million Packets Per Second (MPPS)
• Switching Capacity: 560 Gbit/s
• Number of Queues: 4
• Jumbo Frames Support: Yes

Expansion and Connectivity

• Expansion Slots: 40 (total) / 40 (available) x SFP+

Power Specifications

Power Consumption

• Maximum Power Consumption: 270 W
• Typical Power Consumption: 210 W
• Output Current: 20 A
• AC Input Voltage: 100-240 V
• AC Input Frequency: 50/60 Hz

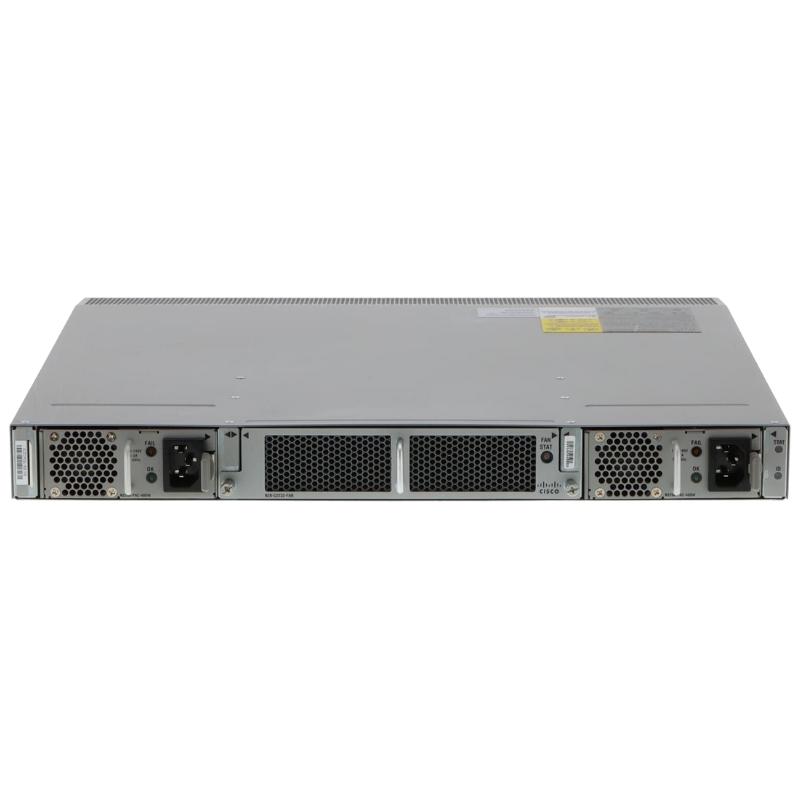

Power Supply

• Number of Power Supply Units: 2
• Power Device: Hot-plug / Redundant Plug-in Module

Protocols and Standards

Data Link and Management Protocols

• Data Link Protocols: 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)
• Management Protocols: SNMP, XML, RMON, SPAN, POST, DCNM
• Network Protocols: TCP/IP, UDP/IP, ICMP/IP
• Remote Management Protocols: SNMP v1, v2, v3, RMON
• Spanning Tree Protocol: Supported

Networking Features

• Full Duplex: Yes
• VLAN Support: Yes
• Flow Control Support: Yes
• 10G Support: Yes
• Networking Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u

Compliance and Certifications

• Standards Compliance: CISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, RoHS, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1

Speed

The Cisco N2K-C2232PP-10GE Fabric Extender is designed to provide high-speed connectivity with its 10 Gigabit Ethernet (10GE) capability. This feature is essential for users who require fast and reliable network performance.

Benefits of 10GE

1. Increased Bandwidth

One of the main advantages of the 10GE speed is the significantly increased bandwidth it offers. With 10 times the capacity of traditional Gigabit Ethernet, users can transfer large files, stream high-definition videos, and handle data-intensive applications without experiencing any bottlenecks. This enhanced bandwidth enables smoother and more efficient network operations.

2. Reduced Latency

Another benefit of the 10GE speed is the reduction in latency. Latency refers to the time it takes for data to travel from its source to its destination. With 10GE, data can be transmitted at a much faster rate, minimizing delays and ensuring near-instantaneous communication between devices. This is particularly important for real-time applications such as video conferencing, online gaming, and financial transactions.

3. Scalability

The 10GE speed also provides scalability, allowing businesses to expand their network infrastructure as their needs grow. With higher bandwidth capacity, organizations can easily accommodate additional users, devices, and applications without compromising performance. This scalability ensures that the network can adapt to increasing demands and support future growth effectively.

4. Future-Proofing

Investing in a fabric extender with 10GE capability offers future-proofing benefits. As technology continues to advance, the demand for higher network speeds will only increase. By deploying a solution that supports 10GE, users can stay ahead of the curve and ensure their network infrastructure remains relevant and compatible with emerging technologies.

Importance of 10GE Speed for Users

The importance of the 10GE speed cannot be overstated for users who rely on high-performance networks. Whether you are a business handling large amounts of data, an educational institution with numerous users accessing online resources, or a media company delivering content to a global audience, the 10GE speed of the Cisco N2K-C2232PP-10GE Fabric Extender offers significant advantages.

Improved productivity, faster data transfers, reduced latency, and seamless scalability are just a few benefits of this feature. By investing in a fabric extender with 10GE capability, users can create a robust network infrastructure that can handle the demands of modern applications and ensure smooth operations.

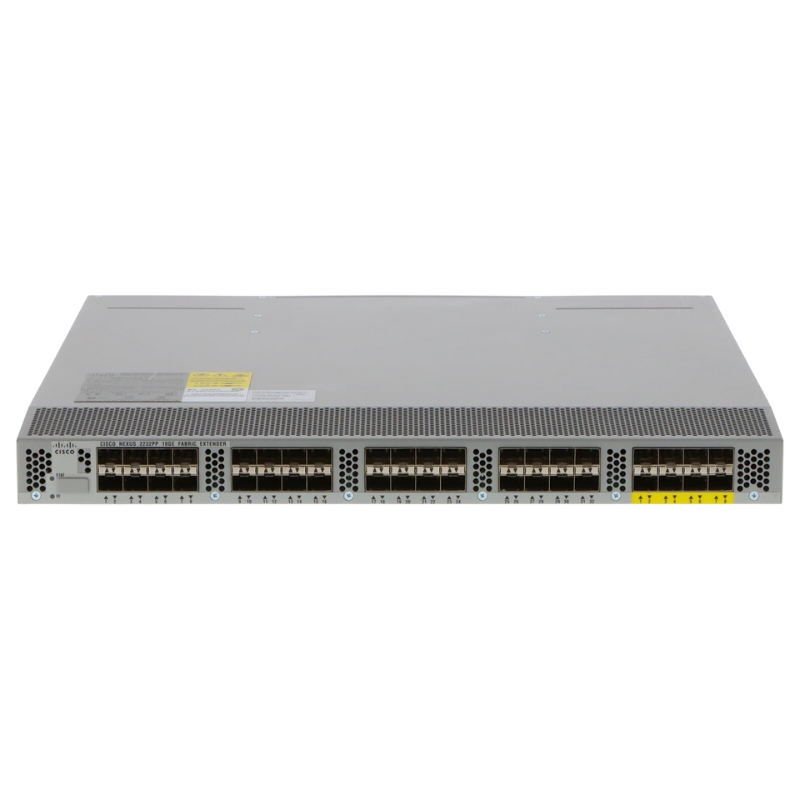

Ports

The Cisco N2K-C2232PP-10GE Fabric Extender boasts 32 ports, providing users with ample connectivity options. This feature is particularly beneficial for organizations that require multiple device connections, such as data centers, businesses, and educational institutions.

Benefits of 32 Ports

1. Increased Device Connectivity

With 32 ports, users can connect a wide range of devices to the fabric extender. This includes servers, switches, storage devices, and other network components. The increased device connectivity allows organizations to build complex network architectures and accommodate a larger number of devices without the need for additional equipment.

2. Simplified Infrastructure

The 32 ports on the Cisco N2K-C2232PP-10GE Fabric Extender simplify network infrastructure by reducing the number of switches required. With fewer switches needed to connect devices, organizations can streamline their network design and minimize complexity. This not only improves manageability but also reduces costs associated with purchasing and maintaining multiple switches.

3. Flexibility and Scalability

The 32 ports provide flexibility and scalability for growing network environments. Organizations can easily add or remove devices as needed without having to invest in additional infrastructure. This flexibility allows businesses to adapt to changing requirements and ensures that the network can support future expansion without limitations.

4. Enhanced Network Performance

The 32 ports of the fabric extender contribute to enhanced network performance. By distributing devices across multiple ports, congestion and bottlenecks are minimized, resulting in improved data transfer speeds and reduced latency. This ensures that users experience a seamless and efficient network, even during peak usage periods.

Importance of 32 Ports for Users

The importance of having 32 ports on the Cisco N2K-C2232PP-10GE Fabric Extender cannot be understated for organizations with a high number of devices and connections. Whether it's a data center managing numerous servers, a business with multiple departments requiring network access, or an educational institution with a large student population, the 32 ports offer significant advantages.

Increased device connectivity, simplified infrastructure, flexibility, scalability, and enhanced network performance are some of the benefits provided by this feature. By utilizing the 32 ports effectively, users can create a robust and reliable network infrastructure that supports their current needs and future growth aspirations.
