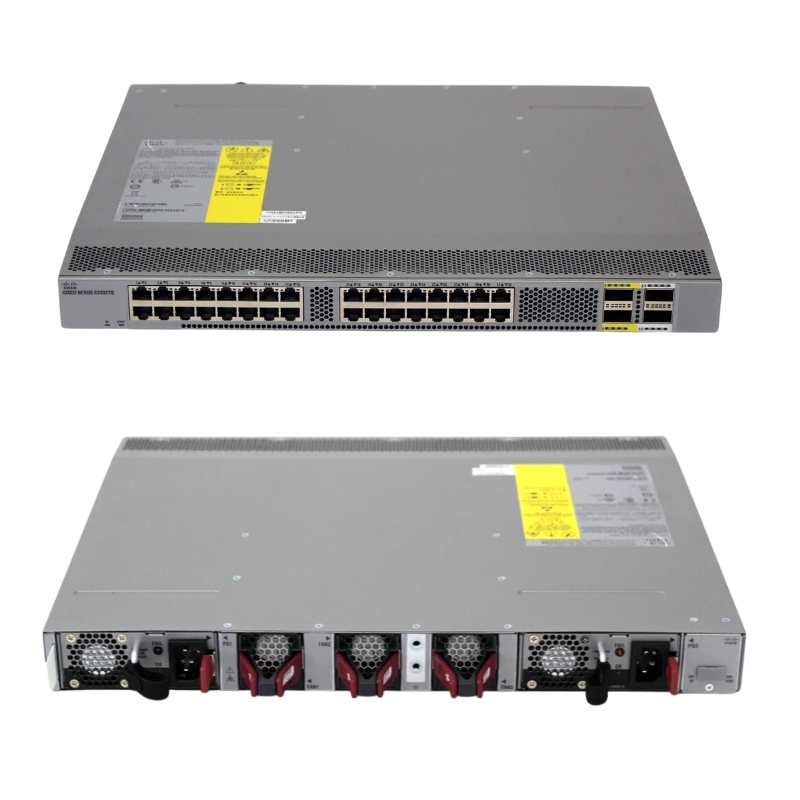

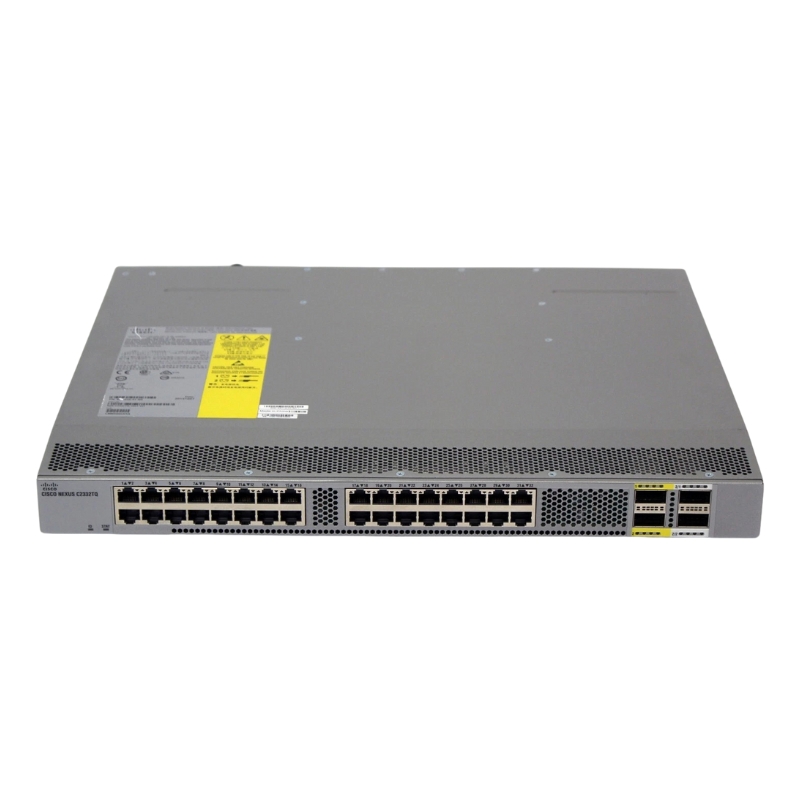

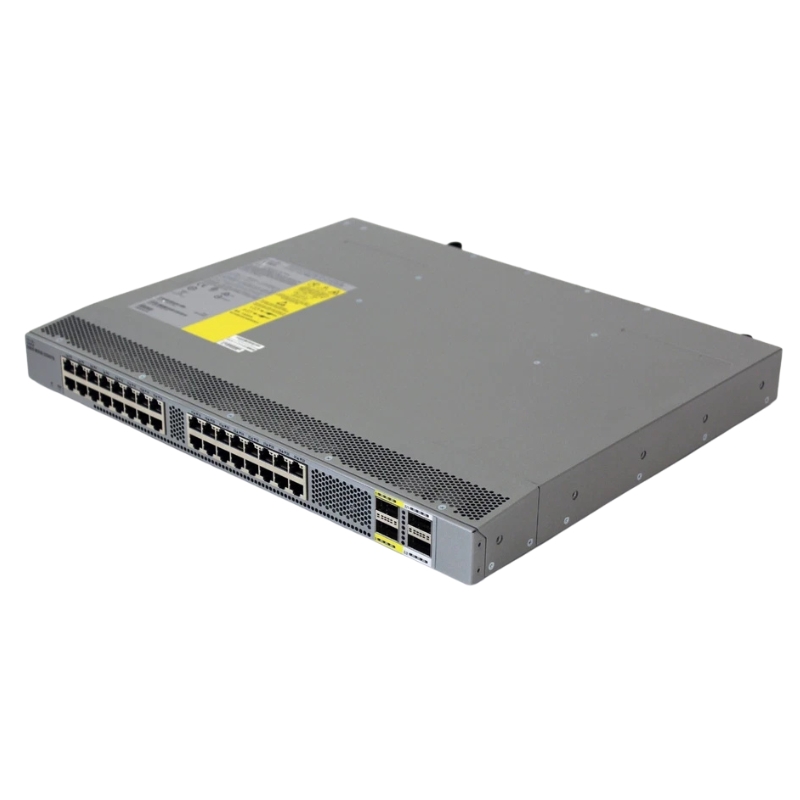

N2K-C2332TQ Cisco Fabric Extender 32 Ports 10GBPS 40 Gigabit Qsfp+

Overview of Cisco N2K-C2332TQ 32-Port Expansion Module

The Cisco N2K-C2332TQ Fabric Extender Expansion Module is a high-density, enterprise-class networking solution built for modern data centers, virtualization platforms, cloud computing infrastructures, and high-performance server environments. As part of the Cisco Nexus Fabric Extender (FEX) family, this rack-mountable expansion module delivers thirty-two 10 Gigabit Ethernet downlink ports alongside four 40 Gigabit QSFP+ uplink interfaces, offering exceptional throughput, centralized management, and simplified network scalability through compatible Cisco Nexus parent switches.

General Specifications

• Manufacturer: Cisco
• Part Number: N2K-C2332TQ
• Series: Cisco Nexus 2300 Series
• Product Type: Expansion Module

Technical Information

• Interface: 32-Port 10GbE Fabric Extender
• Form Factor: 1 RU Rack-Mountable
• Architecture: Cisco Nexus Fabric Extender (FEX)
• Deployment: Enterprise Data Centers and Cloud Networks

Host Downlink Interfaces

• Host Ports: 32 × 100M/1G/10GBASE-T Ethernet Ports
• Connector Type: RJ-45
• Supported Speeds: 100 Mbps, 1 Gigabit, and 10 Gigabit Ethernet
• Cabling: Standard Copper Ethernet Cabling

Network Uplink Interfaces

• Uplink Ports: 4 × 40 Gigabit Ethernet QSFP+
• Equivalent Connectivity: Supports up to 16 × 10GbE Connections
• Purpose: High-speed connectivity to Cisco Nexus parent switches
• Media Support: QSFP+ Optical Modules and Compatible Cables

Performance Specifications

• Switching Capacity: Up to 160 Gbps in Each Direction (320 Gbps Full Duplex)
• Hardware Forwarding: Up to 960 Gbps
• Packet Forwarding: Up to 1,440 Million Packets Per Second (Mpps)
• Oversubscription Ratio: Up to 2:1
• Jumbo Frame Support: Up to 9,216 Bytes

Storage Networking Support

• FCoE Support: Fibre Channel over Ethernet
• Cable Support: Up to 30 meters using Category 6a or Category 7 Cabling
• Application: Converged Storage and Data Networking

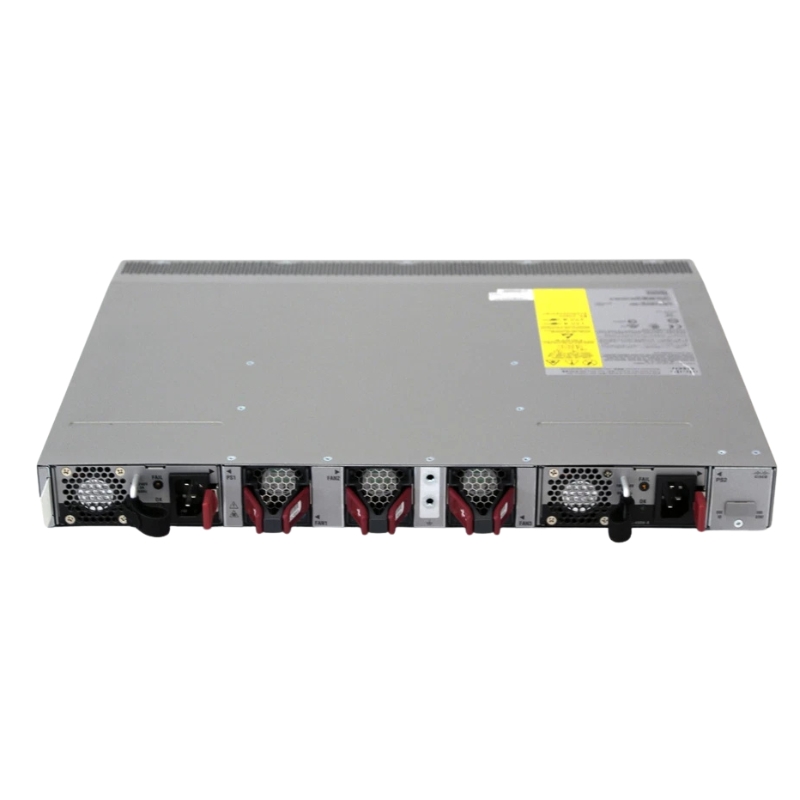

Power Features

• Power Supplies: Dual Redundant Hot-Swappable AC/DC Power Supplies
• Power Redundancy: High-Availability Enterprise Design
• Maintenance: Field-Replaceable Without System Downtime

Cooling System

• Fan Modules: 3 Hot-Swappable Cooling Fans
• Cooling Design: Optimized Airflow for Continuous Enterprise Operation
• Availability: Redundant Cooling Architecture

Physical Characteristics

• Form Factor: 1 Rack Unit (1RU)
• Installation: Standard Rack-Mountable Chassis
• Weight: Approximately 15.00 lbs (6.8 kg) Fully Configured

Operating Environment

• Operating Temperature: 32°F to 131°F (0°C to 55°C)
• Designed For: Enterprise and Data Center Deployments

The Cisco N2K-C2332TQ 10GBPS 40 Gigabit Expansion Module

The Cisco N2K-C2332TQ Fabric Extender 32 Ports 10GBPS 40 Gigabit QSFP+ Expansion Module is engineered to deliver enterprise-class networking performance with a design tailored for Cisco Nexus architectures. Built on Cisco’s advanced fabric extender technology, this module ensures scalable throughput, reliable integration, and seamless deployment in structured infrastructures. Its design supports modern workloads, delivering consistent bandwidth, optimized traffic management, and enhanced flexibility for mission-critical applications across diverse industries.

Integration with Cisco Nexus Series Switches

The expansion module integrates seamlessly with Cisco Nexus switches, offering flexible expansion options. This integration supports advanced traffic management, virtualization features, and high availability. Enterprises benefit from streamlined deployment, reduced complexity, and scalable solutions that adapt to evolving networking requirements across enterprise and data center environments with minimal disruption.

Advanced Security Architecture for Critical Data

The Cisco N2K-C2332TQ incorporates advanced security mechanisms to safeguard enterprise networks. Features such as secure boot, hardware root of trust, and encryption support protect against unauthorized access and cyber threats. Enterprises achieve compliance with industry standards, ensuring reliable protection for sensitive data and mission-critical applications with minimal risk exposure and enhanced resilience.

32x10GE Connectivity

The Cisco N2K-C2332TQ provides thirty-two 10GE ports, ensuring efficient communication across enterprise environments. With support for fiber-based connections, it delivers stable coverage and improved throughput. Enterprises benefit from reduced latency, enhanced responsiveness, and reliable performance for servers, storage systems, and applications operating simultaneously in demanding conditions.

40 Gigabit QSFP+ Expansion Capability

The module integrates QSFP+ expansion capability, enabling high-speed 40 Gigabit uplinks that support aggregation of multiple 10GE connections. This ensures enterprises can scale bandwidth efficiently, delivering robust throughput for data-intensive workloads. The QSFP+ design provides flexibility for future growth, ensuring compatibility with evolving standards and high-performance applications.

Optimized Performance

With support for SR-IOV and virtualization offloads, the Cisco N2K-C2332TQ enables versatile communication across enterprise networks. Its architecture ensures consistent bandwidth for diverse applications. Enterprises benefit from optimized traffic flow, reduced latency, and improved scalability in virtualization-centric environments where performance consistency is essential for mission-critical workloads and distributed infrastructures.

Traffic Management and QoS Capabilities

Quality of Service features allow administrators to prioritize critical applications such as storage traffic, voice, and video. The Cisco N2K-C2332TQ ensures that latency-sensitive workloads receive dedicated bandwidth, reducing jitter and packet loss. Enterprises achieve improved user experiences, optimized performance, and reliable communication across diverse applications with enhanced control over traffic distribution and prioritization.

Energy Efficiency and Thermal Design

Energy-efficient design minimizes power consumption while maintaining high performance. The extender’s optimized thermal design ensures simplified deployment without overheating risks. Enterprises benefit from reduced cooling requirements, improved sustainability, and extended hardware lifespan in high-density environments where efficiency and reliability are critical for long-term operations.

Scalability for Enterprise Growth

The Cisco N2K-C2332TQ provides scalability to meet growing enterprise demands. With thirty-two 10GE ports and QSFP+ uplinks, businesses can expand their networks without significant infrastructure changes. Enterprises achieve cost-effective scaling, ensuring that networking capabilities evolve alongside organizational growth with minimal disruption and consistent performance across diverse workloads.

Mission-Critical Workloads

Reliability is a cornerstone of the Cisco N2K-C2332TQ design. Redundant architecture and robust connectivity ensure continuous operation even during hardware failures. Enterprises benefit from minimized downtime, consistent service availability, and enhanced resilience for mission-critical workloads requiring uninterrupted connectivity across distributed environments and global deployments.

Deployment Flexibility Across Environments

The Cisco N2K-C2332TQ offers deployment flexibility across diverse environments. Its compatibility with Cisco modular platforms allows seamless integration into enterprise, campus, and branch networks. Enterprises can tailor configurations for redundancy, scalability, or performance optimization, ensuring adaptability to evolving business needs with simplified management and streamlined workflows.

High-Density Applications

High-density applications such as virtualization clusters and storage backbones benefit from the Cisco N2K-C2332TQ’s thirty-two port design and QSFP+ expansion capabilities. Enterprises achieve simplified cabling, reduced infrastructure costs, and improved manageability in environments requiring large-scale device connectivity with consistent performance delivery and reliable throughput across critical workloads.

Future-Proof Networking Solution

The Cisco N2K-C2332TQ is designed as a future-proof solution, meeting evolving enterprise needs. Its compatibility, scalability, and advanced features ensure relevance as technology advances. Businesses can invest confidently, knowing the extender will support networking requirements for years to come across diverse industries with minimal upgrade requirements and enhanced adaptability.

Enhanced Performance for Storage Networking

Storage networking platforms benefit from the Cisco N2K-C2332TQ’s QoS and port support. Storage traffic receives prioritized bandwidth, ensuring clear communication and reduced latency. Enterprises achieve improved collaboration between storage systems, optimized performance, and reliable connectivity for mission-critical storage networks across global deployments with consistent quality and seamless integration.

Optimized for Cloud and Edge Deployments

Cloud and edge deployments require reliable connectivity and scalability. The Cisco N2K-C2332TQ provides secure integration for high-speed cloud adoption and edge device connectivity. Enterprises benefit from seamless cloud adoption, reduced latency, and improved efficiency in distributed environments with consistent throughput and reliable performance across diverse workloads.

Comprehensive Manageability Features

Manageability features such as centralized monitoring, configuration management, and diagnostics simplify administration. The Cisco N2K-C2332TQ ensures that IT teams can efficiently manage large-scale deployments. Enterprises achieve reduced operational overhead, improved visibility, and enhanced control over network infrastructures with streamlined workflows and simplified management processes across complex environments.

Emerging Technologies

The Cisco N2K-C2332TQ supports emerging technologies such as NVMe over Fabrics and advanced storage protocols. Its thirty-two port design ensures reliable connectivity, while advanced traffic management provides high-speed performance. Enterprises benefit from future-ready infrastructure, enabling seamless adoption of new technologies without significant upgrades or disruptions across diverse industries and global deployments.

Resilient Architecture for Enterprise Networks

The resilient architecture of the Cisco N2K-C2332TQ ensures consistent performance under demanding conditions. Redundant connectivity and advanced traffic management features safeguard enterprise networks. Enterprises achieve improved uptime, reduced risk, and enhanced reliability for mission-critical applications requiring continuous availability and consistent performance across distributed infrastructures.

Data-Intensive Workloads

Data-intensive workloads such as analytics and cloud applications benefit from the Cisco N2K-C2332TQ’s connectivity and QoS features. Enterprises achieve optimized performance, reduced latency, and improved scalability for workloads requiring consistent bandwidth and reliable communication across distributed environments and mission-critical infrastructures.

Enterprise-Class Reliability and Uptime

Reliability is a key advantage of the Cisco N2K-C2332TQ. Its robust architecture ensures continuous operation even during hardware failures. Enterprises benefit from minimized downtime, consistent service availability, and enhanced resilience for mission-critical workloads requiring uninterrupted connectivity across diverse environments and global deployments with consistent performance.

Enhanced Monitoring Capabilities

The Cisco N2K-C2332TQ enhances monitoring by providing real-time visibility into network performance. Administrators can track device health, traffic patterns, and application usage, ensuring proactive management. Enterprises achieve improved efficiency, reduced risk, and enhanced reliability across diverse deployment scenarios with simplified troubleshooting and proactive alerts.

Secure Role-Based Access Control

The extender’s role-based access control ensures that only authorized personnel can configure or manage devices. Enterprises achieve improved security, reduced risk of misconfiguration, and enhanced compliance with industry standards across diverse environments with consistent enforcement of access policies.

Universal Device Compatibility

The Cisco N2K-C2332TQ is compatible with a wide range of Cisco Nexus platforms, ensuring seamless integration into diverse infrastructures. Enterprises benefit from deployment flexibility, reduced complexity, and enhanced scalability across enterprise and campus networks with simplified device onboarding and configuration.

Optimized for Enterprise Growth

The Cisco N2K-C2332TQ provides scalability to meet growing enterprise demands. With its universal design, businesses can expand their networks without requiring significant infrastructure changes. Enterprises achieve cost-effective scaling, ensuring that extender solutions evolve alongside organizational growth with minimal disruption and consistent performance across diverse workloads.
