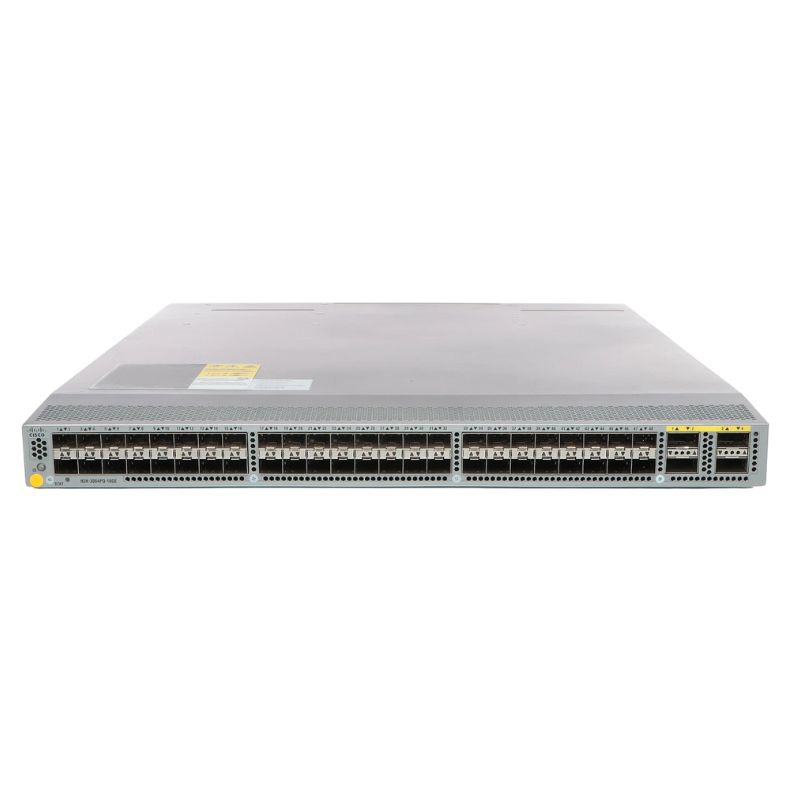

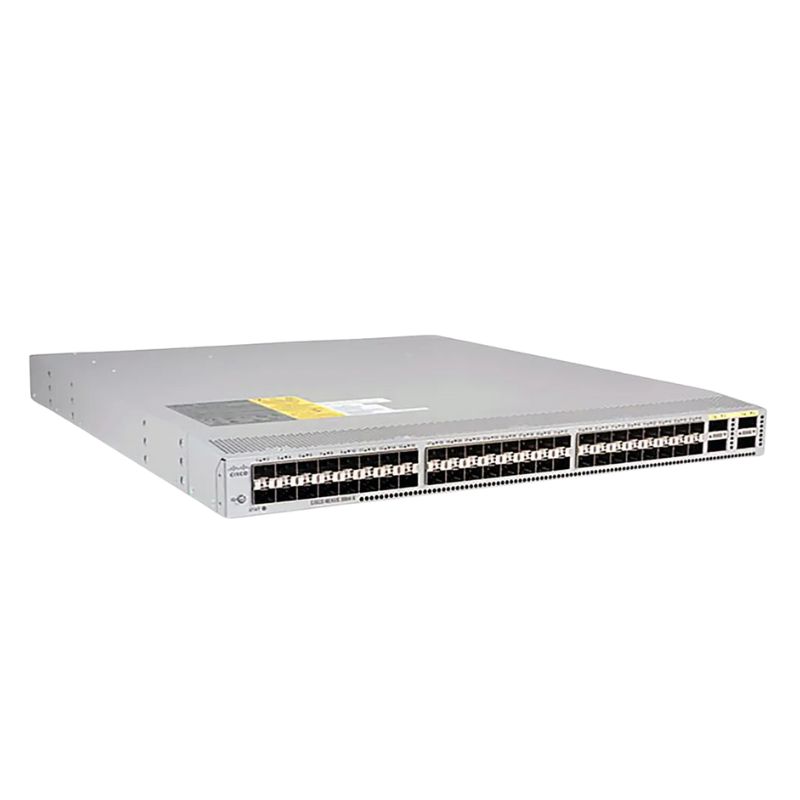

Cisco N3K-C3064PQ-10GX 48 Ports Managed Switch Layer 3 Nexus 3064-X SFP+ Rack Mountable

Ports

The Cisco N3K-C3064PQ-10GX Managed Switch is equipped with 48 Ports, making it an ideal choice for businesses and organizations that require a high-density switch with a large number of ports. These ports offer numerous benefits and provide users with the flexibility and scalability needed to support their network infrastructure.

Device Overview of Cisco Managed Switch

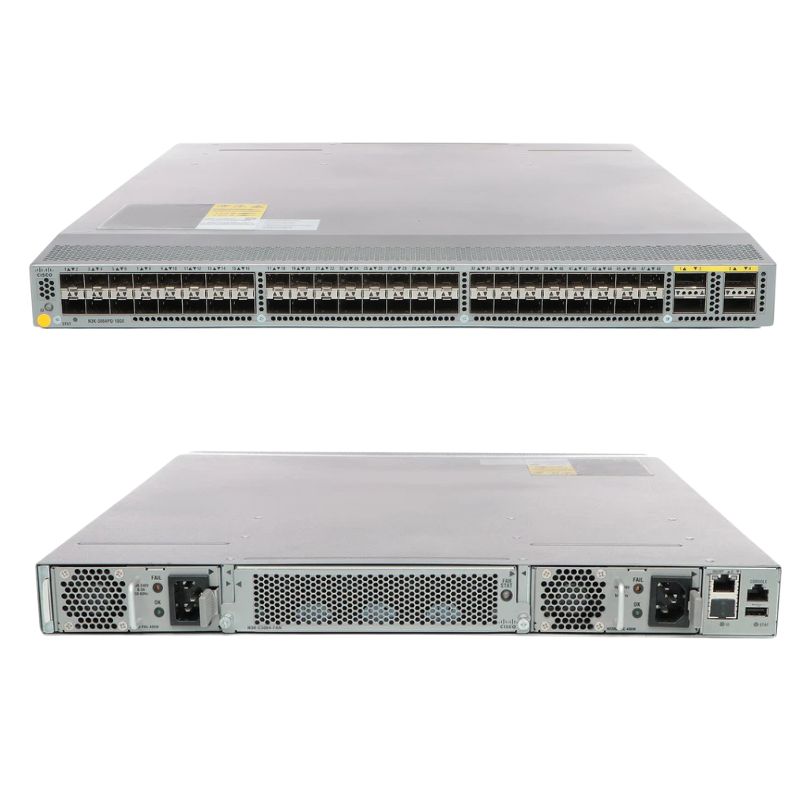

Interface and Connectivity

• 48 x SFP+
• 4 x QSFP+
• 1 x RJ-45 Console Management
• 2 x 1000BASE-T RJ-45 Management
• 1 x USB Port

Performance Specifications

• Virtual Interfaces (VLANs): Up to 4096
• Multiple Spanning Tree Protocol (MSTP) Instances: 64
• Rapid Spanning Tree Protocol (RSTP) Instances: 512
• MAC Address Table: 128,000 entries

Management and Security

• SNMP v1, v2, v3
• RMON
• Telnet
• SSH-2
• CLI

Encryption and Authentication

• Encryption Algorithm: AES
• Authentication Methods: RADIUS, TACACS+, MS-CHAP, Secure Shell v2 (SSH2)

Features and Standards

• Layer 2 Switching
• VLAN Support
• Syslog Support
• Storm Control (Broadcast, Multicast, Unicast)
• Weighted Random Early Detection (WRED)
• Rapid Spanning Tree Protocol (RSTP)
• Multiple Spanning Tree Protocol (MSTP)
• DHCP Snooping
• Quality of Service (QoS)
• Jumbo Frames Support
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)

Compliance Standards

• IEEE 802.3z
• IEEE 802.1d
• IEEE 802.1q
• IEEE 802.1p
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.3ae
• IEEE 802.1s
• IEEE 802.1ab (LLDP)

Power Specifications

• Internal Hot-Plug Power Supply
• Maximum Installed Power Supplies: 2 (0 installed by default)
• Optional Power Redundancy

Increased Connectivity

With 48 ports, the Cisco N3K-C3064PQ-10GX Managed Switch allows for increased connectivity, enabling users to connect multiple devices simultaneously. This is particularly beneficial in environments where there is a need for a large number of network connections, such as data centers or enterprise networks. The ability to connect multiple devices without the need for additional switches or equipment simplifies network management and reduces costs.

Improved Performance

The large number of ports offered by the Cisco N3K-C3064PQ-10GX Managed Switch also ensures improved performance. Each port provides a dedicated connection, allowing for high-speed data transmission and reducing network congestion. This is especially crucial in environments where bandwidth-intensive applications are used, such as video streaming or data backup. The increased performance offered by the 48 ports ensures that users can experience seamless connectivity and faster data transfer rates.

Scalability

Scalability is another significant benefit of the 48 ports featured in the Cisco N3K-C3064PQ-10GX Managed Switch. As businesses grow and expand, their networking needs increase as well. With 48 ports, this switch offers ample room for future expansion, allowing users to easily add more devices to their network without the need for additional switches or equipment. This scalability ensures that businesses can adapt to changing network requirements without major disruptions or costly infrastructure upgrades.

Layer

The Cisco N3K-C3064PQ-10GX Managed Switch operates at Layer 3, providing users with advanced networking capabilities and features. This layer is crucial for efficient and secure data transmission, offering numerous benefits for network administrators and users alike.

Enhanced Network Performance

Operating at Layer 3, the Cisco N3K-C3064PQ-10GX Managed Switch can perform routing functions, allowing for more efficient data transmission. Unlike Layer 2 switches that rely solely on MAC addresses for forwarding data, Layer 3 switches use IP addresses to make routing decisions. This enables faster and more intelligent routing, resulting in improved network performance and reduced latency. With Layer 3 capabilities, the Cisco N3K-C3064PQ-10GX Managed Switch can handle complex network configurations and ensure optimal data flow.

Improved Network Security

Layer 3 switches offer enhanced network security compared to Layer 2 switches. The Cisco N3K-C3064PQ-10GX Managed Switch's Layer 3 capabilities allow for the implementation of access control lists (ACLs) and other security features at the network layer. This enables network administrators to define granular security policies based on IP addresses, ensuring that only authorized traffic is allowed to pass through the switch. By controlling traffic at the network layer, the switch provides an additional layer of protection against unauthorized access and potential security threats.

Flexibility in Network Design

Layer 3 switches offer greater flexibility in network design compared to Layer 2 switches. The Cisco N3K-C3064PQ-10GX Managed Switch's Layer 3 capabilities allow for the creation of virtual LANs (VLANs) and the implementation of inter-VLAN routing. This enables network administrators to segment their network into smaller, more manageable subnets and control traffic flow between VLANs. The ability to create VLANs and perform inter-VLAN routing simplifies network management and improves network performance by reducing broadcast traffic and improving network efficiency.

Interface

The Cisco N3K-C3064PQ-10GX Managed Switch features SFP+ interfaces, offering users a high-speed and flexible connectivity option. These interfaces provide numerous benefits and are widely used in various networking environments.

High-Speed Connectivity

SFP+ interfaces support data rates of up to 10 gigabits per second (Gbps), allowing for high-speed connectivity between devices. This is particularly important in environments that require fast and reliable data transmission, such as data centers or enterprise networks. The high-speed connectivity offered by SFP+ interfaces ensures that users can transfer large amounts of data quickly and efficiently, improving overall network performance.

Flexibility in Network Configuration

SFP+ interfaces provide users with flexibility in network configuration. These interfaces support a wide range of optical and copper transceivers, allowing users to choose the most suitable medium for their network requirements. Whether it's fiber optic connections for long-distance transmission or copper connections for shorter distances, SFP+ interfaces can accommodate different networking needs. The flexibility offered by these interfaces enables users to design and configure their networks according to their specific requirements, ensuring optimal performance and scalability.

Easy Upgrades and Expansion

SFP+ interfaces also facilitate easy upgrades and expansion. As technology advances and network requirements change, users can simply replace the SFP+ transceivers to upgrade their network capabilities without the need to replace the entire switch. This not only saves costs but also minimizes downtime during upgrades. Additionally, the ability to add or remove SFP+ modules allows for easy network expansion, making it effortless to add new devices or connect to different network segments.

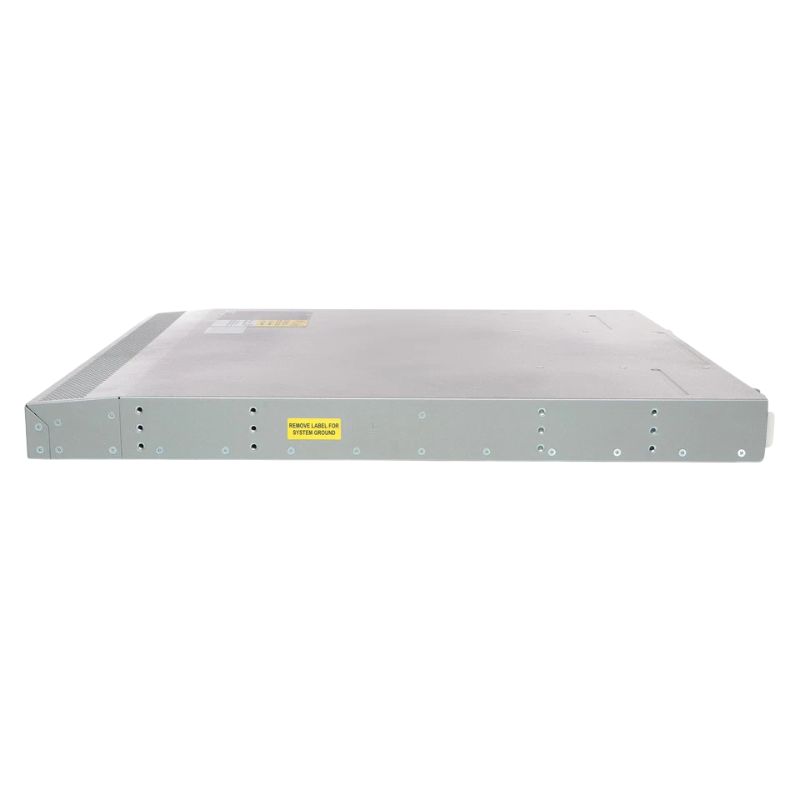

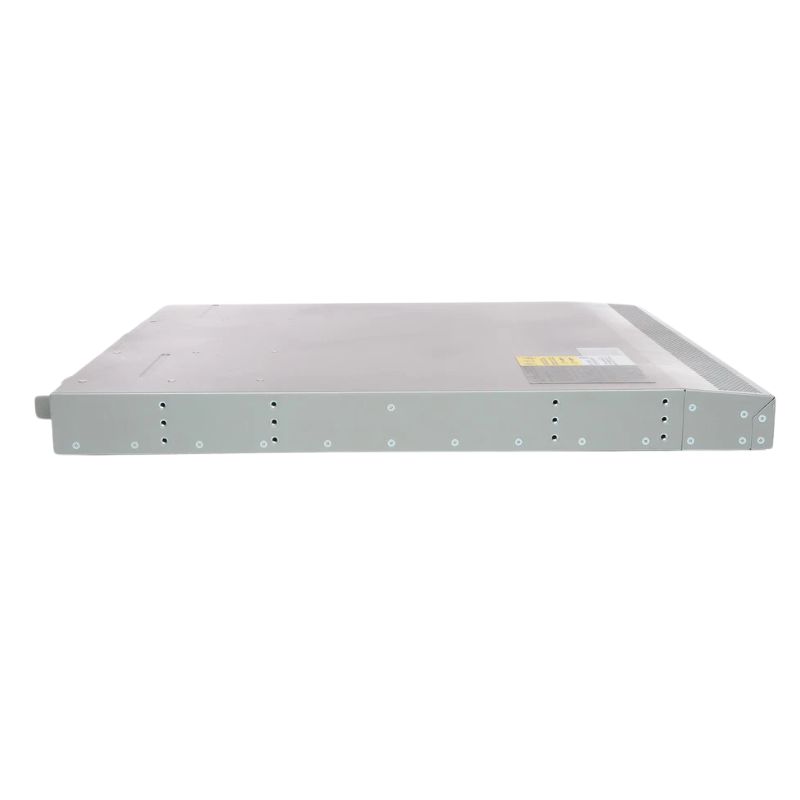

Mounting

The Cisco N3K-C3064PQ-10GX Managed Switch is rack mountable, offering users a convenient and efficient way to organize their network equipment. Rack mounting provides several benefits and is widely used in data centers and server rooms.

Space Efficiency

Rack mounting allows for efficient utilization of space. By mounting the switch in a rack, users can neatly organize their network equipment in a compact and orderly manner. This not only saves physical space but also makes it easier to manage and access the equipment when needed. In environments where space is limited, such as server rooms or wiring closets, rack mounting is essential to maximize space efficiency and ensure proper airflow for cooling.

Improved Cable Management

Rack mounting also improves cable management. The Cisco N3K-C3064PQ-10GX Managed Switch's rack-mountable design allows for the proper routing and organization of cables, reducing clutter and minimizing the risk of cable damage or accidental disconnections. Neatly organized cables not only enhance the overall appearance of the network infrastructure but also make it easier to troubleshoot and maintain the network. With proper cable management, users can effectively manage their network infrastructure and ensure optimal performance.

Scalability and Flexibility

Rack mounting offers scalability and flexibility in network design. As businesses grow and expand, the need for additional network equipment increases. By using a rack-mountable switch, users can easily add or remove switches or other network devices as needed. This scalability allows for easy expansion of the network infrastructure without major disruptions or costly infrastructure upgrades. Additionally, rack mounting provides flexibility in network layout and design, allowing users to easily reconfigure or relocate network equipment to accommodate changing needs or physical constraints.

In conclusion, the Cisco N3K-C3064PQ-10GX Managed Switch offers a range of features that provide significant benefits for users. The 48 ports offer increased connectivity, improved performance, and scalability. The Layer 3 capabilities enhance network performance, security, and flexibility. The SFP+ interfaces provide high-speed connectivity, flexibility in network configuration, and easy upgrades. Lastly, the rack-mountable design ensures space efficiency, improved cable management, and scalability. With these features, the Cisco N3K-C3064PQ-10GX Managed Switch is a reliable and versatile solution for businesses and organizations seeking a robust and efficient network infrastructure.
