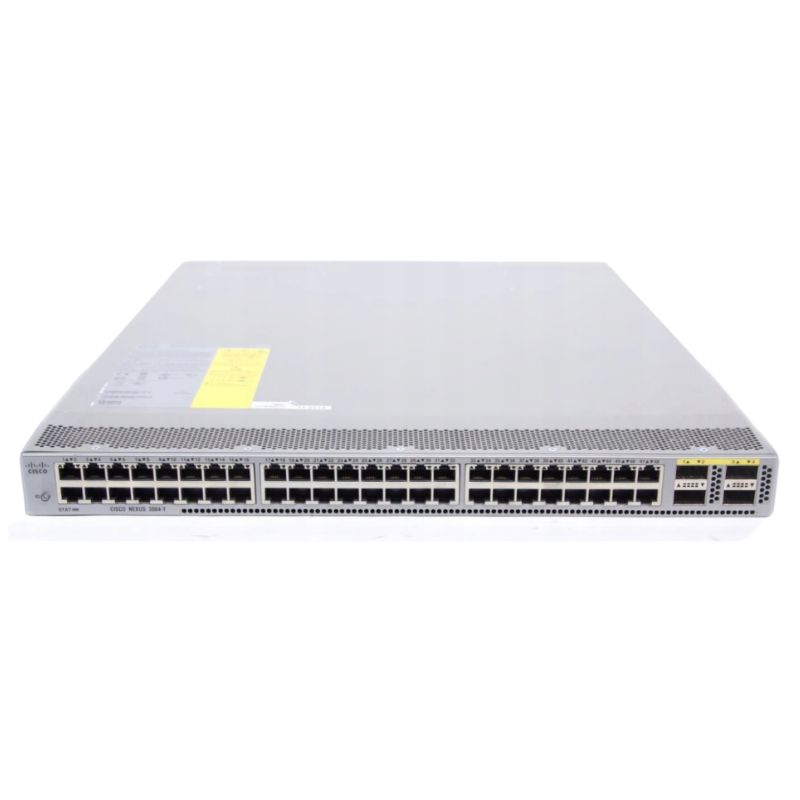

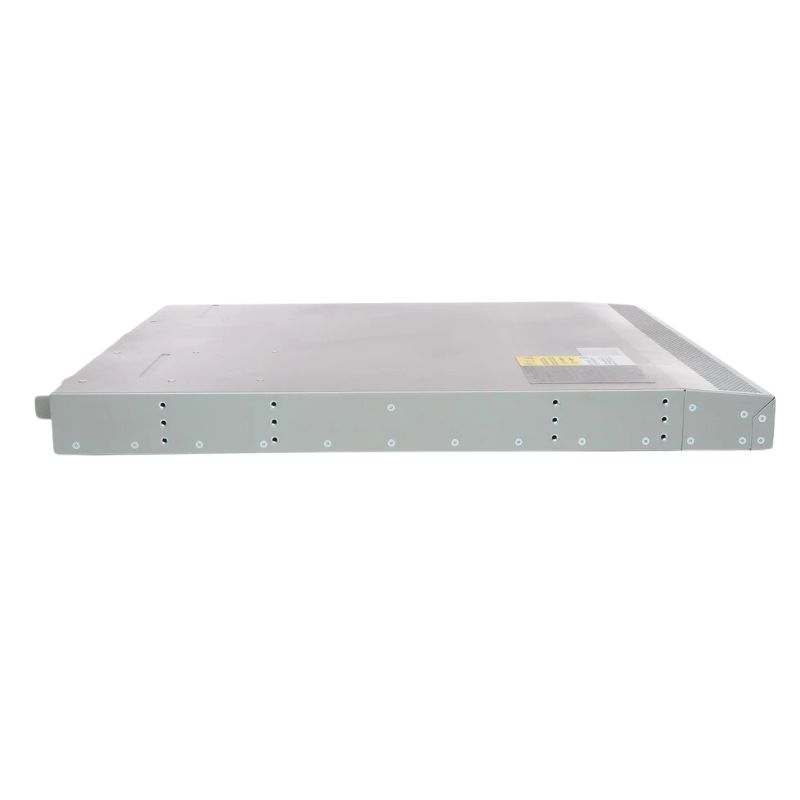

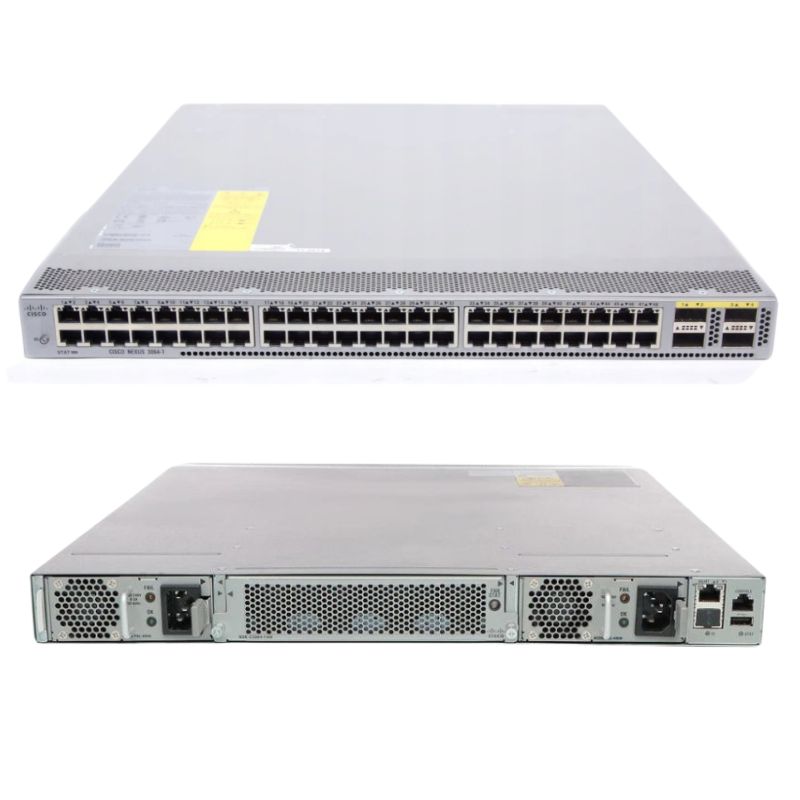

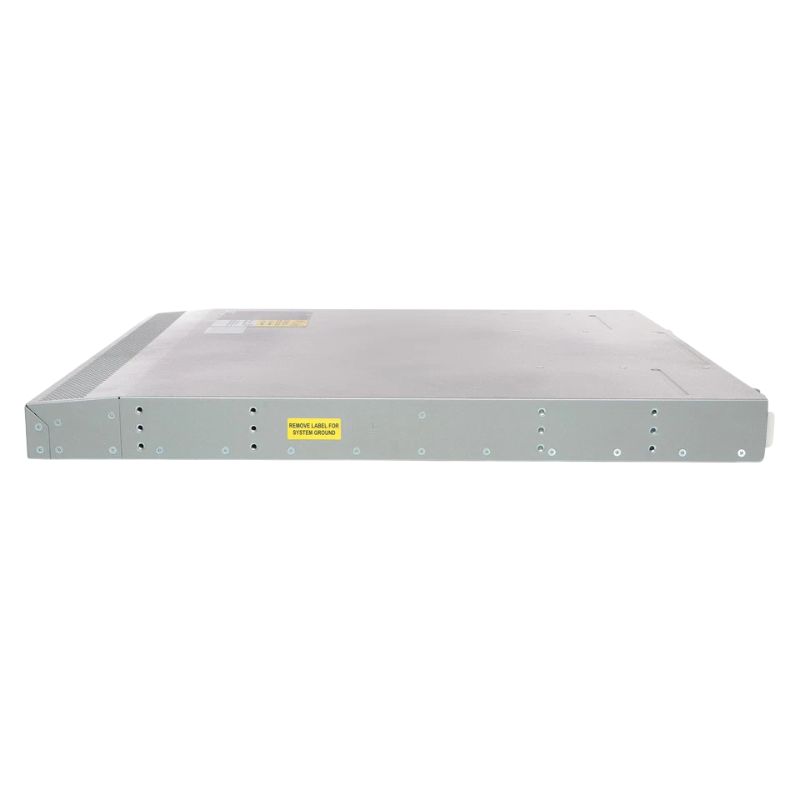

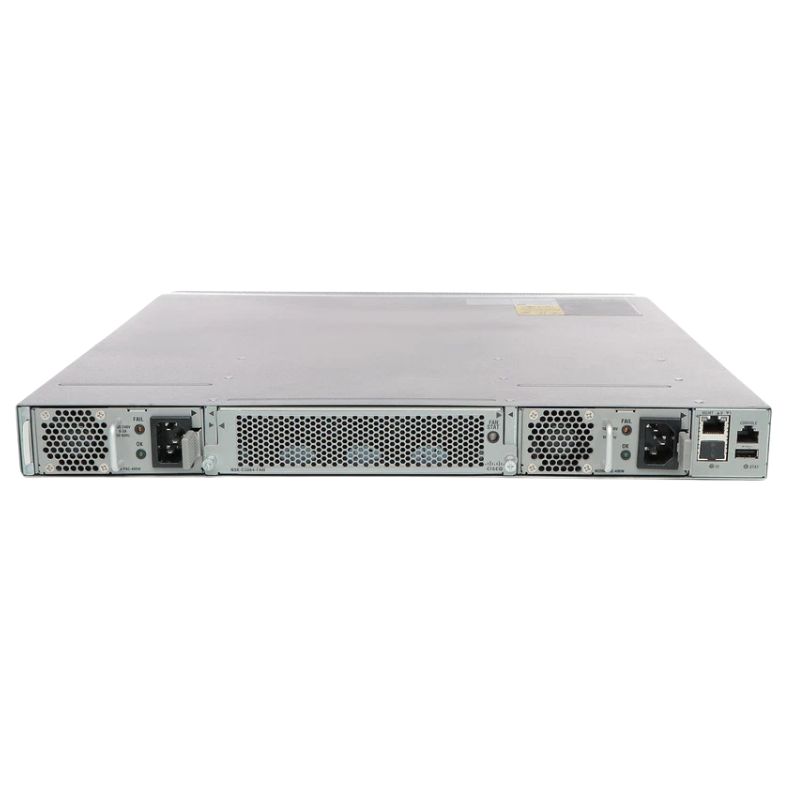

Cisco N3K-C3064TQ-10GT Nexus Layer 3 Managed Switch

Layer 3: The Powerhouse of the Cisco N3K-C3064TQ-10GT Managed Switch

Introduction

The Cisco N3K-C3064TQ-10GT Managed Switch is a cutting-edge networking solution that offers unparalleled performance and flexibility. One of its standout features is its Layer 3 capability, which sets it apart from ordinary switches. In this section, we will explore the benefits and importance of the Layer 3 feature in detail.

Main Specifications of Cisco N3K-C3064TQ-10GT

• Manufacturer: Cisco
• Part Number: N3K-C3064TQ-10GT
• Product Line: Nexus
• Product Type: Layer 3 Switch

Key Features of Cisco N3K-C3064TQ-10GT Layer 3 Switch

• Total network ports: 48
• Data transfer speed: 10 Gbps
• Form factor: Rack-mountable
• Compatibility: PC
• Connectivity type: Wired
• Ethernet technology: 10 Gigabit Ethernet
• Power supply: Included
• DHCP support: Yes
• Redundant power supply: Yes

Power Specifications for Cisco Nexus 3064T Switch

• Power over Ethernet (PoE) support: No
• Input voltage: 110V AC / 220V AC
• Power source: Power supply

Environmental Parameters for Nexus Switch

• Operating temperature range: 32°F – 104°F (0°C – 40°C)
• Storage temperature range: -40°F – 158°F (-40°C – 70°C)
• Operating humidity: 10% – 85% (non-condensing)
• Storage humidity: 5% – 95% (non-condensing)

Networking & Management Features

• Layer support: Layer 3
• Manageable: Yes
• Routing protocols: OSPF, RIP-2, IGMPv2/v3, HSRP, VRRP, PIM-SM, OSPFv2/v3, PIM-SSM, MSDP
• IPv4 & IPv6 routing: Static routing support
• Remote management protocols: SNMP 1, 2, 3, Telnet, SSH-2, RMON, CLI

Advanced Switch Features

• VLAN support
• Trunking, BOOTP support, and DHCP snooping
• Quality of Service (QoS) with Weighted Round Robin (WRR) queuing
• Storm control: Broadcast, Multicast, Unicast
• Spanning Tree Protocol (STP) support, RSTP, MSTP, and PVRST+
• Security features: Access Control Lists (ACL), Dynamic ARP Inspection (DAI), and Unicast Reverse Path Forwarding (URPF)
• Protocol support: GRE tunneling, EIGRP Stub Routing, Virtual PortChannel (vPC), Precision Time Protocol (PTP), DHCP relay
• Monitoring: sFlow, Syslog support

Compliance & Standards

• CISPR 22 Class A, BSMI CNS 13438 Class A
• EN 61000-3-2, EN 61000-3-3, EN55024
• EN 60950-1 Second Edition, IEC 60950-1 Second Edition
• RoHS compliant
• UL 60950-1, CSA C22.2 No. 60950-1

The Basics of Layer 3

Layer 3, also known as the network layer, is an essential component of modern networking infrastructure. It enables the switch to understand IP addresses and make intelligent routing decisions. Unlike Layer 2 switches that operate solely based on MAC addresses, Layer 3 switches can route data packets between different networks using IP addresses.

Efficient Routing

By leveraging Layer 3 functionality, the Cisco N3K-C3064TQ-10GT Managed Switch can efficiently route traffic across complex networks. It analyzes the destination IP address of each packet and determines the most optimal path for delivery. This intelligent routing reduces network congestion, enhances performance, and ensures that data reaches its destination swiftly.

Inter-VLAN Communication

Another key advantage of Layer 3 is its ability to facilitate inter-VLAN communication. VLANs (Virtual Local Area Networks) are logical divisions within a physical network, created to improve security and manageability. With Layer 3 support, the Cisco N3K-C3064TQ-10GT Managed Switch enables seamless communication between different VLANs, eliminating the need for external routers. This simplifies network design and reduces infrastructure costs.

Quality of Service (QoS)

The Layer 3 capabilities of the Cisco N3K-C3064TQ-10GT Managed Switch also contribute to enhanced Quality of Service (QoS) features. QoS allows network administrators to prioritize certain types of traffic, ensuring that critical applications receive the necessary bandwidth and low latency. With Layer 3 routing, the switch can inspect packet headers and apply QoS policies based on IP addresses, providing granular control over network traffic.

Scalability and Flexibility

Layer 3 switches like the Cisco N3K-C3064TQ-10GT Managed Switch offer scalability and flexibility for growing networks. As organizations expand, the need for interconnecting multiple networks arises. Layer 3 switches allow seamless integration of new networks by routing traffic between them. This scalability empowers businesses to adapt their network architecture without compromising performance or introducing unnecessary complexity.

The Importance of Layer 3 in Modern Networks

Enhanced Security

Layer 3 switches play a vital role in improving network security. By implementing access control lists (ACLs) and firewall rules at the network layer, the Cisco N3K-C3064TQ-10GT Managed Switch can filter and inspect traffic based on IP addresses, ports, protocols, and other criteria. This robust security measure protects against unauthorized access, data breaches, and other potential threats.

Optimized Performance

With Layer 3 capabilities, the Cisco N3K-C3064TQ-10GT Managed Switch optimizes network performance by reducing unnecessary broadcast traffic. Layer 2 switches flood broadcast packets to all ports within a VLAN, causing congestion and consuming valuable bandwidth. Layer 3 switches intelligently route traffic, limiting broadcast domains and ensuring efficient use of network resources.

Simplified Network Architecture

Layer 3 switches simplify network architecture by eliminating the need for external routers in certain scenarios. By integrating routing functionality directly into the switch, the Cisco N3K-C3064TQ-10GT Managed Switch reduces hardware complexity and minimizes the number of devices required. This streamlined design enhances manageability, lowers maintenance costs, and improves overall network efficiency.

Support for Advanced Protocols

The Layer 3 capabilities of the Cisco N3K-C3064TQ-10GT Managed Switch enable support for advanced protocols such as OSPF (Open Shortest Path First) and BGP (Border Gateway Protocol). These protocols are essential for large-scale networks where dynamic routing is required. With Layer 3 routing, the switch can participate in routing decisions and exchange routing information with other devices, ensuring seamless communication across complex network topologies.

Conclusion

In conclusion, the Cisco N3K-C3064TQ-10GT Managed Switch's Layer 3 feature is a game-changer for modern networks. It empowers organizations with efficient routing, inter-VLAN communication, enhanced QoS, scalability, and flexibility. Additionally, Layer 3 brings forth improved security measures, optimized performance, simplified network architecture, and support for advanced protocols. With its Layer 3 capabilities, this managed switch sets the stage for a robust and future-proof networking infrastructure.
