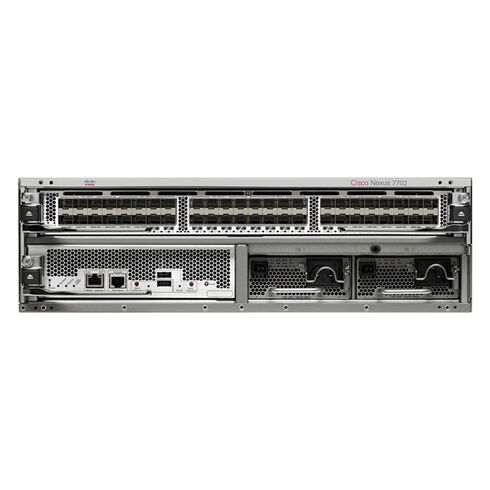

N77-C7702-S2E-AC Cisco Nexus 7702 Switch Chassis

Cisco N77-C7702-S2E-AC Nexus 7702 Switch Chassis Overview

The Cisco N77-C7702-S2E-AC is a high-performance Nexus 7702 switch chassis designed for enterprise-grade networking environments. Engineered by Cisco, this chassis delivers exceptional reliability and scalability for modern data centers and network infrastructures.

Manufacturer and Product Identification

• Manufacturer: Cisco
• Part Number / SKU: N77-C7702-S2E-AC
• Product Type: Switch
• Sub-Type: Chassis

Technical Specifications

• Series: Nexus 7700
• Model: 7702

Performance Features

• Supported Media Types: Optical Fiber, Twisted Pair
• Ethernet Speeds:
  • 100 Gigabit Ethernet
  • 40 Gigabit Ethernet
  • 10 Gigabit Ethernet
  • 1 Gigabit Ethernet
• Network Standards:
  • 100GBase-X
  • 40GBase-X
  • 10GBase-X
  • 1000Base-X

Expansion and Connectivity

• Total Expansion Slots: 2
• Optimized for flexible module additions to support growing network demands

Network Layer and Management

• Layer Support: Layer 3
• Manageable: Yes – simplifies configuration and monitoring

Power and Reliability

• Power Source: Standard Power Supply
• Redundant Power Supply: Supported for enhanced uptime
• Designed for energy efficiency without compromising performance
