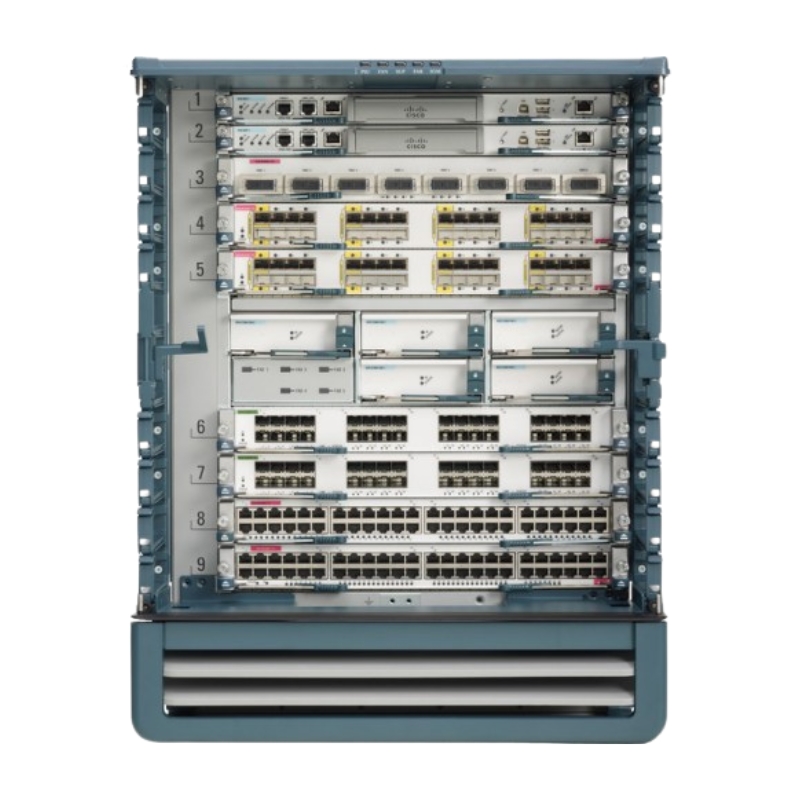

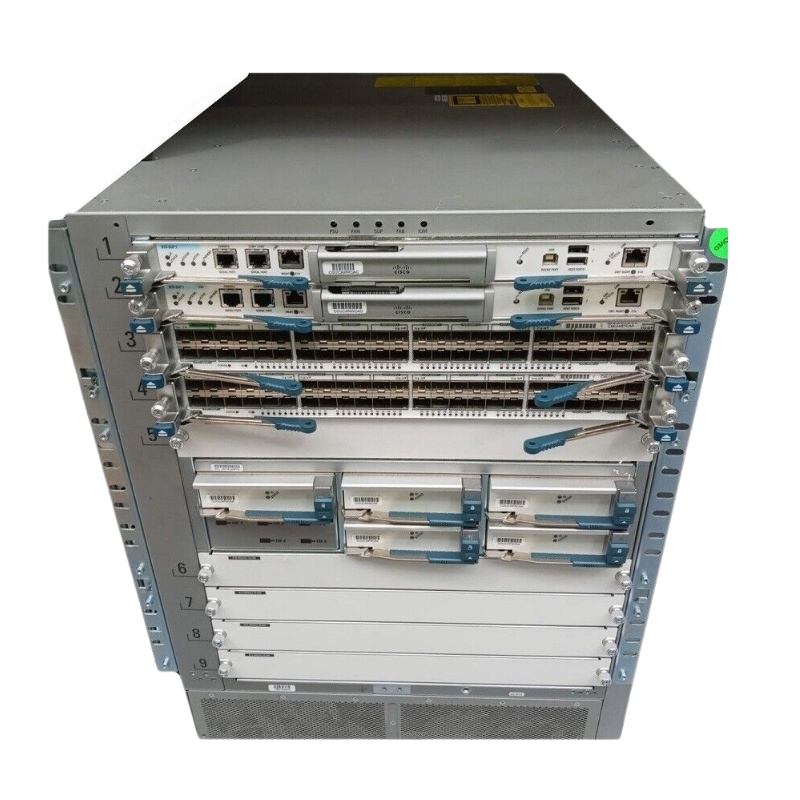

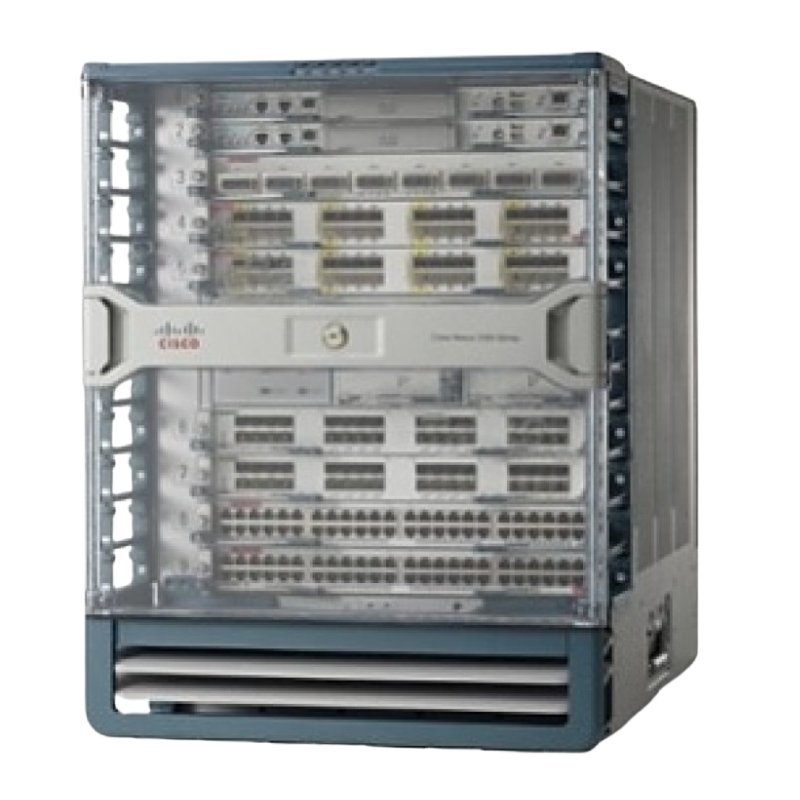

Cisco N7K-C7009-BUN2-P2 Nexus 7009 Managed Switch

Cisco N7K-C7009-BUN2-P2 Overview

• Manufacturer: Cisco
• Part Number: N7K-C7009-BUN2-P2
• Product Category: Layer 3 Networking
• Form Factor: Rack-mountable, 14U

Remote Management Capabilities

• Supports SNMP and CLI for streamlined management
• Designed for remote monitoring and configuration
• Efficient integration into network management systems

Processor & Memory Specifications

• Processor: 1x Intel Xeon, 2.13 GHz
• RAM: 12 GB for fast processing
• Flash Storage: 8 GB

Connectivity & Expansion

• Management Interfaces: 1x RJ-45 console port, 1x RJ-45 management port, 3x USB ports
• Expansion Slots: 14 total slots with 10 available for further upgrades
• Pre-installed Modules: 4 installed out of 14 maximum supported modules

Environmental Operating Conditions

• Operating Temperature: 32°F to 104°F
• Storage Temperature: -40°F to 158°F
• Operating Humidity: 5% to 90% (non-condensing)
• Storage Humidity: 5% to 95% (non-condensing)

Power Features

• Power Supply: Internal hot-swappable unit for continuous operation

Compliance & Certifications

• Meets NEBS Level 3, FCC Class A, and ETSI standards
• Conforms to CISPR 22, BSMI CNS 13438, and CISPR 24 standards
• Compliant with RoHS, UL 60950-1, IEC 60950-1, EN 60950-1 safety standards

Reliability

• Mean Time Between Failures (MTBF): 318,572 hours
• Ensures long-lasting performance and minimal downtime

Number Of Ports

The Cisco N7K-C7009-BUN2-P2 Managed Switch is equipped with up to 384 ports, making it a versatile and high-performing networking solution for businesses of all sizes. With such a large number of ports, this switch offers exceptional flexibility and scalability, allowing users to easily connect multiple devices and expand their network as needed.

Flexibility and Connectivity

Having up to 384 ports means that you can connect a wide range of devices to the switch simultaneously. Whether you need to connect servers, workstations, storage devices, or any other network equipment, this switch has more than enough ports to accommodate your needs. This level of flexibility ensures that you can easily integrate new devices into your network without worrying about running out of available ports.

Furthermore, the Cisco N7K-C7009-BUN2-P2 Managed Switch supports various types of ports, including Ethernet and fiber optic ports. This allows you to use different connectivity options based on your specific requirements. Whether you need high-speed connections for data-intensive tasks or long-distance connections for remote locations, this switch can cater to your diverse connectivity needs.

Scalability and Growth

The ability to support up to 384 ports is particularly beneficial for businesses that anticipate future growth or have expanding networking needs. As your business evolves and your network infrastructure expands, having a switch with a high port capacity ensures that you won't outgrow your network infrastructure anytime soon.

By investing in a switch with a large number of ports from the start, you can avoid the hassle and cost of replacing your networking equipment as your needs grow. Instead, you can simply utilize the additional ports available on the switch, allowing for seamless scalability without disrupting your existing network operations.

Benefits of Up to 384 Ports

• Easy integration of multiple devices
• Support for different connectivity options
• Future-proofing your network infrastructure
• Scalability without equipment replacement
• Reduced network downtime during expansion

Importance of Up to 384 Ports

The number of ports is a crucial consideration when selecting a managed switch. With up to 384 ports, the Cisco N7K-C7009-BUN2-P2 provides the necessary capacity to connect a wide range of devices and accommodate future growth. This level of flexibility and scalability ensures that businesses can effectively manage their network infrastructure without limitations.

Power Supply

The Cisco N7K-C7009-BUN2-P2 Managed Switch features redundant power supplies, enhancing the reliability and availability of your network. This power supply feature is essential for businesses that require uninterrupted connectivity and cannot afford any downtime due to power-related issues.

Enhanced Reliability

Redundant power supplies ensure that your network remains operational even in the event of a power supply failure. By having multiple power supplies running simultaneously, the switch can automatically switch to a backup power supply if the primary one fails. This redundancy significantly reduces the risk of network downtime and ensures continuous operation, even in critical situations.

In addition to providing backup power, redundant power supplies also distribute the load across multiple units. This distribution prevents any single power supply from being overloaded, reducing the chances of failure due to excessive strain. As a result, businesses can rely on the Cisco N7K-C7009-BUN2-P2 Managed Switch for consistent and reliable performance.

High Availability

For businesses that require constant connectivity, high availability is crucial. The redundant power supplies of the Cisco N7K-C7009-BUN2-P2 Managed Switch contribute to its high availability by minimizing the risk of power-related disruptions. With the ability to seamlessly switch between power supplies, this switch ensures that your network remains up and running, even during power outages or power supply failures.

By investing in a switch with redundant power supplies, businesses can avoid the costly consequences of network downtime. Whether you operate an e-commerce website, rely on real-time data processing, or have critical applications that cannot afford even a momentary interruption, the redundant power supply feature of this switch provides the necessary peace of mind.

Benefits of Redundant Power Supplies

• Reduced risk of network downtime
• Continuous operation during power supply failures
• Distribution of load for improved reliability
• High availability for critical applications
• Protection against power-related disruptions

Importance of Redundant Power Supplies

The power supply is a critical component of any networking equipment. Redundant power supplies enhance reliability and ensure high availability by providing backup power and load distribution. By investing in a switch with redundant power supplies like the Cisco N7K-C7009-BUN2-P2, businesses can ensure uninterrupted connectivity and protect their operations against unexpected power-related disruptions.

Layer

The Cisco N7K-C7009-BUN2-P2 Managed Switch operates at Layer 3 of the OSI model, making it a powerful networking solution that offers advanced routing capabilities. The Layer 3 functionality enables efficient and intelligent routing decisions within your network, leading to improved performance, enhanced security, and simplified network management.

Advanced Routing Capabilities

Operating at Layer 3 means that the Cisco N7K-C7009-BUN2-P2 is capable of performing IP routing. This allows the switch to make intelligent decisions about the best path for forwarding data packets within your network. By analyzing IP addresses and using routing protocols such as OSPF or BGP, Layer 3 switches can optimize the flow of traffic and ensure efficient communication between devices.

With Layer 3 functionality, businesses can implement complex network configurations, including virtual LANs (VLANs), static routes, and dynamic routing protocols. These advanced routing capabilities enable efficient traffic segmentation, load balancing, and failover mechanisms, resulting in improved network performance and resilience.

Enhanced Security

Layer 3 switches offer enhanced security features compared to lower layer switches. By operating at Layer 3, the Cisco N7K-C7009-BUN2-P2 can implement access control lists (ACLs) based on IP addresses or other criteria. ACLs allow you to define rules that control which devices or IP addresses are allowed or denied access to specific parts of your network.

This granular control over network access helps protect your sensitive data and resources from unauthorized access. By restricting access based on IP addresses or subnet ranges, you can create secure zones within your network and prevent unauthorized users from compromising your network infrastructure.

Benefits of Layer 3

• Efficient traffic routing and optimization
• Advanced network configurations (VLANs, static routes)
• Improved network performance and resilience
• Enhanced security through access control lists
• Protection against unauthorized access

Importance of Layer 3

Layer 3 functionality is essential for businesses that require advanced routing capabilities, improved network performance, and enhanced security. By operating at Layer 3, the Cisco N7K-C7009-BUN2-P2 Managed Switch enables efficient traffic management, advanced network configurations, and granular control over network access. These features are crucial for businesses that need to optimize their network performance, ensure secure communication, and simplify network management.

Form Factor

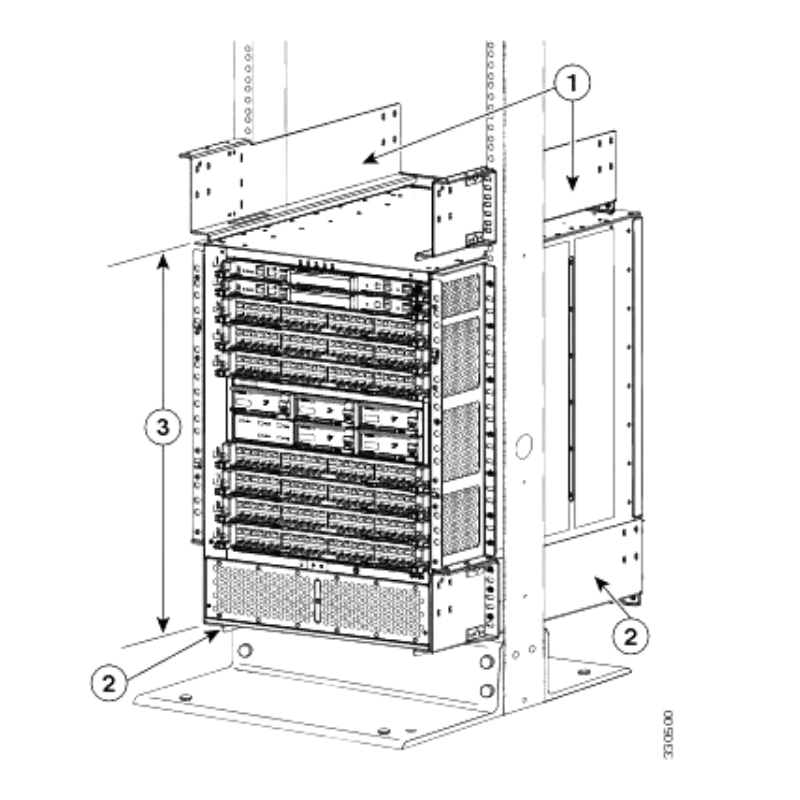

The Cisco N7K-C7009-BUN2-P2 Managed Switch is rack-mountable, making it a convenient and space-saving solution for data centers and other networking environments. The rack-mountable form factor offers several advantages in terms of installation, organization, and scalability.

Efficient Space Management

Rack-mountable switches allow for efficient utilization of limited space within data centers or server rooms. By mounting the switch in a standard rack, you can consolidate your networking equipment in a centralized location, reducing clutter and freeing up valuable floor space. This organized setup not only improves aesthetics but also facilitates easier maintenance and troubleshooting.

Furthermore, the rack-mountable form factor enables easy scalability. As your network grows or your requirements change, you can simply add more rack-mounted switches to accommodate additional devices or expand your network capacity. This modular approach to network expansion eliminates the need for significant reconfigurations or hardware replacements, saving time and resources.

Improved Airflow and Cooling

Rack-mountable switches typically feature a design that promotes proper airflow and cooling. The switch's placement within the rack allows for efficient ventilation, ensuring that the switch remains within optimal operating temperatures. This design helps prevent overheating issues that can lead to performance degradation or even equipment failure.

In addition, the organized arrangement of rack-mounted switches facilitates the implementation of dedicated cooling systems, such as fans or air conditioning units. These cooling systems can be strategically positioned to provide targeted airflow to the switches, further enhancing their overall reliability and longevity.

Benefits of Rack-Mountable Form Factor

• Efficient space management and organization
• Easy scalability and expansion
• Improved ventilation and cooling
• Reduced risk of overheating and equipment failure
• Simplified maintenance and troubleshooting

Importance of Rack-Mountable Form Factor

The form factor of a switch plays a crucial role in efficient space management, scalability, and overall reliability. The rack-mountable form factor of the Cisco N7K-C7009-BUN2-P2 Managed Switch offers these benefits, allowing businesses to optimize their network infrastructure within limited space. By utilizing rack-mounted switches, businesses can ensure proper airflow, simplify maintenance, and easily accommodate future growth without major disruptions or additional investments in infrastructure.

Max Throughput

The Cisco N7K-C7009-BUN2-P2 Managed Switch offers a maximum throughput of up to 46 Tbps, making it an ideal choice for high-performance networking environments that demand exceptional speed and bandwidth capabilities. The impressive throughput capacity of this switch enables seamless data transfer, efficient communication between devices, and support for bandwidth-intensive applications.

High-Speed Data Transfer

The maximum throughput of up to 46 Tbps ensures that data can be transferred at incredibly high speeds within your network. This is particularly important for businesses that handle large volumes of data or require real-time communication between devices. Whether you need to transfer large files, stream high-definition multimedia content, or support latency-sensitive applications, this switch can handle the demands of high-speed data transfer.

With such a high throughput capacity, the Cisco N7K-C7009-BUN2-P2 Managed Switch minimizes bottlenecks and latency issues that can hinder network performance. This allows for smooth and uninterrupted data flow, resulting in improved productivity and user experience for both employees and customers.

Bandwidth-Intensive Applications

Bandwidth-intensive applications, such as video conferencing, virtualization, or cloud computing, require a network infrastructure capable of supporting high levels of data traffic. The Cisco N7K-C7009-BUN2-P2 Managed Switch's maximum throughput of up to 46 Tbps ensures that these applications can operate at their full potential without experiencing performance degradation or slowdowns.

By providing sufficient bandwidth for bandwidth-intensive applications, this switch enables businesses to take full advantage of modern technologies and services that rely on high-speed data transfer. Whether you operate in a multimedia-rich environment or rely on cloud-based services for critical business operations, the Cisco N7K-C7009-BUN2-P2 ensures that your network infrastructure can keep up with the demands of today's digital landscape.

Benefits of Up to 46 Tbps Throughput

• High-speed data transfer for improved productivity
• Seamless communication between devices
• Support for bandwidth-intensive applications
• Reduced latency and network congestion
• Enhanced user experience for multimedia content

Importance of Up to 46 Tbps Throughput

The maximum throughput capacity of a switch is a critical factor when it comes to network performance and the ability to support bandwidth-intensive applications. With a maximum throughput of up to 46 Tbps, the Cisco N7K-C7009-BUN2-P2 Managed Switch ensures that businesses can achieve high-speed data transfer, seamless communication, and optimal performance for their applications. This level of throughput is essential for businesses that rely on data-intensive tasks and real-time communication to drive their operations forward.

Features

The Cisco N7K-C7009-BUN2-P2 Managed Switch offers a range of features that contribute to its reliability, availability, and scalability. Some of the key features of this switch include hot-swappable power supplies, hot-swappable fan trays, high availability, and scalability.

Hot-Swappable Power Supplies

The hot-swappable power supplies of the Cisco N7K-C7009-BUN2-P2 enable quick and easy replacement of power supplies without interrupting the operation of the switch. In case of a power supply failure or maintenance requirements, you can simply remove the faulty power supply and replace it with a new one while the switch continues to function normally.

This hot-swappable feature eliminates the need to power down the entire switch or disrupt network operations when replacing power supplies. It significantly reduces downtime and ensures continuous availability of your network, even during power supply replacements. This feature is particularly beneficial for businesses that require uninterrupted connectivity and cannot afford any disruptions in their operations.

Hot-Swappable Fan Trays

Similar to hot-swappable power supplies, the Cisco N7K-C7009-BUN2-P2 Managed Switch also features hot-swappable fan trays. These fan trays can be easily replaced without affecting the operation of the switch, providing flexibility and convenience in maintaining optimal cooling within the switch.

In the event of a fan failure or the need for fan tray maintenance, you can quickly replace the faulty fan tray while the switch remains operational. This hot-swappable feature ensures that the switch remains within optimal operating temperatures, minimizing the risk of overheating and performance degradation. By facilitating easy fan replacement, this feature contributes to the overall reliability and longevity of the switch.

High Availability

The high availability of the Cisco N7K-C7009-BUN2-P2 Managed Switch is achieved through its redundant power supplies, as discussed earlier. By ensuring backup power and load distribution, this switch minimizes the risk of network downtime and provides continuous connectivity, even during critical situations.

In addition to redundant power supplies, this switch also supports various high availability features such as link aggregation and virtual port channels. These features allow for increased network resilience, efficient load balancing, and redundancy in case of link failures. By utilizing these high availability features, businesses can ensure uninterrupted access to their network resources and minimize the impact of potential disruptions.

Scalability

The scalability of the Cisco N7K-C7009-BUN2-P2 Managed Switch is another notable feature that allows businesses to expand their network infrastructure without replacing their existing equipment. With a high number of ports and support for advanced routing capabilities, this switch can accommodate growing network demands and evolving business requirements.

By investing in a scalable switch from the beginning, businesses can avoid the costly process of replacing entire switches or adding additional networking equipment to accommodate expansion. The scalability feature allows for seamless integration of new devices and facilitates network growth without compromising performance or reliability.

Benefits of Hot-Swappable Power Supplies, Hot-Swappable Fan Trays, High Availability, and Scalability

• Minimized network downtime during power supply replacements
• Easy maintenance and replacement of fan trays
• Continuous availability of network resources
• Improved cooling
