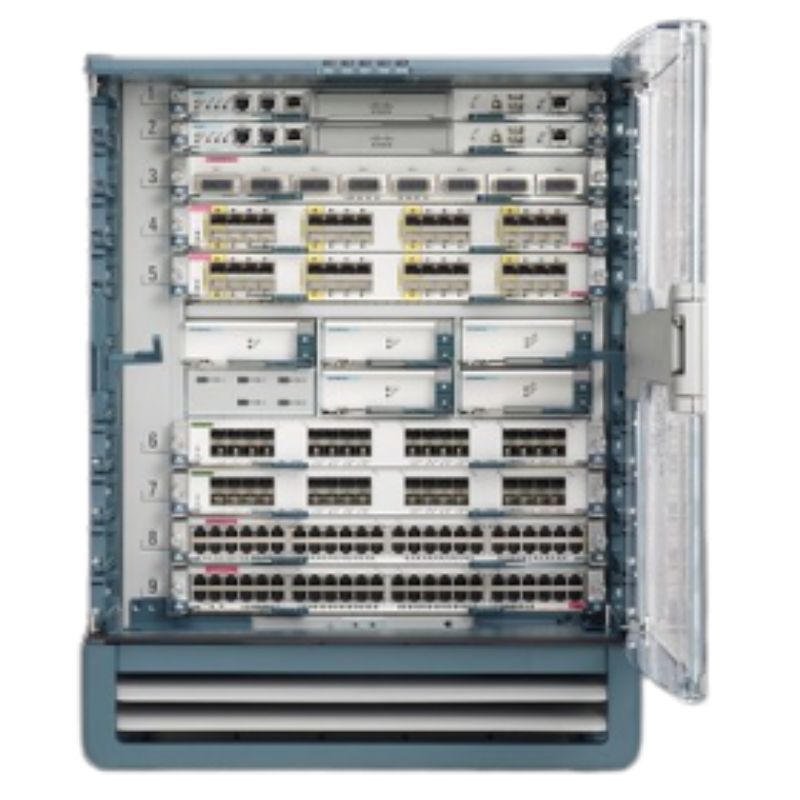

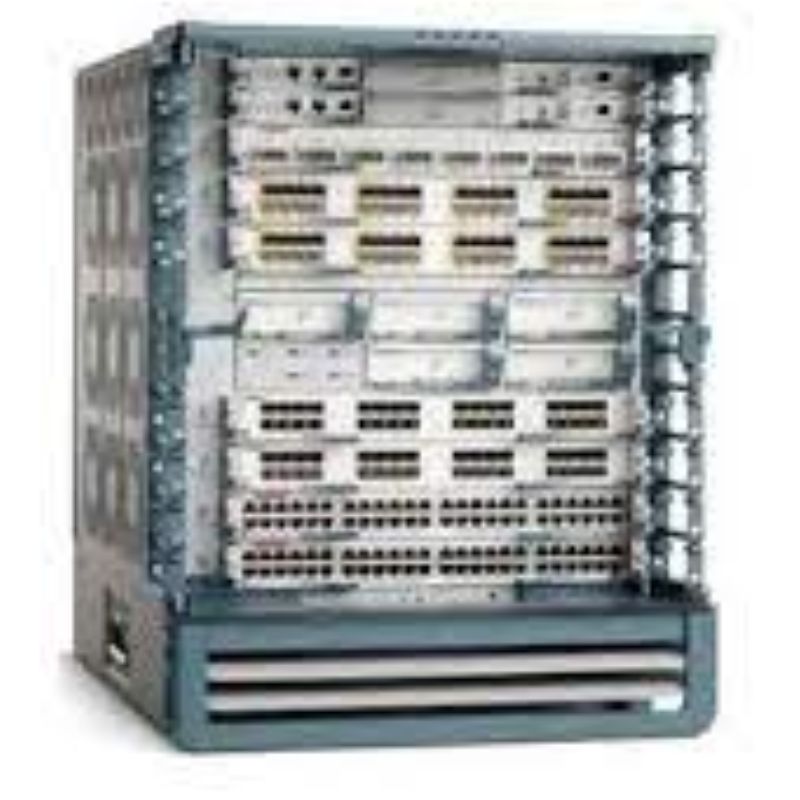

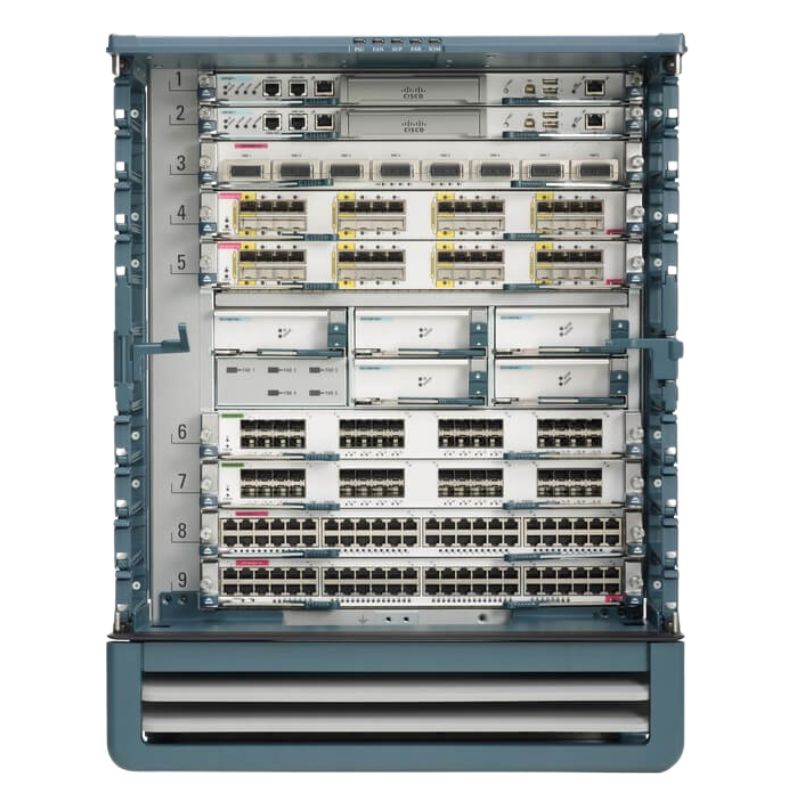

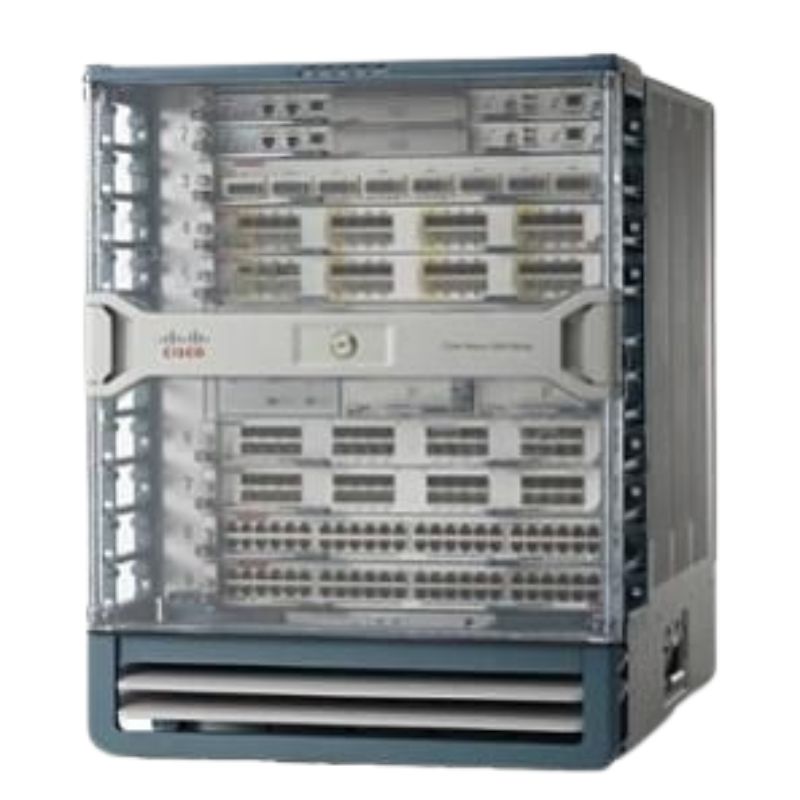

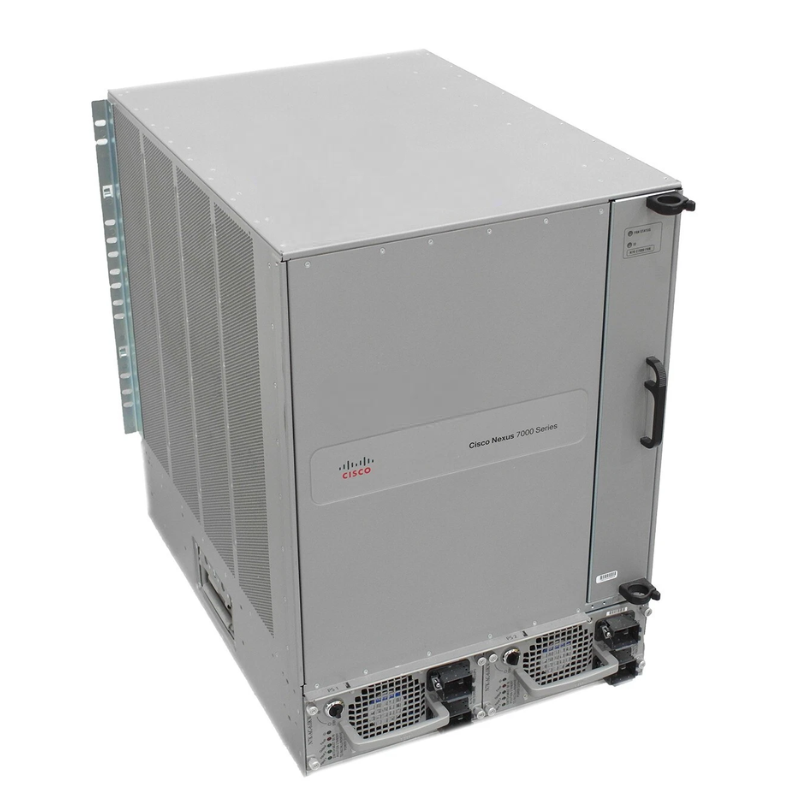

Cisco N7K-C7009 Nexus 7000 Series 9 Slots Switch Chassis

Cisco Nexus 7009 Switch Chassis Overview

General Product Details

• Manufacturer: Cisco
• Model Number: N7K-C7009
• Product Line: Nexus
• Series: 7000
• Model: 7009
• Type: Switch Chassis

Interface and Port Specifications

Stacking and Expansion

• Stack Port: Yes

Expansion Capabilities

• Total Expansion Slots: 9
• Slot Type: Supervisor Engine

Network and Communication Features

• Supported Layer: Layer 2

Management and Protocols

• Manageable: Yes

Power and Environmental Details

Power Specifications

• PoE (RJ-45) Port: No
• Input Voltage Options: 110 V AC, 220 V AC

Environmental Compliance

• Green Compliance: Yes
• Certification: RoHS-5

Physical Dimensions

• Compatible Rack Unit: 14U
• Form Factor: Rack-mountable
• Width: 17.3 inches
• Depth: 24 inches
• Height: 24.5 inches
• Weight (Approximate): 100 lbs

Package Contents

• Nexus 7009 Switch Chassis
• Fans

Slots

The Cisco N7K-C7009 Switch Chassis is a versatile and high-performance solution designed to meet the demands of modern data centers. One of its standout features is its 9 slots, which provide exceptional flexibility and scalability for your network infrastructure.

Flexible Expansion Options

With 9 slots available, this switch chassis offers plenty of room for expansion and customization. The multiple slots allow you to add various line cards, supervisor modules, and fabric modules to meet your specific networking needs. Whether you need additional ports, enhanced performance, or advanced features, the Cisco N7K-C7009 can accommodate it all.

Each slot supports a wide range of modules, including 1/10/40/100 Gigabit Ethernet line cards, Fibre Channel modules, and service modules. This flexibility enables you to easily adapt your network infrastructure as your organization grows or changes over time.

Scalability

The 9-slot design of the Cisco N7K-C7009 provides exceptional scalability for your network. Whether you are operating a small business or a large enterprise, this switch chassis can scale alongside your organization's needs.

As you expand your network and add more devices, the Cisco N7K-C7009 allows you to add new modules without needing to invest in an entirely new chassis. This scalability not only saves you money but also minimizes disruption to your operations.

Redundancy and High Availability

The Cisco N7K-C7009 is built with redundancy in mind to ensure maximum uptime for your network. With 9 slots available, you can implement redundant supervisor modules, fabric modules, and power supplies.

In the event of a hardware failure or maintenance activity, the redundant components kick in seamlessly, ensuring uninterrupted network operation. This high availability feature is crucial for businesses that rely heavily on their network infrastructure for day-to-day operations.

Redundant Supervisor Modules

The Cisco N7K-C7009 supports dual supervisor modules, allowing for active-standby redundancy. In the event of a failure in the primary supervisor module, the secondary module takes over automatically, minimizing downtime and ensuring continuous network operation.

Redundant Fabric Modules

With 9 slots available, you have the option to install redundant fabric modules. These modules provide the necessary bandwidth and switching capacity to handle the increased traffic in case of a failure in one of the fabric modules.

Redundant fabric modules ensure that your network maintains optimal performance and minimizes packet loss even during hardware failures or maintenance activities.

Redundant Power Supplies

The Cisco N7K-C7009 supports multiple power supplies, offering redundancy in power distribution. In case of a power supply failure, the remaining power supplies continue to provide power to the switch chassis, ensuring uninterrupted operation.

Hot-Swappable Modules

In addition to its scalability and redundancy features, the Cisco N7K-C7009 supports hot-swappable modules. This means that you can add, remove, or replace modules without needing to power down the entire system.

This feature significantly reduces downtime and allows for easier maintenance and upgrades. It also offers flexibility in adapting your network to changing requirements without disrupting your operations.

Investment Protection

The 9-slot design of the Cisco N7K-C7009 ensures investment protection for your organization. By providing ample room for expansion and future-proofing your network infrastructure, this switch chassis allows you to adapt to evolving technologies and industry standards without requiring a complete overhaul.

With the ability to add new modules and upgrade existing ones, you can stay ahead of the curve and meet the increasing demands of your network without incurring significant costs.

In conclusion, the Cisco N7K-C7009 Switch Chassis's 9 slots offer unparalleled flexibility, scalability, redundancy, and investment protection for your network infrastructure. Whether you are a small business or a large enterprise, this switch chassis provides the foundation for a high-performance and reliable network.
